Abstract
The application discloses an environment-friendly bamboo-wood composite floor, which comprises a floor body, a female tenon and a male tenon; the floor body comprises a paint surface layer, a wear-resisting layer, a waterproof layer, a base layer, a heat-insulating layer and a moisture-proof layer, wherein the paint surface layer is coated on the upper surface of the wear-resisting layer, the wear-resisting layer is positioned on the upper surface of the waterproof layer, the wear-resisting layer is connected with the waterproof layer in a gluing mode, the waterproof layer is positioned on the upper surface of the base layer, the waterproof layer is connected with the base layer in a gluing mode, the base layer is positioned on the upper surface of the heat-insulating layer, the heat-insulating layer is positioned on the upper surface of the moisture-proof layer, and the heat-insulating layer is connected with the moisture-proof layer in a gluing mode. The wear-resistant layer adopts a wear-resistant ceramic plate which has excellent wear resistance, corrosion resistance and high temperature resistance; waterproof layer adopts waterproof aluminium foil, and waterproof aluminium foil can improve the waterproof nature of floor body, avoids the inside of water entering floor body.
Description
Technical Field
The application relates to the technical field of composite floors, in particular to an environment-friendly bamboo-wood composite floor.
Background
The composite floor is one of floors; however, the natural structure of the floor material is artificially changed to achieve a floor with certain physical properties meeting expected requirements, and the composite floor is often referred to as a reinforced composite floor and a solid composite floor in the market.
CN213297009U discloses a novel energy-saving and environment-friendly bamboo-wood composite floor for a container. This novel energy-concerving and environment-protective container bamboo wood laminate flooring is equipped with the hemisphere arch that the equidistance is matrix distribution at transparent protection shield's upside surface, has improved this bamboo wood laminate flooring's antiskid effect, through being equipped with dampproof board and dampproof course, has improved the dampproof nature of this bamboo wood laminate flooring's bottom. The prior art is mainly based on the fact that the moisture-proof board and the moisture-proof layer are added in the composite floor to improve the moisture resistance of the composite floor, and each component layer is not easy to separate and durable.
That is, the prior art has the following technical problems: when water exists on the surface of the existing composite floor, water easily permeates into the floor, so that the service life of the floor is reduced, and the existing composite floors lack of sound insulation effect. Therefore, an environment-friendly bamboo-wood composite floor is provided for solving the problems.
Disclosure of Invention
An object of the application is to provide an environment-friendly bamboo-wood composite floor, which has the advantages of water resistance and moisture resistance, and solves the problem that the existing bamboo-wood composite floor lacks a sound insulation function.
An environment-friendly bamboo-wood composite floor comprises a floor body, a female tenon and a male tenon;
the floor body comprises a paint surface layer, a wear-resisting layer, a waterproof layer, a base layer, a heat-insulating layer and a moisture-proof layer, wherein the paint surface layer is coated on the upper surface of the wear-resisting layer, the wear-resisting layer is positioned on the upper surface of the waterproof layer, the wear-resisting layer is connected with the waterproof layer in a gluing mode, the waterproof layer is positioned on the upper surface of the base layer, the waterproof layer is connected with the base layer in a gluing mode, the base layer is positioned on the upper surface of the heat-insulating layer, the heat-insulating layer is positioned on the upper surface of the moisture-proof layer, and the heat-insulating layer is connected with the moisture-proof layer in a gluing mode.
Further, both sides of the floor body are respectively provided with the female tenons and the male tenons, and the sizes of the female tenons and the male tenons are matched.
Further, the paint surface layer is composed of a light-cured primer and a light-cured surface paint, wherein the light-cured primer is coated on the surface of the wear-resistant layer, and the light-cured surface paint is coated on the surface of the light-cured primer.
Further, the wear-resistant layer is made of a wear-resistant ceramic plate, the waterproof layer is made of waterproof aluminum foil, and the base layer is made of bamboo board.
Further, the heat preservation layer adopts a hard polyurethane foam plastic plate, and the moisture-proof layer adopts moisture-proof carbon cloth.
Further, the surface of the base layer is provided with a through hole, the through hole penetrates through the heat insulation layer, and sound-absorbing cotton is filled in the through hole.
By the embodiment of the application, the wear-resistant layer is made of a wear-resistant ceramic plate, and the wear-resistant ceramic plate has excellent wear resistance, corrosion resistance and high temperature resistance; waterproof layer adopts waterproof aluminium foil, and waterproof aluminium foil can improve the waterproof nature of floor body, avoids the inside of water entering floor body.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings that are required in the embodiments or the description of the prior art will be briefly described below, it being obvious that the drawings in the following description are only some embodiments of the present application, and that other drawings may be obtained according to these drawings without inventive faculty for a person skilled in the art.

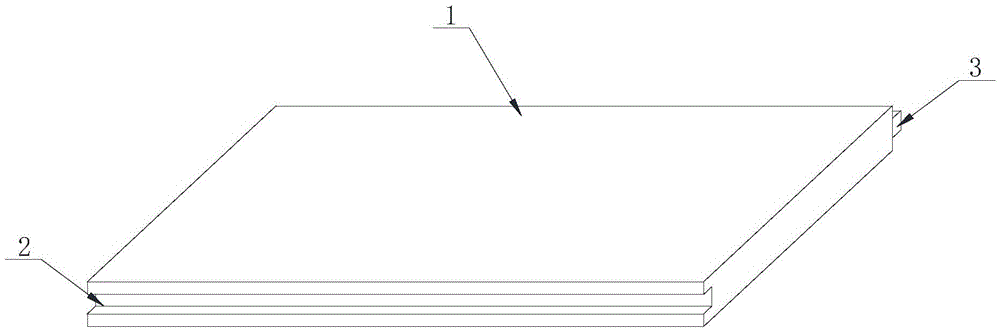

FIG. 1 is a schematic overall perspective view of an embodiment of the present application;
FIG. 2 is a schematic diagram of the overall internal structure of an embodiment of the present application;
FIG. 3 is a schematic diagram of an infrastructure of an embodiment of the present application.
In the figure: 1. a floor body; 2. a female tenon; 3. a male tenon; 4. a paint surface layer; 5. a wear-resistant layer; 6. a waterproof layer; 7. a base layer; 8. a heat preservation layer; 9. a moisture barrier; 10. a through hole; 11. sound absorbing cotton.
Detailed Description
In order to make the present application solution better understood by those skilled in the art, the following description will be made in detail and with reference to the accompanying drawings in the embodiments of the present application, it is apparent that the described embodiments are only some embodiments of the present application, not all embodiments. All other embodiments, which can be made by one of ordinary skill in the art based on the embodiments herein without making any inventive effort, shall fall within the scope of the present application.
It should be noted that the terms "first," "second," and the like in the description and claims of the present application and the above figures are used for distinguishing between similar objects and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used may be interchanged where appropriate in order to describe the embodiments of the present application described herein. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
In the present application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal" and the like indicate an azimuth or a positional relationship based on that shown in the drawings. These terms are used primarily to better describe the present application and its embodiments and are not intended to limit the indicated device, element or component to a particular orientation or to be constructed and operated in a particular orientation.
Also, some of the terms described above may be used to indicate other meanings in addition to orientation or positional relationships, for example, the term "upper" may also be used to indicate some sort of attachment or connection in some cases. The specific meaning of these terms in this application will be understood by those of ordinary skill in the art as appropriate.
Furthermore, the terms "mounted," "configured," "provided," "connected," "coupled," and "sleeved" are to be construed broadly. For example, it may be a fixed connection, a removable connection, or a unitary construction; may be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements, or components. The specific meaning of the terms in this application will be understood by those of ordinary skill in the art as the case may be.
It should be noted that, in the case of no conflict, the embodiments and features in the embodiments may be combined with each other. The present application will be described in detail below with reference to the accompanying drawings in conjunction with embodiments.
Referring to fig. 1-3, an environment-friendly bamboo-wood composite floor comprises a floor body 1, a female tenon 2 and a male tenon 3;
the floor body 1 comprises a paint surface layer 4, a wear-resistant layer 5, a waterproof layer 6, a base layer 7, a heat preservation layer 8 and a moisture-proof layer 9, wherein the paint surface layer 4 is coated on the upper surface of the wear-resistant layer 5, the wear-resistant layer 5 is positioned on the upper surface of the waterproof layer 6, the wear-resistant layer 5 is connected with the waterproof layer 6 in a gluing way, the waterproof layer 6 is positioned on the upper surface of the base layer 7 in a gluing way, the base layer 7 is positioned on the upper surface of the heat preservation layer 8, the base layer 7 is connected with the heat preservation layer 8 in a gluing way, the heat preservation layer 8 is positioned on the upper surface of the moisture-proof layer 9, and the heat preservation layer 8 is connected with the moisture-proof layer 9 in a gluing way.
The two sides of the floor body 1 are respectively provided with the female tenon 2 and the male tenon 3, and the sizes of the female tenon 2 and the male tenon 3 are matched; the paint surface layer 4 is composed of a light-cured primer and a light-cured surface paint, wherein the light-cured primer is coated on the surface of the wear-resistant layer 5, and the light-cured surface paint is coated on the surface of the light-cured primer; the wear-resistant layer 5 is made of a wear-resistant ceramic plate, the waterproof layer 6 is made of waterproof aluminum foil, and the base layer 7 is made of a bamboo board; the heat preservation layer 8 is made of hard polyurethane foam plastic plates, and the moisture-proof layer 9 is made of moisture-proof carbon cloth; the surface of the base layer 7 is provided with a through hole 10, the through hole 10 penetrates through the heat insulation layer 8, and sound-absorbing cotton 11 is filled in the through hole 10.
When the floor board is used, the two sides of the floor board body 1 are respectively provided with the female tenon 2 and the male tenon 3, and the two adjacent floor board bodies 1 can be spliced through the female tenon 2 and the male tenon 3; the paint surface layer 4 is composed of a photo-curing primer and a photo-curing surface paint, and the photo-curing primer and the photo-curing surface paint can improve the corrosion resistance and the illumination resistance of the floor body 1; the wear-resistant layer 5 is made of a wear-resistant ceramic plate which has excellent wear resistance, corrosion resistance and high temperature resistance; the waterproof layer 6 adopts waterproof aluminum foil, the waterproof aluminum foil can improve the waterproof performance of the floor body 1, water is prevented from entering the inside of the floor body 1, the base layer 7 adopts bamboo boards, the environment friendliness is good, and the mildew phenomenon can be avoided; the heat preservation layer 8 adopts a hard polyurethane foam plastic plate, the heat preservation performance and the fireproof flame retardant performance of the hard polyurethane foam plastic plate are better, the dampproof layer 9 adopts dampproof carbon cloth, and the dampproof carbon cloth has good dampproof and humidity adjusting capabilities; the inside of the floor body 1 is filled with the sound absorbing cotton 11, and the sound absorbing cotton 11 can absorb the sound at the bottom, so that the purpose of sound insulation can be achieved.
The beneficial point of the application lies in:
1. the wear-resistant layer adopts a wear-resistant ceramic plate which has excellent wear resistance, corrosion resistance and high temperature resistance; the waterproof layer adopts waterproof aluminum foil, so that the waterproof property of the floor body can be improved, and water is prevented from entering the inside of the floor body;
2. the heat preservation of this application adopts stereoplasm polyurethane foam plastic plate, and stereoplasm polyurethane foam plastic plate heat preservation performance, fire prevention fire retardant performance are better, and dampproof course adopts dampproofing charcoal cloth, and dampproofing charcoal cloth has good dampproofing and humidity control's ability.
The above description is only of the preferred embodiments of the present application and is not intended to limit the present application, but various modifications and variations are possible to those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present application should be included in the protection scope of the present application.
Claims (6)
1. An environment-friendly bamboo-wood composite floor is characterized in that: comprises a floor body (1), a female tenon (2) and a male tenon (3);
the floor body (1) comprises a paint surface layer (4), a wear-resisting layer (5), a waterproof layer (6), a base layer (7), a heat preservation layer (8) and a moisture-proof layer (9), wherein the paint surface layer (4) is coated on the upper surface of the wear-resisting layer (5), the wear-resisting layer (5) is positioned on the upper surface of the waterproof layer (6), the wear-resisting layer (5) is connected with the waterproof layer (6) in a gluing way, the waterproof layer (6) is positioned on the upper surface of the base layer (7), the waterproof layer (6) is connected with the base layer (7) in a gluing way, the base layer (7) is connected with the heat preservation layer (8) in a gluing way, and the heat preservation layer (8) is positioned on the upper surface of the moisture-proof layer (9) in a gluing way.
2. The environment-friendly bamboo-wood composite floor as claimed in claim 1, wherein:
the two sides of the floor body (1) are respectively provided with the female tenon (2) and the male tenon (3), and the sizes of the female tenon (2) and the male tenon (3) are matched.
3. The environment-friendly bamboo-wood composite floor as claimed in claim 1, wherein:
the paint surface layer (4) is composed of a light-cured primer and a light-cured surface paint, wherein the light-cured primer is coated on the surface of the wear-resistant layer (5), and the light-cured surface paint is coated on the surface of the light-cured primer.
4. The environment-friendly bamboo-wood composite floor as claimed in claim 1, wherein:
the wear-resistant ceramic plate is adopted as the wear-resistant layer (5), the waterproof layer (6) is waterproof aluminum foil, and the bamboo board is adopted as the base layer (7).
5. The environment-friendly bamboo-wood composite floor as claimed in claim 1, wherein:
the heat insulation layer (8) adopts a hard polyurethane foam plastic plate, and the moisture-proof layer (9) adopts moisture-proof carbon cloth.
6. The environment-friendly bamboo-wood composite floor as claimed in claim 1, wherein:
the surface of the base layer (7) is provided with a through hole (10), the through hole (10) penetrates through the heat insulation layer (8), and sound-absorbing cotton (11) is filled in the through hole (10).
