Abstract

The utility model relates to the technical field of steel processing, and discloses a steel cutting device, which comprises a workbench, wherein a fixing groove is formed in the top of the workbench, a first motor is fixed at the top of the workbench, a cutting blade is fixed on an output shaft of the first motor, and the cutting blade is matched with the fixing groove for use; according to the utility model, through the arrangement of the transmission mechanism and the cutting blade, the steel plate can be cut while moving, the third motor and the polishing rod can polish the steel plate at the cutting position, the burr residues are reduced, the injury to workers is reduced, meanwhile, a lot of manpower is saved, the labor capacity of the workers is reduced, the cost of the workers is reduced, the water pipe and the spray head can spray water to cool the cutting position, the scalding of the workers is avoided, and meanwhile, the efficiency of the workers is improved, and the problems that the existing cutting device cannot clear burrs and cannot cool the steel plate are solved.

Description

Steel cutting device

Technical Field

The utility model relates to the technical field of steel processing, in particular to a steel cutting device.

Background

The steel is steel ingot, steel billet or steel material of certain shape, size and performance that the steel was made through press working, and most steel processing all is through press working, makes the steel (base, spindle etc.) of being processed produce plastic deformation, according to steel processing temperature difference, can divide into cold working and hot working two kinds of modern society, and the technology is developed fast, and the demand to steel is also higher and higher, relates to the society each side, and most steel is in the form of piece or platy when leaving the factory, when using, often need cut these steel sheets.

At present, the steel sheet cutting is very extensive, can have some burrs at the steel sheet after the cutting, when the staff carries the steel sheet after the cutting, the burr of incision department can cut the hand of staff, make the staff injured, there is great potential safety hazard, therefore need handle in addition, need add more manpower in order to get rid of the burr, increase staff's amount of labour, still make workman's cost increase, simultaneously when the staff needs the transport after the cutting, because incision department remaining high temperature, can scald the hand of staff when the transport, cause the staff to be injured, work efficiency reduces.

Disclosure of Invention

The present utility model has been made in view of the above-mentioned problems occurring in the prior art, and an object of the present utility model is to provide a steel cutting device.

In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a steel cutting device, includes the workstation, the fixed slot has been seted up at the top of workstation, the top of workstation is fixed with first motor, the output shaft of first motor is fixed with cutting blade, cutting blade and fixed slot cooperation are used, the back of workstation is fixed with drive mechanism, the fixed third motor in top of workstation, the output shaft of third motor is fixed with the stick of polishing, the inner chamber of workstation is fixed with the water pipe, the one end intercommunication of water pipe is provided with the shower nozzle, the top left and right sides of workstation all is fixed with moving mechanism, moving mechanism's top all is fixed with the fixed plate, the top of fixed plate all is fixed with the roof, the bottom of roof all is fixed with the hydraulic stem, the bottom of hydraulic stem is fixed with the fixed shell, the inner chamber rotation of fixed shell is connected with the gyro wheel.

Preferably, the transmission mechanism comprises a first supporting plate, the first supporting plate is fixedly connected with the workbench, a second motor is fixed at the top of the first supporting plate, a driving shaft is fixed on an output shaft of the second motor, a timing belt is movably connected to the surface of the driving shaft, and a driven shaft is movably arranged on the surface of the timing belt.

Preferably, the moving mechanism comprises a second supporting plate, the second supporting plate is fixedly connected with the workbench, a fourth motor is fixed at the top of the second supporting plate, a threaded rod is fixed on an output shaft of the fourth motor, sleeves are connected with two ends of the threaded rod in a threaded mode, and the sleeves are fixedly connected with the fixing plate.

Preferably, bearing seats are fixed on the left side and the right side of the inner cavity of the workbench, and the other end of each bearing seat is rotationally connected with the threaded rod.

Preferably, the opposite sides of the fixed plate are respectively connected with guide wheels in a rotating way, and the number of the guide wheels is a plurality of.

Preferably, the diameter of the polishing rod is the same as the thickness of the cutting blade.

Compared with the prior art, the utility model has the following beneficial effects:

according to the utility model, through the arrangement of the transmission mechanism and the cutting blade, the steel plate can be cut while moving, the third motor and the polishing rod can polish the steel plate at the cutting position, the burr residues are reduced, the injury to workers is reduced, meanwhile, a lot of manpower is saved, the labor capacity of the workers is reduced, the cost of the workers is reduced, the water pipe and the spray head can spray water to cool the cutting position, the scalding of the workers is avoided, and meanwhile, the efficiency of the workers is improved, and the problems that the existing cutting device cannot clear burrs and cannot cool the steel plate are solved.

Drawings

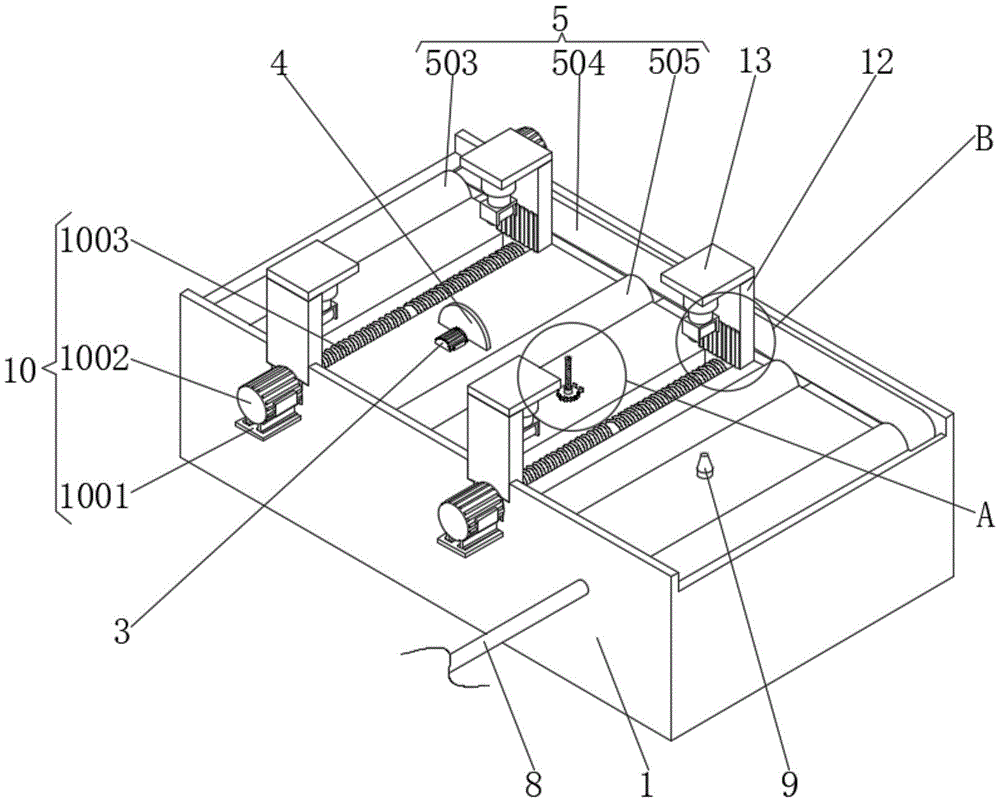

FIG. 1 is a schematic front perspective view of the present utility model;

FIG. 2 is a schematic view of a perspective partial cross-sectional structure of another view of the present utility model;

FIG. 3 is a schematic view of a front partial perspective structure of the present utility model;

FIG. 4 is a schematic view of the structure of the present utility model shown in FIG. 1 at a partially enlarged scale;

FIG. 5 is a schematic view of a partially enlarged structure of the present utility model at B in FIG. 1;

fig. 6 is a schematic view of a partial enlarged structure at C in fig. 2 according to the present utility model.

In the figure: 1. a work table; 2. a fixing groove; 3. a first motor; 4. a cutting blade; 5. a transmission mechanism; 501. a first support plate; 502. a second motor; 503. a driving shaft; 504. a timing belt; 505. a driven shaft; 6. a third motor; 7. polishing the rod; 8. a water pipe; 9. a spray head; 10. a moving mechanism; 1001. a second support plate; 1002. a fourth motor; 1003. a threaded rod; 1004. a sleeve; 11. a bearing seat; 12. a fixing plate; 13. a top plate; 14. a hydraulic rod; 15. a fixed case; 16. a roller; 17. and a guide wheel.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Referring to fig. 1-6, a steel cutting device comprises a workbench 1, a fixing groove 2 is formed in the top of the workbench 1, a first motor 3 is fixed at the top of the workbench 1, a cutting blade 4 is fixed on an output shaft of the first motor 3, the cutting blade 4 is matched with the fixing groove 2, a transmission mechanism 5 is fixed on the back of the workbench 1, a third motor 6 is fixed at the top of the workbench 1, a polishing rod 7 is fixed on an output shaft of the third motor 6, a water pipe 8 is fixed in an inner cavity of the workbench 1, a spray head 9 is arranged at one end of the water pipe 8 in a communicating manner, moving mechanisms 10 are fixed on the left side and the right side of the top of the workbench 1, a fixing plate 12 is fixed at the top of the moving mechanisms 10, a top plate 13 is fixed at the top of the fixing plate 12, a hydraulic rod 14 is fixed at the bottom of the top plate 13, a fixing shell 15 is fixed at the bottom of the hydraulic rod 14, and a roller 16 is rotatably connected to the inner cavity of the fixing shell 15.

The drive mechanism 5 includes first backup pad 501, first backup pad 501 and workstation 1 fixed connection, the top of first backup pad 501 is fixed with second motor 502, the output shaft of second motor 502 is fixed with driving shaft 503, the surface swing joint of driving shaft 503 has time rule belt 504, the surface activity of time rule belt 504 is provided with driven shaft 505, in this embodiment, through the setting of first backup pad 501, second motor 502, driving shaft 503, time rule belt 504 and driven shaft 505, the output shaft of second motor 502 drives driving shaft 503 rotation, thereby drive time rule belt 504 and remove, and then make the steel sheet have the mobility.

The moving mechanism 10 comprises a second supporting plate 1001, the second supporting plate 1001 is fixedly connected with the workbench 1, a fourth motor 1002 is fixed to the top of the second supporting plate 1001, a threaded rod 1003 is fixed to an output shaft of the fourth motor 1002, sleeves 1004 are connected to two ends of the threaded rod 1003 in a threaded mode, the sleeves 1004 are fixedly connected with the fixed plate 12, in this embodiment, through the arrangement of the second supporting plate 1001, the fourth motor 1002, the threaded rod 1003 and the sleeves 1004, the output shaft of the fourth motor 1002 drives the threaded rod 1003 to rotate, and parts at the top and the sleeve 1004 are driven to move under the action of threads on the surface of the threaded rod 1003, so that the width of a steel plate is adjusted.

The bearing frame 11 is fixed with to the inner chamber left and right sides of workstation 1, and the other end and the threaded rod 1003 rotation of bearing frame 11 are connected, and in this embodiment, through the setting of bearing frame 11, can provide stability to threaded rod 1003, make threaded rod 1003 more stable in the rotation.

The opposite side of the fixed plate 12 is respectively connected with a plurality of guide wheels 17 in a rotating way, and in the embodiment, the steel plate can be guided through the arrangement of the guide wheels 17, so that the friction force between the steel plate and the fixed plate 12 is reduced, and the steel plate is smoother when moving.

The diameter of the polishing rod 7 is the same as the thickness of the cutting blade 4, and in this embodiment, through such arrangement, the polishing rod 7 can polish the cutting positions on two sides of the steel plate, so that the burr residue is reduced.

Working principle: firstly, a steel plate is placed on the surface of a driving shaft 503, then a fourth motor 1002 is started simultaneously, an output shaft of the fourth motor 1002 drives a forward and reverse threaded rod 1003 to rotate, a sleeve 1004 and parts at the top of the sleeve are driven to move in opposite directions under the action of threads on the surface of the forward and reverse threaded rod 1003, the fixing plates 12 on two sides clamp and fix the steel plate, after adjustment is finished, a worker starts a hydraulic rod 14 simultaneously, the hydraulic rod 14 drives parts at the bottom to move downwards, a roller 16 presses the surface of the steel plate to further fix the steel plate, then the worker starts a first motor 3, an output shaft of the first motor 3 drives a cutting blade 4 to rotate to cut the steel plate, cut scraps fall to the ground through a fixing groove 2, then the worker starts a second motor 502, the output shaft of the second motor 502 drives the driving shaft 503 to rotate, the driving shaft 503 drives a timing belt 504 to move, then drives the steel plate to move, the worker starts a third motor 6 immediately, the output shaft of the third motor 6 drives a polishing rod 7 to rotate, the polishing rod 7 polishes burrs at a cutting position, and water is discharged into an inner water pipe 8, and then the water spray nozzle 9 can be cooled down.

It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising one … …" does not exclude the presence of other like elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a steel cutting device, includes workstation (1), its characterized in that: the utility model discloses a grinding machine for the electric power machine, including workstation (1), fixed slot (2) have been seted up at the top of workstation (1), the top of workstation (1) is fixed with first motor (3), the output shaft of first motor (3) is fixed with cutting blade (4), cutting blade (4) and fixed slot (2) cooperation are used, the back of workstation (1) is fixed with drive mechanism (5), the top of workstation (1) is fixed with third motor (6), the output shaft of third motor (6) is fixed with stick of polishing (7), the inner chamber of workstation (1) is fixed with water pipe (8), the one end intercommunication of water pipe (8) is provided with shower nozzle (9), the top left and right sides of workstation (1) all is fixed with mobile mechanism (10), the top of mobile mechanism (10) all is fixed with fixed plate (12), the top of fixed plate (12) all is fixed with roof (13), the bottom of roof (13) all is fixed with hydraulic rod (14), the bottom of hydraulic rod (14) is fixed with shell (15), the inner chamber (16) are connected with gyro wheel (16).

2. A steel cutting device according to claim 1, wherein: the transmission mechanism (5) comprises a first supporting plate (501), the first supporting plate (501) is fixedly connected with the workbench (1), a second motor (502) is fixed at the top of the first supporting plate (501), a driving shaft (503) is fixed on an output shaft of the second motor (502), a timing belt (504) is movably connected to the surface of the driving shaft (503), and a driven shaft (505) is movably arranged on the surface of the timing belt (504).

3. A steel cutting device according to claim 1, wherein: the moving mechanism (10) comprises a second supporting plate (1001), the second supporting plate (1001) is fixedly connected with the workbench (1), a fourth motor (1002) is fixed at the top of the second supporting plate (1001), a threaded rod (1003) is fixed on an output shaft of the fourth motor (1002), sleeves (1004) are connected to two ends of the threaded rod (1003) in a threaded mode, and the sleeves (1004) are fixedly connected with the fixing plate (12).

4. A steel cutting device according to claim 3, wherein: bearing blocks (11) are fixed on the left side and the right side of the inner cavity of the workbench (1), and the other end of each bearing block (11) is rotationally connected with a threaded rod (1003).

5. A steel cutting device according to claim 1, wherein: the opposite sides of the fixed plate (12) are respectively connected with guide wheels (17) in a rotating mode, and the number of the guide wheels (17) is a plurality.

6. A steel cutting device according to claim 1, wherein: the diameter of the polishing rod (7) is the same as the thickness of the cutting blade (4).
