CN218889681U

CN218889681U - Patient limb adjustment fixing device for ultrasonic examination

Info

Publication number: CN218889681U
Application number: CN202223486559.9U
Authority: CN
Inventors: 柯淑丽; 车鹏飞; 杨剑; 胡莉莉; 向小蔚
Original assignee: Affiliated Renhe Hospital of China Three Gorges University
Current assignee: Affiliated Renhe Hospital of China Three Gorges University
Priority date: 2022-12-27
Filing date: 2022-12-27
Publication date: 2023-04-21
Anticipated expiration: 2032-12-27

Abstract

The utility model discloses a patient limb adjusting and fixing device for ultrasonic examination, which comprises a bed plate, a hand rest arranged in the middle of the bed tail of the bed plate, and binding belts arranged at two sides of the bed head of the bed plate, wherein folding plates are hinged at two ends of the middle of the bed tail of the bed plate, and the upper surface of each folding plate is level to the upper surface of the bed plate; the locating hole has been offered jointly to the one end that the folded sheet kept away from articulated department, and the perforation has been offered to the plate body part that the bed board corresponds the locating hole, and the bed board is inserted through the perforation and is equipped with the dead lever, and the dead lever extends to the bed board inside and matches with the locating hole on the folded sheet. In the using process, the utility model can realize effective adjustment and fixation of the patient position in the process of performing breast ultrasonic examination and hydrothorax ultrasonic examination on the patient, can avoid occupying the ultrasonic examination operation space of doctors and preventing the patient position from keeping the normal ultrasonic examination operation of doctors, is convenient to use and is beneficial to popularization.

Description

Patient limb adjustment fixing device for ultrasonic examination

Technical Field

The utility model relates to the technical field of medical auxiliary instruments, in particular to a patient limb adjusting and fixing device for ultrasonic examination.

Background

Medical ultrasound examination (ultrasound examination, ultrasound diagnostics) is a medical imaging diagnostic technique based on ultrasound (ultrasound) to visualize muscle and internal organs, including their size, structure and pathological lesions.

During ultrasonic examination, patients are required to be matched with different body positions for examination according to different symptoms, including abdomen ultrasonic examination, neck ultrasonic examination, lower limb blood vessel ultrasonic examination, mammary gland ultrasonic examination, heart ultrasonic examination, pleural effusion ultrasonic examination and the like, wherein when the mammary gland ultrasonic examination is carried out, the patients need to take the modes of 'completely taking off the coat, lifting the arms or the head of the coat and fully exposing the mammary glands and armpits', and when more patients take the body positions, the phenomena of insufficient lifting time of the arms and interruption of doctor examination after putting down the arms are easy to occur; and when the pleural effusion ultrasonic examination is carried out, the patient needs to take the body position of 'sitting position, back to doctor, the clothes is pulled up, fully expose back', because the ultrasonic instrument of department of ultrasound is placed at the examination head of a bed more, the doctor sits at the ultrasonic instrument side, and the patient needs to remove the bench to reach above-mentioned body position this moment, and occupies the space that the doctor operated the ultrasonic instrument, uses inconveniently. To this end, we propose a patient limb adjustment fixture for ultrasound examination.

Disclosure of Invention

The object of the present utility model is to solve the drawbacks of the prior art and to propose a patient limb adjustment fixation device for ultrasound examinations.

In order to achieve the above purpose, the present utility model adopts the following technical scheme:

the limb adjusting and fixing device for the ultrasonic examination of the patient comprises a bed plate, a hand rest arranged in the middle of the bed tail of the bed plate, and binding belts arranged on two sides of the bed head of the bed plate, wherein folding plates are hinged to two ends of the middle of the bed tail of the bed plate, and the upper surfaces of the folding plates are flush with the upper surface of the bed plate; the folding plate is characterized in that one end of the folding plate, which is far away from the hinge joint, is provided with a positioning hole, a plate body part of the bed plate, which corresponds to the positioning hole, is provided with a perforation, a fixing rod is inserted into the bed plate through the perforation, and the fixing rod extends into the bed plate and is matched with the positioning hole on the folding plate; the embedded groove is formed in the middle of the upper surface of the bed plate between the folding plates, the hand rest is hinged to the front end in the embedded groove, and the upper surface of the hand rest when being stored in the embedded groove is flush with the upper surface of the bed plate.

Preferably, the plate body of the bed plate close to two sides of the binding belt is provided with an operation groove, and the operation groove is arc-shaped.

Preferably, a support is fixedly arranged in the middle of the lower surface of the bed tail of the bed board, and the support plays a supporting role.

Preferably, a pull buckle is arranged at one end of the fixing rod extending to the outside of the bed board, and the pull buckle consists of a flat rubber plate.

Preferably, the four corners of the lower surface of the bed board are provided with bed legs, and the length of each bed leg is longer than that of the folding board.

Preferably, the bed board and the folding board are respectively stuck with a disposable bed sheet, and the outer edge of the disposable bed sheet close to the bed board is respectively provided with a double-sided adhesive tape.

Preferably, the hand rest is T-shaped, a buckling groove is formed in a part, close to the transverse rest body, of the hand rest, of the bed plate, and the buckling groove is communicated with the embedded groove.

The patient limb adjusting and fixing device for ultrasonic examination has the beneficial effects that:

1. for breast ultrasound examination: the double arms of the patient are fixed, and the phenomenon that the movement of the ultrasonic probe of a doctor is hindered due to insufficient lifting time of the double arms in the ultrasonic examination process is avoided;

2. for the ultrasonic examination of pleural effusion: the patient pulls open the hand rest through the catching groove, and horizontal support body on the hand rest is held to both hands, and sits to stand in the middle part on the bed board towards the head of a bed, and the patient can realize not taking doctor's space when carrying out ultrasonic examination this moment, and need not take the seat from elsewhere, convenient to use.

Drawings

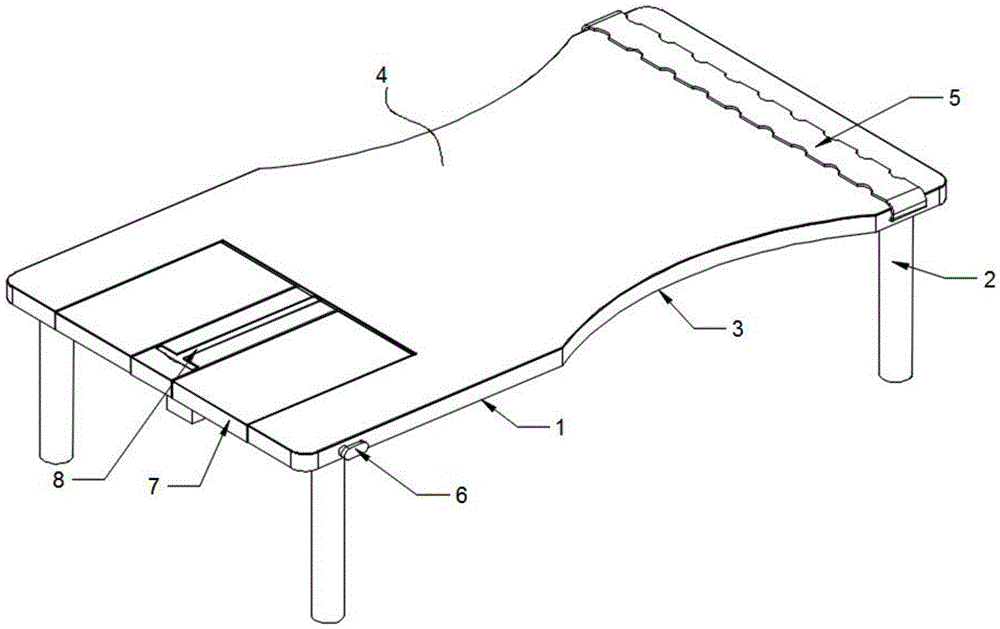

FIG. 1 is a schematic view of a patient limb adjustment fixture for ultrasound examination in accordance with the present utility model;

FIG. 2 is a bottom view of the disposable sheet of the patient limb adjustment fastening apparatus for ultrasonic examination in accordance with the present utility model;

FIG. 3 is a schematic view of the expanded configuration of the patient limb adjustment fixation device for ultrasound examination in accordance with the present utility model;

FIG. 4 is a bottom view of the expanded configuration of the patient limb adjustment fixation device for ultrasound examination in accordance with the present utility model;

fig. 5 is a schematic view showing the installation of the binder of the patient limb adjustment fixture for ultrasonic examination according to the present utility model.

In the figure: 1. a bed board; 2. bed legs; 3. an operation groove; 4. a disposable sheet; 5. a tie-down strap; 6. pulling buckle; 7. a folding plate; 8. a hand rest; 9. double-sided tape; 10. a buckling groove; 11. a fixed rod; 12. an embedding groove; 13. positioning holes; 14. a supporting frame; 15. and (5) perforating.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments.

In the description of the present utility model, it should be understood that the terms "upper," "lower," "front," "rear," "left," "right," "top," "bottom," "inner," "outer," and the like indicate or are based on the orientation or positional relationship shown in the drawings, merely to facilitate description of the present utility model and to simplify the description, and do not indicate or imply that the devices or elements referred to must have a specific orientation, be configured and operated in a specific orientation, and thus should not be construed as limiting the present utility model.

Referring to fig. 1-5, a patient limb adjusting and fixing device for ultrasonic examination comprises a bed board 1, a hand rest 8 arranged in the middle of the bed tail of the bed board 1, and binding belts 5 arranged on two sides of the bed head of the bed board 1, wherein folding boards 7 are hinged at two ends of the middle of the bed tail of the bed board 1, and the upper surface of the folding boards 7 is flush with the upper surface of the bed board 1;

one end of the folding plate 7 far away from the hinge joint is provided with a positioning hole 13, a plate body part of the bed plate 1 corresponding to the positioning hole 13 is provided with a perforation 15, the bed plate 1 is inserted with a fixing rod 11 through the perforation 15, and the fixing rod 11 extends into the bed plate 1 and is matched with the positioning hole 13 on the folding plate 7;

an embedded groove 12 is formed in the middle of the upper surface of the bed plate 1 between the folding plates 7, the hand rest 8 is hinged to the front end in the embedded groove 12, and the upper surface of the hand rest 8 when being accommodated in the embedded groove 12 is flush with the upper surface of the bed plate 1.

The operation groove 3 has been seted up to the plate body that bed board 1 is close to constraint area 5 both sides, and operation groove 3 is the arc form, and the tailstock lower surface middle part fixed mounting of bed board 1 has strut 14, and strut 14 plays the supporting role, provides the structural strength of bed board 1 between the folding board 7, further realizes the stability when patient sits.

The buckle 6 is installed to the one end that dead lever 11 extends to bed board 1 outside, and buckle 6 comprises the rubber slab of platykurtic, and bed leg 2 is all installed to the four corners department of bed board 1 lower surface, and the length of bed leg 2 is greater than the length of folding board 7, avoids appearing the folding board 7 to put down the back unable vertical condition that influences the patient and sits and stand.

The disposable bedsheet 4 is stuck on the bed board 1 and the folding board 7, the double-sided adhesive tape 9 is arranged at the outer edge of the disposable bedsheet 4 close to the bed board 1, the disposable bedsheet 4 with characteristics is used for covering all parts on the bed board 1, and the double-sided adhesive tape 9 is used for stably bonding the disposable bedsheet 4, so that the displacement phenomenon of the disposable bedsheet 4 when a patient lies down in the prior art is avoided, and the disposable bedsheet is beneficial to use.

The hand rest 8 is T-shaped, the buckling groove 10 is formed in the part, close to the transverse frame body, of the bed board 1, on the hand rest 8, the buckling groove 10 is communicated with the embedded groove 12, a patient lifts the hand rest 8 through the buckling groove 10, and the hand rest 8 is held by two hands to realize sitting and standing stability, so that the phenomenon that shaking influences the smooth progress of ultrasonic examination of doctors in the sitting and standing process is avoided.

The use principle and the advantages are that: the patient limb adjustment fixing device applied to ultrasonic examination is used, in particular to the breast ultrasonic examination: the patient lies on the bed board 1, and then the two arms are lifted up to expose the chest and armpits, and then the doctor pulls the binding belt 5 to press the two arms of the patient, so that the fixation of the two arms of the patient is realized, and the phenomenon that the lifting time of the two arms is insufficient and the movement of the doctor ultrasonic probe is hindered in the ultrasonic examination process is avoided;

for the ultrasonic examination of pleural effusion: the doctor pulls out dead lever 11 through pulling out knot 6, and the folding plate 7 falls down thereupon, and the tailstock department of bed board 1 presents "mountain" style of calligraphy this moment, and the patient pulls out hand rest 8 through catching groove 10 thereupon, and the horizontal support body on hand rest 8 is held to both hands, and sits in the middle part on bed board 1 towards the head of a bed, and the patient can realize not taking doctor's space when carrying out the ultrasonic examination this moment, and need not take the seat from elsewhere, convenient to use.

To sum up: the device can be in the in-process that the patient carries out mammary gland ultrasonic examination and hydrothorax ultrasonic examination, realizes effectively adjusting and fixing patient's position, can avoid appearing taking doctor's ultrasonic examination operation space and patient's position can't keep hindering the going on of doctor's normal ultrasonic examination operation, convenient to use is favorable to promoting.

The foregoing is only a preferred embodiment of the present utility model, but the scope of the present utility model is not limited thereto, and any person skilled in the art, who is within the scope of the present utility model, should make equivalent substitutions or modifications according to the technical scheme of the present utility model and the inventive concept thereof, and should be covered by the scope of the present utility model.

Claims

1. The limb adjusting and fixing device for the ultrasonic examination of the patient is characterized by comprising a bed board (1), a hand rest (8) arranged in the middle of the bed tail of the bed board (1) and binding belts (5) arranged on two sides of the bed head of the bed board (1), wherein folding plates (7) are hinged to two ends of the middle of the bed tail of the bed board (1), and the upper surface of each folding plate (7) is flush with the upper surface of the bed board (1);

one end of the folding plate (7) far away from the hinge joint is provided with a positioning hole (13), a plate body part of the bed plate (1) corresponding to the positioning hole (13) is provided with a perforation (15), the bed plate (1) is inserted with a fixing rod (11) through the perforation (15), and the fixing rod (11) extends into the bed plate (1) and is matched with the positioning hole (13) on the folding plate (7);

the embedded groove (12) is formed in the middle of the upper surface of the bed plate (1) between the folding plates (7), the hand support (8) is hinged to the front end in the embedded groove (12), and the upper surface of the hand support (8) when the hand support (8) is contained in the embedded groove (12) is flush with the upper surface of the bed plate (1).

2. The limb adjustment and fixation device for ultrasonic examination of the patient according to claim 1, wherein the plate body of the bed plate (1) close to the two sides of the binding belt (5) is provided with an operation groove (3), and the operation groove (3) is arc-shaped.

3. The patient limb adjustment fixing device for ultrasonic examination according to claim 1, wherein a support frame (14) is fixedly arranged in the middle of the lower surface of the bed tail of the bed board (1), and the support frame (14) plays a supporting role.

4. Patient limb adjustment fixation device for ultrasound examinations according to claim 1, characterized in that the end of the fixation rod (11) extending outside the bed plate (1) is fitted with a pull buckle (6), the pull buckle (6) consisting of a flat rubber plate.

5. Patient limb adjustment fixture for ultrasound examinations according to claim 1 characterized in that the bed board (1) is provided with bed legs (2) at four corners of its lower surface, the length of the bed legs (2) being greater than the length of the folding board (7).

6. The limb adjustment and fixation device for the patient for ultrasonic examination according to claim 1, wherein the bed board (1) and the folding board (7) are respectively stuck with a disposable bed sheet (4), and the outer edge of the disposable bed sheet (4) close to the bed board (1) is respectively provided with a double-sided adhesive tape (9).

7. The limb adjustment and fixation device for patients for ultrasonic examination according to claim 1, wherein the hand rest (8) is in a shape of a T, the lateral frame body part of the bed board (1) close to the hand rest (8) is separately provided with a buckling groove (10), and the buckling groove (10) is communicated with the embedded groove (12).
