Abstract

The utility model discloses a highly air-permeable environment-friendly door panel, which belongs to the technical field of furniture panels. A highly air-permeable environment-friendly door panel comprises a cabinet body, the front end of the cabinet body is rotatably connected with a door panel, and a window is opened on the door panel, and the two sides of the window are The wall is rotatably connected with a venetian blind, which can realize that when the inside of the cabinet body is closed for a long time and the interior is damp and needs to be ventilated, the door panel can be opened now, and the second rotating shaft can be pulled out to make the second bevel gear and the first bevel gear. The bevel gear meshes, and then the venetian blind is opened by rotating the knob switch. While rotating, the roller brush on the fixed shaft is driven to rotate above the fan blade on the venetian blind. At this time, the second rotating shaft is pressed inward to make the first bevel gear close. The second bevel gear is disconnected, so as to drive the slide rail to move back and forth while opening and closing the door panel, so that the rolling brush wipes the venetian blind back and forth, and the dust and dirt on the venetian blind are wiped clean.

Description

A highly breathable environmentally friendly door panel

technical field

The utility model relates to the technical field of furniture panels, in particular to a highly air-permeable environment-friendly door panel.

Background technique

As we all know, there are many kinds of doors, including solid wood doors, imitation solid wood doors, bamboo doors, aluminum alloy doors, plastic steel doors and so on. As far as its structure is concerned, all kinds of doors are made of solid materials, all of which are closed doors, and the air permeability is not very good. At present, the door panels of cabinets commonly used in furniture use this kind of environmentally friendly door panels.

Most of the existing cabinets only have the function of storing things in the kitchen. However, there are water stains on the tableware stored in the cabinets, which makes the cabinet door full of moisture. Especially in the rainy weather, the cabinets are prone to moisture and corrosion. , pests and other problems seriously affect the service life of the cabinet, so it is necessary to design this kind of device that can ventilate and prevent moisture inside the cabinet to solve this problem.

Utility model content

1. Technical problems to be solved

Aiming at the problems existing in the prior art, the purpose of this utility model is to provide a bluetooth earphone with the function of Tinggong acupoint massage, which can realize that when the inside of the cabinet body needs to be ventilated when it is closed for a long time and the interior is damp, the Open the door panel, pull out the second rotating shaft to make the second bevel gear mesh with the first bevel gear, and then open the blind by rotating the knob switch, and at the same time drive the roller brush on the fixed shaft to rotate to the blind At this time, press the second rotating shaft inward to make the first bevel gear and the second bevel gear disconnect, so as to achieve the opening and closing of the door panel and drive the slide rail to move back and forth, so that the roller brush can wipe back and forth on the venetian blind , the effect of wiping the dust and dirt on the blinds.

2. Technical solution

In order to solve the above problems, the utility model adopts the following technical solutions.

A highly air-permeable environment-friendly door panel, including a cabinet body, the front end of the cabinet body is rotatably connected with a door panel, the door panel is provided with a window, the two side walls of the window are rotatably connected with venetian blinds, the top of the window is fixedly connected with a slide rail, and the slide rail is slidably connected There is an L-shaped slide bar, and the right end of the L-shaped slide bar is symmetrically fixedly connected with buckles, and a third rotating shaft is rotationally connected between the two buckles. Roller brushes are set on the outer wall of multiple fixed shafts, the first bevel gear is set on the outer wall of the third rotating shaft, the second rotating shaft is fixedly connected above the slide rail, and the knob switch and the second bevel gear are set on the outer wall of the second rotating shaft. The first bevel gear is meshed with the second bevel gear, which can realize that when the cabinet body is closed for a long time and the inside needs to be ventilated, the door panel can be opened now, and the second rotating shaft can be pulled out to make the second cone The gear meshes with the first bevel gear, and then the venetian blind is opened by turning the knob switch, and at the same time, the roller brush on the fixed shaft is driven to rotate above the fan blade on the venetian blind, and the second rotating shaft is pressed inward to make the first One bevel gear and the second bevel gear are disconnected, so as to achieve the effect of driving the slide rail to move back and forth while opening and closing the door panel, so that the rolling brush can wipe the venetian blind back and forth, and wipe off the dust and dirt on the venetian blind.

Further, a fixed block is fixedly connected to the inner wall of the cabinet body, and a first rotating shaft is rotatably connected to the fixed block.

Further, the side wall of the first rotating shaft is fixedly connected with a connecting rod, and the end of the connecting rod away from the first rotating shaft is fixedly connected with the L-shaped sliding rod. Moving back and forth makes the roller brush clean the venetian blinds.

Further, the door panel located directly below the window is fixedly connected with a storage box and the right end is detachably connected with a cover. By setting the storage box, it is convenient to store the desiccant for dehumidification in the cabinet body, and the desiccant can be replaced regularly through the cover.

Further, a plurality of ventilation holes are equally spaced on the storage box, and the ventilation holes are provided to facilitate the use of the desiccant and achieve better results.

Further, the second rotating shaft is composed of two sections of rotating shafts slidingly connected, and can be adjusted telescopically. By designing the second rotating shaft as a sliding connection of two sections of rotating shafts, it is convenient to adjust the meshing state of the two second bevel gears and the first bevel gear, thereby Control the rotation direction of the venetian blind and the roller brush to avoid the effect of the roller brush blocking the switch of the venetian blind.

3. Beneficial effect

Compared with the prior art, the utility model has the advantages of:

(1) This scheme can realize that when the inside of the cabinet body is closed for a long time and needs to be ventilated when the interior is damp, the door panel can be opened now, and the second rotating shaft can be pulled out to make the second bevel gear and the first bevel gear Mesh, and then open the venetian blind by turning the knob switch, and at the same time drive the roller brush on the fixed shaft to rotate to the top of the fan blade on the venetian blind. At this time, press the second rotating shaft inward to make the first bevel gear close to the second The bevel gear is disconnected, so as to achieve the effect of driving the slide rail to move back and forth while opening and closing the door panel, so that the roller brush wipes the venetian blind back and forth, and wipes clean the dust and dirt on the venetian blind.

(2) By arranging the first rotating shaft and the connecting rod, it is convenient to open and close the door panel, and at the same time move back and forth through the connecting rod and the slide rail so that the roller brush can clean the venetian blind.

(3) By setting the storage box, it is convenient to store the desiccant for the purpose of dehumidifying the cabinet body, and the desiccant can be replaced regularly through the cover.

(4) By setting air holes, it is convenient to use the desiccant and the effect is better.

(5) By designing the second rotating shaft as a two-stage sliding connection, it is convenient to adjust the meshing state of the two second bevel gears and the first bevel gear, thereby controlling the rotation direction of the venetian blind and the roller brush, and preventing the roller brush from blocking the venetian blind switch Effect.

Description of drawings

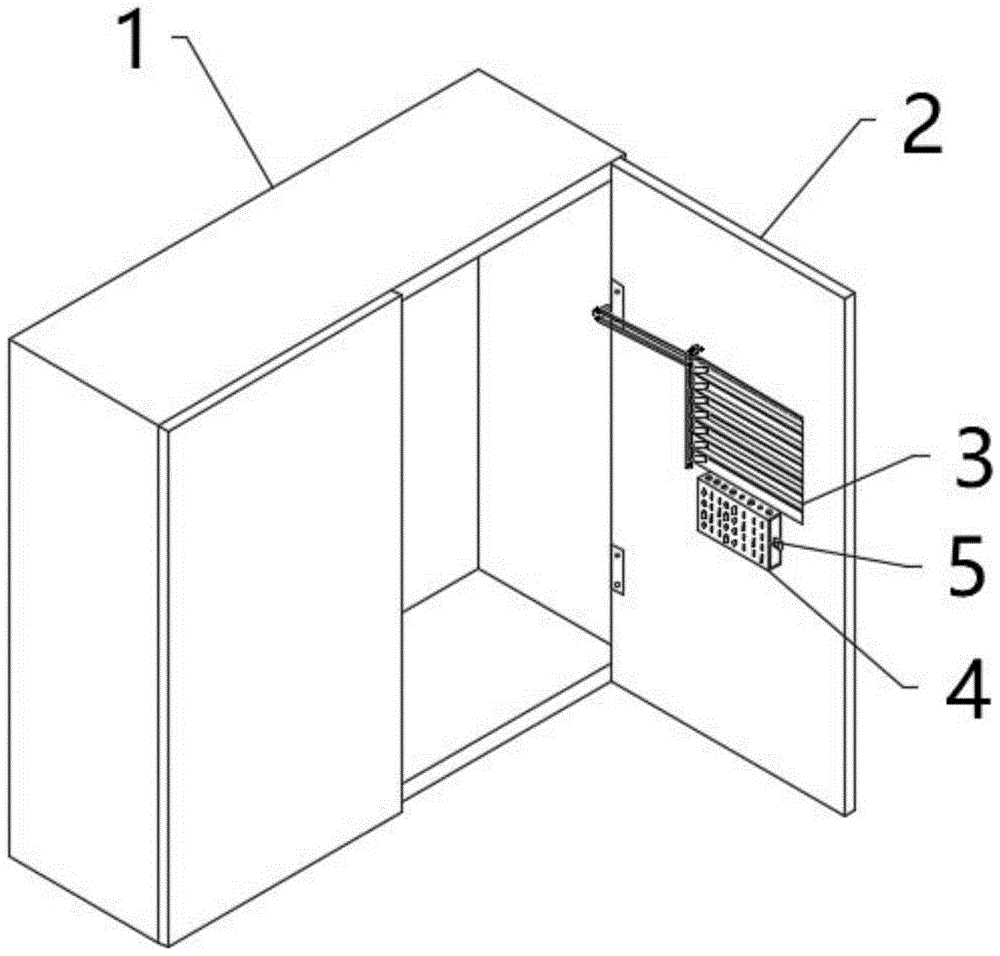

Fig. 1 is the schematic diagram of the shaft side structure of the cabinet of the present utility model;

Fig. 2 is a partial enlarged structural schematic diagram of the blinds of the present invention;

Fig. 3 is the schematic diagram of enlarged structure at A place in Fig. 2 of the present utility model;

Fig. 4 is a schematic diagram of the enlarged structure at B in Fig. 2 of the present utility model.

Explanation of symbols in the figure:

1. Cabinet body; 2. Door panel; 3. Window; 4. Storage box; 5. Cover; 6. Venetian blind; 7. Slide rail; 8. L-shaped slider; 9. Fixed block; 11. Connecting rod; 12. Knob switch; 13. Second rotating shaft; 14. Third rotating shaft; 15. Rolling brush; 16. First bevel gear; 17. Second bevel gear; 18. Fixed shaft.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention; obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present invention.

In the description of the present utility model, it should be noted that the orientation or positional relationship indicated by the terms "upper", "lower", "inner", "outer", "top/bottom" etc. are based on the Orientation or positional relationship is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be construed as a limitation on the utility model. limit. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "set with", "sleeve/connection", "connection", etc. should be understood in a broad sense, for example "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be two components Internal connectivity. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

Example 1:

Please refer to Fig. 1-4, a highly air-permeable environmental protection door panel, including a cabinet body 1, the front end of the cabinet body 1 is rotatably connected to a door panel 2, a window 3 is opened on the door panel 2, and venetian blinds 6 are rotatably connected to the two side walls of the window 3 , the top of the window 3 is fixedly connected with a slide rail 7, the slide rail 7 is slidably connected with an L-shaped slide bar 8, the right end of the L-shaped slide bar 8 is symmetrically fixedly connected with buckles, and a third rotating shaft 14 is rotationally connected between the two buckles , the outer wall of the third rotating shaft 14 is fixedly connected with the fan blades on the venetian blind 6. There are a plurality of fixed shafts 18, and the outer walls of the plurality of fixed shafts 18 are provided with rolling brushes 15, and the outer wall of the third rotating shaft 14 is provided with a first bevel gear 16. , the top of the slide rail 7 is fixedly connected with the second rotating shaft 13, the outer wall of the second rotating shaft 13 is provided with a knob switch 12 and the second bevel gear 17, and the first bevel gear 16 is meshed with the second bevel gear 17, which can be used as a cabinet When the main body 1 is closed for a long time and needs to be ventilated when the inside is wet, the door panel 2 can be opened now, and the second rotating shaft 13 can be pulled out to make the second bevel gear 17 mesh with the first bevel gear 16, and then turn the knob The switch 12 opens the venetian blind 6, and at the same time drives the roller brush 15 on the fixed shaft 18 to rotate to the top of the fan blade on the venetian blind 6. At this time, the second rotating shaft 13 is pressed inward to make the first bevel gear 16 close to the second The bevel gear 17 is disconnected, so as to drive the slide rail 7 to move back and forth when the door panel 2 is opened and closed, so that the roller brush 15 wipes the venetian blind 6 back and forth, and the dust and dirt on the venetian blind 6 are wiped clean.

Please refer to Figures 1-4, the inner wall of the cabinet body 1 is fixedly connected with a fixed block 9, the fixed block 9 is rotatably connected with a first rotating shaft 10, and the side wall of the first rotating shaft 10 is fixedly connected with a connecting rod 11, and the connecting rod 11 is far away from the first rotating shaft One end of 10 is fixedly connected with the L-shaped sliding rod 8, and by setting the first rotating shaft 10 and the connecting rod 11, it is convenient to open and close the door panel 2 while moving back and forth through the connecting rod 11 and the slide rail 7 so that the roller brush 15 can clean the venetian blind 6 .

Please refer to Figure 1-2, the door panel 2 located directly below the window 3 is fixedly connected with a storage box 4 and the right end is detachably connected with a cover 5, by setting the storage box 4, it is convenient to store desiccant for dehumidification in the cabinet body 1, and The desiccant can be replaced regularly through the cover 5 .

Please refer to Fig. 1-2, the storage box 4 is equidistantly provided with a plurality of ventilation holes, by setting the ventilation holes, it is convenient to use the desiccant and the effect is better.

Please refer to Figure 1-2, the second rotating shaft 13 is composed of two sections of rotating shaft sliding connection, and can be adjusted telescopically. By designing the second rotating shaft 13 as a sliding connection of two sections of rotating shaft, it is convenient to adjust the two second bevel gears 17 and the first The meshing state of the bevel gear 16 controls the rotation direction of the venetian blind 6 and the rolling brush 15, and avoids the effect that the rolling brush 15 blocks the opening and closing of the venetian blind 6.

When the inside of the cabinet body 1 is closed for a long time and needs to be ventilated when the interior is wet, the second rotating shaft 13 can be pulled out after opening the door panel 2 so that the second bevel gear 17 is meshed with the first bevel gear 16, and then through Rotate the knob switch 12 to open the venetian blind 6. When the knob switch 12 rotates, it drives the first bevel gear 16 to rotate. The first bevel gear 16 drives the fixed shaft 18 to rotate at the same time. When the venetian blind 6 is opened, the fixed shaft 18 rolls 15 rotates to the top of the fan blades on the venetian blind 6. At this time, the second rotating shaft 13 is pressed inward to disconnect the first bevel gear 16 from the second bevel gear 17. When the door panel 2 is opened and closed in use, the L-shaped sliding The connecting rod 11 on the rod 8 rotates through the first rotating shaft 10, which drives the L-shaped sliding rod 8 to move back and forth in the slide rail 7, so that the roller brush 15 wipes the venetian blind 6 back and forth, effectively achieving the purpose of using the cabinet body 1 during ventilation. At the same time, the dust and oil stains on the venetian blind 6 can be cleaned. When there is no need to ventilate the inside of the cabinet body 1, the second bevel gear 17 can be meshed with the first bevel gear 16 by adjusting the second rotating shaft 13, and the switch can be turned by rotating the knob. 12. While closing the venetian blind 6, the second bevel gear 17 drives the first bevel gear 16 to rotate the roller brush 15 outside the window 3, so as to achieve the opening and closing of the venetian blind 6 while adjusting the roller brush 15 to prevent the roller brush 15 from blocking the louvers. The purpose of the curtain 6, and during ventilation, the desiccant can be dehumidified in the cabinet body 1 by placing the desiccant in the storage box 4 through the air holes on the storage box 4.

The above description is only a preferred embodiment of the present utility model; however, the protection scope of the present utility model is not limited thereto. Anyone familiar with the technical field within the technical scope disclosed in the utility model, according to the technical solution of the utility model and its improvement concept to make an equivalent replacement or change, shall be covered in the protection scope of the utility model.

Claims (6)

1. A highly air-permeable environmentally friendly door panel, comprising a cabinet body (1), characterized in that: the front end of the cabinet body (1) is rotatably connected with a door panel (2), and a window (3) is provided on the door panel (2) ), the two side walls of the window (3) are rotatably connected with venetian blinds (6), the top of the window (3) is fixedly connected with a slide rail (7), and the slide rail (7) is slidably connected with an L-shaped slide Rod (8), the right end of the L-shaped slide bar (8) is symmetrically fixedly connected with buckles, and a third shaft (14) is rotatably connected between the two buckles, and the outer wall of the third shaft (14) is connected to the The fan blades on the venetian blind (6) are correspondingly fixedly connected with a plurality of fixed shafts (18), and the outer walls of the plurality of fixed shafts (18) are provided with rolling brushes (15), and the outer walls of the third rotating shaft (14) are covered with roller brushes (15). A first bevel gear (16) is provided, a second rotating shaft (13) is fixedly connected above the slide rail (7), and the outer wall of the second rotating shaft (13) is provided with a knob switch (12) and the second bevel gear (17), the first bevel gear (16) is engaged with the second bevel gear (17). 2. A highly air-permeable environment-friendly door panel according to claim 1, characterized in that: the inner wall of the cabinet body (1) is fixedly connected with a fixed block (9), and the fixed block (9) is rotatably connected with a The first rotating shaft (10). 3. A highly air-permeable environment-friendly door panel according to claim 2, characterized in that: the side wall of the first rotating shaft (10) is fixedly connected with a connecting rod (11), and the connecting rod (11) is far away from the second One end of a rotating shaft (10) is fixedly connected with the L-shaped slide bar (8). 4. A kind of highly air-permeable environment-friendly door panel according to claim 1, characterized in that: a storage box (4) is fixedly connected to the door panel (2) directly below the window (3), the A cover (5) is detachably connected to the right end of the storage box (4). 5. A highly air-permeable environment-friendly door panel according to claim 4, characterized in that: the storage box (4) is equidistantly provided with a plurality of ventilation holes. 6. A highly air-permeable environment-friendly door panel according to claim 1, characterized in that: the second rotating shaft (13) is composed of two sections of rotating shafts slidingly connected, and can be adjusted telescopically.
