Abstract
The utility model relates to a glass curtain wall technical field, especially a glass curtain wall construction node structure, including assembling the stand group, the ornamental strip connecting plate, vertical decoration and heat-insulating seal subassembly, assemble the stand group including female stand and the public stand of grafting complex, and both sides all can be had the detachable connection to have the crossbeam, ornamental strip connecting plate one end is located between female stand and the public stand and with female stand or public stand fixed connection, other end detachable connection has vertical decoration to fix hollow toughened glass, heat-insulating seal subassembly sets up between two cavity toughened glass, fix and seal and insulate against heat with hollow toughened glass's position. The utility model discloses a glass curtain wall construction node structure is through setting up public stand of grafting complex and female stand, fixes in advance female stand and public stand before the construction again, can carry out cavity toughened glass's installation fast after the column mouting is accomplished, has optimized the site operation technology, has improved glass curtain wall's whole installation effect greatly.
Description
Technical Field
The utility model relates to a glass curtain wall construction technical field, especially a glass curtain wall construction node structure.
Background
The glass curtain wall is used as a novel wall body, and is widely applied to large-scale and high-rise buildings such as shopping malls, office buildings, airports, stadiums, convention and exhibition centers and the like by virtue of the advantages of attractive appearance, light dead weight, good lighting, standardization, high industrialization degree and the like.
When the existing erecting and transversely-hidden glass curtain wall mounting node is mounted, glass with an aluminum alloy auxiliary frame is fixed on a keel mainly through an aluminum alloy pressing block and a machine-made screw, the process of site construction is complex, the construction progress is slow, and therefore the overall mounting efficiency of the glass curtain wall is low.
SUMMERY OF THE UTILITY MODEL
In view of this, an object of the utility model is to provide a glass curtain wall construction node structure to erect the technical problem that the field construction technology of latent glass curtain wall installation node is loaded down with trivial details to lead to glass curtain wall's whole installation inefficiency among the solution prior art.
In order to achieve the above object, the utility model adopts the following technical scheme:
a glass curtain wall construction node structure includes:
the assembling upright column group comprises a female upright column and a male upright column which are in splicing fit, one sides, far away from each other, of the female upright column and the male upright column are correspondingly detachably connected with a cross beam, the female upright column and the male upright column are perpendicular to the corresponding cross beams, at least two splicing grooves extending in the vertical direction are arranged on the side face, opposite to the male upright column, of the female upright column at intervals, splicing plates are arranged on the side face, opposite to the female upright column, of the male upright column, splicing plates are arranged corresponding to the splicing grooves, a first sealing rubber strip is arranged between each splicing plate and the inner wall of each splicing groove, and a second sealing rubber strip is arranged between each female upright column and the male upright column;
the decorative strip connecting plate comprises a first fixing plate section, a connecting plate section and a second fixing plate section which are sequentially arranged, and the first fixing plate section is fixedly connected with the side face of the female upright post opposite to the male upright post or the side face of the male upright post opposite to the female upright post;
the vertical decorating part is detachably connected with the decorating strip connecting plate;
the vertical decorating parts and the female stand column and the male stand column form an installation space for installing the hollow toughened glass respectively, the side surfaces of the female stand column and the male stand column, which are used for being in contact with the hollow toughened glass, are provided with third sealing rubber strips and coated with first silicone structural adhesive for adhering the hollow toughened glass, and the side surface of the vertical decorating part, which is used for being in contact with the hollow toughened glass, is provided with a waterproof rubber strip;
thermal-insulated seal assembly, thermal-insulated seal unit including two symmetries set up, thermal-insulated seal unit includes horizontal heat insulating strip, press the lines, horizontal joint strip and foam stick, horizontal heat insulating strip and female stand or the public stand joint that corresponds, press the lines joint to set up the one side of keeping away from female stand at horizontal heat insulating strip, horizontal joint strip sets up between two horizontal heat insulating strips, and one side and the horizontal heat insulating strip joint that horizontal joint strip is close to the horizontal heat insulating strip that corresponds, the foam stick sets up between cavity toughened glass and horizontal heat insulating strip and the coating has the second silicone structure that is used for bonding cavity toughened glass and horizontal heat insulating strip to glue.
The beneficial effects of the above technical scheme are: the utility model discloses a glass curtain wall construction node structure is through setting up public stand of grafting complex and female stand, will connect the stand and divide into two parts in order to be connected with the crossbeam respectively, and the ornamental strip connecting plate is direct and female stand or public stand fixed assembly, treats that the column mouting accomplishes the back, can directly install hollow toughened glass through supporting component, and site operation simple process has improved the construction progress greatly. The utility model discloses a glass curtain wall construction node structure is through setting up public stand of grafting complex and female stand, carries out the pre-fixing to female stand and public stand before the construction again, can carry out cavity toughened glass's installation fast after the column mouting is accomplished, has optimized the site operation technology, has improved glass curtain wall's integral erection effect greatly.
Further, be provided with two third fixed plate sections on the side of vertical decoration near female stand, the one end of keeping away from vertical device spare of two third fixed plate sections all is provided with the clamp plate section, form the fixed slot that supplies the grafting of second fixed plate section between two third fixed plate sections, the one side of keeping away from each other of two third fixed plate sections forms with the clamp plate section that corresponds and wears the dress groove, wear to be equipped with bolt group in the dress groove, bolt group is used for being in the same place third fixed plate section and second fixed plate section are fixed so that the clamp plate section compresses tightly on cavity toughened glass.
Has the advantages that: the fixing groove for the insertion of the second fixing plate section is formed through the third fixing plate section, so that the vertical decorating part is conveniently connected with the decorating strip connecting plate, and the hollow toughened glass is conveniently installed.
Furthermore, the device penetrating groove is provided with a buckle cover plate extending vertically.
Has the beneficial effects that: cover the dress groove of wearing, protect bolt group, when making the ornamental strip more pleasing to the eye, prop the clamp plate board section again and make the clamp plate board section compress tightly on cavity toughened glass, reduce the deformation of clamp plate board section.
Furthermore, a lining heat insulation strip is arranged between the inner wall of the fixing groove and the second fixing plate.
Has the advantages that: reduce the heat transfer between vertical decoration and the decoration connecting strip, strengthen glass curtain wall's thermal-insulated effect.
Furthermore, the female stand column and the male stand column are provided with fabrication holes corresponding to the cross beam, and tapping screws in threaded connection with the cross beam penetrate through the fabrication holes.
Has the advantages that: simple structure, the female stand column or the male stand column of being convenient for and the pre-connection fixed mounting of crossbeam.
Furthermore, the position that female stand or public stand and first fixed plate section are connected is provided with the spout that is C shape, the cross-section of first fixed plate section is T shape, and the spout is used for supplying first fixed plate section to slide, and wears to be equipped with the mechanism screw corresponding first fixed plate section in the spout.
Has the advantages that: when the vertical connecting piece is installed, the sliding groove can be in stop fit with the first fixing plate section, so that the first fixing plate section is prevented from rotating around a fixing axis, and the first fixing plate section is conveniently horizontally fixed.
Furthermore, the positions of the female stand column and the male stand column corresponding to the first sealing rubber strip, the second sealing rubber strip and the third sealing strip are provided with C-shaped sealing rubber clamping grooves.
Has the advantages that: the first sealing rubber strip, the second sealing rubber strip and the third sealing strip are convenient to fix, and the hollow toughened glass is convenient to install.
Furthermore, a waterproof adhesive clamping groove is formed in the position, corresponding to the waterproof adhesive tape, of the pressing plate section.
Has the advantages that: the installation of waterproof adhesive tape is convenient for, reduces waterproof adhesive tape's removal, strengthens glass curtain wall's water-proof effects.
Drawings

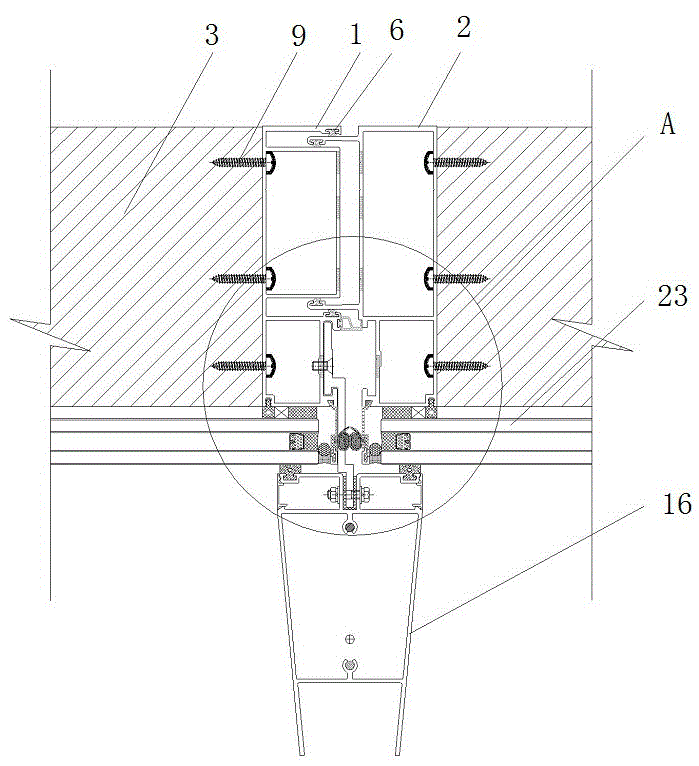

FIG. 1 is a cross-sectional schematic view of the glass curtain wall construction node structure of the present invention;
FIG. 2 is an enlarged view at A in FIG. 1;
FIG. 3 is a cross-sectional view of a female post in the glass curtain wall construction node structure of the present invention;
FIG. 4 is a schematic cross-sectional view of a male upright post in the glass curtain wall construction node structure of the present invention;
FIG. 5 is a cross-sectional view of a decoration strip connecting plate in the glass curtain wall construction node structure of the present invention;
figure 6 is the utility model discloses a vertical decoration's among glass curtain wall construction node structure horizontal cross section schematic diagram.
Description of reference numerals: 1-female column, 2-male column, 3-beam, 4-splicing groove, 5-splicing plate, 6-first sealing rubber strip, 7-second sealing rubber strip, 8-fabrication hole, 9-self-tapping screw, 10-decorative strip connecting plate, 11-first fixing plate section, 12-connecting plate section, 13-second fixing plate section, 14-sliding groove, 15-machine screw, 16-vertical decorative piece, 17-third fixing plate section, 18-pressing plate section, 19-fixing groove, 20-lining heat insulation strip, 21-penetrating groove, 22-bolt group, 23-hollow toughened glass, 24-buckle cover plate, 25-lamp groove, 26-installation space, 27-third sealing rubber strip, 28-first silicone structural adhesive, 29-waterproof rubber strip, 30-waterproof rubber clamping groove, 31-sealing rubber, 32-transverse heat insulation strip, 33-pressing strip, 34-transverse sealing rubber strip, 35-foam rod and 36-second structural adhesive.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.
The utility model discloses a concrete embodiment of glass curtain wall construction node structure does:
as shown in figures 1 to 6, the utility model discloses a glass curtain wall construction node structure is including assembling stand group, ornamental strip connecting plate 10, vertical decoration 16 and thermal-insulated seal assembly.
As shown in fig. 1, 2, 3 and 4, the assembled column set comprises a female column 1 and a male column 2 which are in plug-in fit. Female stand 1 and public stand 2 one side of keeping away from each other all correspond releasable connection and have crossbeam 3, and female stand 1 and public stand 2 are all perpendicular with crossbeam 3 that corresponds, and the interval is provided with two inserting groove 4 that extend along vertical direction on the relative public stand 2's of female stand 1 side, and it is provided with plugboard 5 to correspond inserting groove 4 on the relative female stand 1's of public stand 2 side. A first sealing rubber strip 6 is arranged between the insertion plate 5 and the inner wall of the insertion groove 4, and a second sealing rubber strip 7 is arranged between the female upright post 1 and the male upright post 2. Three fabrication holes 8 are arranged on the female upright post 1 and the male upright post 2 at intervals corresponding to the cross beam 3, and self-tapping screws 9 connected with the cross beam 3 in a threaded manner penetrate through the fabrication holes 8. Galvanized steel hangers (not shown in the figure) are further bolted to the female upright post 1 and the male upright post 2, and the other ends of the galvanized steel hangers are bolted to galvanized steel bases in the concrete main body (not shown in the figure).
As shown in fig. 1, 2 and 5, the trim strip connecting plate 10 includes a first fixing plate section 11, a connecting plate section 12 and a second fixing plate section 13, which are sequentially arranged, and the first fixing plate section 11 is fixedly connected with the side surface of the female upright 1 opposite to the male upright 2. Specifically, the position that female stand 1 is connected with first fixed plate section 11 is provided with the spout 14 that is the C shape, and the cross-section of first fixed plate section 11 is the T shape, and spout 14 is used for supplying first fixed plate section 11 to slide, and wears to be equipped with mechanism screw 15 corresponding to first fixed plate section 11 in the spout 14.
As shown in fig. 1, 2 and 6, the vertical decoration piece 16 is detachably connected to the decoration strip connecting plate 10, specifically, two third fixing plate sections 17 are arranged on the side surface of the vertical decoration piece 16 close to the female upright post 1, one ends of the two third fixing plate sections 17 far away from the vertical device piece are both provided with a pressing plate section 18, a fixing groove 19 for the second fixing plate section 13 to be inserted is formed between the two third fixing plate sections 17, and an inner lining heat insulation strip 20 is arranged between the inner wall of the fixing groove 19 and the second fixing plate section 13. One side of each of the two third fixing plate sections 17, which is far away from each other, and the corresponding pressing plate section 18 form a penetrating groove 21, a bolt group 22 penetrates through the penetrating groove 21, and the bolt group 22 is used for fixing the third fixing plate sections 17 and the second fixing plate section 13 together so that the pressing plate section 18 is pressed on the hollow toughened glass 23. The through slot 21 is provided with a vertically extending snap cover plate 24. The size of the vertical decorating part 16 in the transverse direction is gradually reduced along the direction far away from the hollow toughened glass 23, a lamp strap slot 25 is arranged on the side face far away from the hollow toughened glass 23, and the lamp strap slot 25 is used for installing an LED lamp strap so as to improve the attractiveness of the glass curtain wall at night.
As shown in fig. 1, 2 and 6, an installation space 26 for installing the hollow tempered glass 23 is formed between the pressing plate section 18 of the vertical decorating part 16 and the female upright post 1 and the male upright post 2 respectively, the side surfaces of the female upright post 1 and the male upright post 2, which are used for contacting with the hollow tempered glass 23, are provided with third sealing rubber strips 27, and are coated with first silicone structural adhesive 28 for bonding the hollow tempered glass, and the side surfaces of the pressing plate section 18, which are used for contacting with the hollow tempered glass 23, are provided with waterproof rubber strips 29. A waterproof adhesive slot 30 is arranged on the pressure plate section 18 corresponding to the waterproof adhesive tape 29.
As shown in fig. 1, fig. 2, fig. 3 and fig. 4, in this embodiment, the positions of the female column 1 and the male column 2 corresponding to the first sealing rubber strip 6, the second sealing rubber strip 7 and the third sealing rubber strip 27 are all provided with a C-shaped sealant clamping groove 31, so that the first sealing rubber strip 6, the second sealing rubber strip 7 and the third sealing rubber strip 27 can be conveniently fixed, and the hollow tempered glass 23 can be conveniently mounted.
As shown in fig. 1 and 2, the adiabatic sealing assembly includes two symmetrically disposed adiabatic sealing units. The heat insulation sealing unit comprises a transverse heat insulation strip 32, a pressing strip 33, a transverse sealing rubber strip 34 and a foam rod 35. Horizontal heat insulating strip 32 and the female stand 1 or the 2 joint of public stand post that correspond, line ball strip 33 joint sets up in one side of keeping away from female stand 1 of horizontal heat insulating strip 32, horizontal joint strip 34 sets up between two horizontal heat insulating strips 32, one side and horizontal heat insulating strip 32 joint that horizontal joint strip 34 is close to corresponding horizontal heat insulating strip 32, the foam rod 35 sets up between cavity toughened glass 23 and horizontal heat insulating strip 32, and the coating has second silicone structural adhesive 36 that is used for bonding cavity toughened glass 23 and horizontal heat insulating strip 32.
The utility model discloses a concrete theory of operation of glass curtain wall construction node structure: the method comprises the steps of clamping a first sealing rubber strip 6, a second sealing rubber strip 7 and a third sealing rubber strip 27 on a female upright post 1 and a male upright post 2 respectively, fixing a decoration strip connecting plate 10 in a sliding groove 14 of the female upright post 1, fixedly connecting the female upright post 1 and the male upright post 2 with a cross beam 3 respectively through self-tapping screws 9, splicing the female upright post 1 and the male upright post 2, supporting and fixing the female upright post 1 and the male upright post 2 through galvanized steel hangers, clamping a transverse heat insulation strip 32 and a pressure strip 33 on the female upright post 1 and the male upright post 2 respectively, clamping a transverse sealing rubber strip 34 between the transverse heat insulation strips 32, coating a first silicone structural adhesive 28 on the side surfaces, which are used for being in contact with a hollow toughened glass 23, of the female upright post 1 and the male upright post 2, installing the hollow toughened glass 23, installing a foam rod 35 between the transverse heat insulation strip 32 and the hollow toughened glass 23, coating a second silicone structural adhesive 36, pressing a vertical fixing plate section 16, which is clamped with a waterproof rubber strip 29, on the hollow toughened glass 23 corresponding to a second fixing plate section 13, installing a fixing plate section 24 and finally installing a third fixing plate section 24 through a bolt group 22.
The utility model discloses a glass curtain wall construction node structure is through setting up public stand of grafting complex and female stand, fixes in advance female stand and public stand before the construction again, can carry out cavity toughened glass's installation fast after the column mouting is accomplished, has optimized the site operation technology, has improved glass curtain wall's whole installation effect greatly.
The above-described embodiments of the present invention do not limit the scope of the present invention. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a glass curtain wall construction node structure which characterized in that includes:
the assembling upright column group comprises a female upright column and a male upright column which are in splicing fit, one sides of the female upright column and the male upright column which are far away from each other are correspondingly detachably connected with cross beams, the female upright column and the male upright column are perpendicular to the corresponding cross beams, at least two splicing grooves extending in the vertical direction are arranged on the side face of the female upright column opposite to the male upright column at intervals, splicing plates are arranged on the side face of the male upright column opposite to the female upright column corresponding to the splicing grooves, a first sealing rubber strip is arranged between each splicing plate and the inner wall of each splicing groove, and a second sealing rubber strip is arranged between each female upright column and the male upright column;
the decorative strip connecting plate comprises a first fixing plate section, a connecting plate section and a second fixing plate section which are sequentially arranged, and the first fixing plate section is fixedly connected with the side face of the female upright post opposite to the male upright post or the side face of the male upright post opposite to the female upright post;
the vertical decorating part is detachably connected with the decorating strip connecting plate;
the vertical decorating parts and the female stand column and the male stand column respectively form an installation space for installing the hollow toughened glass, the side surfaces of the female stand column and the male stand column, which are used for being in contact with the hollow toughened glass, are provided with third sealing rubber strips and coated with first silicone structural adhesive for adhering the hollow toughened glass, and the side surface of the vertical decorating part, which is used for being in contact with the hollow toughened glass, is provided with a waterproof rubber strip;
thermal-insulated seal assembly, thermal-insulated seal unit including two symmetries setting, thermal-insulated seal unit includes horizontal heat insulating strip, press the lines, horizontal sealing adhesive tape and foam stick, horizontal heat insulating strip and female stand or the public stand joint that corresponds, press the lines joint and set up the one side of keeping away from female stand at horizontal heat insulating strip, horizontal sealing adhesive tape sets up between two horizontal heat insulating strips, and horizontal sealing adhesive tape is close to one side and the horizontal heat insulating strip joint of the horizontal heat insulating strip that corresponds, the foam stick sets up between cavity toughened glass and horizontal heat insulating strip and the coating has the second silicone structure that is used for bonding cavity toughened glass and horizontal heat insulating strip to glue.
2. The glass curtain wall construction node structure of claim 1, wherein: be provided with two third fixed plate sections on the side of vertical decoration near female stand, the one end of keeping away from vertical device spare of two third fixed plate sections all is provided with the clamp plate section, form the fixed slot that supplies the second fixed plate section to peg graft between two third fixed plate sections, the one side of keeping away from each other of two third fixed plate sections forms with the clamp plate section that corresponds and wears the dress groove, wear to be equipped with bolt group in the dress groove, bolt group is used for fixing third fixed plate section and second fixed plate section together so that the clamp plate section compresses tightly on cavity toughened glass.
3. The glass curtain wall construction node structure of claim 2, wherein: and a buckle cover plate extending vertically is arranged at the penetrating device groove.
4. The glass curtain wall construction node structure of claim 2, wherein: and a lining heat insulation strip is arranged between the inner wall of the fixing groove and the second fixing plate.
5. The glass curtain wall construction node structure as claimed in any one of claims 1 to 4, wherein: the female upright post and the male upright post are provided with fabrication holes corresponding to the cross beam, and tapping screws in threaded connection with the cross beam penetrate through the fabrication holes.
6. The glass curtain wall construction joint structure as claimed in any one of claims 1 to 4, wherein: the position that female stand or public stand and first fixed plate section are connected is provided with the spout that is C shape, the cross-section of first fixed plate section is T shape, and the spout is used for supplying first fixed plate section to slide, and wears to be equipped with the mechanism screw corresponding first fixed plate section in the spout.
7. The glass curtain wall construction joint structure as claimed in any one of claims 1 to 4, wherein: the positions of the female stand column and the male stand column corresponding to the first sealing rubber strip, the second sealing rubber strip and the third sealing strip are provided with C-shaped sealing rubber clamping grooves.
8. The glass curtain wall construction node structure as claimed in any one of claims 2 to 4, wherein: and waterproof glue clamping grooves are formed in the positions, corresponding to the waterproof glue strips, of the pressing plate sections.
