The utility model discloses a temperature regulation water chilling unit, it includes first heat exchanger, the two sets of symmetrical support frames of fixed surface of first heat exchanger is connected with, the top of first heat exchanger is equipped with the bottom plate, the bottom surface fixed connection of bottom plate is in the surface of support frame, the surface mounting of first heat exchanger has first cold water outlet, the surface mounting of first heat exchanger has first hot water outlet, the upper surface of bottom plate is provided with heat dissipation mechanism, the last fixed surface of bottom plate is connected with two support columns, the last fixed surface of two support columns is connected with control panel. The utility model discloses a set up heat dissipation mechanism, can dispel the heat and fall the noise treatment to it to first compressor, second compressor, avoid long-time after the work efficiency that leads to heat exchanger or compressor easily to reduce the noise influence staff that increases the energy consumption and produce, realize the practicality to temperature regulation water chiller.
Description
Technical Field
The utility model relates to a refrigeration plant technical field specifically is a temperature regulation water chilling unit.
Background
The central air conditioner is divided into an air cooling unit and a water cooling unit, wherein the water machine firstly refrigerates or heats hot medium water and sends the hot medium water to a fan coil air conditioning system, and fresh air or mixed air sends heat energy or cold energy to a designated area at the tail end.
The existing water cooling unit has the disadvantages that more components are concentrated in a box body, a heat exchanger and a compressor are placed together, heat generated inside the existing water cooling unit when the existing water cooling unit operates is large, the existing water cooling unit has poor heat dissipation effect on the existing water cooling unit, the working efficiency of the heat exchanger or the compressor is easily reduced after a long time, the energy consumption is increased, and in addition, the compressor can generate large noise to influence workers when the existing water cooling unit operates, so that the working efficiency is reduced; therefore, the temperature adjusting water cooling unit is provided to solve the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a temperature regulation water chilling unit in order to remedy the not enough of prior art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a temperature regulation water chilling unit, includes first heat exchanger, the surface fixed connection of first heat exchanger has two sets of symmetrical support frames, the top of first heat exchanger is equipped with the bottom plate, the bottom surface fixed connection of bottom plate is in the surface of support frame, the surface mounting of first heat exchanger has first cold water outlet, the surface mounting of first heat exchanger has first hot water outlet, the upper surface of bottom plate is provided with heat dissipation mechanism.
Further, two support columns of last fixed surface of bottom plate are connected with, two the last fixed surface of support column is connected with control panel, the last surface mounting of bottom plate has first compressor, the last surface mounting of bottom plate has the second compressor, the surface mounting of first compressor has first connecting pipe, the one end that first compressor was kept away from to first connecting pipe is linked together with the inner wall of first heat exchanger.
Furthermore, a second communicating pipe is mounted on the outer surface of the second compressor, one end, away from the second compressor, of the second communicating pipe is communicated with the inner wall of the first heat exchanger, a second heat exchanger is mounted on the upper surface of the base plate, a hot water communicating pipe is mounted on the outer surface of the second heat exchanger, and one end, away from the outer surface of the second heat exchanger, of the hot water communicating pipe is fixedly connected to the outer surface of the first heat exchanger.
Furthermore, a cold water communicating pipe is mounted on the outer surface of the second heat exchanger, one end, far away from the outer surface of the second heat exchanger, of the cold water communicating pipe is fixedly connected to the outer surface of the first heat exchanger, a second cold water outlet is mounted on the outer surface of the second heat exchanger, and a second hot water outlet is mounted on the outer surface of the second heat exchanger.
Furthermore, heat dissipation mechanism includes the protective housing, the bottom surface fixed connection of protective housing is in the upper surface of bottom plate, the inner wall fixedly connected with puigging of protective housing, the air intake has been seted up to the surface of protective housing, the inner wall of air intake runs through in the surface of puigging.
Furthermore, the inner wall of the air inlet is fixedly connected with a filter screen, the outer surface of the protection box is provided with an air outlet, the inner wall of the air outlet penetrates through the outer surface of the sound insulation layer, the outer surface of the protection box is fixedly connected with a fan box, the outer surface of the fan box is provided with an air inlet hole, and the outer surface of the fan box is fixedly connected with an air pipe.
Furthermore, the inner wall of the air pipe is communicated with the inner wall of the air outlet, the inner wall of the air pipe is communicated with the inner wall of the air inlet hole, the inner wall of the fan box is fixedly connected with a rotating fan, the outer surface of the fan box is provided with an air outlet, and the inner wall of the air outlet is fixedly connected with a grid.
Has the advantages that:
the utility model discloses a set up the effect of heat dissipation mechanism, can dispel the heat and fall the noise treatment to it to first compressor, second compressor, the noise influence staff that the work efficiency who avoids leading to heat exchanger or compressor after long-time easily reduces increase energy consumption and production realizes the practicality to temperature regulation water chilling unit.
Drawings

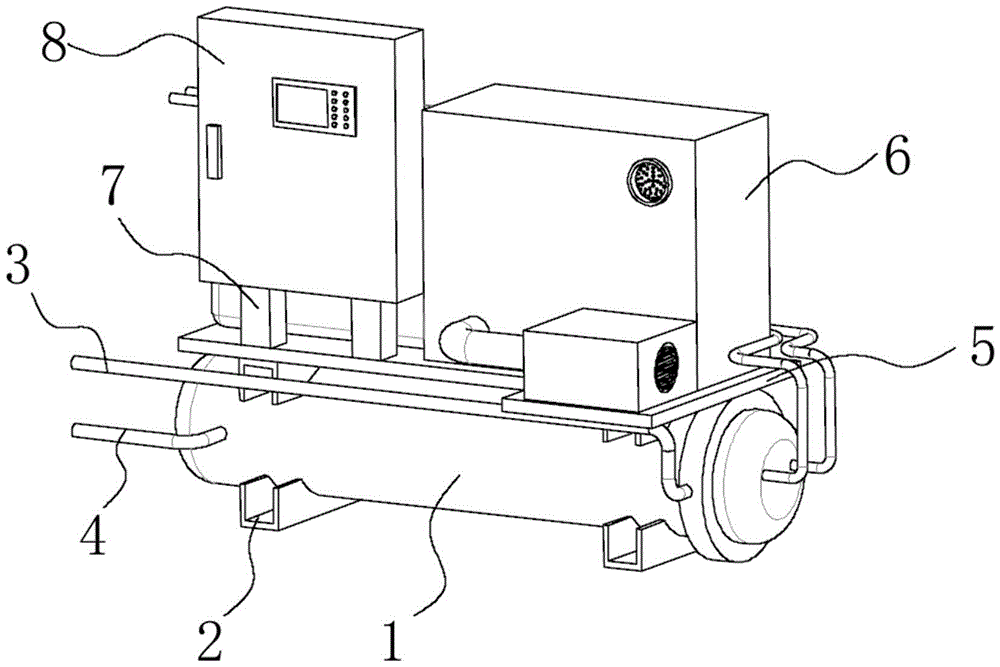

Fig. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic view of the internal structure of another side of the present invention;
fig. 3 is a schematic structural view of the heat dissipation mechanism of the present invention;
FIG. 4 is a schematic view of the internal structure of the protective box of the present invention;
fig. 5 is a schematic diagram of the internal structure of the present invention.
In the figure: the heat dissipation device comprises a first heat exchanger 1, a support frame 2, a first cold water outlet 3, a first hot water outlet 4, a bottom plate 5, a heat dissipation mechanism 6, a protective box 601, a sound insulation layer 602, an air inlet 603, a filter screen 604, an air outlet 605, a fan box 606, an air inlet 607, an air pipe 608, a rotating fan 609, an air outlet 610, a 611 grille, a support column 7, a control panel 8, a first compressor 9, a second compressor 10, a first communication pipe 11, a second communication pipe 12, a hot water communication pipe 13, a cold water communication pipe 14, a second heat exchanger 15, a second cold water outlet 16 and a second hot water outlet 17.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
Referring to fig. 1-5, the utility model discloses a temperature regulation water chilling unit, including first heat exchanger 1, the outer fixed surface of first heat exchanger 1 is connected with two sets of symmetrical support frames 2, and the top of first heat exchanger 1 is equipped with bottom plate 5, and the bottom surface fixed connection of bottom plate 5 is in the surface of support frame 2, and the surface mounting of first heat exchanger 1 has first cold water outlet 3, and the surface mounting of first heat exchanger 1 has first hot water outlet 4, and the upper surface of bottom plate 5 is provided with heat dissipation mechanism 6.
Referring to fig. 1, 2, 4, and 5, the heat dissipation mechanism 6 includes a protection box 601, a bottom surface of the protection box 601 is fixedly connected to an upper surface of the bottom plate 5, an inner wall of the protection box 601 is fixedly connected to a sound insulation layer 602, an air inlet 603 is formed in an outer surface of the protection box 601, and an inner wall of the air inlet 603 penetrates through an outer surface of the sound insulation layer 602.
The sound insulation layer 602 is preferably made of soundproof cotton.
Through the effect of puigging 602, can insulate the noise that produces inside, avoid the noise that first compressor 9, second compressor 10 produced to influence staff.
Through the cooperation of air intake 603, filter screen 604, can filter the inside air that gets into protective housing 601, prevent that the dust from getting into.
The inner wall of air inlet 603 is fixedly connected with filter screen 604, and air outlet 605 has been seted up to the surface of guard box 601, and the inner wall of air outlet 605 runs through in the surface of puigging 602, and the surface of guard box 601 is fixedly connected with fan case 606, and air inlet 607 has been seted up to the surface of fan case 606, and the surface fixedly connected with tuber pipe 608 of fan case 606.
The space inside the fan box 606 can be communicated with the space inside the protection box 601 through the matching action of the air outlet 605, the air inlet hole 607 and the air pipe 608.
The inner wall of the air pipe 608 is communicated with the inner wall of the air outlet 605, the inner wall of the air pipe 608 is communicated with the inner wall of the air inlet 607, and the inner wall of the fan box 606 is fixedly connected with a rotary fan 609.
By the action of the rotating fan 609, air inside the protective box 601 can be sucked and discharged to the outside, and heat emitted by the first and second compressors 9 and 10 can be guided out during the air suction process.
The outer surface of the fan box 606 is provided with an air outlet 610, the inner wall of the air outlet 610 is fixedly connected with a grating 611, and the fan 609 is rotated for a long time to accelerate the air flow in the protective box 601 to cool the protective box.
Two support columns 7 of last fixed surface of bottom plate 5 are connected with, the last fixed surface of two support columns 7 is connected with control panel 8, and the last surface mounting of bottom plate 5 has first compressor 9, and the last surface mounting of bottom plate 5 has second compressor 10, and the surface mounting of first compressor 9 has first connecting pipe 11, and the one end that first compressor 9 was kept away from to first connecting pipe 11 is linked together with the inner wall of first heat exchanger 1.
The outer surface mounting of second compressor 10 has second communicating pipe 12, and the one end that second compressor 10 was kept away from to second communicating pipe 12 is linked together with the inner wall of first heat exchanger 1, and the upper surface mounting of bottom plate 5 has second heat exchanger 15, and the outer surface mounting of second heat exchanger 15 has hot water communicating pipe 13, and the one end fixed connection in the surface of first heat exchanger 1 that second heat exchanger 15 surface was kept away from to hot water communicating pipe 13.
A cold water communicating pipe 14 is installed on the outer surface of the second heat exchanger 15, one end, far away from the outer surface of the second heat exchanger 15, of the cold water communicating pipe 14 is fixedly connected to the outer surface of the first heat exchanger 1, a second cold water outlet 16 is installed on the outer surface of the second heat exchanger 15, and a second hot water outlet 17 is installed on the outer surface of the second heat exchanger 15.
The utility model can exchange heat of the heat which is not fully dissipated in the condenser of the refrigeration equipment through the first compressor 9 and the second compressor 10, so that the waste heat can not enter the evaporator any more, but can be directly recycled to the hot end, the temperature of the cold end is lower, the temperature of the hot end is higher, and the temperature and the humidity can be adjusted as required through the action of the control panel 8;
after long-time use, if the first compressor 9 and the second compressor 10 are overheated, the compressors of the water chiller unit need to be cooled, at this time, air entering the inside of the protection box 601 can be filtered first through the cooperation of the air inlet 603 and the filter screen 604 to prevent dust from entering, then the air outlet 605, the air inlet 607 and the air pipe 608 are used to communicate the space inside the fan box 606 with the space inside the protection box 601, then the air inside the protection box 601 can be sucked and transferred to the outside through the action of the rotary fan 609, finally, heat emitted by the first compressor 9 and the second compressor 10 is guided out in the process of sucking the air, and the rotary fan 609 is operated for a long time to accelerate the air flow inside the protection box 601 to cool the air.
