CN218804285U

CN218804285U - Folding auxiliary fixtures of carton processing

Info

Publication number: CN218804285U
Application number: CN202223367237.2U
Authority: CN
Inventors: 候甫先
Original assignee: Zhejiang Jiuyu Paper Products Co ltd
Current assignee: Zhejiang Jiuyu Paper Products Co ltd
Priority date: 2022-12-13
Filing date: 2022-12-13
Publication date: 2023-04-07
Anticipated expiration: 2032-12-13

Abstract

The utility model discloses a folding auxiliary fixtures of carton processing, including the supporting leg, the supporting leg is equipped with four, the supporting leg top is equipped with the workstation, the workstation below is equipped with drive assembly, the workstation both sides are located the drive assembly top and all are equipped with two logical grooves, it is equipped with the connecting rod to lead to the inslot, connecting rod below and drive assembly fixed connection, connecting rod top and backup pad fixed connection, the backup pad top is equipped with the roof, it has the pneumatic cylinder to peg graft in the middle part of the roof top, pneumatic cylinder stroke end runs through roof and mount pad fixed connection, fixed mounting has the briquetting on the mount pad. This kind of folding auxiliary fixtures simple structure, convenient operation for traditional artifical folding mode, folding auxiliary fixtures degree of automation is higher, and the precision of creasing is higher, the effectual off-the-shelf quality of carton that has ensured.

Description

Folding auxiliary fixtures of carton processing

Technical Field

The utility model relates to a carton processing technology field specifically is a folding auxiliary fixtures of carton processing.

Background

Besides the function of containing the package box, the package has the important function of modifying the articles and gaining the favor of the public. The packaging industry in China is developed rapidly in a period of time, has a certain production scale initially, forms a complete packaging industry system with complete categories of materials, products, machinery, packaging printing, design, scientific research and the like, and becomes an important component in the field of manufacturing industry in China. The carton is formed by cardboard folding bonding, and the crease on the cardboard is mostly that the manual work is folded out with the instrument at present, and not only inefficiency, the deviation appears very probably moreover, causes the shape of carton not well-being. Therefore, the auxiliary tool for processing and folding the carton is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a folding auxiliary fixtures of carton processing to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a folding auxiliary fixtures of carton processing, includes the supporting leg, the supporting leg is equipped with four, the supporting leg top is equipped with the workstation, the workstation below is equipped with drive assembly, the workstation both sides are located the drive assembly top and all are equipped with two logical grooves, it is equipped with the connecting rod to lead to the inslot, connecting rod below and drive assembly fixed connection, connecting rod top and backup pad fixed connection, the backup pad top is equipped with the roof, it has the pneumatic cylinder to peg graft in the middle part of the roof top, pneumatic cylinder stroke end runs through roof and mount pad fixed connection, fixed mounting has the briquetting on the mount pad.

Preferably, the transmission assembly comprises a mounting plate, the mounting plate is provided with two, the mounting plate is respectively arranged on two sides below the workbench, one side of the mounting plate is provided with a motor, a motor rotating shaft penetrates through the mounting plate and is fixedly connected with a bidirectional threaded rod, movable blocks are arranged on two sides of the bidirectional threaded rod, the upper side of each movable block is fixedly connected with a connecting rod, the movable blocks are arranged on two sides of the bidirectional threaded rod and are respectively spliced with a first guide rod, and two ends of each first guide rod are fixedly connected with the mounting plate.

Preferably, the top plate is positioned on two sides of the hydraulic cylinder and is spliced with a second guide rod, and the lower part of the second guide rod is fixedly connected with the mounting seat.

Preferably, both sides below the top plate are provided with reinforcing plates, and the reinforcing plates are fixedly connected with the supporting plate.

Preferably, a baffle is arranged on one side above the workbench.

Compared with the prior art, the beneficial effects of the utility model are that: this kind of folding auxiliary fixtures is handled in carton processing, the pneumatic cylinder is when stretching out and drawing back, pneumatic cylinder stroke end promotes the mount pad and carries out the removal of vertical direction, transmission through the mount pad makes the briquetting also remove thereupon, briquetting lower extreme direct action is on the cardboard, thereby form the indentation on the cardboard, the position of briquetting can be adjusted, make folding auxiliary fixtures can carry out the fold of crease to the different positions of carton, for traditional artifical folding mode, folding auxiliary fixtures degree of automation is higher, the fold precision of crease is higher. This kind of folding auxiliary fixtures simple structure, convenient operation for traditional artifical folding mode, folding auxiliary fixtures degree of automation is higher, and the precision of creasing is higher, the effectual off-the-shelf quality of carton that has ensured.

Drawings

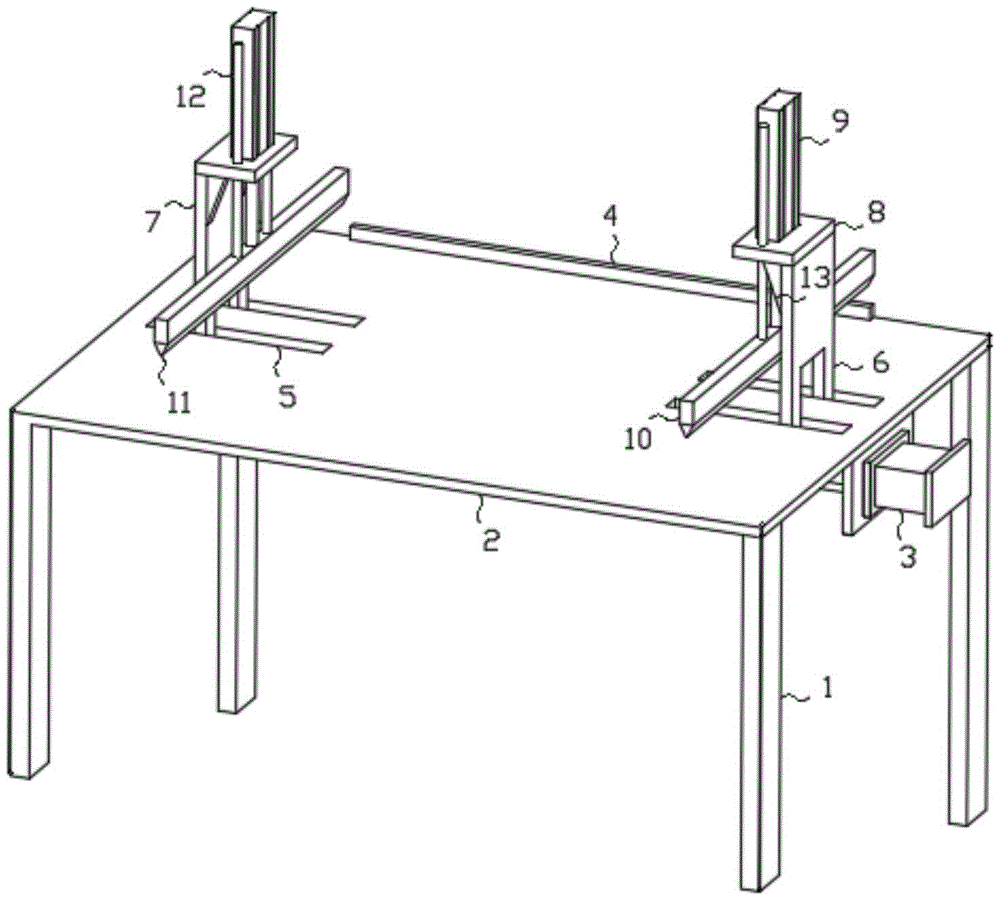

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a front view of the present invention;

FIG. 3 is a schematic structural view of the transmission assembly of the present invention;

in the figure: 1 supporting leg, 2 workstations, 3 transmission assembly, 31 mounting panels, 32 motors, 33 two-way threaded rods, 34 first guide bars, 35 movable blocks, 4 baffles, 5 through grooves, 6 connecting rods, 7 supporting plates, 8 top plates, 9 hydraulic cylinders, 10 mounting seats, 11 pressing blocks, 12 second guide bars and 13 reinforcing plates.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a folding auxiliary fixtures of carton processing, includes supporting leg 1, supporting leg 1 is equipped with four, 1 top of supporting leg is equipped with

workstation

2, 2 below of workstation is equipped with drive assembly 3, and drive assembly 3 can adjust the position of pneumatic cylinder 9 to make the briquetting can carry out the book of indentation to the carton of different length and press, 2 both sides of workstation are located drive assembly 3 top and all are equipped with two and lead to groove 5, it is equipped with connecting rod 6 to lead to the inslot 5, connecting rod 6 below and drive assembly 3 fixed connection, connecting rod 6 top and backup pad 7 fixed connection, 7 tops of backup pad are equipped with

roof

8, 8 top middle parts of roof are pegged graft and are had pneumatic cylinder 9, pneumatic cylinder 9 stroke end runs through roof 8 and mount pad 10 fixed connection, fixed mounting has briquetting 11 on mount pad 10, and when pneumatic cylinder 9 was stretching out and drawing back, pneumatic cylinder 9 stroke end promoted mount pad 10 and carries out the removal of vertical direction, makes briquetting 11 also remove through the transmission of mount pad 10 thereupon, and briquetting 11 lower extreme directly acts on the cardboard, thereby forms the indentation on the cardboard.

Drive assembly 3 includes mounting panel 31, mounting panel 31 is equipped with two, mounting panel 31 is located 2 below both sides of workstation respectively, one side mounting panel 31 one side is equipped with motor 32, motor 32 rotation axis runs through mounting panel 31 and two-way threaded rod 33 fixed connection, two-way threaded rod 33 both sides all are equipped with movable block 35, movable block 35 top and connecting rod 6 fixed connection, movable block 35 is located two-way threaded rod 33 both sides and all pegs graft and have first guide bar 34, first guide bar 34 both ends and mounting panel 31 fixed connection, motor 32 are carrying out the during operation, and motor 32 drives two-way threaded rod 33 and rotates for movable block 35 carries out the opposite direction motion on two-way threaded rod 33, through the transmission of connecting rod 6 and backup pad 7, makes pneumatic cylinder 9 also remove thereupon, at the in-process that pneumatic cylinder 9 removed, can adjust the position of briquetting 11, thereby make folding dependent work can carry out the fold crease to the different positions of cardboard.

Roof 8 is located pneumatic cylinder 9 both sides and pegs graft and has second guide bar 12, second guide bar 12 below and mount pad 10 fixed connection, second guide bar 12 and roof 8 swing joint through roof 8 and the second guide bar 12 between mutually supporting, the effectual mobility stability who improves mount pad 10.

Roof 8 below both sides all are equipped with reinforcing plate 13, reinforcing plate 13 and backup pad 7 fixed connection, reinforcing plate 13 has effectually increased the joint strength between roof 8 and the backup pad 7.

A baffle 4 is arranged on one side above the workbench 2, and the baffle 4 can limit the position of the paperboard.

Specifically, the utility model discloses in, when rolling over the indentation to the cardboard, at first, place the cardboard in 2 tops of workstation, starter motor 32, motor 32 drives two-way threaded rod 33 and rotates, make two-way threaded rod 33 go up movable block 35 and carry out opposite direction's direction motion on two-way threaded rod 33, transmission through connecting rod 6 and backup pad 7, make pneumatic cylinder 9 also remove thereupon, in-process at pneumatic cylinder 9 removal, can adjust the position of briquetting 11, pneumatic cylinder 9 is when stretching out and drawing back, pneumatic cylinder 9 stroke end promotes mount pad 10 and carries out the removal of vertical direction, transmission through mount pad 10 makes briquetting 11 also remove thereupon, 11 lower extremes of briquetting directly acts on the cardboard, thereby form the indentation on the cardboard, the position of briquetting 11 can be adjusted, make folding auxiliary fixtures can carry out the fold of crease to the different positions of carton, for traditional artifical folding mode, folding auxiliary fixtures degree of automation is higher, the precision of the fold of crease is higher.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a folding auxiliary fixtures of carton processing, includes supporting leg (1), its characterized in that: the supporting leg (1) is equipped with four, supporting leg (1) top is equipped with workstation (2), workstation (2) below is equipped with drive assembly (3), workstation (2) both sides are located drive assembly (3) top and all are equipped with two and lead to groove (5), it is equipped with connecting rod (6) to lead to groove (5), connecting rod (6) below and drive assembly (3) fixed connection, connecting rod (6) top and backup pad (7) fixed connection, backup pad (7) top is equipped with roof (8), it has pneumatic cylinder (9) to peg graft in roof (8) top middle part, pneumatic cylinder (9) stroke end runs through roof (8) and mount pad (10) fixed connection, fixed mounting has briquetting (11) on mount pad (10).

2. The carton processing and folding auxiliary tool according to claim 1, characterized in that: drive assembly (3) are including mounting panel (31), mounting panel (31) are equipped with two, mounting panel (31) are located workstation (2) below both sides respectively, one side mounting panel (31) one side is equipped with motor (32), motor (32) rotation axis runs through mounting panel (31) and two-way threaded rod (33) fixed connection, two-way threaded rod (33) both sides all are equipped with movable block (35), movable block (35) top and connecting rod (6) fixed connection, movable block (35) are located two-way threaded rod (33) both sides and all peg graft and have first guide bar (34), first guide bar (34) both ends and mounting panel (31) fixed connection.

3. The carton processing and folding auxiliary tool according to claim 1, characterized in that: the top plate (8) is positioned on two sides of the hydraulic cylinder (9) and is spliced with a second guide rod (12), and the lower part of the second guide rod (12) is fixedly connected with the mounting seat (10).

4. The carton processing and folding auxiliary tool according to claim 1, characterized in that: both sides below the top plate (8) are provided with reinforcing plates (13), and the reinforcing plates (13) are fixedly connected with the supporting plate (7).

5. The carton processing and folding auxiliary tool according to claim 1, characterized in that: and a baffle (4) is arranged on one side above the workbench (2).
