Abstract

The utility model relates to the technical field of distribution boxes, in particular to a novel distribution box. Including the box, the lower end of the inside of the box is provided with an L-shaped partition, the top of the L-shaped partition is provided with a fastening component, one side of the box is provided with a double door, and one side of the box is fixed with a plastic fixing plate. The bottom of the box is fixed with a base, the center of the bottom of the box is provided with a replacement assembly, and the inner side of the L-shaped partition and the inner side of the lower end of the box are provided with a limiting assembly. The utility model adopts the coordinated design of the overall structure, so that when the device needs to be repaired and maintained, it can ensure that the box body can be disassembled and repaired, which reduces the cost of directly replacing the box body due to damage, and also reduces the damage to the ground when the box body is disassembled. And through the structural cooperation design of the plastic fixing plate and the clamping block, the staff can reasonably place the position of the clamping block according to different circuit conditions, so as to ensure the normal wiring in the distribution box.

Description

A new type of distribution box

technical field

The utility model relates to the technical field of distribution boxes, in particular to a novel distribution box.

Background technique

The distribution box is an electrical equipment with small size, easy installation, special technical performance, fixed position, unique configuration function, not limited by the site, widely used, stable and reliable operation, high space utilization, less land occupation and environmental protection effect specialty;

Such as a new type of distribution box with the publication number CN216215146U, which solves the problem that the existing distribution box is fixed by buckling the plastic parts and the shell, but because the distribution box will shake during transportation, the plastic parts are easy to get out of contact with the distribution box. The technical problem that the shell falls off, but it does not solve the technical problem that the existing distribution box is directly fixed to the ground or wall during installation, and this installation method is inconvenient to replace and repair the distribution box;

Based on the above, it can be seen that there are the following technical problems in the prior art: the existing distribution boxes are directly fixed to the ground or the wall during installation, and this installation method is inconvenient to replace and repair the distribution box. Therefore, a new type of distribution box is designed to provide a solution to solve the above technical problems.

Utility model content

The purpose of this utility model is to provide a new type of distribution box. Generally speaking, it is aimed at the technical problem: when the existing distribution box is installed, it is directly fixed to the ground or the wall, and this installation method is not convenient for matching. Electrical box for replacement and repair.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions:

A new type of distribution box, including a box body, the lower end of the inside of the box is provided with an L-shaped partition, the top of the L-shaped partition is provided with a fastening assembly, and the L-shaped partition is located on the inside of the box. One end is provided with an outlet slot, and one side of the box is provided with a double door, and a rotating shaft is arranged between the double door and the box, and the double door is connected to the box through the rotating shaft. A plastic fixing plate is fixed on one side of the plastic fixing plate, and one side of the plastic fixing plate is provided with a block. The bottom of the box is fixed with a base. A replacement component is provided, and a limiting component is provided on the inner side of the L-shaped partition and at the lower end of the box body.

Preferably, the fastening assembly includes threaded blocks and bolts, threaded blocks are fixed at the four corners of the upper end of the L-shaped partition, the inner side of the threaded block is threaded with bolts, and the bolts are connected to the box body Internal threaded connection.

Preferably, the replacement assembly includes a turning handle, a turntable and a limit post, the center of the lower end of the box body is rotatably connected to a turning handle, the turning handle runs through the bottom end of the box body, and the lower end of the turning handle is fixedly connected to There is a turntable, the bottom end of the turntable fits with the lower end of the limit groove, and four limit posts are fixed on the outside of the turntable.

Preferably, the lower end of the limiting slot and the position corresponding to the limiting post are fixed with a limiting block.

Preferably, the limiting assembly includes a pull rod and a spring, a pull rod is provided on the inner side of the L-shaped partition and at the lower end of the box body, and the lower end of the pull rod passes through the lower end of the box body to fit the outside of the observation window, A turning handle is arranged between the spring and the box body, one end of the turning handle is fixed to the spring, and the other end of the turning handle is fixed to the box body.

Preferably, an observation window is fixed inside the double-opening door, and the observation window is made of glass.

It can be seen without doubt that the technical problem to be solved in the present application can be solved through the above-mentioned technical solution of the present application.

At the same time, through the above technical solutions, the utility model at least has the following beneficial effects:

Through the coordinated design of the overall structure, when the device needs to be repaired and maintained, it is ensured that the box can be disassembled and repaired, which reduces the cost of directly replacing the box due to damage, and also reduces the damage to the ground when the box is disassembled. The structure of the fixed plate and the clamping block is designed together, so that the staff can reasonably place the position of the clamping block according to different circuit conditions, so as to ensure the normal wiring in the distribution box.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the utility model, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments. Obviously, the accompanying drawings in the following description are some embodiments of the utility model. For Those of ordinary skill in the art can also obtain other drawings based on these drawings without making creative efforts.

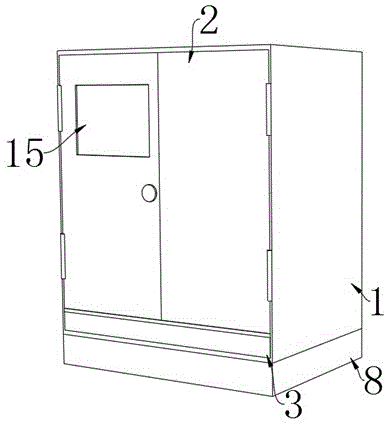

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the internal structural representation of the utility model;

Fig. 3 is a structural schematic diagram of the fastening assembly of the present invention;

Fig. 4 is a structural schematic diagram of the limiting assembly of the present invention;

Fig. 5 is a structural schematic diagram of the replacement assembly of the present invention.

In the figure: 1. Box body; 2. Double doors; 3. L-shaped partition; 4. Thread block; 5. Bolt; 6. Plastic fixing plate; 7. Block; 8. Base; 9. Pull rod; 10. Spring; 11, turning handle; 12, turntable; 13, limit column; 14, limit block; 15, observation window.

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Referring to Figures 1-5, a new type of distribution box includes a box body 1, and the lower end of the inside of the box body 1 is provided with an L-shaped partition 3. In order to facilitate the entry of wires into the box body 1, the L-shaped partition 3 is located in the box body One end of the inner side of 1 is provided with an outlet groove, and one side of the box body 1 is provided with a double door 2. In order to facilitate the rotation of the double door 2, a rotating shaft is arranged between the double door 2 and the box body 1, and the double door 2 is connected to the box body 1 through the rotating shaft. Rotation connection, in order to facilitate the observation of the internal circuit of the box body 1, the inside of the double door 2 is fixed with an observation window 15, the observation window 15 is made of glass, in order to facilitate the installation of power distribution equipment inside the box body 1, one side of the box body 1 A plastic fixing plate 6 is fixed, and in order to facilitate the fastening of the wires, one side of the plastic fixing plate 6 is provided with a block 7;

In order to fix the L-shaped partition 3 conveniently, the top of the L-shaped partition 3 is provided with a fastening assembly;

Specifically, the fastening assembly includes a threaded block 4 and a bolt 5, the four corners of the upper end of the L-shaped partition 3 are fixed with a threaded block 4, the inner side of the threaded block 4 is threaded with a bolt 5, and the bolt 5 is connected to the box body 1 Internal threaded connection;

In order to facilitate the replacement of the box body 1, the bottom end of the box body 1 is fixed with a base 8, the inside of the upper end of the base 8 is provided with a limiting groove, and the center of the bottom end of the box body 1 is provided with a replacement component;

Specifically, the replacement assembly includes a turning handle 11, a turntable 12 and a limit post 13, and the center of the lower end of the box body 1 is rotatably connected with a turning handle 11, and the turning handle 11 runs through the bottom end of the box body 1, and the lower end of the turning handle 11 is fixedly connected There is a turntable 12, the bottom of the turntable 12 fits with the lower end of the limit groove, four limit posts 13 are fixed on the outside of the turntable 12, the lower end of the limit groove and the position corresponding to the limit post 13 are fixed to limit the position. block 14;

In order to limit the position of the limit column 13 conveniently, the inner side of the L-shaped partition 3 and the lower end of the box body 1 are provided with a limit component;

Specifically, the limit assembly includes a pull rod 9 and a spring 10. The inner side of the L-shaped partition 3 and the lower end of the box body 1 are provided with a pull rod 9. The lower end of the pull rod 9 runs through the lower end of the box body 1 and is attached to the outside of the observation window 15. Close, make it reset automatically after pulling pull bar 9 for convenience, be provided with rotating handle 11 between spring 10 and casing 1, one end of rotating handle 11 is fixed with spring 10, and the other end of rotating handle 11 is fixed with casing 1.

Based on the above, we can see that:

The utility model aims at the technical problem: the existing distribution box is directly fixed to the ground or the wall during installation, and this installation method is inconvenient to replace and maintain the distribution box; the technical solutions of the above-mentioned embodiments are adopted. Simultaneously, the realization process of above-mentioned technical scheme is:

When the device needs to be installed, the base 8 is fixed to the ground by embedding the concrete, and the top of the base 8 is exposed to the concrete, and then the lower end of the box body 1 is attached to the top of the base 8, and the double-opening door is connected by a rotating shaft. 2 Open, so that the space inside the box body 1 can be operated, by turning the bolt 5 in turn to move away from the threaded block 4, and then release the limit to the L-shaped partition 3, and take the L-shaped partition 3 out of the box inside of body 1.

By pulling the pull rod 9 in a direction away from the base 8, so that one end of the pull rod 9 is no longer attached to the outside of the limit block 14, by turning the handle 11, and then driving the turntable 12 to rotate, so that the limit post 13 rotates to the limit block 14 The inner side of the pull rod 9 is returned to its original position by releasing the pull rod 9 through the elastic characteristics of the spring 10, and then the limit column 13 is limited, so that the box body 1 and the base 8 are fixed, and the L-shaped partition 3 is put back to the original position. Position, and then turn the bolts 5 to move in the direction of the threaded block 4, and then limit the L-shaped partition 3.

After the device is fixed, the wires for construction are introduced into the inner side of the box body 1 through the outlet slot, and then according to different circuit conditions, the clamping block 7 is fixed on the plastic fixing plate 6 with screws, and then the wires are clamped into the clamping block 7 After the wiring is completed, the double-opening door 2 is restored to its original position through the rotating shaft, and then during subsequent maintenance, the inside of the box body 1 can be observed through the observation window 15;

Through the above settings, the present application must be able to solve the above technical problems, and at the same time, achieve the following technical effects:

Through the coordinated design of the overall structure, when the device needs to be repaired and maintained, it is ensured that the box can be disassembled and repaired, which reduces the cost of directly replacing the box due to damage, and also reduces the damage to the ground when the box is disassembled. The structure of the fixed plate and the clamping block is designed together, so that the staff can reasonably place the position of the clamping block according to different circuit conditions, so as to ensure the normal wiring in the distribution box.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions describe only the principle of the utility model. There will be various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a novel distribution box, includes box (1), its characterized in that, the inboard lower extreme of box (1) is provided with L shape baffle (3), the top of L shape baffle (3) is provided with fastening component, L shape baffle (3) are located the inboard one end of box (1) and have seted up the wire groove, one side of box (1) is provided with two door (2), be provided with the pivot between two door (2) and box (1), two door (2) rotate with box (1) through the pivot and are connected, the inside one side of box (1) is fixed with plastic fixing plate (6), one side of plastic fixing plate (6) is provided with fixture block (7), the bottom mounting of box (1) has base (8), the spacing groove has been seted up to the inside of base (8) upper end, the center department of box (1) bottom is provided with the change subassembly, the inboard lower extreme that just is located box (1) of L shape baffle (3) is provided with spacing subassembly.

2. The novel distribution box according to claim 1, characterized in that the fastening assembly comprises a thread block (4) and a bolt (5), the thread block (4) is fixed at each of four corners of the upper end of the L-shaped partition plate (3), the bolt (5) is connected with the inner side of the thread block (4) in a threaded manner, and the bolt (5) is connected with the inner side of the box body (1) in a threaded manner.

3. The novel distribution box according to claim 1, wherein the replacement assembly comprises a rotating handle (11), a rotating disc (12) and a limiting column (13), the rotating handle (11) is rotatably connected to the center of the lower end of the box body (1), the rotating handle (11) penetrates through the bottom end of the box body (1), the rotating disc (12) is fixedly connected to the lower end of the rotating handle (11), the bottom end of the rotating disc (12) is attached to the lower end of the limiting groove, and four limiting columns (13) are fixed to the outer side of the rotating disc (12).

4. The novel distribution box of claim 1, wherein a limiting block (14) is fixed at the lower end of the limiting groove and at the position corresponding to the limiting column (13).

5. The novel distribution box according to claim 1, wherein the limiting component comprises a pull rod (9) and a spring (10), the pull rod (9) is arranged on the inner side of the L-shaped partition plate (3) and at the lower end of the box body (1), the lower end of the pull rod (9) penetrates through the lower end of the box body (1) and is attached to the outer side of the observation window (15), a rotating handle (11) is arranged between the spring (10) and the box body (1), one end of the rotating handle (11) is fixed to the spring (10), and the other end of the rotating handle (11) is fixed to the box body (1).

6. The novel distribution box according to claim 1, wherein said double doors (2) are internally fixed with an observation window (15), said observation window (15) is made of glass.
