CN218746681U - Wind power generation base raw material plate groove machining device

Info

Publication number: CN218746681U
Application number: CN202223267567.4U
Authority: CN
Inventors: 王吉洁; 廉政; 赵龙; 石晓伟; 常海; 王成祥
Original assignee: Shandong Longma Wind Energy Equipment Co ltd
Current assignee: Shandong Longma Wind Energy Equipment Co ltd
Priority date: 2022-12-07
Filing date: 2022-12-07
Publication date: 2023-03-28
Anticipated expiration: 2032-12-07

Abstract

The utility model discloses a wind-powered electricity generation base raw material plate groove preparation device in groove preparation device technical field, including body and support column, support column fixed connection be in the top left and right sides of body, through the first motor of bolt fixedly connected with in the middle of the inner chamber bottom of body, the top intermediate rotation of body is connected with the clamping platform, just in the middle of the bottom of clamping platform with the output of first motor passes through shaft coupling fixed connection, this wind-powered electricity generation base raw material plate groove preparation device, structural design is reasonable, can realize the regional free regulation of groove preparation, can accurate location raw material plate's position, and the manual adjustment of no need has improved groove preparation device's work efficiency, provides power through first motor, drives the clamping platform and rotates, makes the raw material plate on the clamping platform rotate, makes circular motion at groove preparation, realizes convex processing technology, improves groove preparation device's practicality.

Description

Wind power generation base raw material plate groove machining device

Technical Field

The utility model relates to a groove preparation technical field specifically is a wind-powered electricity generation base raw material plate groove preparation device.

Background

The beveling device is generally a beveling machine, is a special tool for chamfering the end face of a pipeline or a flat plate before welding, overcomes the defects of irregular angle, rough slope surface, high working noise and the like of operation processes such as flame cutting, grinding by a polishing machine and the like, and has the advantages of simple and convenient operation, standard angle, smooth surface and the like;

in the production and processing of wind power equipment, the raw material plate of the base needs to be subjected to groove machining, the existing groove machining device can only adjust the angle of a groove, cannot adjust the machining position, needs to manually adjust the position of the raw material plate, and therefore operation is complex, machining efficiency is affected, linear machining can be achieved, circular machining cannot be achieved, the practicability of the device is reduced, and the groove machining device for the raw material plate of the wind power generation base is provided for the device.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a wind-powered electricity generation base raw material plate groove preparation device to having proposed some groove preparation devices in solving above-mentioned background art, only can adjusting the angle of groove, can not adjust the processing position, need the position of manual adjustment raw material plate, lead to complex operation, influence machining efficiency, and can only linear machining, can not realize circular processing, reduced the problem of its practicality.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a wind-powered electricity generation base raw material plate groove preparation device, includes body and support column, support column fixed connection be in the top left and right sides of body, through the first motor of bolt fixedly connected with in the middle of the inner chamber bottom of body, rotate in the middle of the top of body and be connected with the clamping platform, just in the middle of the bottom of clamping platform with the output of first motor passes through shaft coupling fixed connection, the back lateral wall of body rotates through the hinge and is connected with the maintenance board, bolt fixedly connected with air pump, two are passed through in the inner chamber bottom left side of body upside fixedly connected with guide rail between the support column, it is connected with the gangbar to rotate between the lateral wall about the inner chamber of guide rail, bolt fixedly connected with second motor is passed through on the top right side of guide rail, the inner chamber sliding connection of guide rail have the stopper, and with gangbar threaded connection, the bottom flange joint of stopper has the cylinder, and with the air pump passes through pipe fixed connection.

As a further description of the above technical solution:

a shutter is embedded in the lower side of the rear side wall of the maintenance plate.

As a further description of the above technical solution:

and the right end of the linkage rod is fixedly connected with a second synchronizing wheel and is positioned in the inner cavity of the through groove.

As a further description of the above technical solution:

the output end of the second motor is fixedly connected with a first synchronous wheel, the first synchronous wheel and the second synchronous wheel are connected in a rotating mode through a synchronous belt, and a protective cover is sleeved on the outer side of the second motor.

As a further description of the above technical solution:

the bottom flange of cylinder is connected with the third motor, the output fixedly connected with groove sanding block of third motor.

As a further description of the above technical solution:

the upper right side of the front side wall of the body is inlaid with a control panel, and the control panel is electrically connected with the first motor, the second motor, the third motor and the air pump respectively.

Compared with the prior art, the beneficial effects of the utility model are that: this wind-powered electricity generation base raw material plate groove preparation device, provide through the second motor and move, it rotates to drive the second synchronizing wheel, it is rotatory to drive first synchronizing wheel through the second synchronizing wheel, make the gangbar rotate, it removes to drive the stopper horizontal direction through the gangbar, it removes to transfer the cylinder through the stopper, make the third motor remove together simultaneously, be convenient for drive the groove and polish the piece and remove, realize the regional free regulation of groove preparation, can accurate position raw material plate's position, manual adjustment is unnecessary, the work efficiency of groove preparation device has been improved, provide power through first motor, it is rotatory to drive the clamping platform, make the raw material plate on the clamping platform rotate, make raw material plate do circular motion when groove preparation, realize convex processing technology, improve groove preparation device's practicality.

Drawings

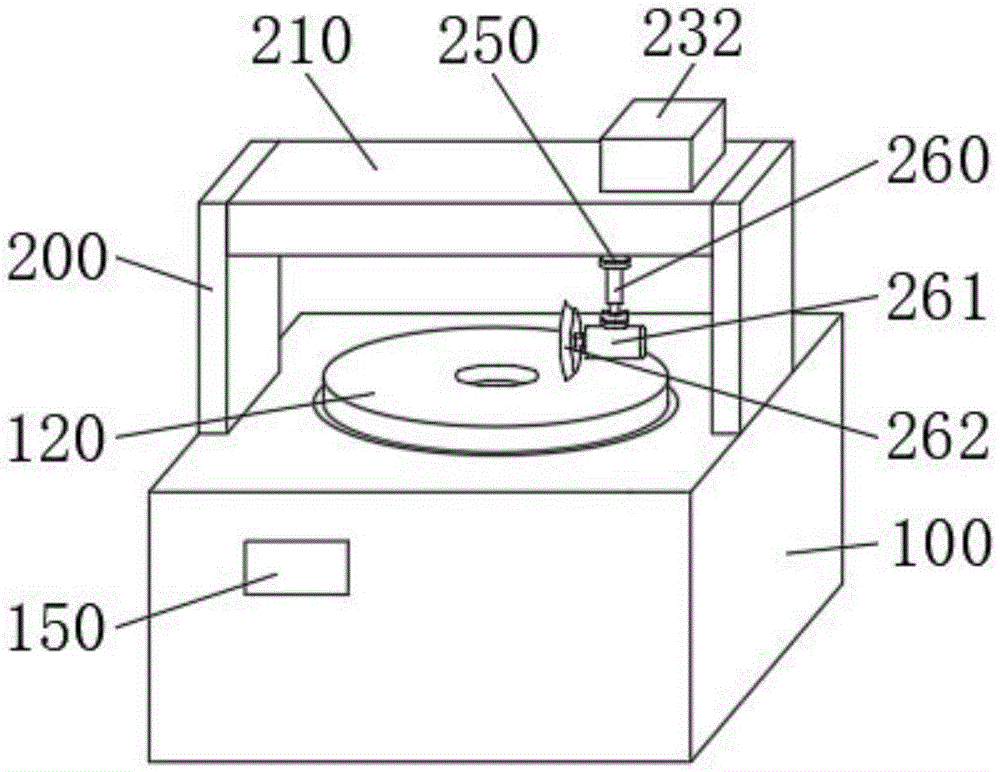

Fig. 1 is a schematic structural view of a wind power generation base raw material plate groove machining device provided by the utility model;

FIG. 2 is a schematic structural view of a front view cross section of a groove machining device for a raw material plate of a wind power generation base provided by the utility model;

fig. 3 is a schematic rear view structural diagram of a device for processing a groove of a raw material plate of a wind power generation base provided by the utility model;

fig. 4 is the utility model provides a wind power generation base raw material plate groove preparation device's partial sectional structure schematic diagram.

In the figure: 100. a body; 110. a first motor; 120. a clamping table; 130. maintaining the guard plate; 131. a blind window; 140. an air pump; 150. a control panel; 200. a support column; 210. a guide rail; 220. a linkage rod; 221. a second synchronizing wheel; 230. a second motor; 231. a first synchronizing wheel; 232. a protective cover; 240. a through groove; 250. a limiting block; 260. a cylinder; 261. a third motor; 262. and a groove grinding block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship indicated based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The utility model provides a wind-powered electricity generation base raw material plate groove preparation device can realize the free regulation in groove preparation region, can the position of accurate location raw material plate, does not need manual adjustment, has improved groove preparation device's work efficiency, provides power through first motor, drives the clamping platform rotatory, makes the raw material plate on the clamping platform rotate, makes the raw material plate do circular motion when groove preparation, realizes convex processing technology, improves groove preparation device's practicality, please refer to fig. 1-4, including body 100 and support column 200;

referring to fig. 1 to 3, a first motor 110 is fixedly connected to the middle of the bottom of an inner cavity of a body 100 through a bolt, the first motor 110 is used for providing power, a clamping table 120 is rotatably connected to the middle of the top of the body 100, the clamping table 120 is used for assembling a raw material plate, the middle of the bottom of the clamping table 120 is fixedly connected to an output end of the first motor 110 through a coupling, a maintenance plate 130 is rotatably connected to a rear side wall of the body 100 through a hinge, the maintenance plate 130 is used for maintaining the body 100, an air pump 140 is fixedly connected to the left side of the bottom of the inner cavity of the body 100 through a bolt, and the air pump 140 is used for providing power;

referring to fig. 1-4 again, the supporting columns 200 are fixedly connected to the left and right sides of the top of the body 100, the guide rails 210 are fixedly connected to the upper side between the two supporting columns 200, the guide rails 210 are used for installing the limiting blocks 250 and the linkage rods 220, the linkage rods 220 are rotatably connected between the left and right side walls of the inner cavity of the guide rails 210, the linkage rods 220 are used for power transmission, the second motor 230 is fixedly connected to the right side of the top of the guide rails 210 through bolts, the second motor 230 is used for providing power, the limiting blocks 250 are slidably connected to the inner cavity of the guide rails 210, the limiting blocks 250 are used for installing the air cylinders 260 and are in threaded connection with the linkage rods 220, the air cylinders 260 are connected to the bottom flanges of the limiting blocks 250, and the air cylinders 260 are used for power transmission and are fixedly connected to the air pump 140 through pipes.

In conclusion, the free adjustment of the groove machining area can be realized, the position of the raw material plate can be accurately positioned, manual adjustment is not needed, the working efficiency of the groove machining device is improved, power is provided through the first motor 110, the clamping table 120 is driven to rotate, the raw material plate on the clamping table 120 is rotated, circular motion of the raw material plate is realized during groove machining, an arc-shaped machining process is realized, and the practicability of the groove machining device is improved.

Referring to fig. 3, a louver 131 is embedded in the lower side of the rear sidewall of the maintenance plate 130, so as to facilitate heat dissipation of the main body 100.

Referring to fig. 4, a second synchronizing wheel 221 is fixedly connected to the right end of the linkage rod 220 and is located in the inner cavity of the through groove 240, so as to facilitate power transmission.

Referring to fig. 1 again, the output end of the second motor 230 is fixedly connected with a first synchronizing wheel 231, and is rotatably connected with the second synchronizing wheel 221 through a synchronizing belt, and the outer side of the second motor 230 is sleeved with a protective cover 232 for providing power.

Referring to fig. 1-3 again, the bottom of the cylinder 260 is connected to a flange of a third motor 261, and an output end of the third motor 261 is fixedly connected to a groove grinding block 262, so as to adjust the height of the groove machining process.

Referring to fig. 1-2 and 4, a control panel 150 is embedded on the upper right side of the front sidewall of the main body 100, and the control panel 150 is electrically connected to the first motor 110, the second motor 230, the third motor 261 and the air pump 140 respectively, so as to control the start and the stop of the first motor 110, the second motor 230, the third motor 261 and the air pump 140.

When the groove machining device is used in concrete, a person in the technical field installs the raw material plate on the clamping table 120 manually, controls the control panel 150 manually, starts the second motor 230 to operate, drives the first synchronizing wheel 231 to rotate through the second motor 230, drives the second synchronizing wheel 221 to rotate through the first synchronizing wheel 231, enables the linkage rod 220 to rotate, drives the limit block 250 to move in the horizontal direction through the linkage rod 220, moves the air cylinder 260 through the limit block 250 to move, simultaneously enables the third motor 261 to move together, is convenient to drive the groove grinding block 262 to move left and right, realizes free adjustment of a groove machining area, can accurately position the position of the raw material plate, does not need manual adjustment, improves the working efficiency of the groove machining device, starts the air pump 140 to operate through the manual control panel 150, provides power through the air pump 140, drives the air cylinder 260 to move, is convenient to adjust the groove machining height, controls the control panel 150 manually, starts the first motor 110 to operate, drives the clamping table 120 to rotate through the first motor 110, enables the raw material plate on the clamping table 120 to rotate, makes the groove machining move, and realizes circular arc-shaped groove machining process and improves the practicability of the groove machining device.

In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "a specific example," or "some examples" or the like mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the present invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

While embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the invention, the scope of which is defined by the claims and their equivalents.

Claims

1. The utility model provides a wind-powered electricity generation base raw material plate groove preparation device which characterized in that: including body (100) and support column (200), support column (200) fixed connection be in the top left and right sides of body (100), through first motor (110) of bolt fixedly connected with in the middle of the inner chamber bottom of body (100), rotate in the middle of the top of body (100) and be connected with clamping platform (120), just in the middle of the bottom of clamping platform (120) with the output of first motor (110) passes through shaft coupling fixed connection, the back lateral wall of body (100) is rotated through the hinge and is connected with maintenance board (130), there is air pump (140) through bolt fixedly connected with in the left side of the inner chamber bottom of body (100), two upside fixedly connected with guide rail (210) between support column (200), it is connected with gangbar (220) to rotate between the lateral wall about the inner chamber of guide rail (210), bolt fixedly connected with second motor (230) is passed through on the top right side of guide rail (210), the inner chamber sliding connection of guide rail (210) has stopper (250), and with gangbar (220) threaded connection, the bottom flange joint of stopper (260), and with air pump (140) passes through pipe fixed connection.

2. The groove machining device for the raw material plate of the wind power generation base, according to claim 1, is characterized in that: a louver (131) is embedded in the lower side of the rear side wall of the maintenance plate (130).

3. The groove machining device for the raw material plate of the wind power generation base, according to claim 1, is characterized in that: the right end of the linkage rod (220) is fixedly connected with a second synchronizing wheel (221) and is positioned in the inner cavity of the through groove (240).

4. The groove machining device for the raw material plate of the wind power generation base, according to claim 1, is characterized in that: the output end of the second motor (230) is fixedly connected with a first synchronous wheel (231), the first synchronous wheel and the second synchronous wheel (221) are connected in a rotating mode through a synchronous belt, and a protective cover (232) is sleeved on the outer side of the second motor (230).

5. The groove machining device for the raw material plate of the wind power generation base, according to claim 1, is characterized in that: the bottom flange of cylinder (260) is connected with third motor (261), the output fixedly connected with groove sanding block (262) of third motor (261).

6. The groove machining device for the raw material plate of the wind power generation base, according to claim 1, is characterized in that: the right upper side of the front side wall of the body (100) is inlaid with a control panel (150), and the control panel (150) is electrically connected with the first motor (110), the second motor (230), the third motor (261) and the air pump (140) respectively.
