CN218734474U - Adjustable recorder

Info

Publication number: CN218734474U
Application number: CN202223038754.5U
Authority: CN
Inventors: 孟洋
Original assignee: Changsha Social Work College
Current assignee: Changsha Social Work College
Priority date: 2022-11-14
Filing date: 2022-11-14
Publication date: 2023-03-24
Anticipated expiration: 2032-11-14

Abstract

The utility model discloses a record appearance with adjustable relates to image processing technology field. The utility model discloses a record appearance body, the bottom of record appearance body is provided with the connecting plate, the connecting plate with be provided with angle adjustment mechanism between the record appearance body, the bottom of connecting plate is provided with the mounting box, the bottom fixedly connected with support column of mounting box, the inside of mounting box is provided with high adjustment mechanism. The utility model discloses a bottom of record appearance body is provided with the connecting plate, is provided with angle adjustment mechanism between connecting plate and the record appearance body, the angle of adjustable record appearance body, the bottom of connecting plate is provided with the mounting box, the inside of mounting box is provided with high adjustment mechanism, the height of adjustable record appearance body can let the record appearance keep for a long time at a stable state simultaneously, can record the process of computer image processing better, very be worth popularizing and applying.

Description

Adjustable recorder

Technical Field

The utility model relates to an image processing technology field, concretely relates to record appearance with adjustable.

Background

The recorder is a novel intelligent paperless recorder which takes an advanced CPU as a core and is assisted by a large-scale integrated circuit, a high-capacity FLASH memory, signal intelligent conditioning, a SmartBus bus and a high-resolution graphic liquid crystal display, is an instrument for converting the process of changing one or more variables along with time or another variable into a recognizable and readable signal, and has the characteristics of multiple channels, low power consumption, high precision, strong universality, stable operation, high reliability and the like.

The person skilled in the art finds out in the course of practical use: the recorder needs to be aligned with a computer screen for clearly recording when recording, but the height and the angle of the recorder are difficult to adjust during adjustment, and the recorder is difficult to stably maintain at a fixed position for a long time, so that the adjustable recorder needs to be designed.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: for solving the problem that height and angle are difficult to adjust, the utility model provides an adjustable record appearance.

The utility model discloses a realize above-mentioned purpose and specifically adopt following technical scheme:

the utility model provides a record appearance with adjustable, includes the record appearance body, the bottom of record appearance body is provided with the connecting plate, the connecting plate with be provided with angle adjustment mechanism between the record appearance body, the bottom of connecting plate is provided with the mounting box, the bottom fixedly connected with support column of mounting box, the inside of mounting box is provided with high adjustment mechanism, the support column is kept away from the one end fixedly connected with base of mounting box, a plurality of universal auto-lock wheels of bottom fixedly connected with of base.

Further, angle adjustment mechanism sets up including the symmetry the mounting panel at connecting plate top, two rotate between the mounting panel and be connected with the worm, the one end fixedly connected with handle of worm, it is connected with the installing frame to rotate on the worm, the inside of installing frame is rotated and is connected with the dwang, the middle part fixedly connected with worm wheel of dwang, the worm wheel with the worm meshes mutually, the both ends fixedly connected with U-shaped board of dwang, the U-shaped board with record appearance body fixed connection.

Furthermore, a rotary damper is arranged at the joint of the mounting frame and the worm.

Furthermore, a sliding groove is formed in the connecting plate, a sliding block is fixedly connected to the bottom of the mounting plate, and the sliding block slides in the sliding groove.

Further, the height adjusting mechanism comprises a rotating handle which is rotatably connected to the side wall of the mounting box, the rotating handle is located at one end inside the mounting box and fixedly connected with a driving bevel gear, the mounting box is rotatably connected with a rotating cylinder, the end part of the rotating cylinder is fixedly connected with a driven bevel gear, the driving bevel gear is meshed with the driven bevel gear, a screw is in threaded connection with the driven bevel gear, a guide piece is arranged at one end, located inside the support column, of the screw, and the other end of the screw is fixedly connected with the bottom of the connecting plate.

Further, the guide piece comprises a guide block fixedly connected to the end of the screw rod, a square groove is formed in the support column, and the guide block slides in the square groove.

The utility model has the advantages as follows:

the utility model discloses a bottom of record appearance body is provided with the connecting plate, is provided with angle adjustment mechanism between connecting plate and the record appearance body, the angle of adjustable record appearance body, the bottom of connecting plate is provided with the mounting box, the inside of mounting box is provided with high adjustment mechanism, the height of adjustable record appearance body can let the record appearance keep for a long time at a stable state simultaneously, can record the process of computer image processing better, very be worth popularizing and applying.

Drawings

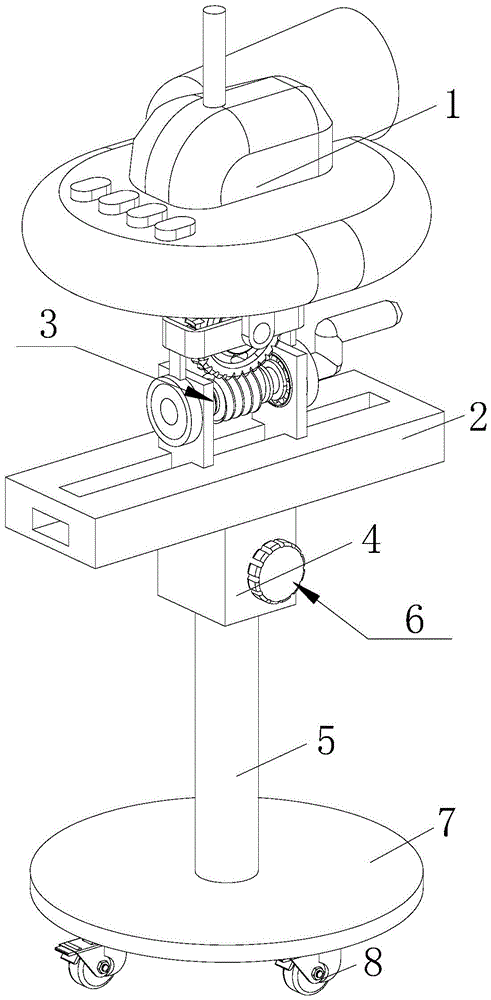

FIG. 1 is a schematic perspective view of the present invention;

fig. 2 is a schematic perspective view of the angle adjusting mechanism of the present invention;

fig. 3 is a perspective sectional view of the angle adjusting mechanism of the present invention;

fig. 4 is a perspective sectional view of the height adjusting mechanism of the present invention.

Reference numerals: 1. a recorder body; 2. a connecting plate; 3. an angle adjusting mechanism; 301. mounting a plate; 302. a worm; 303. a handle; 304. installing a frame; 305. rotating the rod; 306. a worm gear; 307. a U-shaped plate; 4. mounting a box; 5. a support pillar; 6. a height adjustment mechanism; 601. rotating the handle; 602. a drive bevel gear; 603. a rotating cylinder; 604. a driven bevel gear; 605. a screw; 7. a base; 8. a universal self-locking wheel; 9. a rotary damper; 10. a chute; 11. a slider; 12. a guide; 1201. a guide block; 1202. a square groove.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention.

As shown in fig. 1-4, an adjustable recorder comprises a recorder body 1, a connecting plate 2 is arranged at the bottom of the recorder body 1, an angle adjusting mechanism 3 is arranged between the connecting plate 2 and the recorder body 1, a mounting box 4 is arranged at the bottom of the connecting plate 2, a supporting column 5 is fixedly connected to the bottom of the mounting box 4, a height adjusting mechanism 6 is arranged inside the mounting box 4, a base 7 is fixedly connected to one end, far away from the mounting box 4, of the supporting column 5, and a plurality of universal self-locking wheels 8 are fixedly connected to the bottom of the base 7.

In some embodiments, bottom through record appearance body 1 is provided with connecting plate 2, be provided with angle adjustment mechanism 3 between connecting plate 2 and the record appearance body 1, adjustable record appearance body 1's angle, connecting plate 2's bottom is provided with mounting box 4, mounting box 4's inside is provided with height adjustment mechanism 6, adjustable record appearance body 1's height, can let the record appearance keep a stable state for a long time simultaneously, can record the process that the computer image was handled better, very be worth popularizing and applying, it is concrete: accessible universal auto-lock wheel 8 stops after removing record appearance body 1 to a certain position, and the height of record appearance body 1 is adjusted to rethread height adjustment mechanism 6, makes it and computer parallel and level, and rethread angle adjustment mechanism 3 adjusts the angle of record appearance body 1, makes its image processing that can clearly take notes on the computer, easy operation just can keep long-time stability.

As shown in fig. 2 and 3, in some embodiments, the angle adjusting mechanism 3 includes mounting plates 301 symmetrically disposed on the top of the connecting plate 2, a worm 302 is rotatably connected between the two mounting plates 301, a handle 303 is fixedly connected to one end of the worm 302, a mounting frame 304 is rotatably connected to the worm 302, a rotating rod 305 is rotatably connected to the inside of the mounting frame 304, a worm wheel 306 is fixedly connected to the middle of the rotating rod 305, the worm wheel 306 is engaged with the worm 302, U-shaped plates 307 are fixedly connected to both ends of the rotating rod 305, and the U-shaped plates 307 are fixedly connected to the recorder body 1, specifically: the working principle of the angle adjusting mechanism 3 during use is as follows: rotate handle 303, drive worm 302 and rotate to drive engaged with worm wheel 306 and rotate, drive dwang 305 and U-shaped plate 307 simultaneously and rotate, and worm wheel 306 worm 302 has the auto-lock nature, can make U-shaped plate 307 rotate and stop after certain angle, thereby stop after driving record appearance body 1 and rotate to certain fixed angle, angle around adjustable record appearance body 1 like this, the accessible rotates the installing frame 304 and adjusts the left and right sides angle of record appearance body 1 simultaneously.

As shown in fig. 2, in some embodiments, a rotary damper 9 is installed at the connection between the mounting frame 304 and the worm 302, specifically: the rotary damper 9 can make the mounting frame 304 obtain gentle mechanical movement in the rotating process, and can be fixed after the mounting frame 304 rotates to a certain angle, thereby adjusting the left-right shaking angle of the recorder.

As shown in fig. 3, in some embodiments, a sliding groove 10 is configured on the connecting plate 2, a sliding block 11 is fixedly connected to the bottom of the mounting plate 301, and the sliding block 11 slides in the sliding groove 10, specifically: when the position of the recorder body 1 needs to be moved, the sliding block 11 slides in the sliding groove 10 to the required position and then stops, the distance between the recorder body 1 and a computer can be adjusted, the image processing process on the computer can be recorded clearly by the recorder body 1, and the operation of personnel is not hindered.

As shown in fig. 4, in some embodiments, the height adjusting mechanism 6 includes a rotating handle 601 rotatably connected to a side wall of the mounting box 4, one end of the rotating handle 601 located inside the mounting box 4 is fixedly connected with a driving bevel gear 602, the inside of the mounting box 4 is rotatably connected with a rotating cylinder 603, an end of the rotating cylinder 603 is fixedly connected with a driven bevel gear 604, the driving bevel gear 602 is meshed with the driven bevel gear 604, a screw 605 is threadedly connected to the driven bevel gear 604, a guide 12 is arranged at one end of the screw 605 located inside the supporting column 5, and the other end is fixedly connected to a bottom of the connecting plate 2, specifically: the working principle of the height adjusting mechanism 6 during use is as follows: when the rotating handle 601 is rotated, the driving bevel gear 602 is driven to rotate, so as to drive the meshed driven bevel gear 604 to rotate, and simultaneously, the rotating cylinder 603 is driven to rotate, and the driving screw 605 moves up and down in the mounting box 4 under the guiding action of the guiding piece 12, so that the purpose of adjusting the height is achieved, and the operation is simple.

As shown in fig. 4, in some embodiments, the guide 12 comprises a guide block 1201 fixedly connected to the end of the screw 605, the support column 5 is internally configured with a square groove 1202, and the guide block 1201 slides in the square groove 1202, specifically: when the screw 605 moves, the guide block 1201 is driven to slide in the square groove 1202, and simultaneously, under the guiding action of the guide block 1201, the screw 605 can only move up and down in the support column 5.

The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims

1. The utility model provides a record appearance with adjustable, includes record appearance body (1), its characterized in that, the bottom of record appearance body (1) is provided with connecting plate (2), connecting plate (2) with be provided with angle adjusting mechanism (3) between record appearance body (1), the bottom of connecting plate (2) is provided with mounting box (4), the bottom fixedly connected with support column (5) of mounting box (4), the inside of mounting box (4) is provided with height adjusting mechanism (6), keep away from support column (5) the one end fixedly connected with base (7) of mounting box (4), a plurality of universal auto-lock wheels (8) of bottom fixedly connected with of base (7).

2. The adjustable recorder according to claim 1, characterized in that, angle adjustment mechanism (3) is including the symmetry setting the mounting panel (301) at connecting plate (2) top, two it is connected with worm (302) to rotate between mounting panel (301), the one end fixedly connected with handle (303) of worm (302), it is connected with installing frame (304) to rotate on worm (302), the internal rotation of installing frame (304) is connected with dwang (305), the middle part fixedly connected with worm wheel (306) of dwang (305), worm wheel (306) with worm (302) mesh mutually, the both ends fixedly connected with U-shaped board (307) of dwang (305), U-shaped board (307) with record appearance body (1) fixed connection.

3. An adjustable recorder according to claim 2, wherein a rotary damper (9) is mounted at the junction of the mounting frame (304) and the worm (302).

4. An adjustable recorder according to claim 2, wherein the connecting plate (2) is configured with a sliding slot (10), a sliding block (11) is fixedly connected to the bottom of the mounting plate (301), and the sliding block (11) slides in the sliding slot (10).

5. The adjustable recorder according to claim 1, wherein the height adjusting mechanism (6) comprises a rotating handle (601) rotatably connected to a side wall of the mounting box (4), one end of the rotating handle (601) located inside the mounting box (4) is fixedly connected with a driving bevel gear (602), the inside of the mounting box (4) is rotatably connected with a rotating cylinder (603), the end of the rotating cylinder (603) is fixedly connected with a driven bevel gear (604), the driving bevel gear (602) is meshed with the driven bevel gear (604), a screw rod (605) is in threaded connection with the driven bevel gear (604), one end of the screw rod (605) located inside the supporting column (5) is provided with a guide (12), and the other end of the screw rod is fixedly connected with the bottom of the connecting plate (2).

6. An adjustable recorder according to claim 5, wherein the guide (12) comprises a guide block (1201) fixedly attached to the end of the screw (605), the support column (5) is internally configured with a square slot (1202), and the guide block (1201) slides in the square slot (1202).
