The utility model relates to a cotton yarn technical field of comb specifically discloses a guide machine that pure cotton yarn of comb used, comprising a base plate, the seat is adjusted to the top fixedly connected with of bottom plate, adjust the bottom fixedly connected with servo motor of seat inner wall, servo motor's output fixedly connected with adjusting screw, the bottom threaded connection on adjusting screw surface has the regulation swivel nut, adjust the equal fixedly connected with diaphragm in both sides at swivel nut, the equal fixedly connected with adjusting push rod in both sides at diaphragm top. The utility model discloses a servo motor drives adjusting screw and rotates, and rotation through adjusting screw makes the regulation swivel nut remove, drives the diaphragm through adjusting the swivel nut and removes, and the removal through the diaphragm drives adjusting push rod and removes, drives the guide seat through adjusting push rod's removal and removes, has reached adjustable advantage, has solved current pure cotton yarn guide of comb problem not adjustable when using.

Description

Guide machine that pure cotton yarn of comb used
Technical Field
The utility model relates to a cotton yarn technical field of carding specifically is a guide machine that pure cotton yarn of carding used.
Background
The cotton yarn is a yarn formed by processing cotton fiber through a spinning process, is called as a cotton thread after being subjected to plying processing, and can be divided into a carding yarn and a combed yarn according to different spinning processes, (1) the carding yarn: is a yarn spun by cotton fiber through a common spinning system, (2) combed yarn: the cotton yarn is mainly used for weaving high-grade fabrics, the cotton yarn is carded, namely, the carded cotton yarn is also called as roving yarn and carded wool, and means that the cotton yarn is carded according to a common spinning system, the yarn is spun without a combing process, the content of short fibers in the roving yarn is high, the fiber parallel and straight degree is poor, the structure is loose, the wool is more, the yarn count is lower, the quality is poor, and the yarn is mainly used for raw materials of common fabrics and knitwear, such as the roving wool fabrics, medium and super cotton fabrics and the like.
Through the retrieval, chinese utility model provides "a guide device that pure cotton yarn of carding used", its bulletin number is: CN209701997U, this application include crossbeam, bracing piece and base, the bottom fixed mounting of base has the removal wheel, the inside rotation of base that removes the wheel both sides is installed and is filled up the platform, the both sides fixed mounting of spacing platform has the bracing piece, the fixed surface who deposits the case installs interior window, the inside slidable mounting of inner box has the baffle, it has the dead lever to deposit fixed mounting between the bracing piece between the case, the fixed surface of connecting rod installs the mount, and the inside slidable mounting of mount has the slide bar, the equidistant fixed mounting in top of crossbeam has supplementary roller frame, the fixed surface of the crossbeam other end installs and pulls the roller frame. The utility model discloses a be provided with a series of structures and make this device have in the use and be convenient for remove, can guide and stability advantage such as strong to the cotton thread of combing according to actual conditions, optimize the use.
Although the prior art meets the use requirements of users to a certain extent, certain defects still exist in the use process, and the specific problems are as follows: the material guiding position is fixed, and the material guiding height cannot be adjusted according to the requirements of users, so that the processing performance is affected, and the material guiding device is inconvenient for people to use.
SUMMERY OF THE UTILITY MODEL
The utility model provides a not enough to prior art, the utility model provides a guide machine that pure cotton yarn of comb used possesses adjustable advantage, has solved current pure cotton yarn guide machine of comb and is not adjustable when using, and the position of guide is fixed usually, can't advance to adjust the guide height according to the user's demand to influence the processing property, consequently the problem that people used not convenient for.
The utility model discloses a guide machine that pure cotton yarn of comb used, comprising a base plate, the top fixedly connected with of bottom plate adjusts the seat, adjust the bottom fixedly connected with servo motor of seat inner wall, servo motor's output fixedly connected with adjusting screw, the bottom threaded connection on adjusting screw surface has the regulation swivel nut, adjust the equal fixedly connected with diaphragm in both sides of swivel nut, the equal fixedly connected with adjusting push rod in both sides at diaphragm top, adjusting push rod's top runs through to the top and the fixedly connected with guide seat of adjusting the seat, the both sides of guide seat inner chamber are all seted up flutedly, the inner chamber swing joint of recess has the guide roller.
The utility model discloses a guide machine that comb pure cotton yarn used, wherein the equal swing joint in four corners of bottom plate bottom has the removal wheel, the equal fixedly connected with side lever in left front side of bottom plate and dorsal part, the top fixedly connected with pole setting of side lever, the top fixedly connected with pushing hands of pole setting.
The utility model discloses a guide machine that pure cotton yarn of comb used, wherein the inner chamber fixedly connected with uide bushing of diaphragm, the inner chamber swing joint of uide bushing has the guide post, the top and the bottom of guide post all with the inner wall fixed connection who adjusts the seat.
The utility model discloses a guide machine that comb pure cotton yarn used, wherein the outside fixedly connected with connecting rod of diaphragm, one side swing joint of connecting rod inner chamber has the pulley, the rolling slot has all been seted up to the both sides of adjusting the seat inner wall, the inside of rolling slot and the surperficial swing joint of pulley.
The utility model discloses a guide machine that pure cotton yarn of comb used, wherein the equal fixedly connected with sliding sleeve in both sides at regulation seat inner wall top, the slide opening has been seted up to the inner chamber of sliding sleeve, the inside of slide opening and adjusting push rod's surface swing joint.
The utility model discloses a guide machine that pure cotton yarn of comb used, wherein the center department embedding at regulation seat inner wall top has support bearing, support bearing and the inside swing joint who adjusts the seat are passed through on adjusting screw's top.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a servo motor drives adjusting screw and rotates, rotation through adjusting screw makes the regulation swivel nut remove, it removes to drive the diaphragm through adjusting the swivel nut, it removes to drive the adjusting push rod through the removal of diaphragm, the removal through adjusting push rod drives the guide seat and removes, adjustable advantage has been reached, it is not adjustable when using to have solved current pure cotton yarn stock guide of comb, the position of guide usually is fixed, can't advance according to the user demand and adjust the guide height, so as to influence the processing performance, consequently, the problem that people used is not convenient for.
2. The utility model discloses a support bearing's setting plays the effect of support to adjusting screw, has ensured adjusting screw's normal work then, through the setting of sliding sleeve and slide opening, makes the inside removal of adjusting push rod that adjusting push rod can be stable, has ensured adjusting push rod's stability then.
Drawings
The accompanying drawings, which are included to provide a further understanding of the application and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the application and together with the description serve to explain the application and not to limit the application. In the drawings:

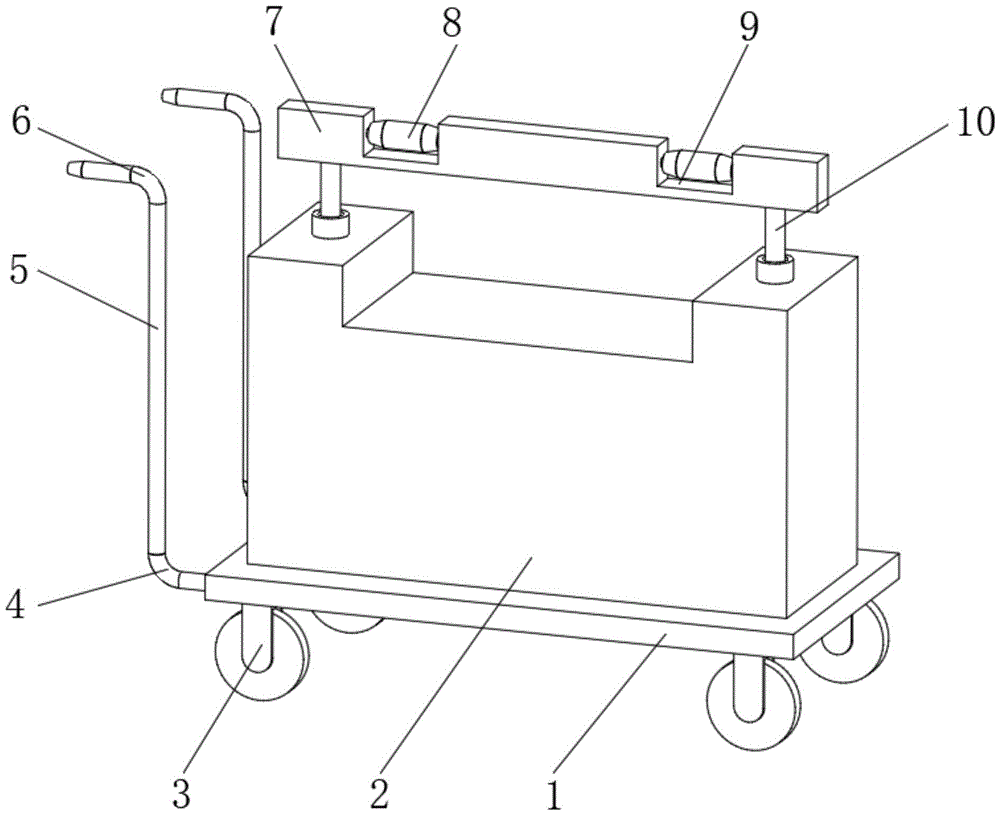

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a cross-sectional view of the structure of the adjusting base of the present invention;
fig. 3 is a partially enlarged schematic view of a portion a in fig. 2.
In the figure: 1. a base plate; 2. an adjusting seat; 3. a moving wheel; 4. a side lever; 5. erecting a rod; 6. pushing a hand; 7. a material guide seat; 8. a material guide roller; 9. a groove; 10. adjusting the push rod; 11. a transverse plate; 12. a guide post; 13. a servo motor; 14. a guide sleeve; 15. a connecting rod; 16. rolling a groove; 17. a support bearing; 18. adjusting the screw rod; 19. adjusting a threaded sleeve; 20. a pulley; 21. a sliding sleeve; 22. and (4) a slide hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-3, the utility model discloses a guide machine that pure cotton yarn of carding used, comprising a base plate 1, seat 2 is adjusted to the top fixedly connected with of bottom plate 1, adjust the bottom fixedly connected with servo motor 13 of 2 inner walls of seat, servo motor 13's output fixedly connected with adjusting screw 18, the bottom threaded connection on adjusting screw 18 surface has the regulation swivel nut 19, the equal fixedly connected with diaphragm 11 in both sides of regulation swivel nut 19, the equal fixedly connected with adjusting push rod 10 in both sides at diaphragm 11 top, adjusting push rod 10's top is run through to the top of adjusting seat 2 and fixedly connected with guide seat 7, recess 9 has all been seted up to the both sides of guide seat 7 inner chamber, the inner chamber swing joint of recess 9 has guide roller 8.
Specifically, the equal swing joint in four corners of bottom plate 1 bottom has removal wheel 3, the equal fixedly connected with side lever 4 in the left front side of bottom plate 1 and dorsal side, the top fixedly connected with pole setting 5 of side lever 4, the top fixedly connected with pushing hands 6 of pole setting 5.
Through above-mentioned technical scheme, through the setting of side lever 4, pole setting 5 and pushing hands 6, the convenience promotes bottom plate 1, reaches the effect of convenient removal then.
Specifically, the inner cavity of the transverse plate 11 is fixedly connected with a guide sleeve 14, the inner cavity of the guide sleeve 14 is movably connected with a guide column 12, and the top and the bottom of the guide column 12 are fixedly connected with the inner wall of the adjusting seat 2.
Through above-mentioned technical scheme, through the setting of uide bushing 14 and guide post 12, lead to diaphragm 11 shift position, stability when having improved diaphragm 11 and having removed then.
Specifically, the outside fixedly connected with connecting rod 15 of diaphragm 11, one side swing joint of connecting rod 15 inner chamber has pulley 20, adjusts the both sides of 2 inner walls of seat and has all seted up slot roll 16, the inside of slot roll 16 and pulley 20's surperficial swing joint.
Through the technical scheme, through the arrangement of the rolling groove 16, the friction force between the pulley 20 and the adjusting seat 2 is reduced, and then the pulley 20 is smoother when sliding.
Specifically, the equal fixedly connected with sliding sleeve 21 in both sides at 2 inner wall tops of regulation seat, sliding hole 22 has been seted up to the inner chamber of sliding sleeve 21, the inside of sliding hole 22 and the surperficial swing joint of adjusting push rod 10.
Through the above technical scheme, through the setting of sliding sleeve 21 and slide opening 22, what make the regulation push rod 10 can be stable is adjusting the inside removal of push rod 10, has ensured the stability of adjusting push rod 10 then.
Specifically, a supporting bearing 17 is embedded in the center of the top of the inner wall of the adjusting seat 2, and the top end of the adjusting screw 18 is movably connected with the inside of the adjusting seat 2 through the supporting bearing 17.
Through the technical scheme, the supporting effect on the adjusting screw rod 18 is achieved through the arrangement of the supporting bearing 17, and then the normal work of the adjusting screw rod 18 is guaranteed.
When using the utility model discloses the time: firstly, the servo motor 13 drives the adjusting screw 18 to rotate, the adjusting screw 18 rotates in the adjusting seat 2 through the supporting bearing 17, the adjusting screw sleeve 19 moves through the rotation of the adjusting screw 18, the adjusting screw sleeve 19 drives the transverse plate 11 to move, the transverse plate 11 drives the guide sleeve 14 to move, the guide sleeve 14 slides on the surface of the guide column 12, the transverse plate 11 moves to drive the adjusting push rod 10 to move, and the adjusting push rod 10 moves to drive the guide seat 7 to move (electrical components appearing in the text are all electrically connected with an external main controller through 220V mains supply, and the main controller can be a conventional known device which is controlled by a computer and the like).
The above is merely an embodiment of the present invention, and is not intended to limit the present invention. Various modifications and variations of the present invention will be apparent to those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention should be included in the scope of the claims of the present invention.

Claims (6)

1. The utility model provides a guide machine that comb pure cotton yarn used, includes bottom plate (1), its characterized in that: the utility model discloses a lead the material guide device, including bottom plate (1), the top fixedly connected with of bottom plate (1) adjusts seat (2), the bottom fixedly connected with servo motor (13) of adjusting seat (2) inner wall, the output fixedly connected with adjusting screw (18) of servo motor (13), the bottom threaded connection on adjusting screw (18) surface has regulation swivel nut (19), the equal fixedly connected with diaphragm (11) in both sides of regulation swivel nut (19), the equal fixedly connected with adjusting push rod (10) in both sides at diaphragm (11) top, the top of adjusting push rod (10) is run through to the top and the fixedly connected with of adjusting seat (2) and is led material seat (7), recess (9) have all been seted up to the both sides of guide material seat (7) inner chamber, the inner chamber swing joint of recess (9) has guide roller (8).
2. A material guide machine for a carded pure cotton yarn according to claim 1, characterized in that: the equal swing joint in four corners of bottom plate (1) bottom has removal wheel (3), the equal fixedly connected with side lever (4) of left front side and dorsal side of bottom plate (1), the top fixedly connected with pole setting (5) of side lever (4), the top fixedly connected with pushing hands (6) of pole setting (5).
3. The material guiding machine for carding pure cotton yarns as claimed in claim 1, wherein: the inner chamber fixedly connected with uide bushing (14) of diaphragm (11), the inner chamber swing joint of uide bushing (14) has guide post (12), the top and the bottom of guide post (12) all with adjust the inner wall fixed connection of seat (2).
4. A material guide machine for a carded pure cotton yarn according to claim 1, characterized in that: the outside fixedly connected with connecting rod (15) of diaphragm (11), one side swing joint of connecting rod (15) inner chamber has pulley (20), rolling groove (16) have all been seted up to the both sides of adjusting seat (2) inner wall, the inside of rolling groove (16) and the surperficial swing joint of pulley (20).
5. A material guide machine for a carded pure cotton yarn according to claim 1, characterized in that: the adjusting device is characterized in that sliding sleeves (21) are fixedly connected to the two sides of the top of the inner wall of the adjusting seat (2), sliding holes (22) are formed in inner cavities of the sliding sleeves (21), and the insides of the sliding holes (22) are movably connected with the surfaces of the adjusting push rods (10).
6. A material guide machine for a carded pure cotton yarn according to claim 1, characterized in that: the center department of adjusting seat (2) inner wall top imbeds there is support bearing (17), the inside swing joint of top through support bearing (17) and regulation seat (2) of adjusting screw (18).
