Abstract
The utility model discloses an inner tube detachable agitated vessel for food processing, establish including mixing the inner tube, being used for mixing puddler, the cover of stirring mix the urceolus in the inner tube outside and be used for the mount that supports, fixed establishment, the fixed establishment symmetry sets up in the left and right sides of urceolus upper end, and fixed establishment is used for spacing to the urceolus and mix between the inner tube, the screen cloth is used for sieving the food raw materials that mixes to the stirring, the stopper, stopper sliding connection is at the lower extreme of screening box. This inner tube detachable agitated vessel for food processing is convenient for dismantle the clearance to mixing the inner tube, prevents that food raw materials from being infected with on the inner wall that mixes the inner tube at the stirring in-process, combines the setting of screen cloth, is convenient for sieve the raw materials after mixing the stirring for big or small homogeneous promotes the processingquality of food, combines the setting of stopper and supplementary piece moreover, is convenient for dismantle the clearance to the screen cloth.
Description
Technical Field
The utility model relates to a relevant technical field of food processing specifically is an inner tube detachable agitated vessel for food processing.
Background
The food processing refers to the work of processing and packaging food by using physical, chemical, biological and other methods in a workshop, is responsible for the machine operation of a food processing product line, and needs to stir and mix corresponding food raw materials by means of stirring equipment in the food processing process;
however, in the actual use process of the commonly used stirring equipment for food processing, the inner wall of the equipment is used for stirring raw materials, the inner side wall of the equipment is easily stained with a large amount of raw materials and is difficult to clean, and the raw materials after stirring and mixing are different in size and poor in uniformity, so that the processing quality of food is influenced;
therefore, a stirring device with a detachable inner cylinder for food processing is provided to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an inner tube detachable agitated vessel for food processing to solve the commonly used agitated vessel for food processing who proposes in the above-mentioned background art, in the in-service use, the inner wall of equipment is at the stirring raw materials, and its inside wall is infected with a large amount of raw materials easily and is difficult to the clearance, stirs the raw materials after mixing moreover and differs in size, and the homogeneity is not good, and then influences the processingquality's of food problem.
In order to achieve the above object, the utility model provides a following technical scheme: a stirring device with a detachable inner cylinder for food processing comprises a mixing inner cylinder, a stirring rod for mixing and stirring, an outer cylinder sleeved on the outer side of the mixing inner cylinder and a fixing frame for supporting;
further comprising:
the fixing mechanisms are symmetrically arranged on the left side and the right side of the upper end of the outer cylinder, are used for limiting the position between the outer cylinder and the mixing inner cylinder, and drive the mixing inner cylinder and the outer cylinder to form a dismounting structure;
wherein the lower end of the mixing inner cylinder is provided with a blanking valve;
the screen is used for screening the stirred and mixed food raw materials, is fixedly connected to the middle of the connecting plate and is attached to the lower end of the screening box;
the limiting block is connected to the lower end of the screening box in a sliding mode, and the limiting block is combined with the auxiliary block to limit the position between the screening box and the connecting plate.
Preferably, the upper end of the mixing inner cylinder is provided with a motor for driving, the output end of the motor is fixedly connected with a stirring rod, and the motor drives the stirring rod to rotate in the mixing inner cylinder;
the mixing inner cylinder is inserted in the middle of the outer cylinder, and the outer cylinder is welded at the upper end of the fixing frame.
Preferably, the fixing mechanism comprises fixing blocks fixedly connected to the left end and the right end of the mixing inner cylinder, a movable plate in an L-shaped structure, a fixing plate fixedly connected to the side face of the outer cylinder and a fixing bolt for adjustment.
Preferably, the fixed blocks are respectively inserted at the left side and the right side of the upper end of the outer barrel, the fixed blocks are connected with the movable plate in a clamping manner, and the movable plate is connected with the outer barrel in a sliding manner.
Preferably, the lower end of the movable plate is connected with the fixed plate in a clamping groove mode, the movable plate is connected with the fixed bolt in a rotating mode, and the fixed bolt is connected with the fixed plate in a threaded mode.
Preferably, screening box movable mounting has the vibrations motor at the middle part of mount, and the side-mounting of screening box to the inside of screening box lower extreme is provided with the spring, and the expansion end fixedly connected with of spring is the stopper of "U" font structure.
Preferably, the limiting blocks are connected with the auxiliary blocks in the T-shaped structures in a clamping groove mode, and the auxiliary blocks are fixedly connected to the left side and the right side of the lower end of the connecting plate respectively.
Preferably, the stopper symmetry sets up in the left and right sides of screening box lower extreme, and carries out further spacing through connecting the bolt between stopper and the supplementary piece to connect bolt and supplementary piece and be threaded connection between bolt and the stopper.
Compared with the prior art, the beneficial effects of the utility model are that: the stirring equipment for processing the food with the detachable inner cylinder is characterized in that the inner cylinder is inserted into the outer cylinder in the actual use process, the inner cylinder and the outer cylinder are limited by the fixing mechanism, the inner cylinder is convenient to detach and clean by combining the arrangement of the fixing mechanism, food raw materials are prevented from being stained on the inner wall of the inner cylinder in the stirring process, and the sieve is convenient to screen the raw materials after stirring and mixing by combining the arrangement of the sieve, so that the size is uniform, the processing quality of the food is improved, the sieve is convenient to detach and clean by combining the arrangement of the limiting block and the auxiliary block, and the blockage of the sieve is prevented;
1. the mixing inner cylinder is provided with a mixing inner cylinder, an outer cylinder and fixing mechanisms, the fixing mechanisms are symmetrically arranged at the left end and the right end of the mixing inner cylinder, the fixing mechanisms comprise fixing blocks, movable plates, fixing plates and fixing bolts, and the mixing inner cylinder can be very conveniently detached and cleaned through the arrangement of the fixing mechanisms, so that food is prevented from being stained on the inner side wall of the mixing inner cylinder;
2. the screening box and the screen are arranged, the screening box is arranged in the middle of the fixing frame, the screen is arranged in the screening box in a fitting manner, and the food raw materials after stirring and mixing can be screened through the arrangement of the screen, so that the raw materials are kept uniform in size, and the processing quality of food is improved;
3. be equipped with stopper and supplementary piece, stopper and the equal symmetry of supplementary piece set up both ends about the screen cloth, through the setting of stopper and supplementary piece, are convenient for dismantle the clearance to the screen cloth, prevent that the screen cloth from taking place to block up.
Drawings

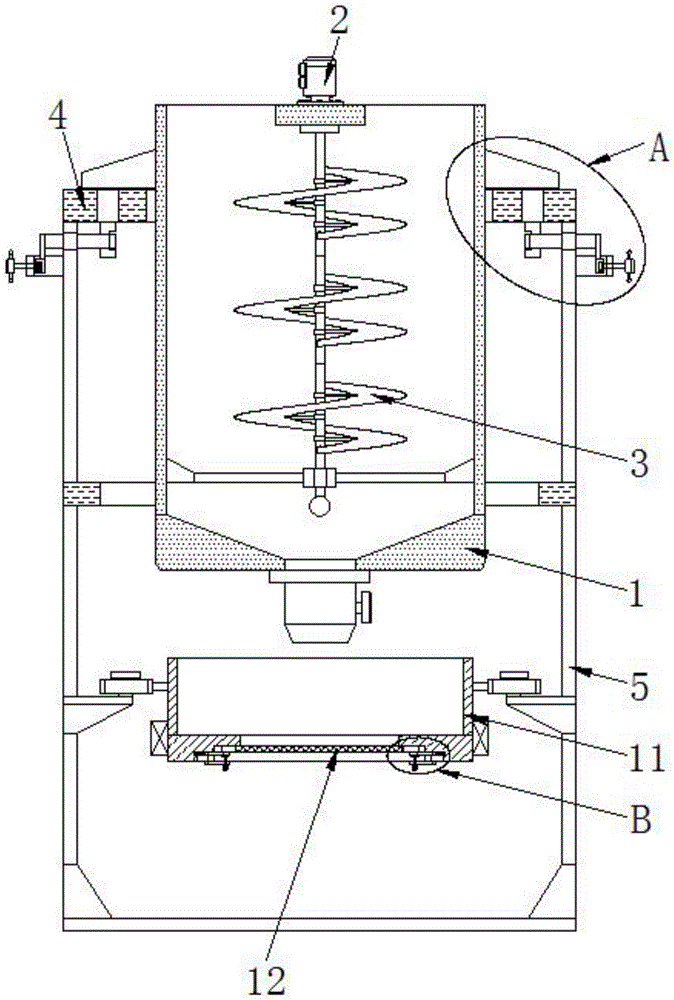

FIG. 1 is a front view of the cutting structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 3 is an enlarged schematic view of the structure of FIG. 1 at B according to the present invention;
FIG. 4 is a schematic view of the structure of the sieving box, the sieving net and the connection plate of the present invention;
FIG. 5 is a schematic view of the overall structure of the fixing mechanism of the present invention;
fig. 6 is the utility model discloses stopper, supplementary piece and connection bolt are connected and are looked the schematic structure.
In the figure: 1. a mixing inner cylinder; 2. a motor; 3. a stirring rod; 4. an outer cylinder; 5. a fixed mount; 6. a fixing mechanism; 7. a fixed block; 8. a movable plate; 9. a fixing plate; 10. a fixing bolt; 11. screening the box; 12. screening a screen; 13. a connecting plate; 14. a spring; 15. a limiting block; 16. an auxiliary block; 17. and connecting the bolt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides an inner tube detachable agitated vessel for food processing, includes mixes inner tube 1, motor 2, puddler 3, urceolus 4, mount 5, fixed establishment 6, fixed block 7, fly leaf 8, fixed plate 9, gim peg 10, screening box 11, screen cloth 12, connecting plate 13, spring 14, stopper 15, supplementary piece 16 and connecting bolt 17.
When the stirring equipment with the detachable inner cylinder for food processing is used, as shown in fig. 1 and 2, the mixing inner cylinder 1 is inserted into the outer cylinder 4, the outer cylinder 4 is welded at the upper end of the fixing frame 5, the fixing frame 5 is directly arranged on the ground, the fixing frame 5 is used for supporting the outer cylinder 4 and the mixing inner cylinder 1, and the mixing inner cylinder 1 and the outer cylinder 4 are limited by the fixing mechanism 6;
after the mixing is finished, a blanking valve arranged at the lower end of the mixing inner cylinder 1 is opened, the mixed raw materials fall on a screening box 11 arranged at the middle part of a fixing frame 5 through the blanking valve, as shown in fig. 1 and 4, a screen 12 is arranged inside the screening box 11 in a laminating manner, the screen 12 is fixedly connected to the middle part of a connecting plate 13, the food raw materials can be screened through the screen 12, the uniformity of the raw materials can be better ensured, the production quality of food is improved, the screening box 11 is movably connected to the middle part of the fixing frame 5, vibration motors are arranged at the left end and the right end of the screening box 11, the screening box 11 and the screen 12 can be driven to vibrate in the middle part of the fixing frame 5 through the vibration motors, the raw materials can be screened through the screen 12 more quickly, and the screening efficiency of the food raw materials is improved;
the screened raw materials are fed through a screen 12, food is processed in the next stage, and in addition, after the raw materials are completely mixed and screened, the power supply of the equipment is turned off, as shown in fig. 2 and 5, a fixing mechanism 6 comprises fixing blocks 7 fixedly connected to the left end and the right end of the mixing inner cylinder 1, a movable plate 8 in an L-shaped structure, a fixing plate 9 fixedly connected to the side surface of the outer cylinder 4 and a fixing bolt 10 for adjustment, the fixing mechanisms 6 are symmetrically arranged at the left end and the right end of the mixing inner cylinder 1 and are connected with the fixing bolt 10 in the middle of the fixing plate 9 through rotating threads, the fixing bolt 10 is rotatably connected with the movable plate 8 to drive the movable plate 8 to slide with the outer cylinder 4, the movable plate 8 moves to one side close to the vertical central axis of the outer cylinder 4 to separate the movable plate 8 from the fixing blocks 7, so as to loosen the limit between the mixing inner cylinder 1 and the outer cylinder 4, then the mixing inner cylinder 1 is pulled upwards to drive the fixing blocks 7 to separate from the outer cylinder 4, the mixing inner cylinder 1 can be detached from the middle of the outer cylinder 4, the mixing inner side wall of the outer cylinder 4 conveniently to clean the mixing inner cylinder 1 and prevent the food from being polluted on the use of the subsequent equipment;
as shown in fig. 3 and fig. 6, the equal fixedly connected with in the left and right sides of connecting plate 13 lower extreme is supplementary piece 16 of "T" font structure, supplementary piece 16 is connected with the draw-in groove between the stopper 15 that is "U" font structure, have limiting displacement's connecting bolt 17 through rotating, be threaded connection between connecting bolt 17 and supplementary piece 16 and connecting bolt 17 and stopper 15, connecting bolt 17 breaks away from with stopper 15, and then loosen the spacing to between supplementary piece 16 and the stopper 15, then to one side pulling stopper 15 of the perpendicular axis of original screening box 11, slide between stopper 15 and the screening box 11, stopper 15 extrudes spring 14, make spring 14 take place elastic deformation, stopper 15 and supplementary piece 16 break away from this moment, loosen spacing to between connecting plate 13 and the screening box 11, connecting plate 13 falls down because of the effect of gravity this moment, and then be convenient for clear up the impurity of the bigger granule of screening and connecting plate 13, prevent connecting plate 13 from taking place to block up, holistic structural design is simple, it is very convenient to use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. A stirring device with a detachable inner cylinder for food processing comprises a mixing inner cylinder (1), a stirring rod (3) for mixing and stirring, an outer cylinder (4) sleeved outside the mixing inner cylinder (1) and a fixing frame (5) for supporting;
it is characterized by also comprising:
the fixing mechanisms (6) are symmetrically arranged on the left side and the right side of the upper end of the outer barrel (4), the fixing mechanisms (6) are used for limiting the position between the outer barrel (4) and the mixing inner barrel (1), and the fixing mechanisms (6) drive the mixing inner barrel (1) and the outer barrel (4) to form a dismounting structure;
wherein the lower end of the mixing inner cylinder (1) is provided with a blanking valve;
the screen (12) is used for screening the stirred and mixed food raw materials, the screen (12) is fixedly connected to the middle of the connecting plate (13), and the screen (12) is attached to the lower end of the screening box (11);
the limiting block (15), limiting block (15) sliding connection is at the lower extreme of screening box (11), and limiting block (15) combine supplementary piece (16) to be used for spacing screening box (11) and connecting plate (13) between.
2. The blending apparatus for food processing with a detachable inner barrel according to claim 1, wherein: the upper end of the mixing inner cylinder (1) is provided with a motor (2) for driving, the output end of the motor (2) is fixedly connected with a stirring rod (3), and the motor (2) drives the stirring rod (3) to rotate in the mixing inner cylinder (1);
the mixing inner cylinder (1) is inserted in the middle of the outer cylinder (4), and the outer cylinder (4) is welded at the upper end of the fixing frame (5).
3. The blending apparatus for food processing according to claim 1, wherein the blending apparatus comprises: the fixing mechanism (6) comprises fixing blocks (7) fixedly connected to the left end and the right end of the mixing inner cylinder (1), a movable plate (8) in an L-shaped structure, a fixing plate (9) fixedly connected to the side face of the outer cylinder (4) and a fixing bolt (10) for adjustment.
4. A blending apparatus for food processing according to claim 3, wherein the inner barrel is removable, the blending apparatus comprising: the fixing blocks (7) are respectively inserted at the left side and the right side of the upper end of the outer barrel (4), the fixing blocks (7) are connected with the movable plate (8) in a clamping mode, and the movable plate (8) is connected with the outer barrel (4) in a sliding mode.
5. The blending apparatus for food processing with a detachable inner barrel according to claim 4, wherein: the lower end of the movable plate (8) is connected with the fixed plate (9) in a clamping groove mode, the movable plate (8) is connected with the fixed bolt (10) in a rotating mode, and the fixed bolt (10) is connected with the fixed plate (9) in a threaded mode.
6. The blending apparatus for food processing with a detachable inner barrel according to claim 1, wherein: screening box (11) movable mounting is in the middle part of mount (5), and the side-mounting of screening box (11) has vibrating motor to the inside of screening box (11) lower extreme is provided with spring (14), and the expansion end fixedly connected with of spring (14) is stopper (15) that "U" font structure.
7. The blending apparatus for food processing with a detachable inner barrel according to claim 6, wherein: the limiting blocks (15) are connected with the auxiliary blocks (16) in the T-shaped structures in a clamping groove mode, and the auxiliary blocks (16) are fixedly connected to the left side and the right side of the lower end of the connecting plate (13) respectively.
8. The blending apparatus for food processing with a detachable inner barrel according to claim 7, wherein: stopper (15) symmetry sets up in the left and right sides of screening box (11) lower extreme, and carries out further spacing through connecting bolt (17) between stopper (15) and supplementary piece (16) to be threaded connection between connecting bolt (17) and supplementary piece (16) and connecting bolt (17) and stopper (15).
