CN218633058U

CN218633058U - Low-voltage draw-out type switch cabinet

Info

Publication number: CN218633058U
Application number: CN202222254052.4U
Authority: CN
Inventors: 章兵; 张宝贵
Original assignee: Zhejiang Lingkun Electric Co ltd
Current assignee: Zhejiang Lingkun Electric Co ltd
Priority date: 2022-08-26
Filing date: 2022-08-26
Publication date: 2023-03-14
Anticipated expiration: 2032-08-26

Abstract

The utility model discloses a bearing capacity is better, slide more smooth and easy low pressure pull-out type cubical switchboard. The technical scheme adopted comprises the following steps: the drawer is arranged in the cabinet body in a sliding mode through sliding rail assemblies at two ends, each sliding rail assembly consists of a first rail and a second rail, the first rails are arranged on two sides of the cabinet body and comprise integrally formed bottom plates, stand columns arranged in the middles of the bottom plates and cross beams arranged at the upper ends of the stand columns, sliding grooves are formed between the cross beams and the bottom plates, and protruding portions supported at the bottoms of the drawers are arranged at the upper ends of the stand columns and the cross beams; the second rails are arranged on two sides of the drawer and are L-shaped; the front end of the second track extends into the sliding groove.

Description

Low-voltage draw-out type switch cabinet

Technical Field

The utility model belongs to the power equipment field, concretely relates to low pressure pull-out type cubical switchboard.

Background

The low-voltage draw-out switch cabinet, also called drawer switch cabinet, is a cabinet body in which the electrical components of the incoming and outgoing circuit are all installed in the drawer capable of being drawn out, forming a functional unit capable of completing a certain kind of power supply task. In order to facilitate the connection of electrical components in a switchgear drawer, a terminal is usually provided at the front end of the switchgear drawer. The bearing-free drawer structure of the traditional low-voltage draw-out type switch cabinet is as follows: the granted publication number is "CN 212011759U", the name is "a drawer structure of drawer cabinet" Chinese utility model patent shows. The sliding rail assembly usually comprises a C-shaped rail and an L-shaped rail, the C-shaped rail is arranged on a bearing plate of the cabinet body, the L-shaped rail is arranged on two sides of a drawer, and then one side of the L-shaped rail is inserted into a sliding groove of the C-shaped rail to realize sliding fit. There are disadvantages in that: the stress points of the rails with the structure are concentrated on the transverse side edges of the L-shaped rails, and the L-shaped rails are very heavy after the electric appliance elements are arranged in the drawer, so that the L-shaped rails are easily deformed, and the drawer cannot normally slide; in addition, the whole side surface of the L-shaped track is contacted with the step on the C-shaped track, so that the resistance is large, and the sliding of the drawer is not smooth enough.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to provide a bearing capacity is better, slide more smooth and easy low pressure pull-out type cubical switchboard.

In order to solve the above problem, the utility model discloses a technical scheme include: the cabinet body, drawer, the drawer is installed through the sliding rail set slidable of two ends the cabinet is internal, its characterized in that: the sliding rail assembly consists of a first rail and a second rail, the first rail is arranged on two sides of the cabinet body and comprises a base plate, an upright post and a cross beam, the base plate is integrally formed, the upright post is arranged in the middle of the base plate, the cross beam is arranged at the upper end of the upright post, a sliding groove is formed between the cross beam and the base plate, and the upper ends of the upright post and the cross beam are respectively provided with a protruding part supported at the bottom of the drawer; the second rails are arranged on two sides of the drawer and are L-shaped; the front end of the second track extends into the sliding groove.

The low-voltage draw-out type switch cabinet is characterized in that: the tip of bellying is equipped with first arcwall face.

The low-voltage draw-out type switch cabinet is characterized in that: the front end of the second track is provided with a second arc-shaped surface, and the second arc-shaped surface is close to the upright post of the first track.

The low-voltage draw-out type switch cabinet is characterized in that: and at least one group of mounting holes is arranged on the inner side surface of the bottom plate.

The low-voltage draw-out type switch cabinet is characterized in that: the second rail is formed by integrally bending the lower ends of the side plates of the drawer.

The low-voltage draw-out type switch cabinet is characterized in that: the cabinet body is provided with a bearing plate, and the first rail is installed on the bearing plate.

The utility model discloses a low pressure pull-out type cubical switchboard advantage as follows: stress points are concentrated on the upright post and the cross beam of the first track, and the bearing capacity of the longitudinal upright post is far greater than that of the traditional transverse side edge, so that the compression resistance of the slide rail is greatly improved; in addition, two arc-shaped surfaces are adopted to be contacted with the bottom of the drawer, and the upright post of the first rail of one arc-shaped surface is contacted, so that the structure is stable, the friction force is very small, and the drawer can slide very smoothly.

The present invention will be further explained with reference to the drawings attached to the specification.

Drawings

Fig. 1 is a schematic structural diagram of a low-voltage draw-out type switch cabinet of the present invention;

fig. 2 is a schematic structural view of a first rail of the present invention;

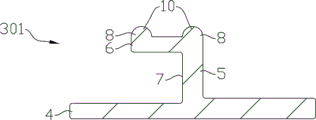

fig. 3 is a cross-sectional view of a first rail of the present invention;

fig. 4 is a partially enlarged view of fig. 1.

Detailed Description

Referring to fig. 1-4, the low-voltage draw-out type switch cabinet of the present invention comprises a cabinet body 1 and a drawer 2, wherein the drawer 2 is slidably mounted on the cabinet body 1 through two end slide rail assemblies 3. The slide rail assembly 3 is composed of a first rail 301 and a second rail 302 which are in sliding fit. The first tracks 301 are arranged on two sides of the cabinet body 1, and each first track 301 comprises an integrally formed bottom plate 4, a stand column 5 arranged in the middle of the bottom plate 4 and a cross beam 6 arranged at the upper end of the stand column 5. A sliding groove 7 is formed between the cross beam 6 and the bottom plate 4, and the upper ends of the upright post 5 and the cross beam 6 are respectively provided with a convex part 8 supported at the bottom of the drawer 2. The second rails 302 are disposed on two sides of the drawer 2, and the second rails 302 are L-shaped. The front end of the second rail 302 extends into the chute 7.

Preferably, in order to reduce the resistance, the end of the protruding portion 8 is provided with a first arc-shaped surface 10, and the front end of the second rail 302 is provided with a second arc-shaped surface 11.

Preferably, the second arc-shaped surface 11 is close to the pillar 5 of the first rail 301, and three-point support is realized by using the first arc-shaped surface 10 and the second arc-shaped surface 11, so as to ensure the stability of the sliding rail assembly 3.

Preferably, a group of mounting holes 12 are formed in the inner side surface of the bottom plate 4, and the mounting holes 12 are filled with screws or rivets to be stably mounted in the cabinet 1. In order to further improve the stability of installation, mounting holes can be formed in both sides of the bottom plate 4.

Preferably, the second rail 302 is formed by integrally bending the lower end of the side plate 14 of the drawer 2, so as to ensure the installation strength of the second rail 302 and facilitate the production.

Preferably, the cabinet body 1 is provided with a bearing plate 13, the bearing plate 13 is a metal plate with good bearing capacity, and the first rail 301 is mounted on the bearing plate 13, so as to further improve the bearing capacity of the first rail 301.

As described above, the present invention is not limited to the above embodiments, and although the present invention has been disclosed in the preferred embodiments, it is not limited to the embodiments of the present invention, and any person skilled in the art can make some changes or modifications to the equivalent embodiments without departing from the technical scope of the present invention.

Claims

1. The utility model provides a low pressure pull-out type cubical switchboard, includes the cabinet body (1), drawer (2) through slide rail set spare (3) slidable of two ends install in the cabinet body (1), its characterized in that: the sliding rail assembly (3) consists of a first rail (301) and a second rail (302), the first rail (301) is arranged on two sides of the cabinet body (1) and comprises an integrally formed bottom plate (4), a stand column (5) arranged in the middle of the bottom plate (4) and a cross beam (6) arranged at the upper end of the stand column (5), a sliding groove (7) is formed between the cross beam (6) and the bottom plate (4), and the upper ends of the stand column (5) and the cross beam (6) are respectively provided with a protruding part (8) supported at the bottom of the drawer (2); the second rails (302) are arranged on two sides of the drawer (2) and are L-shaped; the front end of the second track (302) extends into the sliding groove (7).

2. The low-voltage draw-out switchgear of claim 1, wherein: the end part of the bulge part (8) is provided with a first arc-shaped surface (10).

3. The low voltage draw out switchgear of claim 1, wherein: the front end of the second track (302) is provided with a second arc-shaped surface (11), and the second arc-shaped surface (11) is close to the upright (5) of the first track (301).

4. The low-voltage draw-out switchgear of claim 1, wherein: at least the inner side surface of the bottom plate (4) is provided with a group of mounting holes (12).

5. The low voltage draw out switchgear of claim 1, wherein: the second rail (302) is formed by integrally bending the lower ends of the side plates (14) of the drawer (2).

6. The low voltage draw out switchgear of claim 1, wherein: the cabinet body (1) is provided with a bearing plate (13), and the first rail (301) is installed on the bearing plate (13).
