Abstract
The utility model relates to a computer machine case field discloses an assembled computer machine case convenient to heat dissipation, including machine case body, machine case body's top central point puts the department and has seted up the quad slit, the inside fixedly connected with heating panel of quad slit, the middle part of heating panel is from the left hand right side fixedly connected with a plurality of fin in proper order, the equal fixedly connected with nut of religion department is thought at machine case body's top, the equal threaded connection in inside of nut has the double-screw bolt, the top fixedly connected with mounting panel of double-screw bolt, the middle part fixedly connected with fan of mounting panel, the top of mounting panel is located the fan fixedly connected with wind-collecting cover directly over. The utility model discloses in, through carrying the hot-air to the cold liquid incasement and cooling down, inside rethread outlet duct backward flow to quick-witted case body, the cleaning brush has realized the technological effect of the cooling down of being more convenient for heat dissipation to the inside clearance of filter screen and louvre, has reached the technical purpose who improves the radiating efficiency.
Description
Technical Field
The utility model relates to a computer machine case field especially relates to an assembled computer machine case convenient to heat dissipation.
Background
The CPU and other hardware equipment in the computer case can release a large amount of heat during working, and in order to keep the working temperature of the hardware within a reasonable range to ensure the normal and stable working of a computer system, the CPU and other hardware equipment in the computer case need to carry out heat dissipation treatment on the hardware in the case so as to quickly dissipate the heat generated by the hardware.
In the prior art, after a computer case operates for a long time, more heat is accumulated inside the computer case, the heat dissipation efficiency is lower only by virtue of the heat dissipation holes, dust is easily accumulated inside the heat dissipation holes, the heat dissipation holes are difficult to clean, and the heat dissipation holes are blocked and cannot dissipate heat in time.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an assembled computer case convenient for heat dissipation.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides an assembled computer machine case convenient to heat dissipation, includes quick-witted case body, the top central point department of putting of quick-witted case body has seted up the quad slit, the inside fixedly connected with heating panel of quad slit, the middle part of heating panel is from the left hand right side fixedly connected with a plurality of fin in proper order, the equal fixedly connected with nut in top thinking department of quick-witted case body, the equal threaded connection in inside of nut has the double-screw bolt, the top fixedly connected with mounting panel of double-screw bolt, the middle part fixedly connected with fan of mounting panel, the top of mounting panel is located the fixedly connected with air-collecting cover directly over the fan, the rear side middle part fixedly connected with intake pipe of air-collecting cover, the rear side bottom fixedly connected with cold liquid case of mounting panel, the gas outlet end fixed connection of cold liquid case is at the air inlet end of cold liquid case, the gas outlet end fixedly connected with outlet duct of cold liquid case, the one end that the cold liquid case was kept away from to the outlet duct runs through and extends to the inside of quick-witted case body.
As a further description of the above technical solution:
the bottom fixedly connected with base of chassis body, all seted up a plurality of louvre on the left and right sides face of chassis body, the equal fixedly connected with filter screen in the left and right sides of chassis body.
As a further description of the above technical solution:
the filter screen comprises a base, a filter screen and a screw rod, wherein the top of the filter screen is fixedly connected with a servo motor, the driving end of the servo motor is fixedly connected with the screw rod, and the end, far away from the servo motor, of the screw rod is rotatably connected to the inside of the base.
As a further description of the above technical solution:
both sides equal threaded connection has the movable block on the outer wall of screw rod, both sides equal fixedly connected with cleaning brush on the medial surface of movable block, both sides cleaning brush sliding connection respectively is in both sides on the side of filter screen.
As a further description of the above technical solution:
the left side of the front of the case body is fixedly connected with a control switch, and the control switch is connected with the fan through signals.
As a further description of the above technical solution:
the front of the case body is fixedly connected with a power connector below the control switch.
As a further description of the above technical solution:
the temperature sensor is fixedly connected to the upper portion of the inner wall of one side of the case body, and the cover plate is rotatably connected to the middle of the front side of the case body.
As a further description of the above technical solution:
the middle part of the front side of the cover plate is fixedly connected with a temperature display screen, and the temperature display screen is connected with a temperature sensor through signals.
The utility model discloses following beneficial effect has:
1. the utility model discloses in, through the setting of heating panel and fin, at first tentatively dispel the heat, when the inside high temperature of case body, temperature sensor reflects the temperature to the temperature display screen on, immediately, control switch control fan function blows fin and heating panel, carry the hot-air to the cold liquid incasement through air-collecting cover and intake pipe and carry out cooling, the inside of rethread outlet duct backward flow to case body, the better technological effect of dispelling the heat and cooling to case body inside has been realized, the technical purpose who improves the radiating efficiency has been reached, solved in the background art about computer machine case after long-time function, inside amasss more heat, only lean on the louvre to carry out the lower problem of radiating efficiency.
2. The utility model discloses in, rotate through servo motor drive screw, drive the movable block and reciprocate to make the clearance brush slide from top to bottom on the side of filter screen, to filter screen and the inside clearance of louvre, avoid blockking up, realized the technical effect of the clearance filter screen dust of being convenient for, reached the technical purpose who improves the radiating efficiency, solved in the background art about the inside dust that gathers easily of louvre, be difficult to the clearance, can cause the louvre to block up in the long term, can't carry out radiating problem.
Drawings

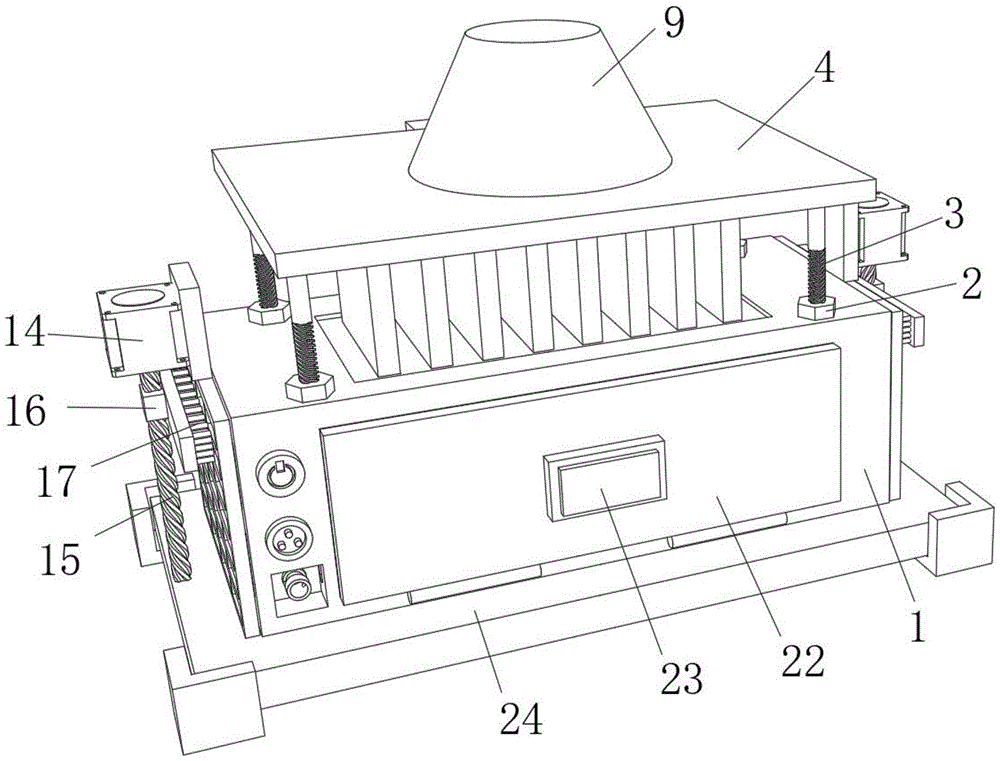

Fig. 1 is a schematic perspective view of an assembled computer case convenient for heat dissipation according to the present invention;
fig. 2 is a schematic view of a fan of an assembled computer case convenient for heat dissipation according to the present invention;
fig. 3 is a schematic view of an air inlet pipe of an assembled computer case convenient for heat dissipation according to the present invention;
fig. 4 is a schematic view of a detachable computer case convenient for heat dissipation according to the present invention;
fig. 5 is a schematic view of a liquid cooling box of an assembled computer case convenient for heat dissipation according to the present invention.
Illustration of the drawings:
1. a chassis body; 2. a nut; 3. a stud; 4. mounting a plate; 5. a square hole; 6. a heat dissipation plate; 7. a heat sink; 8. a fan; 9. a wind collecting cover; 10. an air inlet pipe; 11. a liquid cooling tank; 12. an air outlet pipe; 13. a temperature sensor; 14. a servo motor; 15. a screw; 16. a movable block; 17. cleaning brushes; 18. heat dissipation holes; 19. filtering with a screen; 20. a control switch; 21. a power supply connector; 22. a cover plate; 23. a temperature display screen; 24. a base.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-5, the present invention provides an embodiment: an assembled computer case convenient for heat dissipation comprises a case body 1, a square hole 5 is formed in the center of the top of the case body 1, a heat dissipation plate 6 is fixedly connected inside the square hole 5, a plurality of heat dissipation plates 7 are sequentially and fixedly connected in the middle of the heat dissipation plate 6 from left to right, nuts 2 are fixedly connected at thoughts on the top of the case body 1, studs 3 are uniformly and threadedly connected inside the nuts 2, a mounting plate 4 is fixedly connected to the top of the studs 3, the studs 3 play a role in fixedly connecting the mounting plate 4 and the case body 1, a fan 8 is fixedly connected to the middle of the mounting plate 4, a wind collecting cover 9 is fixedly connected to the top of the mounting plate 4 right above the fan 8, an air inlet pipe 10 is fixedly connected to the middle of the rear side of the wind collecting cover 9, a cold liquid tank 11 is fixedly connected to the bottom of the rear side of the mounting plate 4, and an air outlet end of the cold liquid tank 11 is fixedly connected to an air inlet end of the cold liquid tank 11, air outlet end fixedly connected with outlet duct 12 of cold liquid case 11, outlet duct 12 is kept away from the inside that cold liquid case 11's one end runs through and extends to chassis body 1, realize the effect of backward flow after the hot-air cooling, the setting of heating panel 6 and fin 7 is tentatively dispelled the heat to chassis body 1, when chassis body 1 inside high temperature, temperature sensor 13 is with temperature reflection to temperature display screen 23 on, immediately, control switch 20 control fan 8 function blows fin 7 and heating panel 6, carry the hot-air to the cold liquid incasement 11 through air-collecting cover 9 and intake pipe 10 and cool down, rethread outlet duct 12 flows back to chassis body 1's inside, the better technological effect of dispelling the heat and cooling to chassis body 1 inside has been realized, the radiating efficiency is improved.
To explain further, the bottom of the chassis body 1 is fixedly connected with a base 24, the left and right side surfaces of the chassis body 1 are respectively provided with a plurality of heat dissipation holes 18, the left and right sides of the chassis body 1 are respectively fixedly connected with a filter screen 19, the tops of the filter screens 19 at the two sides are respectively fixedly connected with a servo motor 14, the driving ends of the servo motors 14 at the two sides are respectively fixedly connected with a screw 15, one ends of the screw 15 at the two sides, far away from the servo motor 14, are respectively rotatably connected with the inside of the base 24, the outer walls of the screw 15 at the two sides are respectively connected with a movable block 16 in a threaded manner, the inner side surfaces of the movable blocks 16 at the two sides are respectively fixedly connected with a cleaning brush 17, the cleaning brushes 17 at the two sides are respectively connected with the side surfaces of the filter screens 19 at the two sides in a sliding manner, the left side in front of the chassis body 1 is fixedly connected with a control switch 20, signal link to each other between control switch 20 and the fan 8, the place ahead of machine case body 1 is located control switch 20's below fixedly connected with power connection 21, one side inner wall top fixedly connected with temperature sensor 13 of machine case body 1, the front side middle part of machine case body 1 rotates and is connected with apron 22, the front side middle part fixedly connected with temperature display screen 23 of apron 22, signal link to each other between temperature display screen 23 and the temperature sensor 13, servo motor 14 drive screw 15 rotates, it reciprocates to drive movable block 16, thereby make clearance brush 17 slide from top to bottom on filter screen 19's side, clear up filter screen 19 and louvre 18 are inside, avoid blockking up, to sum up, make that machine case body 1 can be better dispel the heat, service life has been prolonged.
The working principle is as follows: firstly, the setting of cooling panel 6 and fin 7 is tentatively dispelled the heat to quick-witted case body 1, when the inside high temperature of quick-witted case body 1, temperature sensor 13 reflects the temperature to temperature display screen 23 on, immediately, control switch 20 control fan 8 function blows to fin 7 and cooling panel 6, carry the hot-air to cooling liquid box 11 in through air-collecting housing 9 and intake pipe 10 and carry out cooling, rethread outlet duct 12 flows back to the inside of quick-witted case body 1, the better technical effect of cooling down of dispelling the heat to quick-witted case body 1 inside has been realized, the radiating efficiency has been improved, servo motor 14 drive screw 15 rotates, drive movable block 16 reciprocates, thereby make cleaning brush 17 slide from top to bottom on the side of filter screen 19, clear up the inside of filter screen 19 and louvre 18, avoid blockking up, to sum up, make quick-witted case body 1 can better dispel the heat, service life has been prolonged.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still modify the technical solutions described in the foregoing embodiments or make equivalent substitutions on some technical features, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principles of the present invention should be included in the scope of the present invention.
Claims (8)
1. The utility model provides an assembled computer machine case convenient to heat dissipation, includes quick-witted case body (1), its characterized in that: square hole (5) have been seted up to the top central point department of putting of chassis body (1), the inside fixedly connected with heating panel (6) of square hole (5), the middle part of heating panel (6) is fixedly connected with a plurality of fin (7) from the left hand right side in proper order, the equal fixedly connected with nut (2) of top philosophy department of chassis body (1), the equal threaded connection in inside of nut (2) has double-screw bolt (3), the top fixedly connected with mounting panel (4) of double-screw bolt (3), the middle part fixedly connected with fan (8) of mounting panel (4), the top of mounting panel (4) is located fan (8) directly over fixedly connected with air-collecting cover (9), the rear side middle part fixedly connected with intake pipe (10) of air-collecting cover (9), rear side bottom fixedly connected with cold liquid case (11) of mounting panel (4), the gas outlet end fixed connection of cold liquid case (11) is at the inlet end of cold liquid case (11), the gas outlet of cold liquid case (11) is connected with outlet duct (12), the one end that cold liquid case (11) was kept away from to air outlet duct (12) is run through to the inside of chassis body (1).
2. The assembled computer case facilitating heat dissipation of claim 1, wherein: the novel cabinet is characterized in that a base (24) is fixedly connected to the bottom of the cabinet body (1), a plurality of radiating holes (18) are formed in the left side face and the right side face of the cabinet body (1), and filter screens (19) are fixedly connected to the left side face and the right side face of the cabinet body (1).
3. The assembled computer case facilitating heat dissipation of claim 2, wherein: the top of the filter screen (19) is fixedly connected with a servo motor (14), the driving ends of the servo motors (14) are fixedly connected with screw rods (15), and one ends, far away from the servo motors (14), of the screw rods (15) are rotatably connected to the inner portion of the base (24).
4. The assembled computer case facilitating heat dissipation of claim 3, wherein: both sides equal threaded connection has movable block (16), both sides on the outer wall of screw rod (15) equal fixedly connected with cleaning brush (17), both sides on the medial surface of movable block (16) cleaning brush (17) sliding connection respectively is in both sides on the side of filter screen (19).
5. The assembled computer case facilitating heat dissipation of claim 2, wherein: the front left side of the case body (1) is fixedly connected with a control switch (20), and the control switch (20) is in signal connection with the fan (8).
6. The assembled computer case facilitating heat dissipation of claim 5, wherein: the front of the case body (1) is positioned below the control switch (20) and is fixedly connected with a power connector (21).
7. The assembled computer case facilitating heat dissipation of claim 6, wherein: the temperature sensor (13) is fixedly connected to the upper portion of the inner wall of one side of the case body (1), and the cover plate (22) is rotatably connected to the middle portion of the front side of the case body (1).
8. The assembled computer case facilitating heat dissipation of claim 7, wherein: the front side middle part fixedly connected with temperature display screen (23) of apron (22), signal link to each other between temperature display screen (23) and temperature sensor (13).
