Abstract
The utility model discloses a wire rod processing grinding machanism for metal smelting calendering article, the on-line screen storage device comprises a base, base rear end fixedly connected with support, the support front side is provided with evenly distributed's transition roller, the equal fixedly connected with pivot of both ends central point department of putting around the transition roller, the front end left side is three the pivot runs through and the fixedly connected with belt pulley, the first driving motor of base top front end right side fixedly connected with, base left end fixedly connected with draw-in groove base, draw-in groove base top rear fixedly connected with second callipers piece, the first callipers piece of second callipers piece top fixedly connected with, the utility model discloses in, during wire rod that the transition roller passed gets into the gyro wheel, when second motor work, by gear engagement rotation, drive the gyro wheel rotation, through the all-round cutting of sawtooth, the polishing of grinding piece, the clearance of brush can reach even grinding effect, has improved work.
Description
Technical Field
The utility model relates to a wire rod processing field especially relates to a wire rod processing grinding mechanism for metal smelting calendering product.
Background
In the wire rod preparation course of working, grind the mechanism and be used for carrying out abrasive treatment to various wire rods extensively, at first through the wire drawing machine with wire rod wire drawing shaping, then grind the wire rod through grinding mechanism's instrument to reject the burr on wire rod surface, make the wire rod more smooth even.
At present, the grinding mechanism tool is convenient for grinding and processing in the process of processing and processing the wire rods, the surface of the wire rods is generally processed in a manual mode, and the wire rods need to be ground one by one and turned over continuously, so that the processing mode is low in efficiency, high in labor cost and uneven in grinding.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a wire processing and grinding mechanism for metal smelting rolled products.
In order to realize the purpose, the utility model adopts the following technical scheme: the utility model provides a wire rod processing grinding machanism for metal smelting calendering product, includes the base, base rear end fixedly connected with support, the support front side is provided with evenly distributed's transition roller, both ends central point puts the equal fixedly connected with pivot of department around the transition roller, and the front end left side is three the pivot runs through and fixedly connected with belt pulley, the first driving motor of base top front end right side fixedly connected with, base left end fixedly connected with draw-in groove base, draw-in groove base top rear fixedly connected with second caliper piece, the first caliper piece of second caliper piece top fixedly connected with, all run through and be provided with evenly distributed's recess between second caliper piece and the first caliper piece, all run through and rotate in the recess and be connected with the gyro wheel, gyro wheel internal diameter right side fixedly connected with evenly distributed's sawtooth piece, gyro wheel internal diameter central point fixedly connected with grinds the piece, gyro wheel internal diameter left side fixedly connected with evenly distributed's brush, the gyro wheel left side all runs through and fixedly connected with gear, draw-in groove base top front end fixedly connected with second driving motor output runs through and fixedly connected with drive gear.
As a further description of the above technical solution:
a belt pulley conveying belt is arranged between the first belt pulley on the left side and the motor belt pulley.
As a further description of the above technical solution:
the left end of the clamping groove base is fixedly connected with a slide.
As a further description of the above technical solution:
the driving gear is in meshing connection with a gear.
As a further description of the above technical solution:
the front end the pivot front end fixedly connected with branch, the rear end rotate between pivot and the support and be connected.
As a further description of the above technical solution:
the central position of the belt pulley is rotationally connected with a supporting rod.
As a further description of the above technical solution:
the output end of the first driving motor penetrates through and is fixedly connected with a motor belt pulley.
The utility model discloses following beneficial effect has:
1. the utility model discloses in, at first driving motor work drives the pivot, and the motor belt pulley is being connected in the pivot, is driving the motor belt pulley by the belt pulley conveyer belt, connects the transition roller through the motor belt pulley, and the function of transition roller can convey many wires in proper order to many grinds save time and hand labor power.
2. The utility model discloses in, during the wire rod that the transition roller passed gets into the gyro wheel, when second motor during operation, rotated by gear engagement, did not need the turn-over, driven rotatoryly by the gyro wheel, through the cutting of sawtooth, the polishing of grinding block, the clearance of brush can reach the effect of even grinding, has improved work efficiency.
Drawings

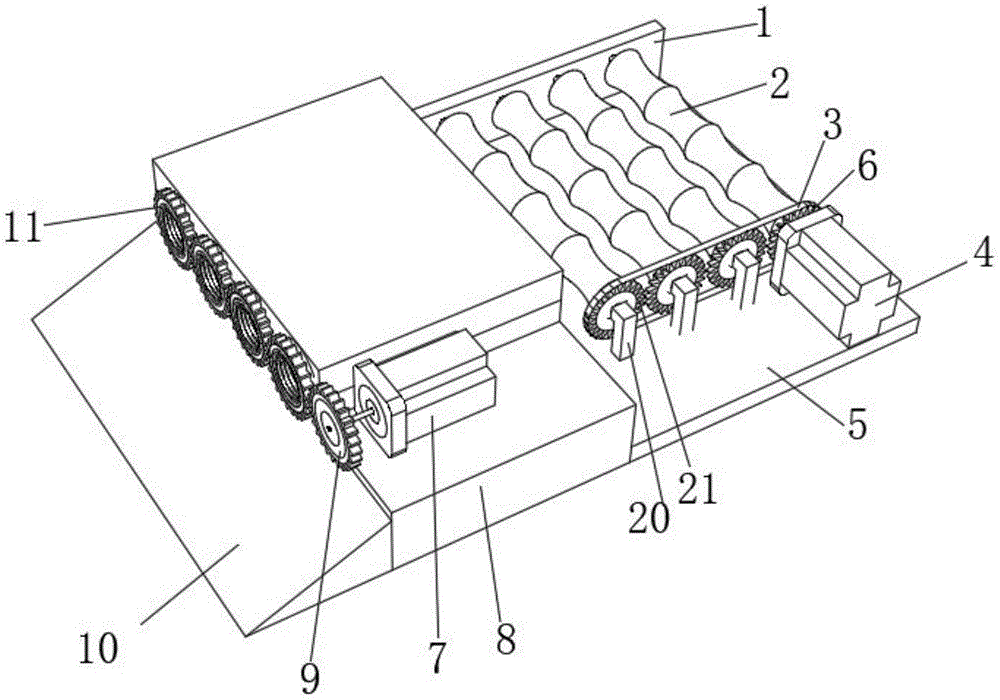

FIG. 1 is a perspective view of a wire processing and grinding mechanism for metal smelting rolled products provided by the present invention;
FIG. 2 is a top view of a wire processing and grinding mechanism for a rolled metal product according to the present invention;
FIG. 3 is a cross-sectional view of the rolling wheel of the wire processing and grinding mechanism for metal smelting rolled products.
Illustration of the drawings:
1. a support; 2. a transition roll; 3. a belt reel conveyor belt; 4. a first drive motor; 5. a base; 6. a motor belt pulley; 7. a second drive motor; 8. a card slot base; 9. a drive gear; 10. a slide; 11. a gear; 12. a roller; 13. a first latch block; 14. a second latch block; 15. a rotating shaft; 16. a sawtooth block; 17. grinding blocks; 18. a brush; 19. a groove; 20. a strut; 21. a belt pulley.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the present invention provides an embodiment: a wire processing and grinding mechanism for metal smelting rolled products comprises a base 5, wherein a support 1 is fixedly connected with the rear end of the base 5, a uniformly distributed transition roller 2 is arranged on the front side of the support 1, rotating shafts 15 are fixedly connected with the central positions of the front end and the rear end of the transition roller 2, three rotating shafts 15 on the left side of the front end penetrate through and are fixedly connected with a belt pulley 21, a first driving motor 4 is fixedly connected with the right side of the front end of the top of the base 5, a clamping groove base 8 is fixedly connected with the left end of the base 5, a second clamping rule block 14 is fixedly connected with the rear part of the top of the clamping groove base 8, a first clamping rule block 13 is fixedly connected with the top of the second clamping rule block 14, uniformly distributed grooves 19 penetrate through and are formed between the second clamping rule block 14 and the first clamping rule block 13, rollers 12 are rotatably connected in the grooves 19, and uniformly distributed sawtooth blocks 16 are fixedly connected with the right side of the inner diameter of the rollers 12, the utility model provides a 12 internal diameter central point of gyro wheel puts fixedly connected with abrasive brick 17, 12 internal diameter left side fixedly connected with evenly distributed's of gyro wheel brush 18, gyro wheel 12 left side all runs through and fixedly connected with gear 11, 8 top front end fixedly connected with second driving motor 7 of draw-in groove base, the output of second driving motor 7 runs through and fixedly connected with drive gear 9, gyro wheel 12 is exit, the wire rod all will pass from here, gyro wheel 12 the inside has included sawtooth block 16, can cut off the surperficial granule of wire rod, abrasive brick 17 can make the wire rod of cutting more smooth through polishing, brush 18 can make the surperficial grits of wire rod clean up, drive gear 9 and gear 11 are being connected to the left end of gyro wheel 12, be the meshing relation between them, it drives to connect output second driving motor work by drive gear 9.
The left side is first be provided with belt pulley conveyer belt 3 between belt pulley 6 and the 21 motor belt pulley, 8 left end fixedly connected with slides 10 of draw-in groove base, the meshing of drive gear 9 is connected with gear 11, front end pivot 15 rotates and is connected with branch 20, the rear end rotate between pivot 15 and the support 1 and be connected, 21 central point of belt pulley puts the department and rotates and be connected with branch 20, 4 output of first driving motor run through and fixedly connected with motor belt pulley 6, 4 drive motor belt pulley 6 drives of first driving motor, motor belt pulley 6 and belt pulley 21 lean on belt pulley conveyer belt 3 to drive rotatoryly, and pivot 15 is running through transition roller 2, transition roller 2 is being connected with motor belt pulley 6 again, for firm belt pulley 21, branch 20 has been added, transition roller 2 is rotatory, drive the conveying of many wire rods.
The working principle is as follows: first driving motor 4 drives motor belt pulley 6 drive, motor belt pulley 6 and belt pulley 21 are rotated by belt pulley conveyer belt 3, and pivot 15 runs through transition roller 2, transition roller 2 is being connected with motor belt pulley 6 again, in order to stabilize belt pulley 21, branch 20 has been added, transition roller 2 is rotatory, the conveying of many wires is driven, gyro wheel 12 is the exit, the wire rod all will pass from here, the sawtooth block 16 has been included to the gyro wheel 12 inside, can cut off the granule on wire rod surface, abrasive brick 17 can make the wire rod of cutting more smooth through polishing, brush 18 can make the ash bits on wire rod surface clean up, drive gear 9 and gear 11 are being connected to the left end of gyro wheel 12, be the meshing relation between them, it drives to connect output second driving motor work by drive gear 9, just can come out from drive gear 9 and gear 11 after polishing, the slide 10 upper end that drops, the landing.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still modify the technical solutions described in the foregoing embodiments or make equivalent substitutions on some technical features, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principles of the present invention should be included in the scope of the present invention.
Claims (7)
1. The utility model provides a wire rod processing grinds mechanism for metal smelting calendering product, includes base (5), its characterized in that: the rear end of the base (5) is fixedly connected with a support (1), the front side of the support (1) is provided with a uniformly distributed transition roller (2), the central positions of the front end and the rear end of the transition roller (2) are fixedly connected with a rotating shaft (15), the left side of the front end is three, the rotating shaft (15) penetrates through and is fixedly connected with a belt pulley (21), the right side of the front end of the top of the base (5) is fixedly connected with a first driving motor (4), the left end of the base (5) is fixedly connected with a clamping groove base (8), the rear side of the top of the clamping groove base (8) is fixedly connected with a second clamping ruler block (14), the top of the second clamping ruler block (14) is fixedly connected with a first clamping ruler block (13), uniformly distributed grooves (19) penetrate through and are arranged between the second clamping ruler block (14) and the first clamping ruler block (13), rollers (12) penetrate through and are rotatably connected in the grooves (19), the right side of the inner diameter of the rollers (12) is fixedly connected with uniformly distributed sawtooth blocks (16), the inner diameter of the rollers (12) is fixedly connected with a grinding block (17), the central positions of the inner diameter of the rollers (12) is fixedly connected with a left side of the roller (18), and the left side of the roller (7) is fixedly connected with a gear (7), and is fixedly connected with a front side of the base (8), the output end of the second driving motor (7) penetrates through and is fixedly connected with a driving gear (9).
2. The wire rod processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: a belt pulley conveyor belt (3) is arranged between the first belt pulley (21) on the left side and the motor belt pulley (6).
3. The wire rod processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: the left end of the clamping groove base (8) is fixedly connected with a slide (10).
4. The wire rod processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: the driving gear (9) is connected with a gear (11) in a meshing manner.
5. The wire processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: the front end pivot (15) rotate and are connected with branch (20), the rear end rotate between pivot (15) and support (1) and be connected.
6. The wire rod processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: the central position of the belt pulley (21) is rotationally connected with a support rod (20).
7. The wire rod processing and grinding mechanism for the metal smelting rolled product according to claim 1, characterized in that: the output end of the first driving motor (4) penetrates through and is fixedly connected with a motor belt pulley (6).
