Bread production stirring conveyor

Technical Field

The utility model relates to a bread production technical field, especially a bread production stirring conveyor.

Background

The bread is taken as staple food, which is already integrated into the life of people, and the body shadow of the bread can be seen in three meals a day. In industry, the processing of bread needs to go through the steps of stirring, cutting, fermentation and conveying, etc., wherein the stirring frame is too large, so that the dough which is stirred cannot be discharged completely.

SUMMERY OF THE UTILITY MODEL

To above technical problem, the utility model provides a bread production stirring conveyor, it has the advantage that improves ejection of compact degree.

In order to achieve the above object, the utility model adopts the following technical scheme: a bread production stirring conveyor, characterized by that includes: stirring module, output module and segmentation transport module, output module sets up in stirring module lower extreme, and output module's discharging pipe department is provided with the segmentation transport module, the stirring module includes framework, inlet pipe, transfer line, puddler, sprinkling device, discharging device and first motor, the lateral wall upper end is provided with the inlet pipe respectively about the framework, the transfer line both ends are rotated and are connected on the lateral wall about the framework inner chamber and the mounted position is less than the inlet pipe, puddler evenly distributed just is connected with transfer line fixed surface on the transfer line surface, first motor is installed on the framework lateral wall and first motor output shaft and transfer line fixed connection, sprinkling device fixed mounting is at the framework top, discharging device sets up in framework inner chamber bottom.

Furthermore, the shower device comprises a spray head, a guide pipe and a mixing chamber, wherein the spray head penetrates through the top of the frame body, the lower end of the spray head is positioned in the frame body, the upper end of the spray head is communicated with the guide pipe, and the upper end of the guide pipe is communicated with the mixing chamber.

Further, discharging device includes fixed plate, expansion plate, an electric telescopic handle, slider and spout, the expansion plate still includes thick plate and sheet metal, the fixed plate is located output module both sides and the fixed plate is fixed in framework inner chamber bottom, and the fixed plate top is articulated with the one end that the thick plate is close to output module, an electric telescopic handle bottom is articulated with the framework, and the top is articulated with the thick plate, the one end that the sheet metal is close to the framework lateral wall is articulated with the slider, has seted up the spout on the framework inner chamber lateral wall, and slider sliding connection is in the spout.

Further, output module includes discharging pipe, ejection of compact agitating unit and second motor, the discharging pipe is connected in framework bottom central point and is put, and ejection of compact agitating unit is located discharging pipe central point and puts and be higher than the discharging pipe, the second motor is installed in discharging pipe bottom lateral wall, and second motor output shaft and ejection of compact agitating unit fixed connection.

Further, the segmentation conveying module comprises a cutter, a baffle, a conveyor, a second electric telescopic rod and a flat plate, the baffle is fixedly connected to the outer wall of the discharging pipe discharging port side, the cutter is located at the center of the baffle, the second electric telescopic rod is fixed to the top of the baffle and located on the left side and the right side of the cutter, the flat plate is fixed to the tops of the second electric telescopic rod and the cutter, and the conveyor is located below the cutter and connected with the discharging port of the discharging pipe.

Furthermore, a layer of iron sheet is fixed on the outer surface of the conveying belt on the conveyor.

Compared with the prior art, the utility model discloses following technological effect has:

when the dough is fed by the feeding pipe and stirred by the stirring rod, the discharging device is kept horizontal, so that the flour which is not stirred directly enters the output module is avoided; after the dough stirring was accomplished, the ascending lifting of first electric telescopic handle drives the ascending lifting of one end that the expansion plate is close to the framework lateral wall for the framework bottom has had inclination output module's inclination, and the dough is the ejection of compact abundant more easily under the effect of gravity this moment.

Drawings

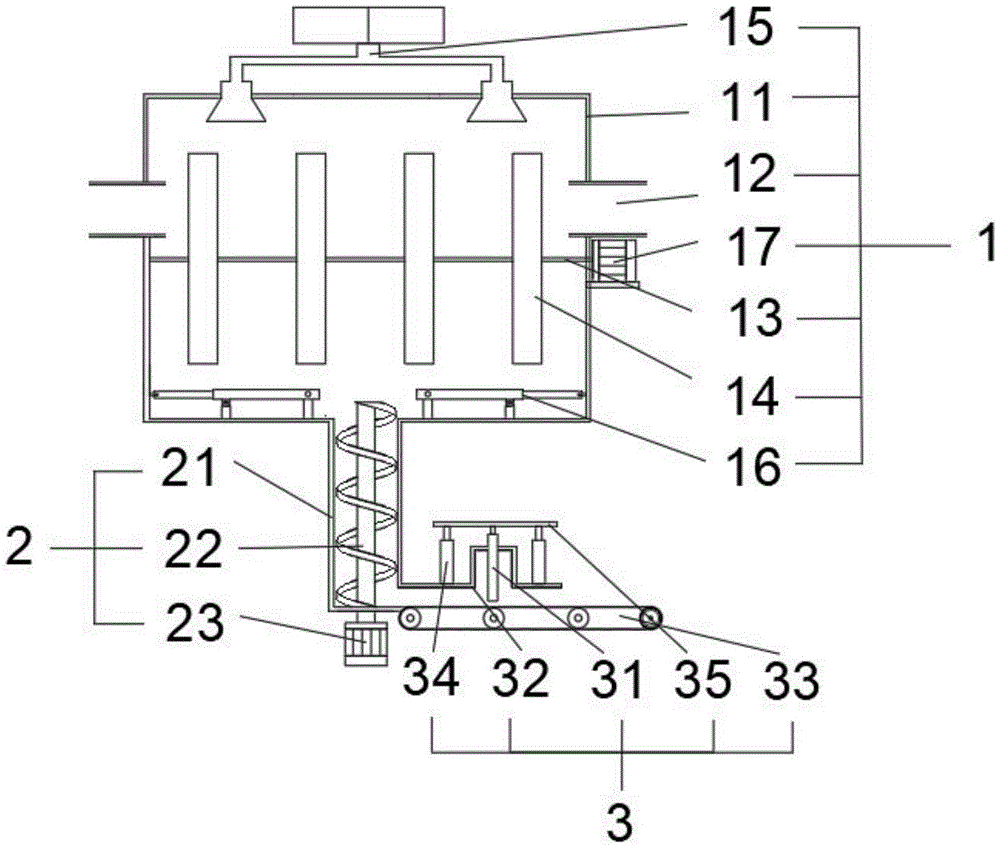

FIG. 1 is a front view of a mixing conveyor;

FIG. 2 is a top cross-sectional view of a blending module;

FIG. 3 is a schematic view of the construction of the shower apparatus;

FIG. 4 is a sectional view of area A;

FIG. 5 is a schematic view of the discharge device;

the designation of the numbers in the figures is as follows:

the device comprises a stirring module-1, a frame body-11, a feeding pipe-12, a transmission rod-13, a stirring rod-14, a sprinkling device-15, a spray head-151, a guide pipe-152, a mixing chamber-153, a discharging device-16, a fixing plate-161, a telescopic plate-162, a first electric telescopic rod-163, a sliding block-164, a sliding chute-165, a first motor-17, an output module-2, a discharging pipe-21, a discharging stirring device-22, a second motor-23, a splitting and conveying module-3, a cutter-31, a baffle-32, a conveyor-33, a second electric telescopic rod-34 and a flat plate-35.

Detailed Description

In order to make the purpose, technical solutions and advantages of the embodiments of the present invention clearer, the drawings in the embodiments of the present invention will be combined below to clearly and completely describe the technical solutions in the embodiments of the present invention.

As shown in fig. 1 and 2, the bread producing, stirring and conveying apparatus of the present embodiment is characterized by comprising: stirring module 1, output module 2 and segmentation transport module 3, output module 2 sets up in stirring module 1 lower extreme, output module 2's discharging pipe department is provided with segmentation transport module 3, stirring module 1 includes framework 11, inlet pipe 12, transfer line 13, puddler 14, sprinkling device 15, discharging device 16 and first motor 17, framework 11 left and right sides lateral wall upper end is provided with inlet pipe 12 respectively, transfer line 13 both ends are rotated and are connected on the left and right sides lateral wall of framework 11 inner chamber and the mounted position is less than inlet pipe 12, puddler 14 evenly distributed is on transfer line 13 surface and with transfer line 13 fixed surface connection, first motor 17 installs on framework 11 lateral wall and first motor 17 output shaft and transfer line 13 fixed connection, sprinkling device 15 fixed mounting is in framework 11 top, discharging device 16 sets up in framework 11 inner chamber bottom;

the output module 2 comprises a discharge pipe 21, a discharge stirring device 22 and a second motor 23, the discharge pipe 21 is connected to the central position of the bottom of the frame body 11, the discharge stirring device 22 is positioned at the central position of the discharge pipe 21 and is higher than the discharge pipe 21, the second motor 23 is arranged on the outer side wall of the bottom of the discharge pipe 21, and an output shaft of the second motor 23 is fixedly connected with the discharge stirring device 22;

the cutting and conveying module 3 comprises a cutter 31, a baffle 32, a conveyor 33, a second electric telescopic rod 34 and a flat plate 35, the baffle 32 is fixedly connected to the outer side wall of the right end of the discharge pipe 21, the cutter 31 is located at the center of the baffle 32, the second electric telescopic rod 34 is fixed at the top of the baffle 32 and located at the left end and the right end of the cutter 31, the flat plate 35 is fixed at the tops of the second electric telescopic rod 34 and the cutter 31, and the conveyor 33 is located below the cutter 31 and connected with a discharge hole of the discharge pipe 21.

As shown in fig. 3, the shower device 15 includes a nozzle 151, a duct 152 and a mixing chamber 153, the nozzle 151 penetrates through the top of the frame 11, the lower end of the nozzle 151 is located inside the frame 11, the upper end of the nozzle is connected to the duct 152, and the upper end of the duct 152 is connected to the mixing chamber 153.

As shown in fig. 4 and 5, the discharging device 16 includes a fixing plate 161, a telescopic plate 162, a first electric telescopic rod 163, a sliding block 164 and a sliding groove 165, the telescopic plate 162 further includes a thick plate 1621 and a thin plate 1622, the fixing plate 161 is located at two sides of the output module and the fixing plate 161 is fixed at the bottom of the inner cavity of the frame 11, the top of the fixing plate 161 is hinged to one end of the thick plate 1621 close to the output module 2, the bottom of the first electric telescopic rod 163 is hinged to the frame 11, the top of the first electric telescopic rod is hinged to the thick plate 1621, one end of the thin plate 1622 close to the side wall of the frame 11 is hinged to the sliding block 164, the sliding groove 165 is formed on the side wall of the inner cavity of the frame 11, and the sliding block 164 is slidably connected in the sliding groove 165.

Through above-mentioned technical scheme, during the stirring dough, expansion plate 162 keeps the level, and in inlet pipe 12 sent framework 11 with flour, then shower nozzle 151 can spray the water that has other different raw materials in to framework 11, after adding appropriate amount of water, first motor 17 drove the transfer line 13 and rotates, and transfer line 13 drives puddler 14 and rotates to this realization stirs the purpose of dough into flour. After the stirring is completed, the first motor 17 stops working, the thick plate 1621 is lifted upwards under the action of the first electric telescopic rod 163, the thick plate 1621 drives the thin plate 1622 to be lifted, the thin plate 1622 is drawn out from the thick plate 1621, and meanwhile, the one end, close to the side wall of the frame body 11, of the thin plate 1622 keeps attaching to the frame body 11 under the action of the sliding block 164 and the sliding groove 165. Through the lifting of the discharging device 16, the bottom of the frame body 11 is provided with an inclined surface inclined to the output module 2, and the dough can be discharged more easily and fully under the action of gravity.

During discharging, the second motor 23 drives the discharging stirring device 22 to rotate, so as to stir the dough into and out of the material pipe 21 through rotation, and enter the cutting and conveying module 3 through the opening at the lower right end. In the cutting output module 3, the conveyor 33 is in transmission at intervals in cooperation with the speed of the cutting dough of the cutter 31, and the cut dough is sent out by the conveyor 33 for subsequent processing.

After the discharging is completed, the first electric telescopic rod 163 is contracted, the first electric telescopic rod 163 drives the thick plate 1621 to return to the horizontal state, meanwhile, the thin plate 1622 also returns to the horizontal state under the action of the thick plate 1621, at the moment, the thin plate 1622 drives the sliding block 164 to slide downwards in the sliding groove 165, and the thin plate 1622 is inserted into the thick plate 1621 in the process. When the whole discharging device 16 returns to the horizontal state, the next stirring operation can be started.

After the dough enters the cutting conveying module 3, the second electric telescopic rod 34 drives the cutter 31 through the flat plate 35, so that the cutter 31 cuts the dough; the conveyor 33 is driven at intervals according to the cutting speed of the cutter 31, and a layer of iron sheet is fixed on the outer surface of the conveying belt of the conveyor 33, so that the cutter 31 is prevented from damaging the conveying belt of the conveyor 33.

It is only above the preferred embodiment of the utility model, the utility model discloses a scope of protection not only limits in above-mentioned embodiment, uses under the work that does not have novelty, creativity the utility model discloses the technical scheme that the thinking obtained all belongs to the utility model discloses a scope of protection. For those skilled in the art, several modifications and improvements without departing from the principles of the present invention should be considered as the protection scope of the present invention.

Claims (6)

1. A bread production stirring conveyor, characterized by that includes: stirring module (1), output module (2) and segmentation transport module (3), output module (2) set up in stirring module (1) lower extreme, and the discharging pipe department of output module (2) is provided with segmentation transport module (3), stirring module (1) is including framework (11), inlet pipe (12), transfer line (13), puddler (14), sprinkling device (15), discharging device (16) and first motor (17), lateral wall upper end is provided with inlet pipe (12) respectively about framework (11), transfer line (13) both ends are rotated and are connected on the lateral wall of the left and right sides of framework (11) inner chamber and mounted position is less than inlet pipe (12), puddler (14) evenly distributed is on transfer line (13) surface and with transfer line (13) fixed surface be connected, first motor (17) are installed on framework (11) lateral wall and first motor (17) output shaft and transfer line (13) fixed connection, sprinkling device (15) fixed mounting is in framework (11) top, discharging device (16) set up in framework (11) inner chamber bottom.

2. The bread production stirring and conveying device according to claim 1, wherein the shower device (15) comprises a nozzle (151), a conduit (152) and a mixing chamber (153), the nozzle (151) penetrates through the top of the frame body (11), the lower end of the nozzle (151) is located inside the frame body (11), the upper end of the nozzle is communicated with the conduit (152), and the upper end of the conduit (152) is communicated with the mixing chamber (153).

3. The bread production stirring conveying device according to claim 1, wherein the discharging device (16) comprises a fixing plate (161), an expansion plate (162), a first electric expansion rod (163), a slider (164) and a sliding groove (165), the expansion plate (162) comprises a thick plate (1621) and a thin plate (1622), the thin plate (1622) is telescopically inserted into the thick plate (1621), the fixing plate (161) is located on two sides of the output module, the fixing plate (161) is fixed at the bottom of the inner cavity of the frame (11), the top of the fixing plate (161) is hinged to one end, close to the output module (2), of the thick plate (1621), the bottom of the first electric expansion rod (163) is hinged to the frame (11), the top of the first electric expansion rod is hinged to the thick plate (1621), one end, close to the side wall of the frame (11), of the thin plate (1622) is hinged to the slider (164), the sliding groove (165) is formed in the inner cavity side wall of the frame (11), and the slider (164) is slidably connected to the sliding groove (165).

4. The bread production stirring and conveying device according to claim 1, wherein the output module (2) comprises a discharge pipe (21), a discharge stirring device (22) and a second motor (23), the discharge pipe (21) is connected to the bottom center of the frame body (11), the discharge stirring device (22) is located at the center of the discharge pipe (21) and is higher than the discharge pipe (21), the second motor (23) is installed at the bottom of the discharge pipe (21), and the output shaft of the second motor (23) is fixedly connected with the discharge stirring device (22).

5. The bread production stirring and conveying device according to claim 1, wherein the cutting and conveying module (3) comprises a cutter (31), a baffle (32), a conveyor (33), a second electric telescopic rod (34) and a flat plate (35), the baffle (32) is fixedly connected to the outer wall of the discharging pipe (21) on the discharging port side, the cutter (31) is located at the center of the baffle (32), the second electric telescopic rod (34) is fixed to the top of the baffle (32) and located on the left side and the right side of the cutter (31), the flat plate (35) is fixed to the tops of the second electric telescopic rod (34) and the cutter (31), and the conveyor (33) is located below the cutter (31) and connected with the discharging port of the discharging pipe (21).

6. A bread producing stirring conveyor device as in claim 5, characterized in that the outer surface of the conveyor belt of said conveyor (33) is fixed with a layer of iron sheet.
