Electric vehicle with electronic display screen

Technical Field

The utility model belongs to the electric motor car field, concretely relates to take electronic display screen's electric motor car.

Background

In order to attract the eyes of customers, the advertising investment of all walks of life is more and more in the development of current social economy, but most of the current advertisements are mainly fixedly placed advertisements, such as LED screens on the outer walls of buildings, advertising lamp boxes at bus stations and the like, and the advertising modes ensure that only people entering the area can receive advertising information, so that the universality and timeliness of advertising propagation are greatly discounted. With the rise of take-out industry and express delivery industry in recent years, the use rate of electric vehicles, including electric bicycles, electric tricycles and the like, is higher and higher. The electric vehicles are numerous and small in size, and can conveniently pass through streets and alleys, so that the electric vehicles are used as advertisement carriers to shuttle in the streets, the advertisement cost is low, more people can receive advertisement information, and the universality and timeliness of advertisement propagation are ensured. However, the existing electric vehicle with the advertising function only hangs an advertising board or an advertising display screen outside the vehicle body, such as the utility model CN212980463U, CN202422667U, the overall aesthetic property of the electric vehicle is poor due to the arrangement, and the attraction to the masses is weak.

In addition, the colors and patterns of the outer surface of the existing electric vehicle are fixed, so that a user cannot replace the colors and patterns of the electric vehicle according to own preference, and the appearance and the applicability are poor.

And when the electric motor car is gone in the road of dark, because light is relatively poor, other people are difficult to discover the electric motor car, accident such as easy emergence collision, and the security of going is lower.

Therefore, it is necessary to provide a technical solution to solve the above problems.

SUMMERY OF THE UTILITY MODEL

The utility model provides a take electronic display screen's electric motor car aims at solving the whole aesthetic property of the electric motor car that has the advertisement function among the prior art poor and the electric motor car among the prior art's colour and pattern are fixed technical problem that can not change.

In order to achieve the purpose, the utility model provides an electric vehicle with an electronic display screen, which comprises a vehicle frame main body, front wheels, rear wheels, a vehicle head, a storage battery and a control circuit board; the electronic display screen and the control circuit board are respectively and electrically connected with the storage battery.

Preferably, a wireless communication module and a controller are integrated on the control circuit board, the wireless communication module is connected with an external mobile terminal or an external advertisement putting terminal, the wireless communication module is connected with the controller, and the output end of the controller is connected with the electronic display screen.

Preferably, a GPS positioning module is further integrated on the control circuit board, and the GPS positioning module is connected with the input end of the controller.

Preferably, the electronic display screen is fixedly connected with the panel or the frame main body; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

Preferably, the electronic display screen is a flexible LED display screen or a flexible OLED display screen.

Preferably, the vehicle frame further comprises an LED lamp strip, the LED lamp strip is arranged on the vehicle frame main body and electrically connected with the storage battery, and the output end of the controller is connected with the LED lamp strip.

Preferably, the LED lamp strip is arranged in a panel made of semitransparent or transparent materials, or a protective shell made of transparent or semitransparent materials is arranged outside the LED lamp strip.

Moreover, the utility model also provides a second electric vehicle with an electronic display screen, which comprises a vehicle frame main body, front wheels, rear wheels, a vehicle head, a storage battery, a control circuit board and a storage box; the periphery of the frame main body and/or the periphery of the storage box are/is provided with a plurality of panels, at least one panel is made of semitransparent or transparent materials and is provided with an electronic display screen between the panel and the frame main body and/or the storage box, and the electronic display screen and the control circuit board are respectively and electrically connected with the storage battery.

Preferably, a wireless communication module and a controller are integrated on the control circuit board, the wireless communication module is connected with an external mobile terminal or an external advertisement putting terminal, the wireless communication module is connected with the input end of the controller, and the output end of the controller is connected with the electronic display screen.

Preferably, the electronic display screen is fixedly connected with the panel; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

Preferably, the electronic display screen is fixedly connected with the frame main body and/or the storage box; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

In addition, the utility model also provides a third kind of electric motor car with an electronic display screen, which comprises a frame main body, front wheels, rear wheels, a car head, a storage battery, a control circuit board and a windshield; the periphery of frame main part and/or the periphery of windshield is provided with a plurality of panels, at least one the panel be translucent or transparent material and its with frame main part and/or be provided with electronic display screen between the windshield, electronic display screen control circuit board respectively with the battery electricity is connected.

Preferably, the electronic display screen is fixedly connected with the panel; the fixed connection adopts the connection mode of threaded fastener connection, clamping connection or bonding connection.

Preferably, the electronic display screen is fixedly connected with the frame body and/or the windshield; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

The beneficial effects of the utility model reside in that:

(1) The periphery of a frame main body of the electric vehicle is provided with a plurality of panels, at least one panel is made of semitransparent or transparent materials, and an electronic display screen is arranged between the panel made of semitransparent or transparent materials and the frame main body; when the electric vehicle is also provided with the storage box, a plurality of panels are arranged on the periphery of the frame main body and/or the periphery of the storage box, at least one panel is made of semitransparent or transparent materials, and an electronic display screen is arranged between the panel made of semitransparent or transparent materials and the frame main body and/or the storage box; when the electric vehicle is further provided with the windshield, the plurality of panels are arranged on the periphery of the frame main body and/or the periphery of the windshield, at least one panel is made of semitransparent or transparent materials, and an electronic display screen is arranged between the panel made of semitransparent or transparent materials and the frame main body and/or the windshield; the utility model discloses on integrating the electric motor car with electronic display screen, replaced suspension type advertising display screen among the prior art, improved the whole aesthetic property of electric motor car.

(2) The signal is sent to the wireless communication module through the external mobile terminal or the external advertisement putting terminal, the wireless communication module receives the signal and then transmits the signal to the controller, and the controller controls the display content of the electronic display screen; therefore, the advertiser can control the content in the electronic display screen of the electric vehicle playing the advertisement; the user of the electric vehicle can also control the content displayed in the electronic display screen through mobile terminals such as a mobile phone and a tablet personal computer, and the color and the pattern of the electric vehicle are set individually.

(3) By arranging the GPS positioning module, an advertiser can master the main driving area range of the electric vehicle, and different advertisements can be put in aiming at different driving areas, so that the advertisements played on the electric vehicle are more targeted.

(4) The electronic display screen specifically adopts flexible LED display screen or flexible OLED display screen, and flexible electronic display screen can change its shape according to the shape of panel, frame main part, storage tank or wind cap, makes electronic display screen closely laminate panel, frame main part, storage tank or wind cap and carries out fixed mounting, makes the whole associativity of electronic display screen and electric motor car better.

(5) The LED lamp belt is installed on the electric vehicle, and a user of the electric vehicle can control the color and the brightness of the LED lamp belt through a mobile terminal such as a mobile phone and a tablet personal computer, so that the attractiveness of the electric vehicle is further improved.

(6) Through setting up electronic display screen and LED lamp area on the electric motor car, when the electric motor car went on the road of dark, can send the light of flickering through control electronic display screen or LED lamp area, make the electric motor car more conspicuous, change and be differentiateed by other people, reduce unexpected emergence such as collision, guarantee driving safety.

Drawings

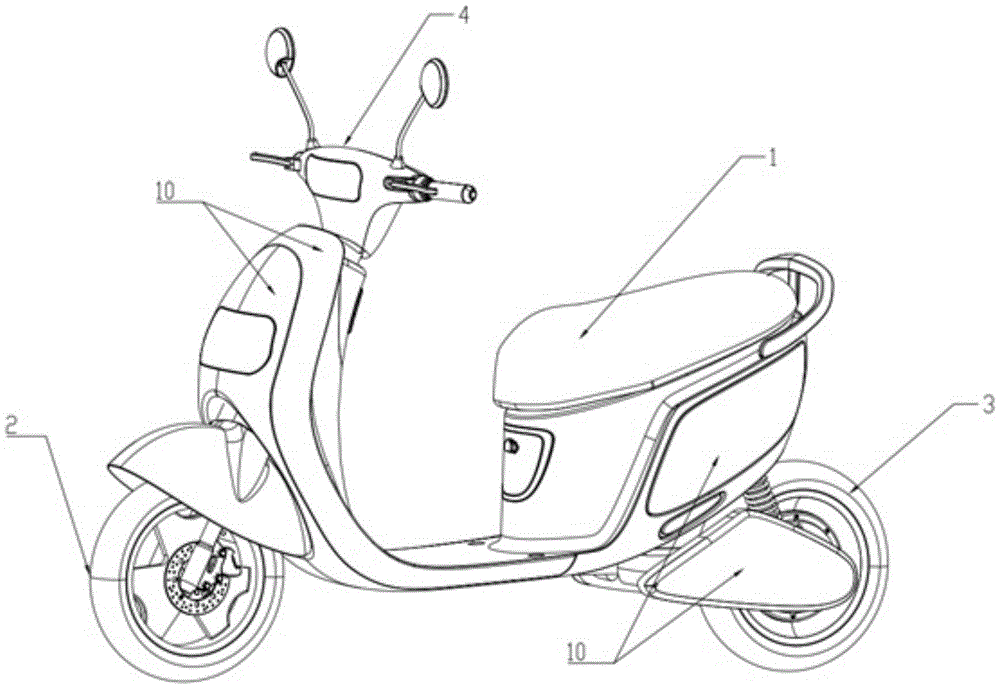

Fig. 1 is a schematic structural view of an electric vehicle according to embodiment 1 of the present invention.

Fig. 2 is a schematic structural diagram of the electric vehicle according to embodiment 1 of the present invention with a panel partially detached.

Fig. 3 is a schematic structural view of an electric vehicle according to embodiment 2 of the present invention.

Fig. 4 is a schematic structural diagram of the electric vehicle according to embodiment 2 of the present invention, in which a partial panel is detached.

Fig. 5 is a block diagram of the control system of the present invention.

Description of reference numerals:

1-a frame body; 2-front wheels; 3-rear wheel; 4-vehicle head; 5-a storage box; 10-panel.

Detailed Description

The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. It is to be understood that the disclosed embodiments are merely exemplary of the invention, and are not intended to limit the invention to the precise embodiments disclosed. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

Example 1

As shown in fig. 1-2, an electric vehicle with an electronic display screen includes an electric bicycle, an electric tricycle, etc., which are not limited herein; the main components of the electric vehicle are almost the same as those of a common electric vehicle, and the electric vehicle comprises a vehicle frame main body 1, front wheels 2, rear wheels 3, a vehicle head 4, a storage battery and a control circuit board; the difference with the common electric vehicle lies in that a plurality of panels 10 are arranged on the periphery of the frame main body 1, the plurality of panels 10 comprise a front cover plate positioned below the vehicle head 4, a left side plate and a right side plate positioned on two sides of the lower part of the seat cushion, a left connecting plate and a right connecting plate positioned on two sides of the pedal plate, a mudguard positioned near the front wheel and the rear wheel, and the like, at least one panel 10 can be made of semitransparent or transparent materials, an electronic display screen is arranged between the panel 10 made of semitransparent or transparent materials and the frame main body 1, and the electronic display screen and the control circuit board are respectively and electrically connected with the storage battery.

In this embodiment, at least one translucent or transparent panel 10 is disposed on the periphery of the frame body 1, and an electronic display screen is disposed between the translucent or transparent panel 10 and the frame body 1, so that the contents of the electronic display screen can be displayed outwards through the translucent or transparent panel 10; integrate the electronic display screen to the electric motor car in this embodiment, replaced the advertising display screen of suspension among the prior art, improved the whole aesthetic property of electric motor car.

Further, as shown in fig. 5, a wireless communication module and a controller are integrated on the control circuit board, the wireless communication module is connected with an external mobile terminal or an external advertisement delivery terminal, the wireless communication module is connected with the controller, and an output end of the controller is connected with the electronic display screen. An instrument panel is arranged in the middle of the head 4 of the electric vehicle, and the control circuit board can be arranged inside the instrument panel.

In this embodiment, when the electric motor car is not put in the advertisement, the user of electric motor car can communicate with the wireless communication module in the electric motor car through mobile terminal such as cell-phone, panel computer, the user can select the colour and the pattern that oneself likes in mobile terminal, wireless communication module transmits it to the controller after receiving the mobile terminal signal, the content that the controller controlled the electronic display screen again and selected the user shows, consequently the user can carry out individualized setting to the colour and the pattern of electric motor car according to oneself hobby, and the suitability is higher. When the electric motor car is put in the advertisement, the advertiser can communicate through the wireless communication module in advertisement putting terminal and the electric motor car, and the advertiser can set up the advertisement that needs to broadcast at advertisement putting terminal, and wireless communication module transmits it to the controller after receiving advertisement putting terminal signal, and the controller controls the electronic display screen again and broadcasts out the advertisement content that the advertiser set up to can guarantee the promptness of advertisement propagation.

Furthermore, a GPS positioning module is integrated on the control circuit board and connected with the input end of the controller.

In the embodiment, the GPS positioning module is arranged in the electric vehicle, the electric vehicle can be positioned by the GPS positioning module, and when the electric vehicle is lost, the vehicle can be found by the GPS positioning module, so that the safety of the electric vehicle is improved. More importantly, an advertiser can determine the driving area range of the electric vehicle through the GPS positioning module, so that different types of advertisements are put in aiming at the electric vehicles in different driving areas, for example, advertisements related to children or education are put in aiming at the electric vehicles near schools, and the advertisements played on the electric vehicles are more targeted and have better effect.

Further, the electronic display screen is fixedly connected with the panel 10 or the frame body 1; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection; and the electronic display screen is a flexible LED display screen or a flexible OLED display screen.

In this embodiment, the electronic display screen can be selectively mounted on the panel 10 or the frame body 1; no matter install on panel 10 or install on frame main part 1, in order to make the laminating nature of electronic display screen and electric motor car better, the whole aesthetic property of electric motor car better, the electronic display screen preferably adopts flexible LED display screen or flexible OLED display screen, and flexible display screen can follow the radian of panel 10 or frame main part 1 and change to closely the laminating is installed on panel 10 or frame main part 1. The concrete connection mode can adopt threaded fasteners such as bolts and screws to connect, adopts clamping block and clamping groove matched clamping, or adopts viscose to connect and the like, as long as guarantee that the electronic display screen can be stably installed.

Further, still including LED lamp area, LED lamp area sets up on the frame main part 1, LED lamp area with the battery electricity is connected, the output of controller with LED lamp area is connected, and LED lamp area sets up in panel 10 of translucent or transparent material or LED lamp area outside is provided with the protective housing of transparent or translucent material.

In the embodiment, the LED lamp strip is installed on the electric vehicle, and a user of the electric vehicle can control the color and the brightness of the LED lamp strip through a mobile terminal such as a mobile phone and a tablet personal computer, so that the attractiveness of the electric vehicle is further improved; and in order to protect the LED strip, it is disposed in the panel 10 made of translucent or transparent material or a protective case made of transparent or translucent material is disposed outside the panel.

Example 2

As shown in fig. 3-4, compared with embodiment 1, the main difference is that the electric vehicle further includes a storage box 5, a plurality of panels 10 are disposed on the periphery of the frame body 1 and/or the periphery of the storage box 5, at least one of the panels 10 is made of a translucent or transparent material, an electronic display screen is disposed between the panel 10 and the frame body 1 and/or the storage box 5, and the electronic display screen and the control circuit board are electrically connected to the storage battery, respectively.

In this embodiment, when the electric vehicle is provided with a storage box, for example, an insulation box arranged in a take-away electric vehicle or an express storage box arranged on an electric tricycle for delivering express, at least one translucent or transparent panel 10 is arranged on the periphery of the frame main body 1 and/or the storage box 5, and an electronic display screen is arranged between the translucent or transparent panel 10 and the frame main body 1 and/or between the translucent or transparent panel 10 and the translucent or transparent panel 10, so that the content of the electronic display screen can be displayed outwards through the translucent or transparent panel 10; integrate the electronic display screen to the electric motor car in this embodiment, replaced suspended advertisement display screen among the prior art, improved the whole aesthetic property of electric motor car.

Further, the electronic display screen is fixedly connected with the panel 10, or the electronic display screen is fixedly connected with the frame main body 1 and/or the storage box 5; the fixed connection adopts a connection mode of threaded fastener connection, clamping connection or bonding connection; and the electronic display screen is a flexible LED display screen or a flexible OLED display screen.

In this embodiment, the electronic display screen can be selectively installed on the panel 10, or selectively installed on the frame body 1 and/or the storage box 5; no matter install on panel 10 or install on frame main part 1 and/or storage tank 5, in order to make the laminating nature of electronic display screen and electric motor car better, the whole aesthetic property of electric motor car is better, and the electronic display screen prefers to adopt flexible LED display screen or flexible OLED display screen, and the radian that panel 10, frame main part 1, storage tank 5 can be followed to flexible display screen changes to closely the laminating is installed on panel 10, frame main part 1, storage tank 5. The concrete connection mode can adopt threaded fasteners such as bolts and screws to connect, adopts clamping block and clamping groove matched clamping, or adopts viscose to connect and the like, as long as guarantee that the electronic display screen can be stably installed.

Example 3

Compared with the embodiment 1, the electric vehicle is mainly characterized by further comprising a windshield (not shown in the attached drawings), a plurality of panels 10 are arranged on the periphery of the vehicle frame body 1 and/or the periphery of the windshield, at least one panel 10 is made of semitransparent or transparent materials, an electronic display screen is arranged between the panel 10 and the vehicle frame body 1 and/or the windshield, and the electronic display screen and the control circuit board are respectively and electrically connected with the storage battery.

In this embodiment, when the electric vehicle is provided with the windshield, for example, the windshield on the electric tricycle for delivering the express, at least one translucent or transparent panel 10 is arranged on the periphery of the frame body 1 and/or the windshield 5, and the electronic display screen is arranged between the translucent or transparent panel 10 and the frame body 1 and/or between the translucent or transparent panel 10, so that the content of the electronic display screen can be displayed outwards through the translucent or transparent panel 10; integrate the electronic display screen to the electric motor car in this embodiment, replaced the advertising display screen of suspension among the prior art, improved the whole aesthetic property of electric motor car.

Further, the electronic display screen is fixedly connected with the panel 10, or the electronic display screen is fixedly connected with the frame body 1 and/or the windshield; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection; and the electronic display screen is a flexible LED display screen or a flexible OLED display screen.

In this embodiment, the electronic display screen can be selectively installed on the panel 10, or selectively installed on the frame body 1 and/or the wind shield; no matter install on panel 10 or install on frame main part 1 and/or prevent wind and cover, in order to make the laminating nature of electronic display screen and electric motor car better, the whole aesthetic property of electric motor car is better, and the electronic display screen prefers to adopt flexible LED display screen or flexible OLED display screen, and the radian that panel 10, frame main part 1, prevent wind cover can be followed to flexible display screen changes to closely the laminating is installed on panel 10, frame main part 1, prevent wind and cover. The concrete connection mode can adopt threaded fasteners such as bolts and screws to connect, adopts clamping block and clamping groove matched clamping, or adopts viscose to connect and the like, as long as guarantee that the electronic display screen can be stably installed.

Further, the vehicle frame further comprises an LED lamp belt, the LED lamp belt is arranged on the vehicle frame main body 1 and electrically connected with the storage battery, the output end of the controller is connected with the LED lamp belt, and the LED lamp belt is arranged in the panel 10 made of semitransparent or transparent materials or a protective shell made of transparent or semitransparent materials is arranged outside the LED lamp belt.

The above-mentioned embodiments only express a plurality of embodiments of the present invention, and the description thereof is specific and detailed, but not construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, without departing from the spirit of the present invention, several variations and modifications can be made, which are within the scope of the present invention. Therefore, the protection scope of the present invention should be subject to the appended claims.

Claims

1. An electric vehicle with an electronic display screen comprises a frame main body (1), front wheels (2), rear wheels (3), a vehicle head (4), a storage battery and a control circuit board; the method is characterized in that: the frame is characterized in that a plurality of panels (10) are arranged on the periphery of the frame main body (1), at least one panel (10) is made of semitransparent or transparent materials, an electronic display screen is arranged between the panel (10) and the frame main body (1), and the electronic display screen and the control circuit board are respectively electrically connected with the storage battery.

2. The electric vehicle with the electronic display screen of claim 1, wherein: the electronic display screen is fixedly connected with the panel (10) or the frame main body (1); the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

3. An electric vehicle with an electronic display screen comprises a frame main body (1), front wheels (2), rear wheels (3), a vehicle head (4), a storage battery, a control circuit board and a storage box (5); the method is characterized in that: the electric bicycle frame is characterized in that a plurality of panels (10) are arranged on the periphery of the frame main body (1) and/or the periphery of the storage box (5), at least one panel (10) is made of semitransparent or transparent materials, an electronic display screen is arranged between the panel (10) and the frame main body (1) and/or the storage box (5), and the electronic display screen and the control circuit board are respectively electrically connected with the storage battery.

4. The electric vehicle with the electronic display screen of claim 3, wherein: the electronic display screen is fixedly connected with the panel (10); the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

5. The electric vehicle with the electronic display screen of claim 3, wherein: the electronic display screen is fixedly connected with the frame main body (1) and/or the storage box (5); the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

6. An electric vehicle with an electronic display screen comprises a frame main body (1), front wheels (2), rear wheels (3), a vehicle head (4), a storage battery, a control circuit board and a windshield; the method is characterized in that: the periphery of frame main part (1) and/or the periphery of windshield is provided with a plurality of panels (10), at least one panel (10) for translucent or transparent material and its with frame main part (1) and/or be provided with electronic display screen between the windshield, electronic display screen control circuit board respectively with the battery electricity is connected.

7. The electric vehicle with the electronic display screen of claim 6, wherein: the electronic display screen is fixedly connected with the panel (10); the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

8. The electric vehicle with the electronic display screen of claim 6, wherein: the electronic display screen is fixedly connected with the frame main body (1) and/or the windshield; the fixed connection adopts a connection mode of connection by a threaded fastener, clamping connection or bonding connection.

9. The electric vehicle with the electronic display screen according to any one of claims 1, 3 and 6, wherein: the wireless communication module is connected with an external mobile terminal or an external advertisement putting terminal, the wireless communication module is connected with the controller, and the output end of the controller is connected with the electronic display screen.

10. The electric vehicle with the electronic display screen of claim 9, wherein: and the control circuit board is also integrated with a GPS positioning module, and the GPS positioning module is connected with the input end of the controller.

11. The electric vehicle with the electronic display screen according to any one of claims 1-8, wherein: the electronic display screen is a flexible LED display screen or a flexible OLED display screen.

12. The electric vehicle with the electronic display screen of claim 9, wherein: the bicycle frame is characterized by further comprising an LED lamp belt, the LED lamp belt is arranged on the bicycle frame main body (1), the LED lamp belt is electrically connected with the storage battery, and the output end of the controller is connected with the LED lamp belt.

13. The electric vehicle with the electronic display screen of claim 12, wherein: the LED lamp strip is arranged in a panel (10) made of semitransparent or transparent materials, or a protective shell made of transparent or semitransparent materials is arranged outside the LED lamp strip.
