The utility model relates to the technical field of insoles, in particular to an insole with zinc oxide antibacterial materials, which comprises an insole main body, wherein the insole main body comprises an upper surface layer, a middle layer and a lower bottom layer, and the middle layer is fixedly connected between the upper surface layer and the lower bottom layer; the upper surface layer comprises a quick-drying layer and a sweat guide layer, and the sweat guide layer is fixedly connected below the quick-drying layer; the middle layer comprises a first antibacterial layer and a second antibacterial layer, the first antibacterial layer is fixedly connected with the sweat guide layer, and the second antibacterial layer is fixedly connected below the first antibacterial layer; the lower bottom layer comprises an elastic layer, a supporting layer and an anti-skid layer, the elastic layer is arranged below the second antibacterial layer, the supporting layer is fixedly connected below the elastic layer, and the anti-skid layer is fixedly connected below the supporting layer; through setting up first antibiotic layer and second antibiotic layer, be convenient for realize killing to the bacterium on the shoe-pad for the shoe-pad has better antibiotic effect, can not produce the peculiar smell simultaneously.
Description
Technical Field
The utility model relates to the technical field of insoles, in particular to an insole with zinc oxide antibacterial materials.
Background
The insole is a layer of soft pad placed inside the shoe, and the insole is added into the shoe, so that the comfort degree of the shoe when being worn can be improved.
The existing insoles are poor in antibacterial effect, and for people who sweat easily, sweat generated by feet can directly flow on the insoles, so that bacteria on the insoles are easily bred, and meanwhile, the insoles can generate peculiar smell, and the sanitation of use is not facilitated; therefore, an insole having a zinc oxide antibacterial material has been proposed to solve the above problems.
SUMMERY OF THE UTILITY MODEL
In order to compensate prior art's not enough, the antibiotic effect of solving current shoe-pad is poor, and to the people that the foot sweated easily, the sweat that the foot produced will directly flow on the shoe-pad, leads to bacterial growing on the shoe-pad easily, still can make the shoe-pad produce the peculiar smell simultaneously, is unfavorable for the problem of the health nature of use, the utility model provides a shoe-pad with zinc oxide antibacterial material.
The utility model provides a technical scheme that its technical problem adopted is: the utility model discloses an insole with zinc oxide antibacterial material, which comprises an insole main body, wherein the insole main body comprises an upper surface layer, a middle layer and a lower bottom layer, and the middle layer is fixedly connected between the upper surface layer and the lower bottom layer; the upper surface layer comprises a quick-drying layer and a sweat guide layer, and the sweat guide layer is fixedly connected below the quick-drying layer; the middle layer comprises a first antibacterial layer and a second antibacterial layer, the first antibacterial layer is fixedly connected with the sweat guide layer, and the second antibacterial layer is fixedly connected below the first antibacterial layer; the lower bottom layer comprises an elastic layer, a supporting layer and an anti-skid layer, the elastic layer is arranged below the second antibacterial layer, the supporting layer is fixedly connected below the elastic layer, and the anti-skid layer is fixedly connected below the supporting layer; when the drying device works, the rapid drying layer is arranged, so that sweat generated by the sole can be rapidly dried, and the sole does not always have a wet feeling; by arranging the sweat guide layer, sweat generated by the quick drying layer can be transmitted to the lower part of the insole and finally flows to the sole; the first antibacterial layer and the second antibacterial layer are arranged, so that bacteria on the insole can be killed conveniently, the insole has a good antibacterial effect, and peculiar smell can not be generated; the elastic layer is arranged, so that the insole has a good buffering effect, the impact of the sole on the ground is reduced, and the comfort of the insole is improved; the insole is not easy to damage by arranging the supporting layer; through setting up the skid resistant course, increased the frictional force of shoe-pad and sole, after the shoes of putting into this kind of shoe-pad are worn to the foot, the shoe-pad can not slide at will in shoes.
Preferably, the quick-drying layer comprises two layers, wherein one layer of the foot sticking layer is made of chemical fibers, and the other layer of the foot sticking layer is made of cotton blended fabrics; the chemical fiber is non-absorbent and porous, the cotton blended fabric is absorbent, when the feet sweat, the layer adhered to the feet has no affinity to the sweat and is directly transmitted to the cotton blended fabric through the micro-pore channels, and the soles can not feel the sweat.
Preferably, the sweat guide layer is formed by weaving a plurality of cotton threads, and a gap of 1mm is formed between each cotton thread; the sweat guiding layer formed by weaving the cotton threads has a good sweat guiding effect.
Preferably, the first antibacterial layer is made of color cotton fiber fabric, nano zinc oxide is filled in the color cotton fiber fabric, and the second antibacterial layer is made of bamboo fiber material; the antibacterial property of the insole is enhanced, and the bamboo fiber material can adsorb peculiar smell in the insole and has a certain deodorizing function.
Preferably, the elastic layer is made of EVA (ethylene vinyl acetate) foaming material, the top of the elastic layer is fixedly connected with a hook and loop fastener male tape, and the bottom of the second antibacterial layer is fixedly connected with a hook and loop fastener female tape; so that the insole has better shock absorption effect.
Preferably, the supporting layer is made of a rubber material, and the thickness of the supporting layer is one fourth of that of the elastic layer; the insole is not easy to damage by arranging the supporting layer.
Preferably, the anti-skid layer is made of anti-skid paint, and a plurality of anti-skid strips are arranged at the bottom of the anti-skid layer; the anti-slip layer made of the anti-slip coating increases the friction force between the insole and the sole, and the insole is not easy to slide on the sole due to the arrangement of the anti-slip strips.
Preferably, the surface of the insole main body is provided with a plurality of air vents, and the diameter range of the air vents is 1-1.2mm; the air guide holes are formed in the insole main body, so that the air permeability of the insole is improved, and the comfort degree of the insole is improved.
The utility model discloses an useful part lies in:
1. the first antibacterial layer is arranged, and the nano zinc oxide has a good sterilization effect, so that the antibacterial performance of the insole is enhanced by combining the nano zinc oxide and the colored cotton fiber fabric, and bacteria on the insole can be killed conveniently; through setting up the second antibacterial layer, the peculiar smell in the shoe-pad can be adsorbed to bamboo fiber material, has certain deodorization effect, can not produce the peculiar smell simultaneously.
2. The utility model is provided with the quick drying layer, so that the sweat generated by the sole can be quickly dried, and the sole can not always feel wet; through setting up sweat layer, can transmit the sweat that the rapid-curing cutback layer produced to the below of shoe-pad, finally flow to the sole.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.
FIG. 1 is a schematic front view of the first embodiment;
FIG. 2 is a schematic diagram of a backside structure of the first embodiment;

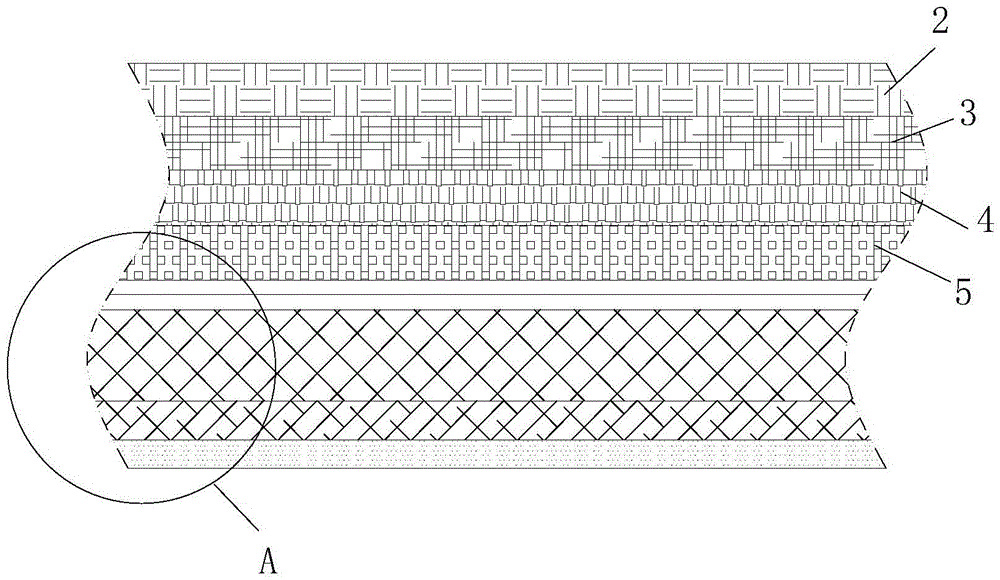

FIG. 3 is a schematic view of a partial cross-sectional structure of a main body of an insole according to an embodiment;
FIG. 4 is an enlarged view of a portion of the area A in FIG. 3;
fig. 5 is a drawing of the second embodiment.
In the figure: 1. a shoe pad main body; 2. a quick-drying layer; 3. a sweat-guiding layer; 4. a first antimicrobial layer; 5. a second antimicrobial layer; 6. an elastic layer; 7. a support layer; 8. an anti-slip layer; 9. the magic tape is a male tape; 10. magic tape female tape; 11. anti-slip strips; 12. an air vent; 13. and (4) bumps.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Example one
Referring to fig. 1-4, an insole with zinc oxide antibacterial material comprises an insole body 1, wherein the insole body 1 comprises an upper surface layer, a middle layer and a lower bottom layer, and the middle layer is fixedly connected between the upper surface layer and the lower bottom layer; the upper surface layer comprises a quick drying layer 2 and a sweat guiding layer 3, and the sweat guiding layer 3 is fixedly connected below the quick drying layer 2; the middle layer comprises a first antibacterial layer 4 and a second antibacterial layer 5, the first antibacterial layer 4 is fixedly connected with the sweat guide layer 3, and the second antibacterial layer 5 is fixedly connected below the first antibacterial layer 4; the lower bottom layer comprises an elastic layer 6, a supporting layer 7 and an anti-skid layer 8, the elastic layer 6 is arranged below the second antibacterial layer 5, the supporting layer 7 is fixedly connected below the elastic layer 6, and the anti-skid layer 8 is fixedly connected below the supporting layer 7; when the sole drying device works, the quick drying layer 2 is arranged, so that sweat generated by the sole can be quickly dried, and the sole does not always feel wet; the sweat generated by the quick drying layer 2 can be transferred to the lower part of the insole by arranging the sweat guide layer 3, and finally flows to the sole; the first antibacterial layer 4 and the second antibacterial layer 5 are arranged, so that bacteria on the insole can be killed conveniently, the insole has a good antibacterial effect, and peculiar smell can not be generated; the elastic layer 6 is arranged, so that the insole has a good buffering effect, the impact of the sole on the ground is reduced, and the comfort of the insole is improved; the insole is not easy to damage by arranging the supporting layer 7; through setting up skid resistant course 8, increased the frictional force of shoe-pad and sole, after the shoes of putting into this kind of shoe-pad are worn to the foot, the shoe-pad can not slide at will in shoes.
The quick drying layer 2 comprises two layers, wherein one layer of the foot sticking layer is made of chemical fibers, and the other layer of the foot sticking layer is made of cotton blended fabrics; when the foot sweats, the layer attached to the foot has no affinity to sweat and is directly transmitted to the cotton blend through the fine pore channels, so that the sole can not feel the existence of the sweat; wherein the material of the quick-drying layer 2 can be selected from MONI-DRY moisture absorption quick-drying fabric developed by COLUMBIA.
The sweat guide layer 3 is formed by weaving a plurality of cotton threads, and a gap of 1mm is formed between each cotton thread; when the sweat guide layer 3 is in work, the cotton threads and the sweat guide layer woven by the cotton threads have a good sweat guide effect.
The first antibacterial layer 4 is made of colored cotton fiber fabric, nano zinc oxide is filled in the colored cotton fiber fabric, and the second antibacterial layer 5 is made of bamboo fiber material; when the shoe pad works, the nano zinc oxide has a good sterilization effect, the nano zinc oxide and the color cotton fiber fabric are combined together, so that the antibacterial performance of the shoe pad is enhanced, and the bamboo fiber material can adsorb peculiar smell in the shoe pad and has a certain deodorization effect.
The elastic layer 6 is made of EVA (ethylene vinyl acetate) foaming materials, the top of the elastic layer 6 is fixedly connected with a male hook and loop fastener 9, and the bottom of the second antibacterial layer 5 is fixedly connected with a female hook and loop fastener 10; when the insole works, the elastic layer 6 made of the EVA foaming material enables the insole to have a good damping effect; through the cooperation of magic subsides public subsides 9 and the female subsides 10 of magic subsides, can realize the separation to lower bottom layer and intermediate level, and then when wasing the shoe-pad, only need wash upper surface layer and intermediate level.
The supporting layer 7 is made of rubber material, and the thickness of the supporting layer 7 is one fourth of that of the elastic layer 6; when the insole works, the supporting layer 7 is arranged, so that the insole is not easy to damage.
The anti-skid layer 8 is made of anti-skid paint, and a plurality of anti-skid strips 11 are arranged at the bottom of the anti-skid layer 8; when the shoe pad is in work, the anti-slip layer 8 made of the anti-slip coating increases the friction force between the shoe pad and the sole, and the shoe pad is not easy to slide on the sole due to the arrangement of the anti-slip strips 11.
A plurality of air vents 12 are formed in the surface of the insole body 1, and the diameter range of the air vents 12 is 1-1.2mm; when the insole works, the air guide holes 12 are formed in the insole body 1, so that the air permeability of the insole is improved, and the comfort level of the insole is improved.
Example two
Referring to fig. 5, in the first comparative example, as another embodiment of the present invention, a plurality of bumps 13 are disposed at the bottom of the anti-slip layer 8; during operation, through setting up a plurality of bumps 13, can increase the frictional force between shoe-pad and the sole for the shoe-pad is difficult for sliding on the sole, and then can not appear the shoe-pad at the inside gliding phenomenon of shoes, makes the wearer increase to the satisfaction of this product, has improved the whole result of use of this shoe-pad.
The working principle is as follows: by arranging the quick drying layer 2, the chemical fiber is non-absorbent and porous, the cotton blended fabric is absorbent, when the foot sweats, the layer attached to the foot has no affinity to the sweat and is directly transmitted to the cotton blended fabric through the micro pore channel, so that the sole can not feel the existence of the sweat, the sweat generated by the sole can be quickly dried, and the sole can not always feel wet and colated; the sweat guiding layer 3 is arranged, so that sweat generated by the quick drying layer 2 can be transmitted to the lower part of the insole and finally flows to the sole; the first antibacterial layer 4 is arranged, the nano zinc oxide has a good antibacterial effect, and the nano zinc oxide and the colored cotton fiber fabric are combined together, so that the antibacterial performance of the insole is enhanced, and bacteria on the insole can be killed conveniently; by arranging the second antibacterial layer 5, the bamboo fiber material can adsorb peculiar smell in the insole, has a certain deodorization effect and does not generate peculiar smell; the elastic layer 6 made of the EVA foaming material ensures that the insole has better shock absorption effect, reduces the impact of the sole on the ground and improves the comfort of the insole; through the matching of the male magic tape 9 and the female magic tape 10, the separation of the lower bottom layer and the middle layer can be realized, and then only the upper surface layer and the middle layer need to be cleaned when the insole is cleaned; the insole is not easy to damage by arranging the supporting layer 7; the anti-skid layer 8 made of the anti-skid coating increases the friction force between the insole and the sole, when a foot wears shoes with the insole, the insole cannot slide in the shoes at will, and the insole is not easy to slide on the sole due to the arrangement of the anti-skid strips 11; the air guide holes 12 are formed in the insole main body 1, so that the air permeability of the insole is improved, and the comfort degree of the insole is improved.
The front, the back, the left, the right, the upper and the lower are all based on figure 3 in the attached drawings of the specification, according to the standard of the observation angle of a person, the side of the device facing an observer is defined as the front, the left side of the observer is defined as the left, and so on.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention.
Claims (8)
1. An insole with zinc oxide antibacterial material, which is characterized in that: the insole comprises an insole body (1), wherein the insole body (1) comprises an upper surface layer, a middle layer and a lower bottom layer, and the middle layer is fixedly connected between the upper surface layer and the lower bottom layer; the upper surface layer comprises a quick-drying layer (2) and a sweat guide layer (3), and the sweat guide layer (3) is fixedly connected below the quick-drying layer (2); the middle layer comprises a first antibacterial layer (4) and a second antibacterial layer (5), the first antibacterial layer (4) is fixedly connected with the sweat guide layer (3), and the second antibacterial layer (5) is fixedly connected below the first antibacterial layer (4); the lower bottom layer comprises an elastic layer (6), a supporting layer (7) and an anti-slip layer (8), the elastic layer (6) is arranged below the second antibacterial layer (5), the supporting layer (7) is fixedly connected below the elastic layer (6), and the anti-slip layer (8) is fixedly connected below the supporting layer (7).
2. The insole having zinc oxide antibacterial material as claimed in claim 1, wherein: the quick-drying layer (2) comprises two layers, wherein one layer of the foot-sticking layer is made of chemical fibers, and the other layer of the foot-sticking layer is made of cotton blended fabrics.
3. The insole having zinc oxide antibacterial material as claimed in claim 2, wherein: the sweat guide layer (3) is formed by weaving a plurality of cotton threads, and a gap of 1mm is formed between each cotton thread.
4. The insole having zinc oxide antibacterial material according to claim 3, wherein: the first antibacterial layer (4) is made of colored cotton fiber fabric, nano zinc oxide is filled in the colored cotton fiber fabric, and the second antibacterial layer (5) is made of bamboo fiber material.
5. The insole having zinc oxide antibacterial material according to claim 4, wherein: elastic layer (6) are made by EVA expanded material, the top rigid coupling of elastic layer (6) has the magic to paste public subsides (9), the bottom rigid coupling of second antibacterial layer (5) has the magic to paste female subsides (10).
6. The insole having zinc oxide antibacterial material according to claim 5, wherein: the supporting layer (7) is made of rubber materials, and the thickness of the supporting layer (7) is one fourth of that of the elastic layer (6).
7. The insole having zinc oxide antibacterial material according to claim 6, wherein: the anti-skid layer (8) is made of anti-skid paint, and a plurality of anti-skid strips (11) are arranged at the bottom of the anti-skid layer (8).
8. The insole having zinc oxide antibacterial material according to claim 7, wherein: the surface of the insole main body (1) is provided with a plurality of air guide holes (12), and the diameter range of the air guide holes (12) is 1-1.2mm.
