Abstract

The utility model discloses a high-efficiency, energy-saving and environment-friendly dust collector, which comprises a vehicle floor, a positioning shaft is arranged at the center of the upper end of the vehicle floor, a turntable is fixedly connected to the upper end of the positioning shaft, and a A circular rail, a plurality of steel balls are arranged in the groove of the circular rail, and the upper end of the steel ball is attached to the turntable, and the upper end of the turntable is fixedly connected with a first box body and a second box body, and the first box body and the second box body An external pipeline is arranged between the boxes, an air inlet is arranged in the middle of the side wall of the first box, a first fan is arranged inside the air inlet, and the upper part of the first box is fixedly connected with a cyclone separator. device, and the air inlet of the cyclone separator is fixedly connected with the air inlet. The structure of the device is simple, and the dust is removed by step-by-step dust removal. First, the first step of dust removal is carried out through the cyclone separator, then through the filter screen, and finally through the water mist filtration, so as to achieve high-efficiency dust removal. The water mist is filtered and reused to achieve energy saving. Purpose.

Description

A high-efficiency, energy-saving and environment-friendly dust collector

technical field

The utility model relates to the field of dust removal equipment, in particular to a high-efficiency, energy-saving and environment-friendly dust collector.

Background technique

Dust collector is a device that separates dust from flue gas, called dust collector or dust removal equipment. The performance of the dust collector is expressed by the amount of gas that can be handled, the resistance loss when the gas passes through the dust collector, and the dust removal efficiency. At the same time, the price, operation and maintenance costs, service life and difficulty of operation and management of the dust collector are also important factors to consider its performance. Dust collectors are commonly used facilities in boilers and industrial production.

After retrieval, a Chinese patent discloses a dust remover (publication number is CN208320278U). Although the patented technology prolongs the service life of the dust remover, it does not involve the degree of dust removal and environmental protection and energy saving, which leads to the failure of the dust remover to achieve energy saving and high efficiency. The effect of dust removal is not easy to clean, which is not conducive to the continuous use of the dust collector. Therefore, those skilled in the art provide a high-efficiency, energy-saving and environmentally friendly dust collector to solve the problems raised in the above background technology.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a high-efficiency, energy-saving and environment-friendly dust collector.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a high-efficiency energy-saving and environmental protection dust collector, including a vehicle floor, a positioning shaft is arranged at the center of the upper end of the vehicle floor, and a turntable is fixedly connected to the upper end of the positioning shaft. A circular rail is arranged between the turntable and the car floor, and a plurality of steel balls are arranged in the groove of the round rail, and the upper end of the steel ball is attached to the turntable, and the upper end of the turntable is fixedly connected with a first box body and a second box body, An external pipeline is arranged between the first box and the second box, and communicates through the external pipeline. An air inlet is arranged in the middle of the side wall of the first box, and an air inlet is arranged inside the air inlet. The first blower, the cyclone separator is fixedly connected above the inside of the first box, and the air inlet of the cyclone separator is fixedly connected with the air inlet, the top of the cyclone separator is provided with an exhaust port, and the exhaust port is connected to the outer The pipeline is fixedly connected, the bottom end of the cyclone separator is provided with a dust outlet, the upper end of the peripheral pipeline is provided with a first filter screen and a second filter screen, and the first filter screen is directly above the second filter screen, A second blower fan is arranged on the inner wall of the peripheral pipeline directly below the second filter screen;

The inner bottom of the second box is provided with a pool, and a filtering device is arranged directly above the pool, and both sides of the filtering device are fixedly connected to the inner side wall of the second box, and the inner side wall of the second box is A water pump is arranged on the top, the input end of the water pump is fixedly connected with a water inlet, and the water inlet is connected to the pool, and the output end of the water pump is fixedly connected with two outlet pipes, and the two outlet pipes are respectively fixedly connected to the second box The middle end of the two side walls of the body, two nozzles are fixedly connected to the two outlet pipes, the outer top of the second box is provided with a power supply, and the upper side wall of the second box is provided with an air outlet. Absorbent cotton is arranged inside the air outlet.

Through the above technical scheme, the gradual dust removal is more thorough, and the installation of the turntable and the self-locking universal wheel can solve the dust removal problem more efficiently. The addition of the water mist structure can achieve the best effect of dust removal, and the installation of the water utilization cycle device. Reuse to achieve the purpose of environmental protection.

Further, the peripheral pipeline is made of stainless steel, and the filter device includes a layer of activated carbon, a layer of fine sand and a layer of filter cloth, and the activated carbon, fine sand, and filter cloth are arranged from top to bottom;

Through the above technical proposal, the pipes are prevented from rusting, and the purpose of water recycling is achieved.

Further, the external pipeline is provided with a baffle near the inner upper end of the second box;

Through the above technical solution, water mist is prevented from splashing into the inside of the pipeline.

Further, a sewage port is provided at the bottom of the external pipeline close to the first box body and on the outer side wall of the lower end of the second box body;

Through the above technical proposal, the collected dust and sewage can be easily discharged and cleaned.

Further, four self-locking universal wheels are arranged at the lower end of the vehicle floor;

Through the above technical scheme, it can be moved to perform efficient dust removal.

Further, the lower end of the dust outlet is provided with a detachable magnetic filter plate, the magnetic filter plate is movably connected to the inner side wall near the lower end of the first box body, and one end of the magnetic filter plate passes through the side wall of the first box body. to the outer end;

Through the above-mentioned technical scheme, it is convenient to collect and clean the magnetic substance.

Further, the cyclone separator is attached to the upper end of the inner wall of the first box;

Through the above technical scheme, it is prevented that the dust removal is insufficient after the cyclone separator is installed.

The utility model has the following beneficial effects:

In the utility model, by designing the structure of the turntable and the wheel, the steel ball at the lower end of the tray can be rolled and the self-locking universal wheel at the bottom of the car floor can be flexibly turned during use, thereby achieving a convenient use effect.

In the utility model, through the design of the cyclone separator, filter screen, and water mist dust removal, dust removal can be carried out step by step during use. First, the first step of dust removal is performed through the cyclone separator, then filtered through the filter screen, and finally through water mist. Filtration to achieve an efficient dust removal effect.

In the utility model, through the design of the water circulation structure, the detachable magnetic filter plate is convenient for cleaning, and the sewage outlet can be sprayed by the water pump during use. After the water contains impurities, the water is purified through the filter device, which is convenient for collecting magnetic substances and convenient Cleaning, so as to achieve an environmental protection and energy-saving dust removal, the effect of protecting the environment.

Description of drawings

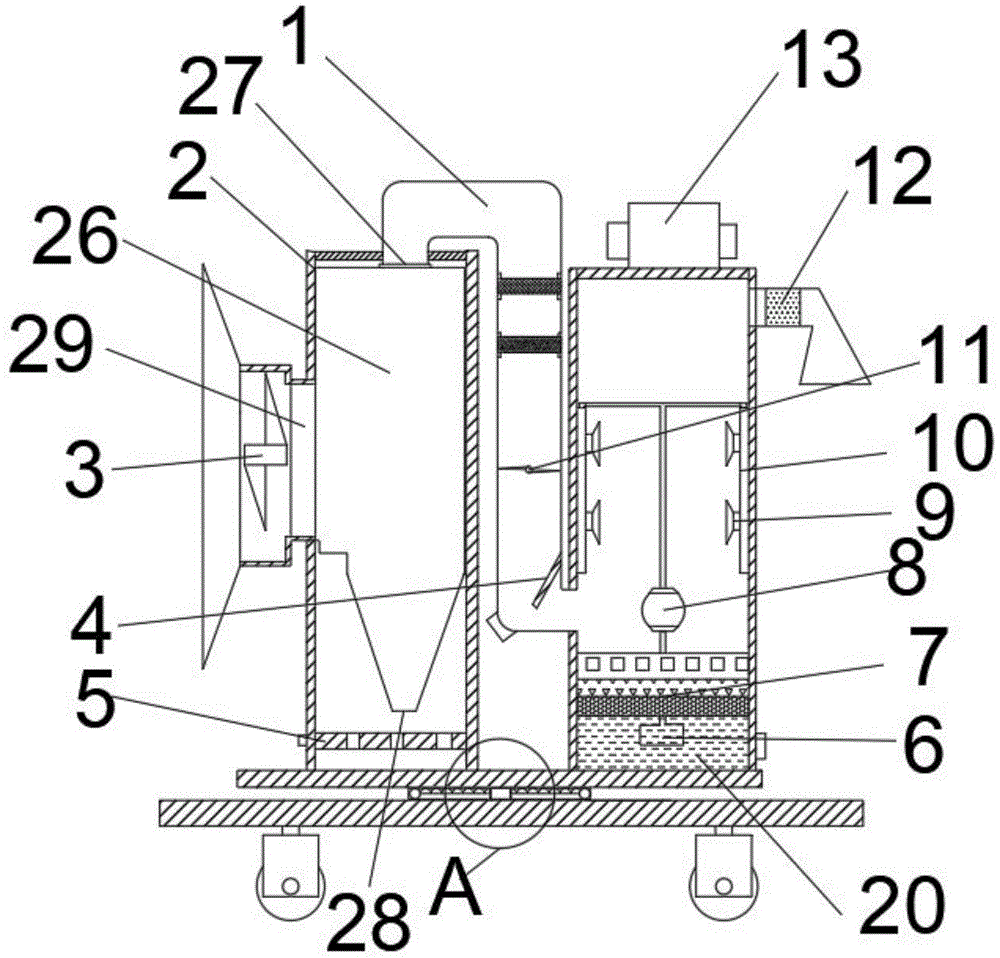

Fig. 1 is a front sectional view of a high-efficiency, energy-saving and environment-friendly dust collector proposed by the utility model;

Fig. 2 is a front view of a high-efficiency, energy-saving and environment-friendly dust collector proposed by the utility model;

Fig. 3 is an enlarged view of A in Fig. 1 .

illustration:

1. Peripheral piping; 2. The first box; 3. The first fan; 4. Baffle; 5. Magnetic filter plate; 6. Water inlet; 7. Filter device; 8. Water pump; 9. Nozzle; 10. Outlet pipe; 11, second fan; 12, absorbent cotton; 13, power supply; 14, turntable; 15, first filter screen; 16, second filter screen; 17, second box body; 18, air outlet; 19, Sewage outlet; 20, pool; 21, car floor; 22, self-locking universal wheel; 23, positioning shaft; 24, steel ball; 25, round rail; 26, cyclone separator; 27, exhaust port; 28, dust mouth; 29, air inlet.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, use a specific Therefore, it cannot be construed as a limitation on the present invention; the terms "first", "second", and "third" are only used for descriptive purposes, and cannot be interpreted as indicating or implying relative importance. In addition, Unless otherwise clearly specified and limited, the terms "installation", "connection" and "connection" should be interpreted in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or an internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

1. Referring to Figures 1-3, an embodiment of the utility model is provided: a high-efficiency energy-saving and environmental protection dust collector, including a vehicle floor 21, a positioning shaft 23 is arranged at the center of the upper end of the vehicle floor 21, and the upper end of the positioning shaft 23 is fixedly connected There is a turntable 14, a circular rail 25 is set between the turntable 14 and the vehicle floor 21, and a plurality of steel balls 24 are arranged in the groove of the round rail 25, and the upper ends of the steel balls 24 are attached to the turntable 14. This design can realize rotation and multi-directional suction For dust removal, the upper end of the turntable 14 is fixedly connected with the first box body 2 and the second box body 17, and the peripheral pipeline 1 is arranged between the first box body 2 and the second box body 17, and communicates through the peripheral pipeline 1, the first In the middle of the side wall of the box body 2, an air inlet 29 is arranged, and the inside of the air inlet 29 is provided with a first blower fan 3, and the top of the first box body 2 is fixedly connected with a cyclone separator 26, and the air inlet of the cyclone separator 26 is connected with the air inlet. The port 29 is fixedly connected, and this design can realize the preliminary separation of dust and impurities in the air. The top of the cyclone separator 26 is provided with an exhaust port 27, and the exhaust port 27 is fixedly connected with the peripheral pipeline 1. The bottom end of the cyclone separator 26 is provided with a Dust outlet 28, the upper end of the peripheral pipeline 1 is provided with a first filter 15 and a second filter 16, and the first filter 15 is directly above the second filter 16, and the peripheral device directly below the second filter 16 The inner wall of the pipeline 1 is provided with a second fan 11;

The bottom end of the second box body 17 is provided with a water pool 20, and a filter device 7 is arranged directly above the water pool 20, and both sides of the filter device 7 are fixedly connected on the inner side wall of the second box body 17, and the inner side of the second box body 17 A water pump 8 is arranged on the wall, the input end of the water pump 8 is fixedly connected with the water inlet 6, and the water inlet 6 is connected to the pool 20, and the output end of the water pump 8 is fixedly connected with two water outlet pipes 10, and the two water outlet pipes 10 are respectively fixed Connected to the middle end of the two side walls of the second box body 17, two nozzles 9 are fixedly connected to the two outlet pipes 10, a power supply 13 is arranged on the outer top of the second box body 17, and a side wall at the upper end of the second box body 17 An air outlet 18 is provided, and an absorbent cotton 12 is arranged inside the air outlet 18 .

The peripheral pipeline 1 is made of stainless steel, and the filter device 7 includes a layer of activated carbon, a layer of fine sand and a layer of filter cloth, and the activated carbon, fine sand, and filter cloth are arranged from top to bottom to prevent the pipe from rusting and achieve water recycling For the purpose, the peripheral pipeline 1 is provided with a baffle plate 4 close to the inner upper end of the second box body 17 to prevent water mist from splashing into the inside of the pipeline. There is a sewage port 19 on the top, and the collected dust and sewage are convenient to discharge and clean. There are four self-locking universal wheels 22 at the lower end of the vehicle floor 21, which can be moved for efficient dust removal. The lower end of the dust outlet 28 is provided with a detachable magnetic filter plate 5. The magnetic filter plate 5 is movably connected to the inner wall of the lower end of the first box body 2, and one end of the magnetic filter plate 5 runs through the side wall of the first box body 2 to the outer end, which is convenient for collecting magnetic substances and cleaning, and cyclone separation The device 26 is attached to the upper end of the inner side wall of the first casing 2 to prevent insufficient dust removal after the cyclone separator 26 is installed.

Working principle: the air enters the cyclone separator 26 through the first fan 3, and then the large impurities are discharged through the dust outlet 28, and the small impurities are sent to the first stage of the peripheral pipeline 1 through the upper exhaust port 27. The filter screen 15 and the second filter screen 16, after the second step of filtering, the air is sent into the second box body 17 by the second fan 11, and the water mist contacts the air, and the water mist carries away the fine impurities in the air so that To achieve the effect of the third step of dust removal, the water in the pool 20 enters the water pump 8 through the water inlet 6, and the water pump 8 sends the water into the outlet pipe 10, and the nozzle 9 at the end of the outlet pipe 10 sprays water to form water mist. The turntable 14 at the lower end of the body 2 and the second box body 17 can rotate through the steel ball 24 to remove dust in all directions, and can move through the self-locking universal wheel 22 to move and remove dust efficiently.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements on some of the technical features. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present utility model.

Claims (7)

1. A high-efficiency energy-saving and environmental protection dust collector, comprising a vehicle floor (21), is characterized in that: the center of the upper end of the vehicle floor (21) is provided with a positioning shaft (23), and the upper end of the positioning shaft (23) is fixedly connected There is a turntable (14), a round rail (25) is arranged between the turntable (14) and the vehicle floor (21), a plurality of steel balls (24) are arranged in the groove of the round rail (25), and the steel balls ( 24) The upper end is attached to the turntable (14), the upper end of the turntable (14) is fixedly connected with the first box body (2) and the second box body (17), and the first box body (2) and the second box body The outer pipes (1) are arranged between the bodies (17), and are communicated through the outer pipes (1). An air inlet (29) is arranged in the middle of the side wall of the first box body (2). The inside of the air port (29) is provided with a first fan (3), and the upper part of the first box (2) is fixedly connected to the cyclone separator (26), and the air inlet of the cyclone separator (26) is connected to the air inlet (29) ) is fixedly connected, and the top of the cyclone separator (26) is provided with an exhaust port (27), and the exhaust port (27) is fixedly connected with the peripheral pipeline (1), and the bottom end of the cyclone separator (26) A dust outlet (28) is provided, and a first filter screen (15) and a second filter screen (16) are provided at the upper end of the external pipeline (1), and the first filter screen (15) is placed on the second filter screen (16) directly above, a second blower fan (11) is provided on the inner wall of the peripheral pipeline (1) directly below the second filter screen (16); A pool (20) is provided at the inner bottom of the second box body (17), and a filter device (7) is provided directly above the pool (20), and both sides of the filter device (7) are fixedly connected to the second box On the inner side wall of the body (17), a water pump (8) is arranged on the inner side wall of the second box body (17), and the input end of the water pump (8) is fixedly connected with a water inlet (6), and the water inlet (6) Lead to the pool (20), the output end of the water pump (8) is fixedly connected with two outlet pipes (10), and the two outlet pipes (10) are respectively fixedly connected to the second box body (17) At the middle end of the two side walls, two nozzles (9) are fixedly connected to the two outlet pipes (10), and a power supply (13) is arranged on the outer top of the second box body (17). An air outlet (18) is arranged on the side wall of the upper end of the body (17), and water-absorbing cotton (12) is arranged inside the air outlet (18). 2. A kind of high-efficiency, energy-saving and environment-friendly dust collector according to claim 1, characterized in that: the peripheral pipeline (1) is made of stainless steel, and the filtering device (7) includes a layer of activated carbon, a layer of fine sand And a layer of filter cloth, and activated carbon, fine sand, and filter cloth are arranged from top to bottom. 3. A high-efficiency, energy-saving and environment-friendly dust collector according to claim 1, characterized in that: said peripheral pipe (1) is provided with a baffle (4) near the inner upper end of the second box (17). 4. A high-efficiency energy-saving and environment-friendly dust collector according to claim 1, characterized in that: the bottom of the peripheral pipeline (1) is close to the first box (2) and outside the lower end of the second box (17) A sewage outlet (19) is arranged on the wall. 5. A high-efficiency, energy-saving and environment-friendly dust collector according to claim 1, characterized in that four self-locking universal wheels (22) are arranged at the lower end of the vehicle floor (21). 6. A high-efficiency, energy-saving and environment-friendly dust collector according to claim 1, characterized in that: the lower end of the dust outlet (28) is provided with a detachable magnetic filter plate (5), and the magnetic filter plate (5) It is movably connected to the inner wall near the lower end of the first box body (2), and one end of the magnetic filter plate (5) passes through the side wall of the first box body (2) to the outer end. 7. A high-efficiency, energy-saving and environment-friendly dust collector according to claim 1, characterized in that: the cyclone separator (26) is attached to the upper end of the inner wall of the first box body (2).
