CN218534140U

CN218534140U - Quick dust collector of abrasive band machine

Info

Publication number: CN218534140U
Application number: CN202221355561.XU
Authority: CN
Inventors: 徐开荣; 武念东; 张志刚; 邹小江; 毕世涛; 李贵华
Original assignee: Kunming Jinfang Metal Products Co ltd
Current assignee: Kunming Jinfang Metal Products Co ltd
Priority date: 2022-06-01
Filing date: 2022-06-01
Publication date: 2023-02-28
Anticipated expiration: 2032-06-01

Abstract

The utility model relates to an abrasive band machine technical field just discloses a quick dust collector of abrasive band machine, including the work base, work base upper portion fixedly connected with polishing case, the fixed plate outside is provided with dust removal mechanism, fixed plate upper portion fixedly connected with dust removal case, the first motor of dust removal case outside fixedly connected with, the inside swing joint of dust removal case has the dwang, dwang right-hand member outside fixedly connected with cleaning plate, the dust removal incasement portion is provided with the filter screen, fixed plate upper portion fixedly connected with dust extractor, fixed plate lower part fixedly connected with dust absorption water tank. This quick dust collector of abrasive band machine through dust extractor work, and the dust advances the dust removal incasement, filters the dust through the filter screen earlier, then the air after filtering is in being extracted into the dust absorption water tank, filters the dust once more, can clear up the filter screen fast through first motor, dwang, cleaning plate, avoids the filter screen to take place to block up to reach and improve dust collection efficiency, improved the work efficiency who removes dust.

Description

Quick dust collector of abrasive band machine

Technical Field

The utility model relates to an abrasive band machine technical field specifically is a quick dust collector of abrasive band machine.

Background

The function of the belt sander in modern metal processing is gradually increased, in the technological progress of belt sanding, the metal processing such as polishing, correcting and grinding, chamfering and deburring on the surface can be easily completed, the belt sander is divided into a table belt sander, a vertical belt sander, a hand-push belt sander and the like, in modern industrial production, particularly in the production of welding steel wires, the table belt sander is widely used, is suitable for large-scale industrial production, and can greatly improve the working efficiency of steel wire core polishing.

Can produce a large amount of dusts at the abrasive band machine during operation, and the dust collection efficiency of current abrasive band machine is low down, and the long-term dust accumulation can reduce the life of machine, and traditional filter screen filters the dust, and the dust clearance is got up also comparatively trouble, causes the jam of filter screen very easily, influences the work efficiency of polishing.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model discloses not enough to prior art, the utility model provides a quick dust collector of abrasive band machine possesses the dust treatment effeciency height, and is convenient for clear up the dust, improves work efficiency's advantage, has solved the dust treatment inefficiency, and the dust takes place to block up easily, reduces polishing work efficiency's problem.

(II) technical scheme

In order to realize the purpose, the following technical scheme is provided: a quick dust removal device of an abrasive belt machine comprises a working base, wherein the upper part of the working base is fixedly connected with a polishing box, the upper surface of the polishing box is fixedly connected with an electric telescopic rod, the outer side of the working base is fixedly connected with a fixing plate, the outer side of the fixing plate is provided with a dust removal mechanism, the upper part of the polishing box is communicated with a dust hood, the outer side of the dust hood is communicated with a dust extraction pipe, and the upper surface of the working base is provided with a feeding mechanism;

dust removal mechanism includes dust removal case, first motor, dwang, cleaning plate, filter screen, dust extractor, dust absorption water tank, fixed plate upper portion fixedly connected with dust removal case, and the dust removal case outside is provided with the dodge gate, the first motor of dust removal case outside fixedly connected with, the inside swing joint of dust removal case has the dwang, dwang right-hand member outside fixedly connected with cleaning plate, and the dust removal incasement portion is provided with the filter screen, fixed plate upper portion fixedly connected with dust extractor, fixed plate lower part fixedly connected with dust absorption water tank.

Preferably, feeding mechanism includes sliding tray, lead screw, gag lever post, second motor, moving platform, and sliding tray inner wall swing joint has the lead screw, sliding tray inner wall both sides fixedly connected with gag lever post, the positive fixedly connected with second motor of work base, and gag lever post outside sliding connection has moving platform, and moving platform sets up and the sliding tray is interior, and then the gag lever post is spacing to moving platform's removal.

Preferably, the first motor outside and dwang left end fixed connection, dwang right-hand member outside and filter screen surface swing joint take out dirt pipe lower extreme and the inside intercommunication of dust removal case, and first motor drives the dwang and rotates, and the dwang can drive the cleaning board and rotate, clears up the filter screen.

Preferably, the outer side of the dust extractor is communicated with an exhaust pipe, the upper end of the exhaust pipe is communicated with the outer side of the dust removing box, the lower end of the exhaust pipe extends into the dust collecting water tank, a water filling port is formed in the outer side of the upper portion of the dust collecting water tank, a water outlet is formed in the lower portion of the dust collecting water tank, filtered dust is extracted into the dust collecting water tank again by the dust extractor, the dust is cleaned, water can be added through the water filling port, and sewage can be discharged through the water outlet.

Preferably, the outer surface of the moving platform is provided with a threaded hole, the rear end of the screw rod penetrates through the threaded hole, the outer side of the screw rod is in threaded connection with the inner wall of the threaded hole, the rear side of the second motor is fixedly connected with the front end of the screw rod, the screw rod is in threaded connection with the threaded hole, and when the second motor drives the screw rod to rotate, the moving platform starts to move.

Preferably, electric telescopic handle lower extreme fixedly connected with mounting bracket, the activity of mounting bracket inner wall is provided with the abrasive band wheel, polishes the inside fixedly connected with dead lever of incasement, mounting bracket both sides and dead lever outside sliding connection, and electric telescopic handle drives the mounting bracket downstream, carries on spacingly through the dead lever, and then drives the abrasive band wheel and begin the polishing downwards.

(III) advantageous effects

Compared with the prior art, the utility model provides a quick dust collector of abrasive band machine possesses following beneficial effect:

1. this quick dust collector of abrasive band machine drives the lead screw through the second motor and rotates, through the setting of gag lever post for remove the bottle and remove in the sliding tray, and then drive the steel core and remove, through the setting of electric telescopic handle with the dead lever, drive the abrasive band wheel downstream, begin to polish work, thereby reached the automatic propelling movement steel core, improved the work efficiency of polishing.

2. This quick dust collector of abrasive band machine, through dust extractor work, the dust advances the dust removal incasement through taking out the extraction of dirt pipe, filters the dust through the filter screen earlier, then the air after filtering is in being extracted into the dust absorption water tank, filters the dust once more, can clear up the filter screen fast through first motor, dwang, clearance plate, avoid the filter screen to take place to block up, thereby reached and improved dust collection efficiency, the dust is convenient for clear up, improves the work efficiency who removes dust.

Drawings

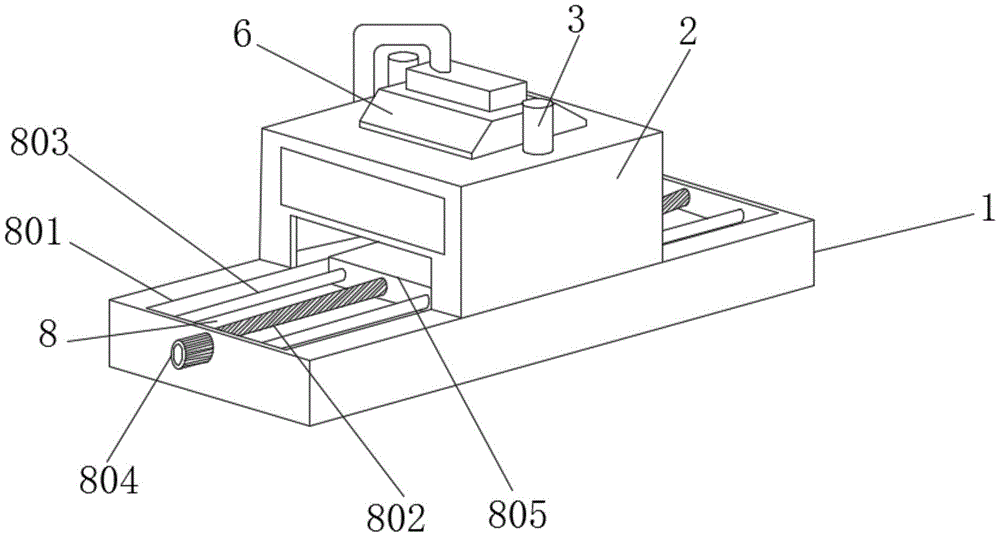

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic front view of the present invention;

fig. 3 is an enlarged schematic view of the area a in fig. 2 according to the present invention.

In the figure: 1. a working base; 2. a polishing box; 3. an electric telescopic rod; 4. a fixing plate; 5. a dust removal mechanism; 501. a dust removal box; 502. a first motor; 503. rotating the rod; 504. cleaning the plate; 505. a filter screen; 506. a dust extractor; 507. a dust collection water tank; 6. a dust hood; 7. a dust extraction pipe; 8. a feeding mechanism; 801. a sliding groove; 802. a screw rod; 803. a limiting rod; 804. a second motor; 805. a feeding platform; 9. a mounting frame; 10. fixing the rod; 11. abrasive belt wheel.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments, and it is obvious that the described embodiments are only a part of the embodiments, and not all of the embodiments. All other embodiments obtained by a person skilled in the art without any inventive work based on the embodiments of the present invention belong to the protection scope.

Embodiment 1, as shown in fig. 1 to 3, a quick dust removing device for an abrasive belt machine is in threaded connection with a threaded hole through a screw rod 802, and a limiting rod 803 is provided to limit a moving platform 805, when a second motor 804 drives the screw rod 802 to rotate, the moving platform 805 starts to move, the moving platform 805 drives a steel core to enter into a polishing box 2, and then an electric telescopic rod 3 drives an abrasive belt wheel 11 to move downward to start polishing the surface of the steel core.

Embodiment 2, as shown in fig. 2 and fig. 3, the dust extractor 506 works, dust is sucked into the dust removing box 501, then the dust is filtered through the filter screen 505, then the dust extractor 506 extracts the dust into the dust removing water tank 507 again, the dust is processed again, meanwhile, when the filter screen 505 needs to be cleaned, the first motor 502 is started to drive the rotating rod 503 to rotate, the rotating rod 503 drives the cleaning plate 504 to rotate, the dust on the filter screen 505 is cleaned, then the dust can be cleaned by opening the movable door, so that the filter screen 505 can be prevented from being detached, and the dust can be cleaned.

The working principle is as follows: the utility model provides a quick dust collector of abrasive band machine, place the steel core that will polish on moving platform 805, then start second motor 804 and drive lead screw 802 and rotate, and the screw hole threaded connection who sets up in lead screw 802 and the moving platform 805, make moving platform 805 begin to remove, setting through gag lever post 803, play spacing effect to moving platform 805's removal, moving platform 805 then drives the steel core and removes into polishing case 2 insidely, then electric telescopic handle 3 drives the installing frame downstream, dead lever 10 has started spacing effect, the installing frame drives emery wheel 11 and begins to carry out the processing of polishing to the steel core downwards.

Start dust extractor 506, the dust that the polishing produced is upwards absorbed by suction hood 6, get into dust removal case 501 through dust extraction pipe 7, then first motor 502 drives dwang 503 and rotates, dwang 503 can drive the rotation of clearance pole, clearance board 504 then can scrape the dust of filter screen 505 down, avoid filter screen 505 to take place to block up, through the exhaust tube, air after will filtering is in extraction entering dust absorption water tank 507, make the dust of air dissolve in aquatic, then discharge through the filler, and then effectual dust to abrasive band machine work and production carries out rapid processing, when the dust in the dust removal case 501 needs to be cleared up, open the dodge gate and can handle the dust that filters down, avoid frequent dismantlement filter screen 505 to clear up, the efficiency of dust removal is improved.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a quick dust collector of abrasive band machine, includes work base (1), its characterized in that: the polishing device is characterized in that a polishing box (2) is fixedly connected to the upper portion of the working base (1), an electric telescopic rod (3) is fixedly connected to the upper surface of the polishing box (2), a fixing plate (4) is fixedly connected to the outer side of the working base (1), a dust removal mechanism (5) is arranged on the outer side of the fixing plate (4), a dust hood (6) is communicated with the upper portion of the polishing box (2), a dust extraction pipe (7) is communicated with the outer side of the dust hood (6), and a feeding mechanism (8) is arranged on the upper surface of the working base (1);

dust removal mechanism (5) are including dust removal case (501), first motor (502), dwang (503), clearance board (504), filter screen (505), dust extractor (506), dust absorption water tank (507), fixed plate (4) upper portion fixedly connected with dust removal case (501), the dust removal case (501) outside is provided with the dodge gate, the first motor (502) of dust removal case (501) outside fixedly connected with, the inside swing joint of dust removal case (501) has dwang (503), dwang (503) right-hand member outside fixedly connected with clearance board (504), dust removal case (501) inside is provided with filter screen (505), fixed plate (4) upper portion fixedly connected with dust extractor (506), fixed plate (4) lower part fixedly connected with dust absorption water tank (507).

2. The rapid dust removing device of the belt sander as set forth in claim 1, wherein: feeding mechanism (8) include sliding tray (801), lead screw (802), gag lever post (803), second motor (804), moving platform (805), sliding tray (801) inner wall swing joint has lead screw (802), sliding tray (801) inner wall both sides fixedly connected with gag lever post (803), the positive fixedly connected with second motor (804) of work base (1), gag lever post (803) outside sliding connection has moving platform (805).

3. The rapid dust removing device of the belt sander as set forth in claim 1, wherein: first motor (502) outside and dwang (503) left end fixed connection, dwang (503) right-hand member outside and filter screen (505) surface swing joint, take out dirt pipe (7) lower extreme and dust removal case (501) inside intercommunication.

4. The rapid dust removing device of the belt sander as set forth in claim 1, wherein: the dust extractor (506) outside intercommunication has the exhaust tube, just exhaust tube upper end and dust removal case (501) outside intercommunication, the exhaust tube lower extreme extends to the inside of dust absorption water tank (507), the dust absorption water tank (507) upper portion outside is provided with the filler, dust absorption water tank (507) lower part is provided with the outlet.

5. The rapid dust removing device of the belt sander as set forth in claim 2, wherein: the outer surface of the moving platform (805) is provided with a threaded hole, the rear end of the screw rod (802) penetrates through the inside of the threaded hole, the outer side of the screw rod (802) is in threaded connection with the inner wall of the threaded hole, and the rear side of the second motor (804) is fixedly connected with the front end of the screw rod (802).

6. The rapid dust removing device of the belt sander as set forth in claim 1, wherein: electric telescopic handle (3) lower extreme fixedly connected with mounting bracket (9), mounting bracket (9) inner wall activity is provided with abrasive band wheel (11), the inside fixedly connected with dead lever (10) of polishing case (2), mounting bracket (9) both sides and dead lever (10) outside sliding connection.
