Abstract

The utility model discloses a teacup, including cup and bowl cover, the bowl cover lid is put the port position at the cup, the bowl cover constitutes the water droplet with the cup and is described, the bowl cover is the tip portion, and the cup is the round end part, logical groove is seted up on the top of bowl cover, the sealing plug is installed on the top that leads to groove, the inner wall installation filter plate of bowl cover, this teacup is through setting up cup, bowl cover, sealing plug and kettle stopper, comes the whole split of teacup, makes different solitary different positions, can enough guarantee the integrality of cup in the use, also can guarantee to improve the functional of cup, has reduced the use of functional products such as spoon at the tea in-process of drinking simultaneously, conveniently carries the instrument of drinking more to the space that occupies also can be littleer, and teapot and teacup are supporting to be used, therefore the material of kettle stopper is unanimous with chooseing for use, improves sight and uniformity.

Description

Tea cup

Technical Field

The utility model relates to the technical field of tea sets, in particular to a teacup.

Background

Drinking tea is considered a unique guest etiquette in china, and in many informal business situations, the negotiation is often done during drinking tea. Except for working occasions, more people often choose to brew tea for a few cups of tea after meal or in the afternoon, the tea fragrance not only can bring taste satisfaction to people, but also can bring spiritual comfort, so as to gradually increase the demand of people for making tea and drinking tea, and the design and manufacture of the tea set also present various achievements on the market;

the kungfu tea set in the market at present is made of various materials and processes, mainly comprises purple sand, clay, porcelain and the like, and is made of iron or glass, tea cups and teapots with various functions are also good at one side, a Chinese patent with the patent number of CN 201220056533.8 discloses a tumbler tea cup, the tumbler tea cup comprises a tea cup body, the area of the bottom of the tea cup body is larger than that of the top of the tea cup body, a balancing weight is arranged at the bottom of the tea cup body, the balancing weight is in the shape of a spherical crown, and a water drop-shaped teapot is disclosed in the patent number of CN 201220405197.3 and comprises a pot body, a bottom, a handle, a pot cover, a pot nozzle, a colored lamp, a battery, a lead and a switch, and is characterized in that: the kettle body is in a water drop shape and made of transparent materials, a color lamp and a battery are arranged in the kettle bottom, a switch is arranged outside the kettle bottom, and the color lamp, the battery and the switch are connected through leads;

the tea making method and the tea making steps are different due to different regional cultures in various places, for example, some regions prefer to directly make tea leaves in a teapot for tea drinking, while some regions prefer to make tea leaves in water for filtering and then make tea drinking, the first tea set is simple, but the second tea drinking method needs more tea drinking tools, the increase of the tools faces the increase of the cost, and the complicated process of collecting the tools is also needed. To this end, we propose a cup.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a teacup to solve the problems in the background technology.

In order to achieve the above purpose, the utility model provides the following technical scheme: the utility model provides a teacup, includes cup and bowl cover, the port position at the cup is put to the bowl cover lid, the bowl cover constitutes the water droplet with the cup and describes, the bowl cover is the tip portion, and the cup is round end portion, logical groove is seted up on the top of bowl cover, the sealing plug is installed on the top that leads to the groove, the inner wall installation filter plate of bowl cover.

Preferably, the surface of the sealing plug is provided with a plug opening, and the shape of the plug opening is matched with the shape of the top of the cup cover.

Preferably, the top of sealing plug is equipped with the platform, and the top of platform is the horizontally, and placing on the desktop that can be stable when the bowl cover need not be used, just can place the platform on the desktop earlier, can place the position at the bung hole with the bowl cover handstand.

Preferably, the weight of the bottom of the cup body is far larger than that of the head, so that the cup body is stable and is not easy to topple.

Preferably, the tray is installed to the bottom of cup, the shape of tray and the shape looks adaptation of cup, because cup itself is the material that the thermal conductivity is stronger, and thermal-insulated performance is also relatively poor, for convenient improvement use feeling and comfort level, install the tray in the bottom of cup, increase thermal-insulated performance, its material also sets up to wooden material, sets up to the same color system with the colour of sealing plug, and holistic completion degree and fashion degree are higher.

Compared with the prior art, this practical beneficial effect is:

this practicality is through setting up the cup, the bowl cover, sealing plug and kettle stopper, come the whole split of teacup, make different solitary different positions, can enough guarantee the integrality of cup in the use, also can guarantee the functional of improvement cup, reduced the use of functional products such as spoon at the in-process of drinking tea simultaneously, conveniently carry the instrument of drinking tea more, and the space that occupies also can be littleer, teapot and the supporting use of teacup, therefore the material of kettle stopper is chooseed for use and is unanimous with the sealing plug, improvement sight and uniformity.

Drawings

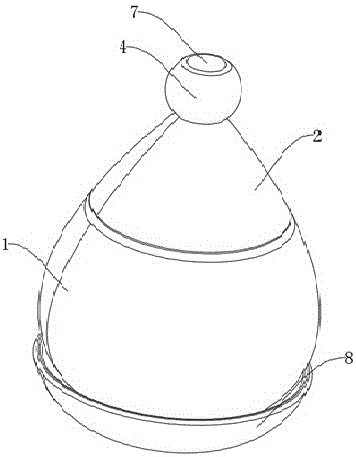

FIG. 1 is a schematic structural view of the cup of the present invention;

FIG. 2 is a schematic view of the split structure of the present invention;

fig. 3 is a schematic structural view of the sealing plug of the present invention;

fig. 4 is a schematic view of the structure of the cup cover of the present invention.

In the figure: 1-cup body; 2-a cup cover; 3-through groove; 4-sealing plug; 5-a filter plate; 6-plugging the opening; 7-a platform; 8-tray.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is to be understood that the described embodiments are only some embodiments of the present invention, and not all embodiments. All other embodiments obtained by a person of ordinary skill in the art based on the embodiments in the present application without any creative work belong to the protection scope of the present application.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a teacup, includes cup 1 and bowl cover 2, and cup 1 and bowl cover 2 all set up to glass's material, and at the in-process that carries out the tea and incline, can be very clear see inside liquid level height, bowl cover 2 lid is put at cup 1 port position, bowl cover 2 and cup 1 constitution water droplet form, holistic shape sets up to the water droplet form, can improve the sight to and the interest of drinking tea, bowl cover 2 is the tip portion, and cup 1 is the round end part, logical groove 3 is seted up on bowl cover 2's top, sealing plug 4 is installed on logical groove 3's top, bowl cover 2's inner wall installation filter plate 5, bowl cover 2 are most advanced part, therefore the similar form of falling three-angles of its shape of standing upside down, consequently place its inside at cup 1 with its upside down, cooperation filter plate 5's use, can filter the tealeaves sediment of the tea the inside for the tea is more clear.

The tea cup is integrally separated and made into different independent parts, so that the integrity of the cup in the use process can be guaranteed, the functionality of the cup can be improved, the use of functional products such as a filter spoon and the like in the tea drinking process is reduced, tea drinking tools are more convenient to carry, and the occupied space is smaller.

Stopper mouth 6 has been seted up on the surface of sealing plug 4, the shape of stopper mouth 6 and the top shape phase-match of bowl cover 2 can just process sealing plug 4 card to the position of leading to groove 3 through stopper mouth 6, be in order just to guarantee the integrality of cup on the one hand, set up the material of sealing plug 4 into wooden material simultaneously, and it itself has certain elasticity, can increase the leakproofness, also can play thermal-insulated function simultaneously.

The top of sealing plug 4 is equipped with platform 7, and the top of platform 7 is the horizontally, can be stable place on the desktop, when bowl cover 2 need not use, just can place platform 7 on the desktop earlier, can place the position at gag 6 with bowl cover 2 handstand.

The bottom weight of cup 1 is far greater than the weight of head, guarantees that cup 1 is stable to be difficult to empty, utilizes the principle that is similar to the tumbler, because the weight of bottom is greater than the weight of head, can guarantee cup 1's stability, can increase the interest when drinking tea simultaneously.

Tray 8 is installed to the bottom of cup 1, tray 8's shape and cup 1's shape looks adaptation, because cup 1 itself is the material that heat conductivility is stronger, and thermal-insulated performance is also relatively poor, for convenient improvement use feel and comfort level, at cup 1's bottom installation tray 8, increase thermal-insulated performance, its material also sets up to wooden material, sets up to the same color system with the colour of sealing plug 4, and holistic completion degree and fashion degree are higher.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A teacup comprises a cup body (1) and a cup cover (2), and is characterized in that: the utility model discloses a cup, including bowl cover (2), bowl cover (2) and cup (1), bowl cover (2) are put the port position in cup (1), the water droplet form is constituteed with cup (1), bowl cover (2) are the tip part, and cup (1) are the circle end part, logical groove (3) are seted up on the top of bowl cover (2), sealing plug (4) are installed on the top that leads to groove (3), filter plate (5) are installed to the inner wall of bowl cover (2).

2. A teacup according to claim 1, wherein: the surface of the sealing plug (4) is provided with a plug opening (6), and the shape of the plug opening (6) is matched with the shape of the top of the cup cover (2).

3. A teacup according to claim 2, wherein: and a platform (7) is arranged at the top of the sealing plug (4).

4. A teacup according to claim 1, wherein: the weight of the bottom of the cup body (1) is far larger than that of the head, so that the cup body (1) is stable and is not easy to topple.

5. A teacup according to claim 1, wherein: the cup is characterized in that a tray (8) is installed at the bottom of the cup body (1), and the shape of the tray (8) is matched with that of the cup body (1).
