CN218491496U

CN218491496U - Micro-nano bubble blending tank for sewage treatment device

Info

Publication number: CN218491496U
Application number: CN202222573246.0U
Authority: CN
Inventors: 兰清泉; 黄静; 张潇越
Original assignee: Nanjing Tianqi Superoxide Technology Co ltd
Current assignee: Nanjing Tianqi Superoxide Technology Co ltd
Priority date: 2022-09-28
Filing date: 2022-09-28
Publication date: 2023-02-17
Anticipated expiration: 2032-09-28

Abstract

The utility model discloses a micro-nano bubble blending tank for sewage treatment device relates to sewage treatment technical field, the utility model discloses a blending tank body, blending tank body inner wall one side fixed mounting has the fixed plate, rotates on the fixed plate and inserts and be equipped with the lead screw, and fixed mounting has the motor on the blending tank body, and motor output end fixed mounting has first gear, and lead screw top fixed mounting has the second gear, and second gear and first gear engagement, and the grid board is installed to the screw thread on the lead screw, and the filter plate has been placed to the card on the grid board, the utility model discloses utilize the motor to drive first gear revolve, first gear passes through the second gear and drives the lead screw and rotate, and the lead screw rotates and drives grid board and filter plate and rise, then takes off the filter plate to deposit on the filter plate in the blending tank body is cleared up, has replaced traditional manual work clearance, has saved the labour and has improved cleaning efficiency.

Description

Micro-nano bubble blending tank for sewage treatment device

Technical Field

The utility model relates to a sewage treatment technical field specifically is a micro-nano bubble blending tank for sewage treatment device.

Background

Sewage treatment is a process of purifying sewage to meet the requirement of discharging the sewage into a certain water body or reusing the sewage, and the sewage treatment is widely applied to various fields of buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is also increasingly used in daily life of common people.

Micro-nano bubble is blending tank for sewage treatment device when purifying sewage, organic pollutant in the sewage can be dissolved to micro-nano bubble, and make the solid contaminant and the separation of water in the sewage deposit, but the inconvenient clearance of the solid contaminant of current micro-nano bubble mixing tank for sewage treatment device sediment in to the jar, all lean on the manual work to clear up, all need consume a large amount of manpowers when clearing up the deposit every time, the cleaning process is comparatively loaded down with trivial details, the clearance is got up more difficultly, to above-mentioned problem, the inventor proposes a micro-nano bubble is blending tank for sewage treatment device is used for solving above-mentioned problem.

Disclosure of Invention

The problem that solid pollutants precipitated in a tank are inconvenient to clean by a mixing tank for the conventional micro-nano bubble sewage treatment equipment is solved; an object of the utility model is to provide a micro-nano bubble blending tank for sewage treatment device.

In order to solve the technical problem, the utility model adopts the following technical scheme: the utility model provides a micro-nano bubble blending tank for sewage treatment device, including the blending tank body, blending tank body inner wall one side fixed mounting has the fixed plate, it is equipped with the lead screw to rotate to insert on the fixed plate, and the bottom of lead screw rotates with the inside bottom of blending tank to be connected, fixed mounting has the motor on the blending tank body, motor output end fixed mounting has first gear, lead screw top fixed mounting has the second gear, and second gear and first gear engagement, the threaded mounting has the grid board on the lead screw, the filter plate has been placed to the card on the grid board, one side fixed mounting that the fixed plate was kept away from to blending tank body inner wall has the fixed block, fixed block bottom fixed mounting has the slide bar, and the slide bar bottom and the inside bottom fixed connection of blending tank body, the slide bar slides and inserts and establishes on filter plate and grid board.

Preferably, the two sides of the filter screen plate, which are far away from each other, are provided with clamping grooves, the screw rod and the slide rod are clamped in the clamping grooves, the outer ring of the grating plate is fixedly provided with scraping strips, and the top end of the filter screen plate is fixedly provided with two handles which are symmetrically distributed.

Preferably, sealed lid is installed to blending tank body top hinge, and sealed lid has seted up the water inlet, and blending tank body lower part fixed mounting has the drain pipe, and the inside intercommunication of drain pipe and blending tank body, and the screw thread is inserted and is equipped with the valve on the drain pipe, and blending tank body bottom fixed mounting has four supporting legs of evenly distributed.

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. the utility model discloses utilize the motor to drive first gear revolve, first gear passes through the second gear and drives the lead screw rotation, and the lead screw rotates and drives grid board and filter plate and rise, then takes off filter plate to clear up out the precipitate on this internal filter screen plate of blending tank, replaced traditional manual cleaning, saved the labour and improved cleaning efficiency.

2. The utility model discloses a set up on the grid board and scrape the strip, when the grid board rises, the strip of scraping on the grid board can clear up blending tank body inner wall to realized clearing up blending tank body inner wall when clearing up the inside precipitate of blending tank body.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

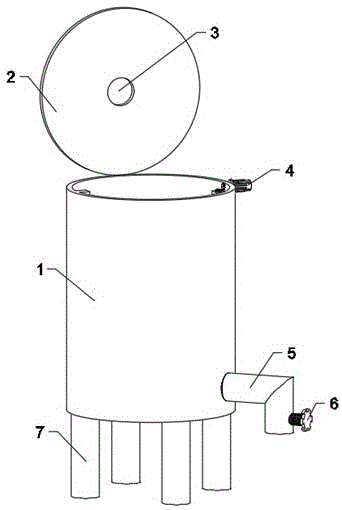

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is the schematic diagram of the cross-sectional structure of the mixing tank body of the present invention.

Fig. 3 is a schematic view of the structure of the middle grating plate of the present invention.

Fig. 4 is a schematic view of the structure of the middle filter screen plate of the present invention.

Fig. 5 is an enlarged schematic view of a structure shown in fig. 2 according to the present invention.

In the figure: 1. a mixing tank body; 2. a sealing cover; 3. a water inlet; 4. a motor; 5. a drain pipe; 6. a valve; 7. supporting legs; 8. a fixed block; 9. a slide bar; 10. a screw rod; 11. a filter screen plate; 12. a grid plate; 13. scraping the strips; 14. a card slot; 15. a first gear; 16. a second gear; 17. a fixing plate; 18. a handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

Example (b): as shown in fig. 1-5, the utility model provides a micro-nano bubble mixing tank for sewage treatment device, including

mixing tank body

1, 1 inner wall one side fixed mounting of mixing tank body has fixed plate 17, it is equipped with lead screw 10 to rotate on the fixed plate 17 to insert, and the bottom of lead screw 10 rotates with the inside bottom of mixing tank to be connected, fixed mounting has motor 4 on the mixing tank body 1, motor 4 output end fixed mounting has

first gear

15, 10 top fixed mounting of lead screw has second gear 16, and second gear 16 and first gear 15 meshing, grid plate 12 is installed to the screw thread on the lead screw 10, grid plate 12 goes up to block to establish and has placed filter screen board 11, when adopting micro-nano bubble technique to purify sewage, micro-nano bubble can dissolve the organic pollutant in the sewage to make the solid pollutant and the separation of water in the sewage deposit, fixed pollutant can deposit on filter screen board 11, when needing to clear up the deposit in the mixing tank body 1, utilize motor 4 to drive first gear 15 to rotate, first gear 15 drives second gear 16 and rotates, and filter screen plate 10 rotates, and filter screen plate 11 gets filter screen plate 11 in the rising, thereby the mixture in the lead screw 11 gets filter screen plate 11.

One side fixed mounting that fixed plate 17 was kept away from to mixing tank body 1 inner wall has

fixed block

8, 8 bottom fixed mounting of fixed block have slide bar 9, and the inside bottom fixed connection of slide bar 9 bottom and mixing tank body 1, slide bar 9 slides and inserts and establish on filter plate 11 and grid plate 12.

By adopting the technical scheme, when the motor 4 drives the grating plate 11 and the filter screen plate 12 to ascend through the screw rod 10, the grating plate 11 and the filter screen plate 12 ascend along the sliding rod 9 in a sliding way.

Clamping grooves 14 are formed in two sides, far away from each other, of the filter screen plate 11, and the screw rod 10 and the slide rod 9 are clamped in the clamping grooves 14.

By adopting the above technical solution, the clamping grooves 14 on the screen plate 11 are for facilitating the sliding of the screen plate 11.

The outer ring of the grating plate 12 is fixedly provided with a scraping strip 13, and the top end of the filter screen plate 11 is fixedly provided with two handles 18 which are symmetrically distributed.

By adopting the technical scheme, when the grating plate 12 rises, the scraping strips 13 on the grating plate 12 can clean the inner wall of the mixing tank body 1, and the handle 18 on the filter screen plate 11 is used for conveniently taking down or replacing the filter screen plate 11.

A sealing cover 2 is mounted at the top end of the mixing tank body 1 through hinges, and a water inlet 3 is formed in the sealing cover 2.

Through adopting above-mentioned technical scheme, through water inlet 3 with inside sewage introduction blending tank body 1.

The lower part of the mixing tank body 1 is fixedly provided with a drain pipe 5, and the drain pipe 5 is communicated with the inside of the mixing tank body 1.

Through adopting above-mentioned technical scheme, discharge the sewage that will purify through drain pipe 5.

The water discharging pipe 5 is provided with a valve 6 in a threaded insertion manner, and four supporting legs 7 which are uniformly distributed are fixedly arranged at the bottom end of the mixing tank body 1

Through adopting above-mentioned technical scheme, valve 6 can control the switch of drain pipe 5, and supporting leg 7 is used for supporting mixing tank body 1.

The working principle is as follows: the utility model discloses when using, when adopting micro-nano bubble technique to purify sewage, micro-nano bubble can dissolve the organic pollutant in the sewage, and make solid pollutant and separation of water in the sewage deposit, fixed pollutant can deposit on filter plate 11, when needing to clear up the deposit in the blending tank body 1, utilize motor 4 to drive first gear 15 and rotate, first gear 15 drives second gear 16 and rotates, second gear 16 drives lead screw 10 and rotates, lead screw 10 rotates and drives grid plate 12 and filter plate 11 and rise, grid plate 11 and filter plate 12 rise along the slide bar 9 slip this moment, draw-in groove 14 on the filter plate 11 is the slip that makes things convenient for filter plate 11, when grid plate 12 rises, scrape strip 13 on grid plate 12 can clear up blending tank body 1 inner wall, when grid plate 12 and filter plate 11 rise to blending tank body 1 top, take off filter plate 11 through handle 18, thereby clear up the deposit on the filter plate 11 in the blending tank body 1 out.

It will be apparent to those skilled in the art that various changes and modifications may be made without departing from the spirit and scope of the invention. Thus, if such modifications and variations of the present invention fall within the scope of the claims and their equivalents, the present invention is also intended to include such modifications and variations.

Claims

1. The utility model provides a micro-nano bubble blending tank for sewage treatment device, includes blending tank body (1), its characterized in that: mixing tank body (1) inner wall one side fixed mounting has fixed plate (17), it inserts and is equipped with lead screw (10) to rotate on fixed plate (17), and the bottom of lead screw (10) rotates with the inside bottom of mixing tank to be connected, fixed mounting has motor (4) on mixing tank body (1), motor (4) output end fixed mounting has first gear (15), lead screw (10) top fixed mounting has second gear (16), and second gear (16) and first gear (15) meshing, grid plate (12) are installed to the screw thread on lead screw (10), grid plate (12) are gone up the card and are established and have placed filter screen board (11).

2. The mixing tank for micro-nano bubble sewage treatment equipment according to claim 1, wherein a fixing block (8) is fixedly installed on one side of the inner wall of the mixing tank body (1) far away from the fixing plate (17), a sliding rod (9) is fixedly installed at the bottom end of the fixing block (8), the bottom end of the sliding rod (9) is fixedly connected with the bottom end inside the mixing tank body (1), and the sliding rod (9) is slidably inserted on the filter screen plate (11) and the grating plate (12).

3. The mixing tank for micro-nano bubble sewage treatment equipment according to claim 1, wherein the two sides of the filter screen plate (11) far away from each other are provided with clamping grooves (14), and the screw rod (10) and the slide rod (9) are clamped in the clamping grooves (14).

4. The mixing tank for micro-nano bubble sewage treatment equipment according to claim 1, wherein the outer ring of the grating plate (12) is fixedly provided with a scraping strip (13), and the top end of the filter screen plate (11) is fixedly provided with two handles (18) which are symmetrically distributed.

5. The mixing tank for the micro-nano bubble sewage treatment equipment according to claim 1, wherein a sealing cover (2) is hinged to the top end of the mixing tank body (1), and a water inlet (3) is formed in the sealing cover (2).

6. The mixing tank for micro-nano bubble sewage treatment equipment according to claim 1, wherein a drain pipe (5) is fixedly installed at the lower part of the mixing tank body (1), and the drain pipe (5) is communicated with the interior of the mixing tank body (1).

7. The mixing tank for micro-nano bubble sewage treatment equipment according to claim 6, wherein a valve (6) is inserted on the water discharge pipe (5) through threads, and four uniformly distributed support legs (7) are fixedly installed at the bottom end of the mixing tank body (1).
