Abstract
The utility model discloses a convenient non-setting adhesive label paper belongs to label sticker technical field, including the base stock, the upper surface of base stock is stained with the memo paper, the side of memo paper is equipped with the auxiliary plate, the side of auxiliary plate is equipped with the resistance piece, the upper surface of memo paper is equipped with blocks the piece, the utility model has the advantages of finger and resistance piece contact can drive the auxiliary plate when lifting up the resistance piece and carry out the adjustment of height to make things convenient for finger and auxiliary plate to contact, the rubber material of auxiliary plate can have certain toughness, lift up the auxiliary plate, apply the pulling force to the auxiliary plate, can take off the memo paper from the base stock and paste through applying the pulling force to the auxiliary plate, and can also apply the effort to blockking the piece, make the side of memo paper cockle, and then can conveniently take off the memo paper, can reach more convenient and fast and take off the label paper and paste.
Description
Technical Field
The utility model relates to a label sticker technical field specifically is a convenient non-setting adhesive label paper.
Background
The adhesive sticker label has the advantages of no need of brushing adhesive, no need of pasting paste, no need of dipping water, no pollution, labeling time saving and the like compared with the traditional label, has wide application range, is convenient and quick, can be conveniently and quickly adhered through adhesive sticker label paper, and is suitable for different occasions.
The self-adhesive label paper is easy to be taken down and adhered when in use, and is inconvenient to take down under the condition of no nail and the like.
Based on this, the utility model designs a convenient non-setting adhesive label paper to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a convenient non-setting adhesive label paper to solve above-mentioned technical problem.
In order to achieve the above purpose, the utility model provides a following technical scheme: the scratch paper is adhered to the upper surface of the base paper, an auxiliary sheet is arranged on the side surface of the scratch paper, a resistance block is arranged on the side surface of the auxiliary sheet, and a blocking sheet is arranged on the upper surface of the scratch paper.
Preferably, the upper surface area of the bottom paper is larger than that of the note paper, and the bottom of the note paper is provided with non-setting adhesive.
Preferably, both ends of note paper all are equipped with supplementary piece, and the side align to grid of supplementary piece installs a plurality of resistance piece, a plurality of resistance piece is circular rubber setting.
Preferably, the blocking piece is arranged in an arc shape and is arranged in a rubber shape, and the side face of the blocking piece is arranged in a concave shape.
Preferably, the auxiliary sheet is perpendicular to the side face of the note paper, and the auxiliary sheet is arranged in a soft body.
Preferably, the side area of the resistance block is smaller than that of the auxiliary piece.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses, during the use, the finger contacts with the resistance piece, the finger can drive the supplementary piece when lifting up the resistance piece and carry out the adjustment of height, thereby make things convenient for finger and supplementary piece contact, the rubber material of supplementary piece can have certain toughness, lift up the supplementary piece, exert the pulling force to the supplementary piece, can take off note paper from the base stock and paste through exerting the pulling force to the supplementary piece, and can also exert the effort through blockking the piece, make the side of note paper cockled, and then can conveniently take off note paper, can reach more convenient and fast and take off the purpose of pasting with label paper.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments are briefly introduced below, it is obvious that the drawings in the description below are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

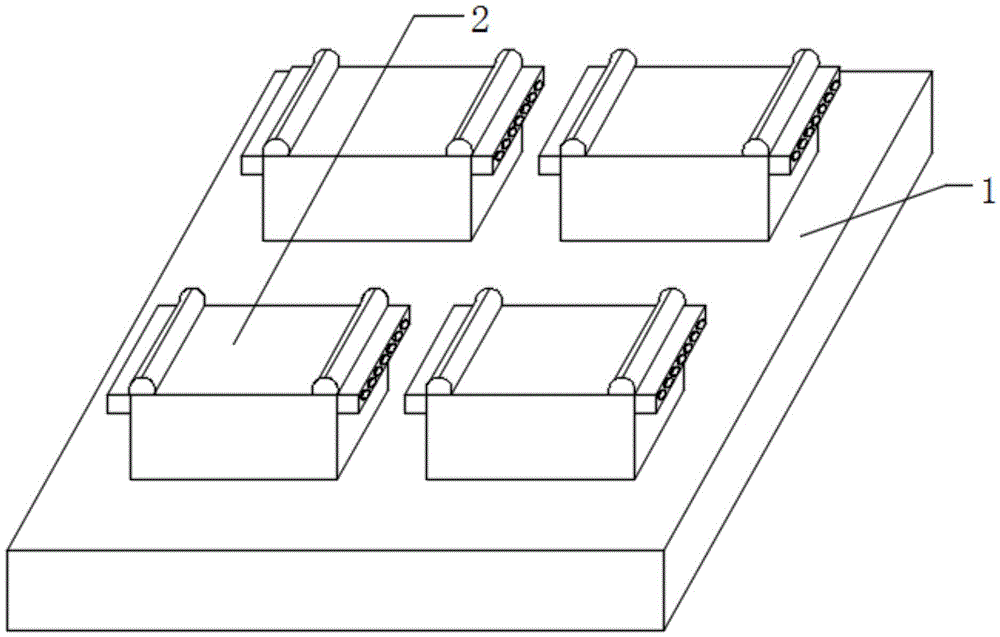

FIG. 1 is a top view of the overall structure of the present embodiment;
fig. 2 is a schematic view of the structure of the note paper according to the embodiment.
In the drawings, the components represented by the respective reference numerals are listed below:
1. base paper; 2. a note paper; 3. an auxiliary sheet; 4. a resistance block; 5. a barrier sheet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a convenient non-setting adhesive label paper, includes base stock 1, and the upper surface of base stock 1 is stained with memo paper 2, and the side of memo paper 2 is equipped with supplementary piece 3, and the side of supplementary piece 3 is equipped with resistance piece 4, and the upper surface of memo paper 2 is equipped with and blocks piece 5.
Preferably, the upper surface area of the base paper 1 is larger than that of the note paper 2, and the bottom of the note paper 2 is provided with non-setting adhesive.
Preferably, the both ends of note paper 2 all are equipped with supplementary piece 3, and the side align to grid of supplementary piece 3 installs a plurality of resistance piece 4, and a plurality of resistance piece 4 is the setting of circular rubber, and in this embodiment, supplementary piece 3 through 2 both ends of note paper can also play and can take out or take off note paper 2 through supplementary piece 3, need not directly exert the effort to base stock 1, can be better prevent that note paper 2 from being damaged by fingers etc..
Preferably, block that piece 5 is the arc setting, and block that piece 5 is the rubber setting, block that the side of piece 5 is concave type setting, in this embodiment, can exert the effort through blocking piece 5 and lead to taking off after 2 crumples of memo paper with the finger, need not reserve more spaces for 2 note paper on base stock 1, each memo paper 2 can be more carry out the adhesion on base stock 1, great increase the usability in space.
Preferably, the auxiliary sheet 3 is perpendicular to the side surface of the note paper 2, and the auxiliary sheet 3 is arranged in a soft body, in this embodiment, the soft body of the auxiliary sheet 3 can ensure that the base paper 1 and the note paper 2 are stored conveniently enough, and the auxiliary sheet 3 does not occupy more unnecessary space.
Preferably, the side area of the resistance block 4 is smaller than that of the auxiliary sheet 3, in this embodiment, the resistance block 4 serves as a middle point for applying an acting force to the auxiliary sheet 3 by a finger, and the notepaper 2 is taken out after the auxiliary sheet 3 is lifted conveniently by the resistance block 4.
One specific application of this embodiment is:
the finger contacts with resistance piece 4, and the finger drives supplementary piece 3 when lifting resistance piece 4 and carries out the adjustment of height, and to supplementary piece application pull-up force, can take off note paper 2 from base stock 1 through applying pull-up force to supplementary piece 3 and paste, through applying the effort to blockking piece 5 for the side of note paper 2 is wrinkled.
To sum up, through structure such as memo paper 2, supplementary piece 3, resistance piece 4 and stop the piece, can play convenient and fast and take off memo paper 2 and paste the effect.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a convenient non-setting adhesive label paper, includes base stock (1), its characterized in that: the note paper is characterized in that note paper (2) is adhered to the upper surface of the base paper (1), an auxiliary sheet (3) is arranged on the side surface of the note paper (2), a resistance block (4) is arranged on the side surface of the auxiliary sheet (3), and a blocking sheet (5) is arranged on the upper surface of the note paper (2).
2. A convenient self-adhesive label paper according to claim 1, characterized in that: the upper surface area of the bottom paper (1) is larger than that of the note paper (2), and the bottom of the note paper (2) is provided with adhesive sticker.
3. A convenient self-adhesive label paper according to claim 1, characterized in that: the two ends of the note paper (2) are provided with auxiliary pieces (3), the side faces of the auxiliary pieces (3) are evenly provided with a plurality of resistance blocks (4), and the resistance blocks (4) are all arranged in a circular rubber mode.
4. A convenient self-adhesive label paper according to claim 1, characterized in that: the blocking piece (5) is arranged in an arc shape, the blocking piece (5) is arranged in rubber, and the side face of the blocking piece (5) is arranged in a concave shape.
5. A convenient self-adhesive label paper according to claim 1, characterized in that: the auxiliary sheet (3) is perpendicular to the side face of the note paper (2), and the auxiliary sheet (3) is arranged in a soft body.
6. A convenient self-adhesive label paper according to claim 1, characterized in that: the side area of the resistance block (4) is smaller than that of the auxiliary sheet (3).
