The utility model discloses a femoral artery puncture hemostasis by compression device, including elasticity shorts, elasticity shorts front side seam has pocket cloth, form the holding chamber between pocket cloth and the elasticity shorts side, elastic airbag has been placed to the holding intracavity, be provided with elastic bandage on the elasticity shorts. This kind of femoral artery puncture hemostasis by compression device dresses oppression device on one's body the patient through elasticity shorts, and it is comparatively convenient to wear to take off, utilizes the pressure of the elasticity gasbag after aerifing to oppress the puncture point, what of the inside aeration quantity of accessible elasticity gasbag adjusts the dynamics of oppression, and better adjusts pressure according to patient's demand, utilizes the cooperation of the elastic bandage on the elasticity shorts and location knot and locating hole to fix the position of elasticity gasbag, improves stability.
Description
Technical Field
The utility model relates to the technical field of medical devices, in particular to a femoral artery puncture hemostasis by compression device.
Background
The femoral artery is the trunk of the artery of the lower limb, lie in the inferior aspect of inguinal ligament, it is the position that the hemostasis of compression of emergency treatment and puncture is carried out clinically, the most common complication after the postoperative is that the point of puncture bleeds and local hematoma, in order to prevent the formation of hemorrhage and hematoma, the point of puncture needs to be packed with pressure, if the blood vessel selected in puncture is that big vascular operations such as femoral artery need to compress continuously for 6 hours with the sand bag in order to prevent the formation of hemorrhage and hematoma except that packing with pressure, in the prior art, most medical personnel do not change the hand and press the puncture position for 15-20 min, pack with bandage cross pressurization again, the sand bag oppresses for 6-8 hours, in order to reach the hemostatic purpose, this kind of mode is not convenient for dismantling, and the compression device can take place the movement deviation under the natural effect of gravity when the patient lies on one's side, and the involuntary activity of patient's shank very easily leads to the sand bag slippage, the oppression is invalid, poor stability, and difficult to adjust the pressure, if oppression is too tight, can influence blood supply and be unfavorable for wound and unfavorable for wound healing, if oppression is too loose, can not play the hemostasis of compression wound healing effect. Therefore, a femoral artery puncture compression hemostasis device is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a femoral artery puncture hemostasis by compression device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a femoral artery puncture hemostasis by compression device, includes elasticity shorts, the elasticity shorts front side seam closes pocket cloth, form the holding chamber between pocket cloth and the elasticity shorts side, the elasticity gasbag has been placed to the holding intracavity, elasticity gasbag upper end is provided with the air cock, elasticity gasbag side fixedly connected with location is detained, the location is detained and is provided with two, two the location is detained and is arranged from top to bottom, be provided with the locating hole on the pocket cloth, the locating hole is provided with two rows, two rows the locating hole is arranged from top to bottom, the location is detained and is run through in the locating hole, be provided with elastic bandage on the elasticity shorts, elastic bandage is provided with two, two elastic bandage symmetry sets up in elasticity shorts both sides, just elastic bandage one end is sewed up at the elasticity shorts back, other end swing joint is in the pocket cloth outside.
Preferably, the side of the elastic shorts close to the skin is provided with a sterile dressing.
Preferably, the sterile dressing is connected with the elastic shorts in an adhering mode.
Preferably, the movable end inner side of the elastic bandage is provided with a hook and loop fastener burr surface, and the outer side surface of the pocket cloth is provided with a hook and loop fastener round burr surface.
Compared with the prior art, the beneficial effects of the utility model are that: this kind of femoral artery puncture hemostasis by compression device dresses oppression device on one's body the patient through elasticity shorts, it is comparatively convenient to wear to take off, the pressure that utilizes the elasticity gasbag after aerifing oppresses the puncture point, what of the inside gas charge of accessible elasticity gasbag adjusts the dynamics of oppression, better demand according to the patient is adjusted pressure, improve the wound repair quality at puncture position, the cooperation of utilizing the elastic bandage and the location knot on the elasticity shorts to detain with the locating hole fixes the position of elasticity gasbag, and the stability is improved, the shank activity that reduces the patient leads to elasticity gasbag to take place the probability that the aversion phenomenon takes place, be convenient for tear open simultaneously and get, and the efficiency is improved.
Drawings

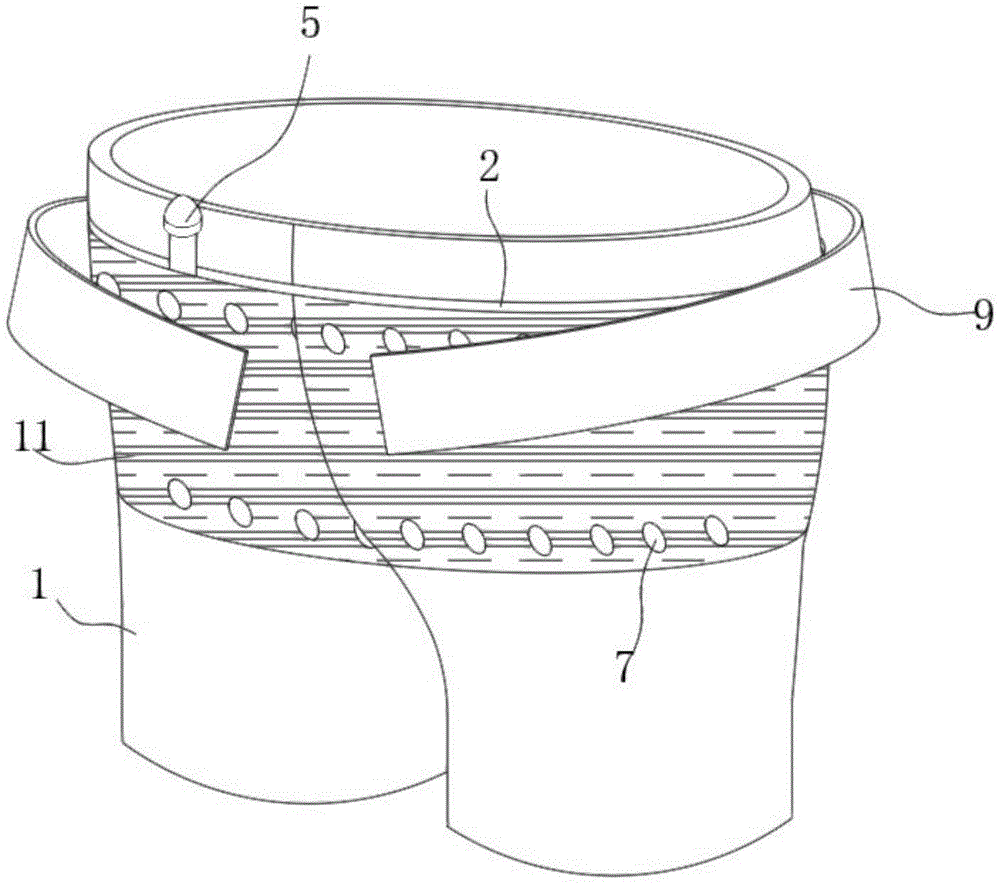

Fig. 1 is a schematic perspective view of the present invention;
fig. 2 is a side sectional view of the accommodating chamber of the present invention;
fig. 3 is a side sectional view of the elastic band of the present invention.
In the figure: the elastic shorts 1, the pocket cloth 2, the containing cavity 3, the elastic air bag 4, the air tap 5, the positioning buckle 6, the positioning hole 7, the sterile dressing 8, the elastic bandage 9, the magic tape stabbing wool surface 10 and the magic tape round wool surface 11.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a femoral artery puncture compression hemostasis device comprises elastic shorts 1, wherein the elastic shorts 1 are made of high-elastic cloth, so that the elastic shorts 1 are tightly attached to the skin of a patient and are not easy to fall off, and meanwhile, the elastic shorts are suitable for patients of various body types, the application range is improved, the cloth of the elastic shorts 1 can be made of high-elastic lycra cloth, the lycra is artificial elastic fiber, can be stretched to 6 times of the original length and can be restored to the original state, the elasticity is good, the fitness with the skin is good, and elastic waistbands and the like can be added at the waist seal position at the upper end of the elastic shorts 1 for better wearing;
the side, close to the skin, of the elastic shorts 1 is provided with the sterile dressing 9, the sterile dressing 9 is connected with the elastic shorts 1 in a sticking mode, the sterile dressing 9 consists of a base material, isolation paper and a coating core, wherein the base material is made of non-woven fabrics sprayed with medical pressure-sensitive adhesive or a polyurethane composite membrane or a polyurethane porous membrane, the isolation paper is made of glassine paper or CCK paper or a PET membrane, the coating core is made of net films (made of Polyethylene (PE) and nylon) and cotton fibers (made of viscose and terylene), the wound protection effect on postoperative wounds is achieved, infection is avoided, in addition, the sterile dressing 9 is independently connected with the inner side of the elastic shorts 1 through a sticking layer, and therefore according to the specific wound position, after the sterile dressing 9 is connected with the elastic shorts 1 through the sticking layer, the wound dressing area of the sterile dressing 9 is in contact with the wounds, the wounds are protected, and the use flexibility is improved;
the front side of the elastic shorts 1 is sewn with pocket cloth 2, an accommodating cavity 3 is formed between the pocket cloth 2 and the side surface of the elastic shorts 1, an elastic air bag 4 is placed in the accommodating cavity 3, an air nozzle 5 is arranged at the upper end of the elastic air bag 4, the elastic air bag 4 is placed in the accommodating cavity 3, the position of the elastic air bag 4 is adjusted at the same time, the elastic air bag is pressed on the side surface of a wound, the wound of a puncture point is pressed by using the gas pressure in the elastic air bag 4, meanwhile, the gas volume in the elastic air bag 4 can be adjusted by using the air nozzle 5, the pressing force is adjusted by using the gas volume in the elastic air bag 4, the adjusting mode is simple and effective, the adjusting mode can be adjusted according to the use needs of patients, in addition, the material of the pocket cloth 2 is also made of high-elastic fabric, and the size change of the elastic air bag 4 is convenient to adapt to;
the side surface of the elastic air bag 4 is fixedly connected with two positioning buckles 6, the two positioning buckles 6 are arranged up and down, the pocket cloth 2 is provided with two rows of positioning holes 7, the two rows of positioning holes 7 are arranged up and down, the positioning buckles 6 penetrate through the positioning holes 7, the positioning holes 7 are arranged in an equal interval mode, the position of the elastic air bag 4 in the accommodating cavity 3 is adjusted according to the position of a wound, the position of the elastic air bag 4 is located on the side surface of the wound, the positioning buckles 6 are combined with the positioning holes 7 in the corresponding positions at the moment, fixing of the position of the elastic air bag 4 is achieved, the upper and lower groups of positioning buckles 6 are limited, the stability of the elastic air bag 4 is improved, and the possibility of displacement of the elastic air bag 4 is reduced;
be provided with elastic bandage 9 on the elasticity shorts 1, elastic bandage 9 is provided with two, two elastic bandage 9 symmetries set up in 1 both sides of elasticity shorts, and elastic bandage 9 one end is sewed up at the elasticity shorts 1 back, other end swing joint is in 2 outsides of pocket cloth, elastic bandage 9's expansion end inboard is provided with magic subsides acanthosis surface 10, 2 lateral surfaces of pocket cloth are provided with magic subsides circle hair side 11, according to the volume of elastic airbag 4 and required oppression power, paste the magic subsides acanthosis surface 10 of elastic bandage 9 side on the magic subsides circle hair side 11 of 2 suitable positions of pocket cloth, make elastic bandage 9 oppress in the elastic airbag 4 outside, oppress and fix the outside of elastic airbag 4, improve elastic airbag 4's stability and oppression power.
When using, dress elasticity shorts 1 on one's body the patient, make elasticity shorts 1 hug closely on patient's skin, be difficult for droing, put into to holding chamber 3 elasticity gasbag 4, adjust the position of elasticity gasbag 4 simultaneously, make its pressfitting in the wound side, buckle 6 and the locating hole 7 of relevant position combine to fix a position this moment, the realization is fixed to the position of elasticity gasbag 4, utilize the gas pressure in elasticity gasbag 4, oppress the wound of puncture point, simultaneously usable air cock 5 adjusts the gas volume in the elasticity gasbag 4, what of the gas volume in the elasticity gasbag 4 adjusts the dynamics of oppression, paste magic subsides thorn matte 10 of elasticity bandage 9 side on the magic subsides round matte 11 of pocket cloth 2 suitable position, make elasticity bandage 9 oppress in the elasticity gasbag 4 outside, oppress and fix the outside of elasticity gasbag 4, improve the stability and the oppression power of elasticity gasbag 4.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
1. The utility model provides a femoral artery puncture hemostasis by compression device, includes elasticity shorts (1), its characterized in that: pocket cloth (2) is sewed on the front side of the elastic shorts (1), a containing cavity (3) is formed between the pocket cloth (2) and the side of the elastic shorts (1), an elastic air bag (4) is placed in the containing cavity (3), an air nozzle (5) is arranged at the upper end of the elastic air bag (4), positioning buckles (6) are fixedly connected to the side of the elastic air bag (4), two positioning buckles (6) are arranged in two and two manners, positioning holes (7) are formed in the pocket cloth (2), the positioning holes (7) are arranged in two and two manners, the positioning buckles (6) penetrate through the positioning holes (7), elastic bands (9) are arranged on the elastic shorts (1), the elastic bands (9) are symmetrically arranged on two sides of the shorts (1), one ends of the elastic bands (9) are sewed on the back of the elastic shorts (1), and the other ends of the elastic bands (9) are movably connected to the outer side of the pocket cloth (2).
2. The femoral artery puncture hemostasis by compression device of claim 1, wherein: the side of the elastic shorts (1) close to the skin is provided with a sterile dressing (8).
3. The femoral artery puncture hemostasis by compression device of claim 2, wherein: the sterile dressing (8) is connected with the elastic shorts (1) in a sticking way.
4. The femoral artery puncture hemostasis by compression device of claim 1, wherein: the inner side of the movable end of the elastic bandage (9) is provided with a magic tape burr surface (10), and the outer side surface of the pocket cloth (2) is provided with a magic tape round burr surface (11).
