CN218384450U

CN218384450U - Movie and animation display device

Info

Publication number: CN218384450U
Application number: CN202222020640.1U
Authority: CN
Inventors: 廖文瑾; 赵云辉; 刘永璞; 王启
Original assignee: Shenzhen Shine Exhibition Co ltd
Current assignee: Shenzhen Shine Exhibition Co ltd
Priority date: 2022-08-02
Filing date: 2022-08-02
Publication date: 2023-01-24
Anticipated expiration: 2032-08-02

Abstract

The utility model relates to the technical field of animation display, in particular to a movie and television animation display device, which comprises a device main body, wherein the top end of a supporting leg is fixedly connected with a connecting base, and the bottom end of the connecting base is fixedly connected with a connecting drawer; adjustment mechanism, including the sliding tray, the sliding tray is seted up in the inboard of connecting the base, and the surface of connecting the base rotates and is connected with the backup pad, and the inboard sliding connection of sliding tray has the slide bar, and the surface of slide bar rotates and is connected with the hinge bar, and the inboard sliding connection of slide bar has presses the briquetting. The utility model discloses a position of slide bar removes can conveniently through articulated rod to backup pad effort, and the effect of regulation is played to the angle of backup pad to the convenience, can conveniently carry out better show to the animation through the regulation to the backup pad, through loosening the press block, supports connecting spring through the connecting plate, makes connecting spring to pressing the press block effort, conveniently presses the press block to connect with spacing draw-in groove again, and is convenient spacing again to the slide bar.

Description

Movie and animation display device

Technical Field

The utility model relates to an animation show technical field specifically is movie & TV animation display device.

Background

Three-dimensional animation is also called 3D animation, and is a new technology generated along with the development of computer software and hardware technology, three-dimensional animation software firstly establishes a virtual world in a computer, designers establish a model and a scene in the virtual three-dimensional world according to the shape and the size of an object to be expressed, then sets the motion trail of the model, the motion of a virtual camera and other animation parameters according to requirements, and finally endows the model with specific materials and lights according to requirements. When all the operations are finished, the computer can automatically operate to generate the final picture.

However, most of the existing animation display devices are directly placed on a fixed board for display when in use, and the display mode is single, which easily causes many people to be unclear when in use, so that the design of the movie animation display device is urgently needed.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a movie & TV animation display device to solve most of propositions in the above-mentioned background art and all directly place and demonstrate on fixed board, this kind of show mode is comparatively single, leads to many people to watch unclear problem easily when using.

In order to achieve the purpose, the utility model provides the following technical proposal,

movie & TV animation display device includes:

the device main body comprises supporting legs, wherein the top ends of the supporting legs are fixedly connected with a connecting base, and the bottom ends of the connecting base are fixedly connected with a connecting drawer;

the adjusting mechanism comprises a sliding groove, the sliding groove is formed in the inner side of the connecting base, the surface of the connecting base is rotatably connected with a supporting plate, the inner side of the sliding groove is slidably connected with a sliding rod, the surface of the sliding rod is rotatably connected with a hinged rod, the inner side of the sliding rod is slidably connected with a pressing block, the inner side of the connecting base is provided with a limiting clamping groove, the surface of the pressing block is fixedly connected with a connecting spring, and the inner side of the sliding rod is fixedly connected with a connecting plate;

the unfolding mechanism comprises a connecting groove, the connecting groove is arranged on the inner side of the supporting plate, a fixing groove is formed in the inner side of the supporting plate, the inner side of the connecting groove is connected with an unfolding plate in a sliding mode, a fixing sliding groove is formed in the inner side of the supporting plate, the inner side of the fixing sliding groove is connected with a pulling rod in a sliding mode, and an anti-skidding gasket is fixedly connected to the outer side of the pulling rod.

Preferably, the support plate is in a long plate shape and is rotatably connected with the connecting base, and the sliding rod is in a long rod shape and is slidably connected to the inner side of the sliding groove.

Preferably, the pressing blocks are connected to the inner side of the sliding rod in two groups in a sliding mode, and the sliding rod is movably connected with the supporting plate through a hinge rod.

Preferably, the limiting clamping grooves are uniformly formed in the inner side of the connecting base, and the connecting plate is fixedly connected to the inner side of the sliding rod in a long plate shape.

Preferably, the connecting plate is movably connected with the pressing block through a connecting spring.

Preferably, the connecting groove is formed in a long groove shape on the inner side of the support plate, and the expansion plate is connected to the inner side of the connecting groove in a long plate-shaped sliding manner.

Preferably, the pulling rod is 'L' -shaped and is connected to the inner side of the fixed sliding chute in a sliding mode, and the anti-skid washer is fixedly connected to the outer side of the pulling rod in a circular ring mode.

Compared with the prior art, the beneficial effects of the utility model are that:

1. press down the press block through the staff, make according to the press block to connecting spring effort, make the position according to the press block remove, break away from spacing draw-in groove, can relieve spacing to the slide bar, make things convenient for the slide bar position to remove, the position through the slide bar removes and can conveniently pass through articulated rod to backup pad effort, the effect of regulation is played to the angle of backup pad to the convenience, can conveniently carry out better show to the animation through the regulation to the backup pad, press the press block through loosening, support connecting spring through the connecting plate, make connecting spring to pressing the press block effort, conveniently press the press block to be connected with spacing draw-in groove again, it is convenient spacing again to the slide bar.

2. Through to the expansion plate pulling, make the fixed slot slide in the spread groove, when making the expansion plate slide to the top, promote the expansion plate, make the expansion plate slide in the fixed slot, then through the pulling pole, make the pulling pole drive anti-skidding packing ring slide in fixed spout, the convenience is to the fixed of expansion plate, and the convenience is to the expansion of backup pad, can conveniently play the effect of show to bigger animation through opening of backup pad.

Drawings

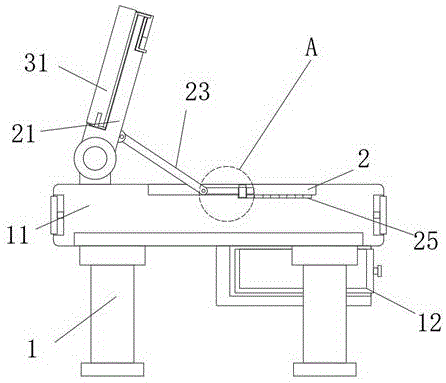

FIG. 1 is a schematic front sectional view of the structure of the present invention;

FIG. 2 is an enlarged schematic view of the structure of the present invention at A in FIG. 1;

FIG. 3 is a schematic top cross-sectional view of the connection base and the pressing block of FIG. 2 according to the present invention;

fig. 4 is a schematic front view of the exploding plate and the supporting plate of fig. 2 according to the present invention.

In the figure: 1. supporting legs; 11. connecting a base; 12. connecting the drawer; 2. a sliding groove; 21. a support plate; 22. a slide bar; 23. a hinged lever; 24. a pressing block; 25. a limiting clamping groove; 26. a connecting spring; 27. a connecting plate; 3. connecting grooves; 31. fixing grooves; 32. an expansion plate; 33. fixing the chute; 34. pulling a rod; 35. an anti-slip washer.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides an embodiment:

movie & TV animation display device includes:

the device main body comprises supporting legs 1, wherein the top ends of the supporting legs 1 are fixedly connected with a connecting base 11, the bottom ends of the connecting bases 11 are fixedly connected with a connecting drawer 12, and the supporting legs 1 support the connecting bases 11 through the connection between the supporting legs 1 and the connecting bases 11, so that the connecting bases 11 can work conveniently;

the adjusting mechanism comprises a sliding groove 2, the sliding groove 2 is formed in the inner side of the connecting base 11, a supporting plate 21 is connected to the surface of the connecting base 11 in a rotating mode, a sliding rod 22 is connected to the inner side of the sliding groove 2 in a sliding mode, a hinge rod 23 is connected to the surface of the sliding rod 22 in a rotating mode, a pressing block 24 is connected to the inner side of the sliding rod 22 in a sliding mode, a limiting clamping groove 25 is formed in the inner side of the connecting base 11, a connecting spring 26 is fixedly connected to the surface of the pressing block 24, a connecting plate 27 is fixedly connected to the inner side of the sliding rod 22, and the supporting plate 21 is convenient to limit and slide through connection between the sliding groove 2 and the supporting plate 21;

unfolding mechanism, including connecting groove 3, connecting groove 3 is seted up in the inboard of backup pad 21, fixed slot 31 has been seted up to the inboard of backup pad 21, the inboard sliding connection of connecting groove 3 has expansion board 32, fixed spout 33 has been seted up to the inboard of backup pad 21, the inboard sliding connection of fixed spout 33 has the pulling pole 34, the outside fixedly connected with anti-skidding packing ring 35 of pulling pole 34, through the connection between connecting groove 3 and the fixed slot 31 and the connection between expansion board 32, make connecting groove 3 play spacing effect to expansion board 32, make things convenient for expansion board 32's slip.

Furthermore, the support plate 21 is in a long plate shape and is rotatably connected with the connecting base 11, the sliding rod 22 is in a long rod shape and is slidably connected to the inner side of the sliding groove 2, and the support plate 21 is in a long plate shape and can conveniently display the animation.

Further, press the briquetting 24 to be two sets of sliding connection in the inboard of slide bar 22, slide bar 22 passes through articulated rod 23 and backup pad 21 swing joint, presses briquetting 24 to be two sets of can conveniently be connected with spacing draw-in groove 25, conveniently plays spacing effect to slide bar 22.

Further, the limiting clamping groove 25 is uniformly formed in the inner side of the connecting base 11, the connecting plate 27 is fixedly connected to the inner side of the sliding rod 22 in a long plate shape, the connecting plate 27 is in a long plate shape, and can conveniently support the connecting spring 26, and the connecting spring 26 can conveniently apply force to the pressing block 24.

Further, the connecting plate 27 is movably connected with the pressing block 24 through the connecting spring 26, the connecting spring 26 can be supported through the connecting plate 27, the pressing block 24 and the limiting clamping groove 25 are conveniently pushed to be connected, and the sliding rod 22 is conveniently limited.

Furthermore, the connecting groove 3 is a long groove and is formed in the inner side of the supporting plate 21, the expansion plate 32 is connected to the inner side of the connecting groove 3 in a long plate sliding mode, the connecting groove 3 is a long groove and can conveniently limit the expansion plate 32, the expansion plate 32 can slide conveniently, and the area of the supporting plate 21 can be enlarged conveniently.

Furthermore, the pulling rod 34 is in an L-shaped sliding connection at the inner side of the fixed sliding chute 33, the anti-slip washer 35 is in a circular ring shape and is fixedly connected at the outer side of the pulling rod 34, and the pulling rod 34 is in an L-shaped sliding connection, so that a worker can conveniently pull the pulling rod, and the unfolding plate 32 is conveniently connected with the supporting plate 21.

The working principle is as follows: press down through the staff and press down briquetting 24, make and press briquetting 24 to connecting spring 26 effort, make the position removal according to briquetting 24, break away from spacing draw-in groove 25, can remove spacing to slide bar 22, make things convenient for slide bar 22 position to remove, position removal through slide bar 22 can conveniently be through hinge rod 23 to backup pad 21 effort, the effect of regulation is played to the angle of backup pad 21 to the convenience, can conveniently carry out better show to the animation through the regulation to backup pad 21, through loosening and pressing briquetting 24, support connecting spring 26 through connecting plate 27, make connecting spring 26 to press briquetting 24 effort, conveniently press briquetting 24 to be connected with spacing draw-in groove 25 again, it is convenient spacing again to slide bar 22.

Through pulling expansion plate 32, make fixed slot 31 slide in spread groove 3, make expansion plate 32 slide to the top, promote expansion plate 32, make expansion plate 32 slide in fixed slot 31, then through pulling expansion rod 34, make the expansion rod 34 drive anti-skidding packing ring 35 slide in fixed spout 33, the convenience is to expansion plate 32's fixed, the convenience is to the expansion of backup pad 21, can conveniently play the effect of show to bigger animation through opening of backup pad 21.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. Movie & TV animation display device, its characterized in that includes: the device comprises a device main body and a device main body, wherein the device main body comprises supporting legs (1), the top ends of the supporting legs (1) are fixedly connected with connecting bases (11), and the bottom ends of the connecting bases (11) are fixedly connected with connecting drawers (12);

adjustment mechanism, including sliding tray (2), the inboard at connection base (11) is seted up in sliding tray (2), the surface of connecting base (11) rotates and is connected with backup pad (21), the inboard sliding connection of sliding tray (2) has slide bar (22), the surface rotation of slide bar (22) is connected with hinge bar (23), the inboard sliding connection of slide bar (22) has the pressure piece (24), spacing draw-in groove (25) have been seted up to the inboard of connecting base (11), the fixed surface who presses piece (24) is connected with connecting spring (26), the inboard fixedly connected with connecting plate (27) of slide bar (22).

2. A movie/animation presentation device according to claim 1, characterized in that: the support plate (21) is in a long plate shape and is rotatably connected with the connecting base (11), and the sliding rod (22) is in a long rod shape and is slidably connected with the inner side of the sliding groove (2).

3. A movie/animation presentation device according to claim 1, characterized in that: the pressing blocks (24) are connected to the inner side of the sliding rod (22) in a two-group sliding mode, and the sliding rod (22) is movably connected with the supporting plate (21) through a hinge rod (23).

4. A movie/animation presentation device according to claim 1, characterized in that: the limiting clamping grooves (25) are uniformly formed in the inner side of the connecting base (11), and the connecting plate (27) is fixedly connected to the inner side of the sliding rod (22) in a long plate shape.

5. A movie/animation presentation device according to claim 1, characterized in that: the connecting plate (27) is movably connected with the pressing block (24) through a connecting spring (26).

6. A movie/animation presentation device according to claim 1, characterized in that: the surface of backup pad (21) is provided with deployment mechanism, deployment mechanism includes spread groove (3), the inboard in backup pad (21) is seted up in spread groove (3), fixed slot (31) have been seted up to the inboard of backup pad (21), the inboard sliding connection of spread groove (3) has expansion board (32), fixed spout (33) have been seted up to the inboard of backup pad (21), the inboard sliding connection of fixed spout (33) has pulling rod (34), the outside fixedly connected with antiskid packing ring (35) of pulling rod (34).

7. The movie animation presentation device according to claim 6, wherein: the connecting groove (3) is in the shape of a long groove and is formed in the inner side of the supporting plate (21), and the unfolding plate (32) is in the shape of a long plate and is connected to the inner side of the connecting groove (3) in a sliding mode.

8. The movie animation presentation device according to claim 6, wherein: the pulling rod (34) is in L-shaped sliding connection on the inner side of the fixed sliding groove (33), and the anti-skid washer (35) is in circular ring shape and is fixedly connected on the outer side of the pulling rod (34).
