CN218359416U

CN218359416U - Test-tube rack for food detection

Info

Publication number: CN218359416U
Application number: CN202222863215.9U
Authority: CN
Inventors: 王发艳
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-10-28
Filing date: 2022-10-28
Publication date: 2023-01-24
Anticipated expiration: 2032-10-28

Abstract

The utility model discloses a test-tube rack for food detection, it includes the rack, the rack bottom is equipped with the mobile device, the equal fixed connection in rack top both sides is equipped with the riser, two the both sides are all inlayed and are equipped with the arc spout about the riser, are located two on the same horizontal plane equal slip joint is equipped with the connecting axle on the arc spout, two fixed connection is equipped with between the connecting axle and places the board, two from top to bottom place fixed connection is equipped with a plurality of evenly distributed's fixed strip between the board, is located two of one side the one end of connecting axle is passed arc spout and its tip and is equipped with the rocking device. The utility model discloses convenient to use conveniently rocks, releases the labour.

Description

Test-tube rack for food detection

Technical Field

The utility model relates to a food detection technology field specifically is a test-tube rack for food detection.

Background

The test-tube rack is the instrument commonly used in the experimentation, when current to food safety inspection, often needs to use the test-tube rack.

The food safety detection is used for detecting harmful substances in food according to national indexes, and mainly used for detecting harmful and toxic indexes, such as heavy metal, aflatoxin and the like. The test tube is a common glassware in food detection, and the test tube is usually required to be regularly shaken in the detection process to realize the chemical reaction required by detection and ensure that the reaction is more sufficient. In the conventional method, the test tube is shaken by hands, so that the test solution is easy to overflow when the test tube is too large, and the reaction is easy to be uneven when the test tube is too small. The long-time manual shaking easily causes fatigue of experimenters, and the existing test tube rack is inconvenient to move, so that the danger is increased during carrying.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome above technical defect, a food detects uses test-tube rack is provided.

In order to solve the above problem, the technical scheme of the utility model is that: the utility model provides a test-tube rack for food detection, it includes the rack, the rack bottom is equipped with the mobile device, the equal fixed connection in rack top both sides is equipped with the riser, two the both sides are all inlayed and are equipped with the arc spout about the riser, are located two on the same horizontal plane equal sliding clamping is equipped with the connecting axle on the arc spout, two fixed connection is equipped with between the connecting axle places the board, two from top to bottom place fixed connection is equipped with a plurality of evenly distributed's fixed strip between the board, is located two of one side the one end of connecting axle is passed arc spout and its tip and is equipped with the rocking device.

Furthermore, the moving device comprises four grooves, the four grooves are embedded in four sides of the bottom of the placing rack, electric telescopic columns are fixedly connected in the four grooves, and pulleys are fixedly connected to the bottoms of the electric telescopic columns.

Preferably, the bottom of the placing frame is fixedly connected with a non-slip mat.

Furtherly, two all inlay on the board of placing and be equipped with a plurality of evenly distributed's standing groove.

Preferably, the shaking device comprises a second groove, the second groove is embedded in the vertical plate, a lead screw is fixedly connected between the front side wall and the rear side wall of the second groove, a motor is inserted into one end of the lead screw, the motor is embedded in the vertical plate, a moving block is arranged on the lead screw, telescopic rods are fixedly hinged to the upper side wall and the lower side wall of the moving block, and the other ends of the two telescopic rods are fixedly hinged to the connecting shaft.

Furthermore, a second placing groove is embedded in the placing frame, and a storing cabinet is arranged in the second placing groove in a sliding connection mode.

Preferably, the front of the placing rack is fixedly connected with a control panel.

Compared with the prior art, the utility model the advantage lie in:

when the device is used, firstly, the shaking device is conveniently utilized to drive the two connecting shafts to slide in the arc-shaped grooves, so that the placing plate is shaken, test tubes on the placing plate are shaken, the labor force is released, and the numb of the arms caused by long-time manual shaking is avoided;

secondly, this device is when using, and the mobile device of being convenient for utilize removes the test-tube rack to the person of facilitating the use uses, and is also more convenient, reduces artifical transport, thereby releases the labour, reduces the work burden.

Drawings

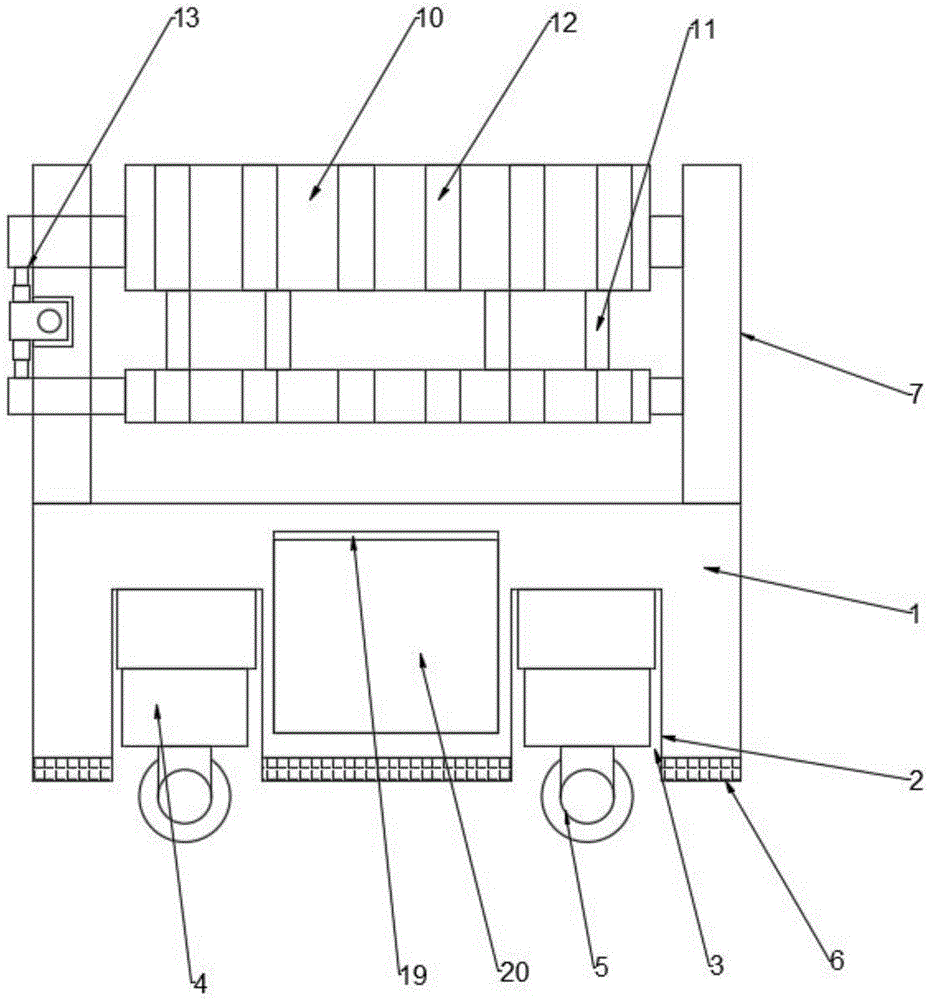

Fig. 1 is a schematic diagram of an internal structure of a test tube rack for food detection according to the present invention;

FIG. 2 is a front view of a test tube rack for food inspection according to the present invention;

fig. 3 the utility model provides a left side structure schematic diagram of test-tube rack for food detection.

As shown in the figure: 1. placing a rack; 2. a mobile device; 3. a groove; 4. an electric telescopic column; 5. a pulley; 6. a non-slip mat; 7. a vertical plate; 8. an arc-shaped chute; 9. a connecting shaft; 10. placing a plate; 11. a fixing strip; 12. a placement groove; 13. a shaking device; 14. a second groove; 15. a lead screw; 16. a motor; 17. a moving block; 18. a telescopic rod; 19. a second placing groove; 20. a storage cabinet; 21. a control panel.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1 to 3, a test tube rack for food detection comprises a rack 1, wherein a moving device 2 is arranged at the bottom of the rack 1, vertical plates 7 are fixedly connected to two sides of the top of the rack 1, arc-shaped sliding grooves 8 are embedded in the upper and lower sides of the vertical plates 7, two connecting shafts 9 are arranged on the arc-shaped sliding grooves 8 in a sliding and clamping mode, two placing plates 10 and two placing grooves 12 are embedded in the placing plates 10 and are uniformly distributed, two fixing strips 11 are fixedly connected between the placing plates 10 and are uniformly distributed, one ends of the connecting shafts 9 penetrate through the arc-shaped sliding grooves 8, shaking devices 13 are arranged at the ends of the connecting shafts, two placing grooves 19 are embedded in the rack 1, storage cabinets 20 are slidably connected in the two placing grooves 19, and a control panel 21 is fixedly connected to the front of the rack 1.

As shown in fig. 1: the mobile device 2 comprises four grooves 3, the four grooves 3 are embedded in four sides of the bottom of the placement frame 1, four electric telescopic columns 4 are fixedly connected in the grooves 3, pulleys 5 are fixedly connected to the bottoms of the electric telescopic columns 4, and anti-skid pads 6 are fixedly connected to the bottom of the placement frame 1.

As shown in fig. 3: the shaking device 13 comprises a second groove 14, the second groove 14 is embedded in the vertical plate 7, a lead screw 15 is fixedly connected between the front side wall and the rear side wall of the second groove 14, a motor 16 is inserted into one end of the lead screw 15, the motor 16 is embedded in the vertical plate 7, a moving block 17 is arranged on the lead screw 15, telescopic rods 18 are fixedly hinged to the upper side wall and the lower side wall of the moving block 17, and the other ends of the two telescopic rods 18 are fixedly hinged to the connecting shaft 9.

In a particular use, as shown in fig. 1 to 3: this device is when using, when detecting food safety, at first need place the standing groove 12 on placing board 10 with the reagent pipe that the sample is good, then the drive through control panel 21 control motor 16 on rack 1, motor 16's drive will drive the rotation rather than the lead screw 15 that is connected this moment, alright slide in two 14 recesses with the movable block 17 that makes on the lead screw 15 like this, and here simultaneously, telescopic link 18 on the movable block 17 will stretch out and draw back the support, make connecting axle 9 in the arc spout 8 slide in it, alright drive two connecting axles between 9 place board 10 like this, thereby realize rocking of test tube, reduce hand labor's use.

And the mobile device 2 at the bottom of the placing rack 1 is convenient to use the expansion of the electric telescopic column 4 and the pulley 5 to move the placing rack 1, so that the placing rack is used.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. The utility model provides a food detects uses test-tube rack which characterized in that: it includes rack (1), rack (1) bottom is equipped with mobile device (2), rack (1) top both sides equal fixed connection is equipped with riser (7), two riser (7) are all inlayed and are equipped with arc spout (8) in both sides about, are located two on the same horizontal plane equal sliding clamping is equipped with connecting axle (9), two on arc spout (8) fixed connection is equipped with places board (10) between connecting axle (9), two from top to bottom place fixed connection is equipped with a plurality of evenly distributed's fixed strip (11) between board (10), is located two of one side the one end of connecting axle (9) is passed arc spout (8) and its tip is equipped with and rocks device (13).

2. The test tube rack for food detection according to claim 1, characterized in that: the mobile device (2) comprises four grooves (3), the four grooves (3) are embedded in four sides of the bottom of the placing rack (1), four electric telescopic columns (4) are fixedly connected in the grooves (3), and pulleys (5) are fixedly connected to the bottoms of the electric telescopic columns (4).

3. The test tube rack for food detection according to claim 1, characterized in that: the bottom of the placing rack (1) is fixedly connected with an anti-slip mat (6).

4. The test tube rack for food detection according to claim 1, characterized in that: a plurality of placing grooves (12) which are uniformly distributed are embedded in the two placing plates (10).

5. The test tube rack for food detection according to claim 1, characterized in that: the shaking device (13) comprises a second groove (14), the second groove (14) is embedded in the vertical plate (7), a lead screw (15) is fixedly connected between the front side wall and the rear side wall of the second groove, a motor (16) is inserted into one end of the lead screw (15), the motor (16) is embedded in the vertical plate (7), a moving block (17) is arranged on the lead screw (15), telescopic rods (18) are fixedly hinged to the side walls of the upper side and the lower side of the moving block (17), and the other ends of the telescopic rods (18) are fixedly hinged to the connecting shaft (9).

6. The test tube rack for food detection according to claim 1, characterized in that: a second placing groove (19) is embedded in the placing frame (1), and a storing cabinet (20) is arranged in the second placing groove (19) in a sliding connection mode.

7. The test tube rack for food detection according to claim 1, characterized in that: the front of the placing rack (1) is fixedly connected with a control panel (21).
