CN218324009U

CN218324009U - Be used for building engineering assistor of building a wall

Info

Publication number: CN218324009U
Application number: CN202222285484.1U
Authority: CN
Inventors: 鲜洋; 秦伟; 张玉姣
Original assignee: Hubei Xinmin Construction Group Co ltd
Current assignee: Hubei Xinmin Construction Group Co ltd
Priority date: 2022-08-26
Filing date: 2022-08-26
Publication date: 2023-01-17
Anticipated expiration: 2032-08-26

Abstract

The utility model relates to a building engineering technical field just discloses a be used for building a wall assistor for building engineering, including splint, splint top surface one end is provided with the support, and the support top surface is provided with the guide rail, and the inside connecting block that is provided with of guide rail, splint two and splint side have seted up the spout respectively, the inside threaded rod that is provided with of spout, the threaded rod bottom surface is provided with spacing, and the threaded rod outer peripheral face is provided with the nut. This be used for building a wall assistor for building engineering, the thickness of the mortar of piling up as required, promote the height of threaded rod in the spout, make spacing and the required mortar thickness keep unanimous, screw up the nut, make spacing keep behind the current position, pack the mortar between splint and splint two, paint the mortar and make mortar and spacing top surface unanimous, place the fragment of brick on the mortar and can build a wall, thereby avoided needing the workman to observe behind the mortar thickness through the naked eye, readjustment mortar thickness, thereby improved the efficiency that the workman built a wall.

Description

Be used for building a wall assistor of building engineering

Technical Field

The utility model relates to a building engineering technical field specifically is a be used for building a wall assistor of building engineering.

Background

Building a wall is built, the firmest mode of building a wall is to take the step by step, when building a wall, most of owners still select conventional altar worker building method like before, the house wall built with this kind of mode can play the effect of temperature buffering, thereby can ensure indoor temperature, humidity is moderate, good syllable-dividing effect has also been guaranteed to thick brick wall in addition, supplementary device of building a wall is convenient for more quickly come back to build a wall, for this utility model patent CN209942260U has published a building engineering auxiliary device of building a wall, through being equipped with main end plate and vice end plate, the kelly that is equipped with by main end plate inner chamber combines together with the fixture block that vice end plate top was equipped with, be convenient for adjust the curb plate distance, and then adapt to the wall width, but when building a wall, there is different requirements to the thickness of mortar, this supplementary unable supplementary workman control mortar thickness, need the workman rely on the naked eye to observe mortar thickness, thereby the efficiency of building a wall has been reduced.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a be used for building a wall assistor of building engineering possesses and avoids needing the workman to pass through behind the visual observation mortar thickness, readjusts mortar thickness to improve advantages such as the efficiency that the workman built a wall, solved above-mentioned technical problem.

(II) technical scheme

In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides a be used for building a wall assistor for building engineering, includes splint, splint top surface one end is provided with the support, the support top surface is provided with the guide rail, the inside connecting block that is provided with of guide rail, the connecting block bottom surface is provided with support two, two bottom surfaces of support are provided with splint two, the spout has been seted up respectively to splint two and splint side, the inside threaded rod that is provided with of spout, the threaded rod bottom surface is provided with spacing, the threaded rod outer peripheral face is provided with the nut.

Preferably, the spout has been seted up respectively to splint side middle-end and the positive one end of being close to splint two, the inside sliding connection of spout has the threaded rod, threaded rod bottom surface fixed mounting has spacing, spacing is located between splint and the splint two, spacing is provided with two.

Preferably, a nut is screwed on the outer peripheral surface of the threaded rod.

Preferably, the splint top surface is kept away from splint front one end fixed mounting and is had the support, support top surface and guide rail bottom surface one end fixed mounting, two top surfaces of splint are kept away from two front one end fixed mounting of splint and are had support two, two bottom surfaces fixed mounting of support have the connecting block, connecting block and guide rail sliding connection.

Preferably, a second threaded rod is arranged on the side face of the clamping plate, and a rubber pad is arranged on the two side faces of the clamping plate.

Preferably, the side surface of the clamping plate is in threaded connection with a second threaded rod, the bottom surface of the second threaded rod is rotatably connected with a second rubber pad, three groups of the second threaded rod and three groups of the second rubber pads are arranged, and the three rubber pads are fixedly arranged on the two sides of the clamping plate and symmetrically arranged with the rubber pads.

Compared with the prior art, the utility model provides a be used for building a wall assistor of building engineering possesses following beneficial effect:

1. the utility model discloses an offer the spout respectively in splint side middle-end and near splint front one end, the spout has been offered respectively in splint side middle-end and near two front one ends of splint, the inside sliding connection of spout has the threaded rod, spacing is installed to the threaded rod bottom surface, threaded rod outer shaft face threaded connection has the nut, the thickness of the mortar of piling up as required, promote the height of threaded rod in the spout, make spacing keep unanimous with the required mortar thickness, screw up the nut, make spacing keep behind the current position, pack the mortar between splint and splint two, paint the mortar and make the mortar unanimous with spacing top surface, place the fragment of brick and can build a wall on the mortar, thereby avoided needing the workman to observe behind the mortar thickness through the naked eye, readjust mortar thickness, thereby the efficiency of building a wall of workman has been improved.

2. The utility model discloses an at splint top surface installing support, support top surface installation guide rail, two top surface installing supports of splint two, the connecting block is installed to two top surfaces of support, connecting block and guide rail sliding connection, splint side threaded connection has threaded rod two, rubber pad two is installed to the rotatable formula in two bottom surfaces of threaded rod, the rubber pad is installed to the splint two sides, after rubber pad and fragment of brick laminating, rotary threaded rod two, control threaded rod two-way fragment of brick direction displacement, make rubber pad two and fragment of brick laminating, make assistor and the wall body laminating of building a wall, thereby can be according to the wall body of different thickness, interval between two control splint of rotary threaded rod and the splint two, thereby make the wall body that assistor can be suitable for different thickness of building a wall, the suitability of assistor of building a wall is improved.

Drawings

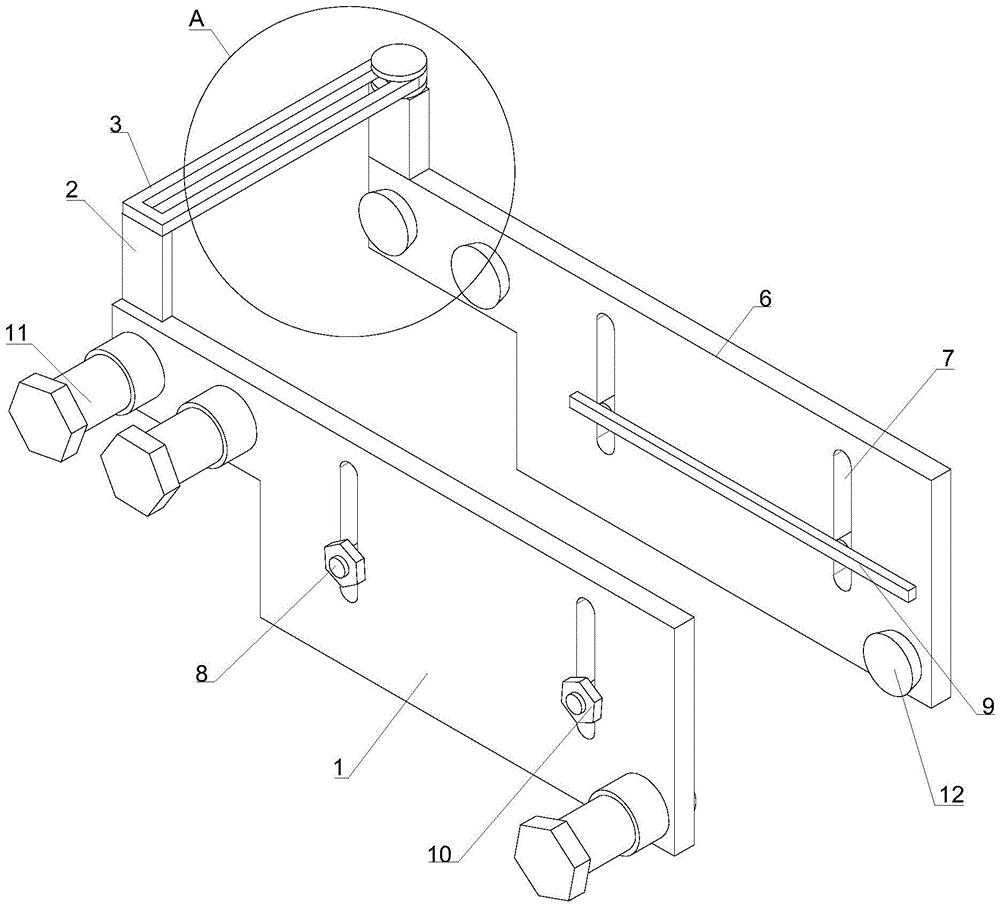

FIG. 1 is a perspective view of the present invention;

FIG. 2 is a front view of the structure of the present invention;

FIG. 3 is an enlarged view of part A of the structure of FIG. 1;

fig. 4 is a schematic diagram of the structure of fig. 2, which is a partial enlarged view of B.

Wherein: 1. a splint; 2. a support; 3. a guide rail; 4. connecting blocks; 5. a second bracket; 6. a second clamping plate; 7. a chute; 8. a threaded rod; 9. a limiting strip; 10. a nut; 11. a second threaded rod; 12. a rubber pad; 13. and a second rubber pad.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, an assistor for building a wall in constructional engineering comprises a clamp plate 1, wherein a support 2 is arranged at one end of the top surface of the clamp plate 1, a guide rail 3 is arranged on the top surface of the support 2, a connecting block 4 is arranged inside the guide rail 3, a support second 5 is arranged on the bottom surface of the connecting block 4, a clamp plate second 6 is arranged on the bottom surface of the support second 5, slide grooves 7 are respectively formed in the clamp plate second 6 and the side surface of the clamp plate 1, a threaded rod 8 is arranged inside the slide grooves 7, a limiting strip 9 is arranged on the bottom surface of the threaded rod 8, and a nut 10 is arranged on the peripheral surface of the threaded rod 8.

Concretely, splint 1 side middle-end has seted up spout 7 respectively with being close to splint 1 front one end, and spout 7 has been seted up respectively with being close to splint two 6 front one ends in splint two 6 side middle-ends, and the inside sliding connection of spout 7 has threaded

rod

8, and 8 bottom surfaces of threaded rod fixed mounting have spacing 9, and spacing 9 is located between splint 1 and the splint two 6, and spacing 9 is provided with two, and 8 outer peripheral face threaded connection of threaded rod have nut 10. The mortar filling machine has the advantages that the middle end of the side surface of the clamping plate 1 and the end close to the front surface of the clamping plate 1 are respectively provided with the sliding groove 7, the middle end of the side surface of the clamping plate two 6 and the end close to the front surface of the clamping plate two 6 are respectively provided with the sliding groove 7, the sliding connection inside the sliding groove 7 is provided with the threaded rod 8, the bottom surface of the threaded rod 8 is provided with the limiting strip 9, the outer shaft surface of the threaded rod 8 is in threaded connection with the nut 10, the height of the threaded rod 8 in the sliding groove 7 is pushed according to the thickness of mortar to enable the limiting strip 9 to be consistent with the required thickness of the mortar, the nut 10 is screwed down, the mortar is filled between the clamping plate 1 and the clamping plate two 6 after the limiting strip 9 is kept at the current position, the mortar is coated to enable the mortar to be consistent with the top surface of the limiting strip 9, the brick is placed on the mortar to build a wall, the condition that a worker needs to observe the mortar thickness through naked eyes is avoided, and the mortar thickness is adjusted, and the efficiency of the wall building of the worker is improved.

Specifically, the support 2 is fixedly mounted at one end, away from the front side, of the clamping plate 1, of the top surface of the clamping plate 1, the support 2 is fixedly mounted at one end, away from the front side, of the clamping plate two 6, the support two 5 is fixedly mounted at one end, away from the front side, of the clamping plate two 6, the connecting block 4 is fixedly mounted at one end, towards the bottom side, of the support two 5, the connecting block 4 is in sliding connection with the guide rail 3, the threaded rod two 11 is arranged on the side surface of the clamping plate 1, the rubber pad 12 is arranged on the side surface of the clamping plate two 6, the threaded rod two 11 is in threaded connection with the side surface of the clamping plate 1, the bottom surface of the threaded rod two 11 is in rotatable connection with the rubber pad two 13, the threaded rod two 11 and the rubber pad two 13 are provided with three groups, the three rubber pads 12 are fixedly mounted on the side surface of the clamping plate two 6, and the rubber pads 12 and the rubber pads 13 are symmetrically mounted. The wall building assistor has the advantages that the support 2 is installed on the top face of the clamping plate 1, the guide rail 3 is installed on the top face of the support 2, the support 5 is installed on the top face of the clamping plate 6, the connecting block 4 is installed on the top face of the support 5, the connecting block 4 is in sliding connection with the guide rail 3, the threaded rod II 11 is in threaded connection with the side face of the clamping plate 1, the rubber pad II 13 is installed in the bottom face of the threaded rod II 11 in a rotatable mode, the rubber pad II 12 is installed on the side face of the clamping plate II 6, after the rubber pad 12 is attached to a brick, the threaded rod II 11 rotates towards the brick direction to move, the rubber pad II 13 is attached to the brick, the wall building assistor is attached to a wall body, accordingly, the distance between the clamping plate 1 and the clamping plate II 6 can be controlled by the threaded rod II according to walls with different thicknesses, the wall building assistor can be suitable for walls with different thicknesses, and applicability of the wall building assistor is improved.

When the mortar laying device is used, the clamping plates 1 and the clamping plates 6 are respectively placed on two sides of a wall body, the threaded rod 11 is rotated after the rubber pads 12 are attached to bricks, the threaded rod 11 is controlled to move towards the direction of the bricks, the rubber pads 13 are attached to the bricks, the wall laying assistor is attached to the wall body, the height of the threaded rod 8 in the sliding groove 7 is pushed according to the thickness of mortar to be laid, the limiting strips 9 are enabled to be consistent with the required mortar thickness, the nuts 10 are screwed, the mortar is filled between the clamping plates 1 and the clamping plates 6 after the limiting strips 9 are enabled to be kept at the current position, the mortar is smeared to enable the top surfaces of the mortar and the limiting strips 9 to be consistent, and the bricks are placed on the mortar to lay a wall.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a be used for building a wall assistor of building engineering, includes splint (1), its characterized in that: splint (1) top surface one end is provided with support (2), support (2) top surface is provided with guide rail (3), guide rail (3) inside is provided with connecting block (4), connecting block (4) bottom surface is provided with support two (5), support two (5) bottom surfaces are provided with splint two (6), spout (7) have been seted up respectively to splint two (6) and splint (1) side, spout (7) inside is provided with threaded rod (8), threaded rod (8) bottom surface is provided with spacing (9), threaded rod (8) outer peripheral face is provided with nut (10).

2. An aid for building a wall for a construction project according to claim 1, wherein: splint (1) side middle-end and being close to splint (1) front one end and having seted up spout (7) respectively, spout (7) have been seted up respectively to splint two (6) side middle-end and being close to splint two (6) front one end, spout (7) inside sliding connection has threaded rod (8), threaded rod (8) bottom surface fixed mounting has spacing (9), spacing (9) are located between splint (1) and splint two (6), spacing (9) are provided with two.

3. An aid for building a wall for a construction project according to claim 1, wherein: the outer peripheral surface of the threaded rod (8) is in threaded connection with a nut (10).

4. An aid for building a wall for a construction project according to claim 1, wherein: splint (1) top surface is kept away from splint (1) positive one end fixed mounting and is had support (2), support (2) top surface and guide rail (3) bottom surface one end fixed mounting, splint two (6) top surfaces are kept away from splint two (6) positive one end fixed mounting and are had support two (5), support two (5) bottom surface fixed mounting has connecting block (4), connecting block (4) and guide rail (3) sliding connection.

5. The auxiliary device for building a wall in constructional engineering according to claim 1, wherein: the side surface of the clamping plate (1) is provided with a second threaded rod (11), and the side surface of the clamping plate (6) is provided with a rubber pad (12).

6. An aid for building a wall according to claim 5, wherein: splint (1) side threaded connection has two threaded rods (11), the rotatable formula in two threaded rods (11) bottom surfaces is connected with two rubber pads (13), just two threaded rods (11) and two rubber pads (13) are provided with three groups, splint two (6) side fixed mounting has three rubber pad (12), just rubber pad (12) and two rubber pad (13) symmetrical installation.
