The utility model discloses a quilt with bed cover function relates to bedding technical field, including the quilt body, the quilt cover has been cup jointed to the outside of quilt body, and fixed cover has been made up to the trilateral bottom of quilt cover, and the inside parcel of fixed cover has the mattress, and first sprocket and second sprocket have been made up to one side of quilt cover, and the meshing has the locking pull head between first sprocket and the second sprocket. The utility model has the advantages that: this quilt with bed cover function, fixed cover through quilt cover bottom is made up utilizes fixed cover to the parcel of mattress, carries on spacingly to the position of quilt in the quilt cover, and the user can carry out the sleep through the space between quilt cover and the fixed cover while, and trilateral all link together with fixed cover of quilt cover, so the quilt can not receive user's influence landing, avoids the user to catch a cold or catch a cold, makes the quilt outside quilt cover have the performance of bed cover, and the function is more abundant.
Description
Technical Field
The utility model relates to the technical field of bedding, in particular to a quilt with a bed cover function.
Background
The bedding articles such as quilts and the like which are directly contacted with the skin provide indispensable conditions for people to better enjoy comfortable sleep, and along with the improvement of living standard, in order to create a comfortable sleep environment and better enjoy sleep, the demand of people for the quilts is increased, and the quilt cover is usually sleeved outside the quilt to avoid the contamination of the cotton quilt and be convenient to clean.
For the crowd with poor sleeping posture, the quilt is easy to slide off when in use, so that the user is exposed to the cold and the like, and the quilt is troublesome to fold and arrange due to the thickness of the quilt, lower in efficiency and single in whole function.
SUMMERY OF THE UTILITY MODEL
The utility model provides a quilt with the function of a bed cover, which solves the problems in the prior art.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the quilt with the bed cover function comprises a quilt body, wherein a quilt cover is sleeved outside the quilt body, a fixed cover is sewn at the bottom of the three sides of the quilt cover, a mattress is wrapped inside the fixed cover, a first sprocket and a second sprocket are sewn on one side of the quilt cover, a locking pull head is meshed between the first sprocket and the second sprocket, a limiting groove is formed in the top and the bottom of the inner wall of the fixed cover, and an elastic band is arranged inside the limiting groove.
Preferably, two corresponding edges of one end of the quilt cover are not completely sealed with the fixing sleeve.
Preferably, the structure of the fixed sleeve and the structure of the limiting groove are respectively in a concave shape and a square-shaped shape.
Preferably, the length of the quilt cover is smaller than that of the fixing sleeve.
Preferably, a certain space is reserved between the quilt cover and the fixing sleeve.
Preferably, the harness conforms to the size of the mattress.
The utility model provides a quilt with bed cover function possesses following beneficial effect:
1. this quilt with bed cover function, fixed cover through quilt cover bottom is made up utilizes fixed cover to the parcel of mattress, carries on spacingly to the position of quilt in the quilt cover, and the user can carry out the sleep through the space between quilt cover and the fixed cover while, and trilateral all link together with fixed cover of quilt cover, so the quilt can not receive user's influence landing, avoids the user to catch a cold or catch a cold, makes the quilt outside quilt cover have the performance of bed cover, and the function is more abundant.
2. This quilt with bed cover function, through quilt outside quilt cover and fixed cover integral type structure, make the quilt can be smooth the shop cover in bed, do not need manual to arrange in order to have the effect of sheet, be favorable to using person's time cost of saving, it is more convenient, and the inside edge of fixed cover is provided with the elastic cord, make fixed cover can be more stable fix on the mattress.
Drawings
FIG. 1 is a schematic structural view of the present invention;

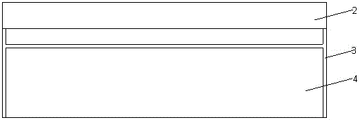

fig. 2 is a top plan view of the present invention;
FIG. 3 is a side cross-sectional view of the present invention;
FIG. 4 is an enlarged view of the point A in FIG. 3 according to the present invention;
fig. 5 is a front view of the present invention.
In the figure: 1. a quilt body; 2. a quilt cover; 3. fixing a sleeve; 4. a mattress; 5. a first sprocket; 6. a second sprocket; 7. locking the puller; 8. a limiting groove; 9. and (4) elastic bands.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 5, the present invention provides a technical solution: a quilt with a bed cover function comprises a quilt body 1, a quilt cover 2 is sleeved outside the quilt body 1, a fixing sleeve 3 is sewn at the bottom of three sides of the quilt cover 2, a certain space is reserved between the quilt cover 2 and the fixing sleeve 3, the length of the quilt cover 2 is smaller than that of the fixing sleeve 3, a space is reserved for the head of a person during sleeping, two corresponding sides of one end of the quilt cover 2 are not completely sealed with the fixing sleeve 3, a user can conveniently enter and exit from the space between the quilt cover 2 and the fixing sleeve 3, a mattress 4 is wrapped inside the fixing sleeve 3, the mattress 4 is wrapped by the fixing sleeve 3, three sides of the quilt body 1 and the quilt cover 2 are connected with the fixing sleeve 3, the position of the quilt body 1 is limited, the quilt body 1 is prevented from falling off due to the influence of the user, and the windproof performance of the quilt body 1 is further improved, prevent that the user from catching a cold or when catching a cold, have the performance of bed cover and sheet concurrently, the function is more abundant, and need not fold the arrangement, fixed cover 3 keeps unanimous with mattress 4's size, make fixed cover 3 laminate with mattress 4 more, first sprocket 5 and second sprocket 6 have been made up to one side of quilt cover 2, the meshing has locking pull head 7 between first sprocket 5 and the second sprocket 6, slip through locking pull head 7, control the closure of first sprocket 5 and second sprocket 6, conveniently change quilt body 1, spacing groove 8 has all been seted up to the top and the bottom of fixed cover 3 inner wall, spacing groove 8's inside is provided with elastic cord 9, fix mattress 4 through the elasticity of spacing groove 8 self, the structure of fixed cover 3 and spacing groove 8 is character cut in bas-relief and return font respectively, make fixed cover 3 can more stable parcel live mattress 4.
In conclusion, in the quilt with the bed cover function, when the quilt is used, the locking pull head 7 on one side of the quilt cover 2 is pulled, the quilt body 1 is placed into the quilt cover 2 and laid flat by utilizing the meshing of the locking pull head 7 and the first chain teeth 5 and the second chain teeth 6, the mattress 4 is wrapped by the groove in the fixing cover 3 due to the concave structure of the fixing cover 3, the elastic band 9 in the fixing cover 3 is stretched by the action of the mattress 4, the mattress 4 is tightened under the action of self elasticity, the fixing cover 3 is tightly fixed on the mattress 4, and similarly, the quilt body 1 is limited by the mattress 4 under the action of the quilt cover 2 and the fixing cover 3 on three sides, when a user needs to sleep, two corresponding sides of one end of the quilt cover 2 are not completely sealed with the fixing cover 3, so that one end of the quilt body 1 and one end of the quilt cover 2 can be lifted to a certain extent, the user can enter a gap between the quilt cover 2 and the fixing cover 3, and the quilt body can not be lifted to move into the gap between the quilt cover 2 and the quilt body 1 and the quilt body after the user is folded.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a quilt with bed cover function, includes quilt body (1), its characterized in that: quilt cover (2) has been cup jointed to the outside of quilt body (1), fixed cover (3) have been made up to trilateral bottom in quilt cover (2), the inside parcel of fixed cover (3) has mattress (4), first sprocket (5) and second sprocket (6) have been made up to one side of quilt cover (2), it has locking pull head (7) to mesh between first sprocket (5) and second sprocket (6), spacing groove (8) have all been seted up to the top and the bottom of fixed cover (3) inner wall, the inside of spacing groove (8) is provided with elastic cord (9).
2. A quilt having a fitted sheet function according to claim 1, wherein: two corresponding sides of one end of the quilt cover (2) are not completely sealed with the fixed sleeve (3).
3. A quilt having a fitted sheet function according to claim 1, wherein: the structure of the fixed sleeve (3) and the structure of the limiting groove (8) are respectively in a shape like a Chinese character 'ao' and a shape like a Chinese character 'hui'.
4. A quilt having a fitted sheet function as claimed in claim 1, wherein: the length of the quilt cover (2) is less than that of the fixing sleeve (3).
5. A quilt having a fitted sheet function according to claim 1, wherein: a certain space is reserved between the quilt cover (2) and the fixed sleeve (3).
6. A quilt having a fitted sheet function as claimed in claim 1, wherein: the size of the fixing sleeve (3) is consistent with that of the mattress (4).
