Abstract

The utility model relates to the technical field of solidified soil mixing, in particular to a mixing equipment for anti-cracking fluid state solidified soil, which includes a tank body support, a stirring tank is fixedly installed on the upper end of the tank body support, and the stirring tank The left end is provided with a liquid feed port, the lower end of the stirring tank is provided with a discharge port, the right side of the stirring tank is interspersed with a rotating rod, and the circumferential surface of the left end of the rotating rod is fixedly installed with a fixed ring. Stirring mechanisms are provided on both sides of the circumferential surface of the fixing ring, and the stirring mechanisms include rectangular plates. The utility model drives the rotating rod to rotate through the motor, and the rotating rod drives the fixed ring to rotate, and the fixed ring will drive two sets of stirring mechanisms to stir and mix the slurry and soil inside the mixing tank, and the outermost stirring blades in the two sets of mixers and the stirring The inner wall of the tank is closely bonded, so the inner wall of the mixing tank can be scraped during stirring, so as to prevent the liquid solidified soil from remaining on the inner wall of the mixing tank and agglomerating after the mixing is completed.

Description

A kind of mixing equipment for anti-crack fluid solidified soil

technical field

The utility model relates to the technical field of solidified soil mixing, in particular to a mixing device for crack-resistant fluid solidified soil.

Background technique

Ready-mixed fluidized solidified soil is equivalent to "concrete" in a broad sense. Ready-mixed fluidized solidified soil is solidified with high-efficiency rock and soil consolidation agent for fine-grained soil (silt soil, silt, clay, weathered rock particles, etc.). The internal mixing mechanism of some liquid solidified soil mixing equipment does not have a structure to scrape its inner wall, so that the liquid solidified soil will remain on the inner wall to solidify after the mixing is completed, and it is difficult to clean and beat the mixing equipment in the later stage. reason.

Utility model content

In order to overcome the deficiencies of the prior art, the utility model provides a mixing equipment for cracking-resistant fluid solidified soil, which includes a tank body bracket, and a stirring tank is fixedly installed on the upper end of the tank body bracket, and the left side of the mixing tank is There is a liquid feed port at the end, and a discharge port is provided at the lower end of the stirring tank. A rotating rod is inserted and rotated on the right side of the stirring tank, and a fixed ring is fixedly installed on the circumferential surface of the left end of the rotating rod. Stirring mechanisms are provided on both sides of the circumferential surface of the ring, and the stirring mechanism includes a rectangular plate fixedly mounted on the circumferential surface of the fixed ring, and three sliding holes are opened through the side end of the fixed ring, and the fixed ring Stirring blades are slidably installed in the three sliding holes, and three first screw rods are threaded on the top of the rectangular plate, and the lower ends of the three first screw rods are respectively threaded with three stirring blades. The mechanism is located inside the mixing tank and rotates.

In order to solve the above technical problems, the utility model provides the following technical solutions:

As a preferred technical solution of the utility model, the upper end of the mixing tank is fixedly equipped with a lower material box, the lower material box is connected with the inside of the mixing tank, and the left side of the lower material box is fixedly installed with a fixing plate.

As a preferred technical solution of the present invention, the upper end of the fixing plate is threaded and installed with a second screw, and the front end of the fixing plate is inserted and rotated with a rotating shaft.

As a preferred technical solution of the present invention, the lower end of the second screw sticks to the surface of the rotating shaft, and the second bevel gear is fixedly installed on the front and rear circumferential surfaces of the rotating shaft.

As a preferred technical solution of the present invention, the side ends of the two second bevel gears are meshed with the first bevel gears, and the right ends of the two first bevel gears are fixedly installed with connecting rods.

As a preferred technical solution of the utility model, the two connecting rods are interspersed and rotatably mounted on the front and rear sides inside the discharge box, and the circumferential surfaces of the two connecting rods are fixedly mounted with adjustment covers.

Compared with the prior art, the beneficial effects that the utility model can achieve are:

1. The mixing equipment for anti-cracking fluid state solidified soil, the motor drives the rotating rod to rotate, the rotating rod drives the fixed ring to rotate, and the fixed ring drives two sets of stirring mechanisms to mix the slurry and soil inside the mixing tank , and the outermost mixing blades of the two sets of mixers are attached to the inner wall of the mixing tank, so the inner wall of the mixing tank can be scraped during stirring to prevent the liquid solidified soil from remaining on the inner wall of the mixing tank to form agglomerates after the mixing is completed, and In the later cleaning process, the two stirring blades located on the outside can also clean the inner wall of the mixing tank, which greatly improves the practicability of the mixing equipment.

2. The mixing equipment for anti-cracking fluid state solidified soil, through the two second bevel gears, the first bevel gear and the adjustment cover arranged at the upper end of the feeding box, can control the mixing of soil and slurry The feeding speed of the soil prevents a large amount of soil from being mixed with the mud suddenly to cause uneven mixing. This design greatly improves the mixing efficiency of the mixing equipment and makes the mixing more uniform.

Description of drawings

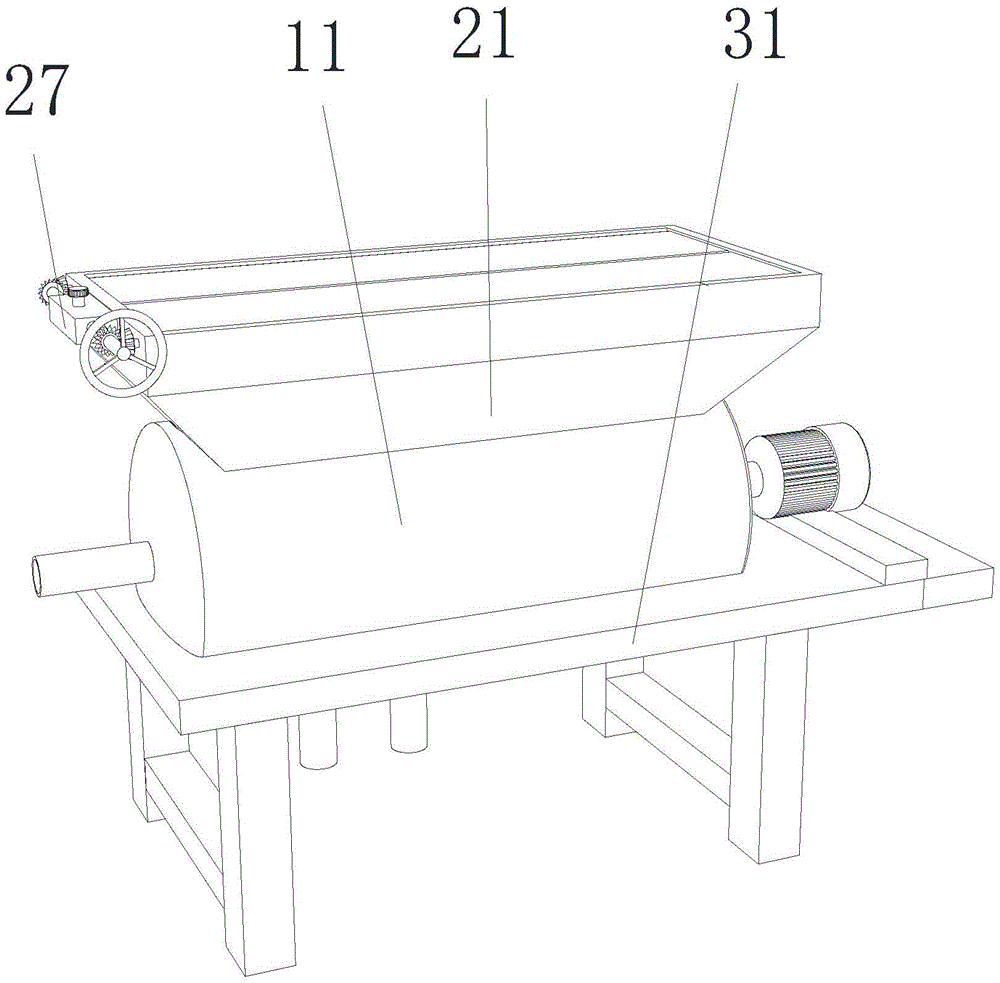

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the structural representation of the utility model blanking box;

Fig. 3 is the structural representation of the utility model first bevel gear;

Fig. 4 is a structural schematic diagram of the rotating rod of the utility model.

Among them: 11. Stirring tank; 12. Rotating rod; 13. Fixed ring; 14. First screw; 15. Rectangular plate; 16. Stirring blade; 21. Discharging box; 22. Adjusting cover; , the first bevel gear; 25, the rotating shaft; 26, the second bevel gear; 27, the fixed plate; 28, the second screw rod; 31, the tank support.

detailed description

In order to make the technical means, creative features, goals and effects of the utility model realized easy to understand, the utility model will be further elaborated below in conjunction with specific examples, but the following examples are only preferred embodiments of the utility model, not all . Based on the examples in the implementation manners, other examples obtained by those skilled in the art without making creative efforts all belong to the protection scope of the present utility model. The experimental methods in the following examples, unless otherwise specified, are conventional methods, and the materials, reagents, etc. used in the following examples, unless otherwise specified, can be obtained from commercial sources.

Example:

As shown in Fig. 1, Fig. 2, Fig. 3, and Fig. 4, a kind of mixing equipment for anti-cracking fluid state solidified soil includes a tank body support 31, and a stirring tank 11 is fixedly installed on the upper end of the tank body support 31, and the stirring tank The left end of 11 is provided with a liquid feed port, the lower end of the stirring tank 11 is provided with a discharge port, the right side of the stirring tank 11 is interspersed and rotated and installed with a rotating rod 12, and the circumferential surface of the left side of the rotating rod 12 is fixedly installed with a fixed ring 13. Both sides of the circumferential surface of the ring 13 are equipped with a stirring mechanism, the stirring mechanism comprises a rectangular plate 15, the rectangular plate 15 is fixedly installed on the circumferential surface of the fixed ring 13, the side ends of the fixed ring 13 are provided with three sliding holes, and the three holes provided by the fixed ring 13 Stirring blades 16 are slidably installed in each of the sliding holes, and three first screw rods 14 are threaded through the upper ends of the rectangular plates 15. When using the mixing equipment for anti-cracking fluid solidified soil, the user first unscrews the first screw rod 14. Two screw rods 28, when going to turn the handle at the front end of the rotating shaft 25, the rotating handle will drive the rotating shaft 25 to rotate, and the rotating shaft 25 will drive the two second bevel gears 26 to rotate, through the two second bevel gears 26 and the first bevel gear 24 meshing, the second bevel gear 26 will drive the first bevel gear 24 to rotate, and the first bevel gear 24 will drive the connecting rod 23 to rotate, and the connecting rod 23 will drive the adjustment cover 22 to rotate, because the two second bevel gears 26 Rotate relative to each other, and the two adjusting covers 22 will rotate downward at the same time. At this time, the distance between the two adjusting covers 22 can be adjusted according to the needs, and then the slurry is transported to the inside of the mixing tank 11 through the liquid feeding port. The soil is poured into the mixing tank 11 from between the two adjusting covers 22. At this time, the motor drives the rotating rod 12 to rotate, and the rotating rod 12 drives the fixed ring 13 to rotate, and the fixed ring 13 will drive two groups of stirring mechanisms to stir. The slurry and the soil inside the tank 11 are stirred and mixed. After the stirring is completed, the liquid solidified soil can be discharged through the feeding port. The lower ends of the three first screw rods 14 are respectively threaded with three stirring blades 16, and the two groups of stirring mechanisms are located at The stirring tank 11 rotates inside. The upper end of the mixing tank 11 is fixedly equipped with a lower material box 21 , the lower material box 21 communicates with the inside of the mixing tank 11 , and the left side of the lower material box 21 is fixedly equipped with a fixing plate 27 . The upper end of the fixed plate 27 is threaded and installed with a second screw rod 28 , and the front end of the fixed plate 27 is inserted and rotated with a rotating shaft 25 . The lower end of the second screw rod 28 is attached to the surface of the rotating shaft 25, and the peripheral surface of the front and rear sections of the rotating shaft 25 is fixedly equipped with a second bevel gear 26. The side ends of the two second bevel gears 26 are meshed with the first bevel gears 24 , and the right ends of the two first bevel gears 24 are fixedly mounted with connecting rods 23 . Two connecting rods 23 are all interspersed and rotated and installed on the front and rear sides of the inside of the feeding box 21, and the circumferential surfaces of the two connecting rods 23 are fixedly equipped with an adjusting cover 22. The device drives the rotating rod 12 to rotate through the motor, and the rotating rod 12 drives the fixed ring 13 Rotating, the fixed ring 13 will drive two sets of stirring mechanisms to stir and mix the slurry and soil inside the stirring tank 11, and the outermost stirring blade 16 of the two sets of mixers is attached to the inner wall of the stirring tank 11, so it can be used during stirring. Scratch the inner wall of the mixing tank 11 to prevent the liquid solidified soil from remaining on the inner wall of the mixing tank 11 to form agglomerates after the stirring is completed, and in the later cleaning process, the two stirring blades 16 located on the outside can also damage the inner wall of the mixing tank 11 To the cleaning effect, greatly improving the practicability of the mixing equipment. At the same time, the device uses two second bevel gears 26, a first bevel gear 24 and an adjustment cover 22 arranged on the upper end of the feeding box 21, so that when the soil and the slurry are mixed, the feeding speed of the soil can be controlled to prevent a large amount of soil Sudden mixing with mud causes uneven mixing. This design greatly improves the mixing efficiency of the mixing equipment and makes the mixing more uniform.

Instructions for use: When using the mixing equipment for anti-cracking fluid solidified soil, the user first unscrews the second screw 28, and then turns the handle at the front end of the rotating shaft 25, the rotating handle will drive the rotating shaft 25 to rotate, and the rotating shaft 25 It will drive the two second bevel gears 26 to rotate, and through the engagement of the two second bevel gears 26 and the first bevel gear 24, the second bevel gear 26 will drive the first bevel gear 24 to rotate, and the first bevel gear 24 It will drive the connecting rod 23 to rotate, and the connecting rod 23 will drive the adjusting cover 22 to rotate. Since the two second bevel gears 26 rotate relative to each other, the two adjusting covers 22 will simultaneously rotate downwards. The distance between the two adjusting covers 22 is then transported to the inside of the mixing tank 11 through the liquid feed port, and the soil is poured into the inside of the mixing tank 11 from between the two adjusting covers 22, at this time, the motor drives the rotation The rod 12 rotates, and the rotating rod 12 drives the fixed ring 13 to rotate, and the fixed ring 13 drives two sets of stirring mechanisms to stir and mix the slurry and soil inside the mixing tank 11. After the stirring is completed, the liquid can be discharged through the discharge port. Solidified soil. The device drives the rotating rod 12 to rotate through the motor, and the rotating rod 12 drives the fixed ring 13 to rotate, and the fixed ring 13 will drive two sets of mixing mechanisms to stir and mix the slurry and soil inside the mixing tank 11, and the outermost of the two sets of mixers The mixing blade 16 is attached to the inner wall of the mixing tank 11, so the inner wall of the mixing tank 11 can be scraped during stirring to prevent the liquid solidified soil from remaining on the inner wall of the mixing tank 11 and agglomerating after the stirring is completed, and in the later cleaning process , the two stirring blades 16 located on the outside can also clean the inner wall of the stirring tank 11, which greatly improves the practicability of the mixing equipment. At the same time, the device uses two second bevel gears 26, a first bevel gear 24 and an adjustment cover 22 arranged on the upper end of the feeding box 21, so that when the soil and the slurry are mixed, the feeding speed of the soil can be controlled to prevent a large amount of soil Sudden mixing with mud causes uneven mixing. This design greatly improves the mixing efficiency of the mixing equipment and makes the mixing more uniform.

Above, the embodiment of the present utility model has been described in detail in conjunction with the accompanying drawings, but the present utility model is not limited thereto. Make various changes.

Claims (6)

1. a kind of mixing equipment that is used for anti-cracking fluid solidification soil, comprises tank support (31), it is characterized in that: described tank support (31) upper end is fixedly equipped with stirring tank (11), and described stirring The left end of the tank (11) is provided with a liquid feed port, the lower end of the stirring tank (11) is provided with a discharge port, the right side of the stirring tank (11) is interspersed with a rotating rod (12), and the rotating A fixed ring (13) is fixedly installed on the circumferential surface of the left end of the rod (12), and a stirring mechanism is provided on both sides of the circumferential surface of the fixed ring (13); The stirring mechanism includes a rectangular plate (15), and the rectangular plate (15) is fixedly installed on the circumferential surface of the fixed ring (13). The side end of the fixed ring (13) is provided with three sliding holes. The fixed ring (13) all slidingly be equipped with stirring blade (16) in the three sliding holes that offer, and described rectangular plate (15) upper end all intersperses thread and is installed with three first screw rods (14), three described first screw rods (14) ) lower ends are threadedly installed with three stirring blades (16) respectively, and the stirring mechanisms of the two groups are all positioned at the inside of the stirring tank (11) to rotate. 2. A kind of mixing equipment for anti-cracking liquid solidified soil according to claim 1, characterized in that: the upper end of the mixing tank (11) is fixedly equipped with a feeding box (21), and the feeding The box (21) communicates with the inside of the mixing tank (11), and a fixing plate (27) is fixedly installed on the left side of the feeding box (21). 3. A kind of mixing equipment for anti-cracking fluid solidified soil according to claim 2, characterized in that: the upper end of the fixed plate (27) is threaded and installed with a second screw (28), and the fixed The front end of the plate (27) is interspersed with a rotating shaft (25) for rotation. 4. A kind of mixing equipment for anti-cracking fluid solidified soil according to claim 3, characterized in that: the lower end of the second screw (28) is attached to the surface of the rotating shaft (25), and the rotating shaft ( 25) A second bevel gear (26) is fixedly installed on the front and back section circumferential surfaces. 5. A kind of mixing equipment for anti-cracking fluid solidified soil according to claim 4, characterized in that: the side ends of the two second bevel gears (26) are meshed with first bevel gears (24 ), the right ends of the two first bevel gears (24) are fixedly equipped with connecting rods (23). 6. A kind of mixing equipment for anti-cracking fluid state solidified soil according to claim 5, characterized in that: two said connecting rods (23) are all interspersed and rotated and installed at the front and rear of the lower material box (21) On the side, the circumferential surfaces of the two connecting rods (23) are all fixedly equipped with adjusting covers (22).
