Abstract
The utility model provides a rural domestic sewage treatment device, including handling the case, the intake chamber has been seted up to top one side of handling the case, the aqua storage tank has been seted up to the inside of handling the case, intake chamber and aqua storage tank intercommunication, the filter is installed to the inside slope of intake chamber, the top outer wall fixed mounting who handles the case has clearance mechanism, the inside fixed mounting of aqua storage tank has rabbling mechanism, clearance mechanism through being equipped with, control driving motor rotates, driving motor rotates the turbine that drives output end fixed connection, the turbine rotates and alternates the inside worm meshing of connecting at fixing base both sides fixed mounting's uide bushing, thereby it removes to one side to drive the worm, the link and clearance board and the baffle fixed connection that the worm passes through the bearing housing and connects, the worm removes in the mounting hole that the intake chamber both sides were seted up to drive clearance board, thereby make the clearance board clear up the filter of installing in the intake chamber inside, make the debris of filtering out in the sewage carry out automatic clearance.
Description
Technical Field
The utility model relates to a sewage treatment technical field specifically is a rural domestic sewage treatment plant.
Background
Domestic sewage is the discharged waste water among the resident daily life, mainly derive from residential architecture and public building, generally be equipped with concentrated sewage treatment device in the city, and to the rural area, domestic sewage directly discharges to the sewer mostly, can't carry out centralized processing, wherein application number "CN201921927436.X" rural domestic sewage treatment plant, including the box, the box is the rectangle and the inside of box is hollow structure, the inside hollow part of box has run through the top wall of box, through having set up arc and rectangular block, two filter screens intercept great impurity in the sewage, impurity after the interception can sink gradually, then impurity falls into on the arc, but the device still has following shortcoming when using: the filter screen filters the clearance that needs manual the removing after accomplishing, and this equipment can not do further purification treatment to the sewage after filtering.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a rural domestic sewage treatment plant to the filter screen that solves the above-mentioned background art and proposes filters the clearance that needs manual the removing after accomplishing, and this equipment can not do further purification treatment's problem to the sewage after filtering.
In order to achieve the above object, the utility model provides a following technical scheme: a rural domestic sewage treatment device comprises a treatment box, wherein a water inlet tank is arranged on one side of the top of the treatment box, a water storage tank is arranged inside the treatment box, the water inlet tank is communicated with the water storage tank, a filter plate is obliquely arranged inside the water inlet tank, a cleaning mechanism is fixedly arranged on the outer wall of the top of the treatment box, and a stirring mechanism is fixedly arranged inside the water storage tank;
clearance mechanism includes worm, driving motor and fixing base, fixing base fixed mounting is at processing incasement wall, the worm sets up inside the fixing base.
As a further description of the present invention: driving motor fixed mounting passes fixing base and fixed mounting and has the turbine in one side of fixing base, driving motor's output, the turbine is connected with the worm meshing, the both sides fixed mounting of fixing base has guide sleeve, the worm alternates to be connected inside guide sleeve.
As a further description of the present invention: the both ends of worm all are connected with the link through the bearing housing, one of them one side fixed mounting of link has the clearance board, another one side fixed mounting of link has the baffle, the mounting hole has all been seted up to the both sides of intake pond, clearance board and baffle set up respectively inside the mounting hole of both sides.
As a further description of the present invention: rabbling mechanism includes fixed mounting at the agitator motor who handles case one side, agitator motor's output fixed mounting has the action wheel, the puddler is installed in the internal rotation of aqua storage tank, the one end of puddler alternates aqua storage tank and fixed mounting has from the driving wheel, the action wheel with from connecting through belt transmission between the driving wheel, the fixed surface of puddler installs a plurality of stirring leaves.
As a further description of the invention: the top one side fixed mounting of aqua storage tank has the unloading pipe, the middle part fixed mounting of unloading pipe has the solenoid valve, the top fixed mounting of unloading pipe has the medical kit.
As a further description of the present invention: a water outlet is formed in one side of the water storage tank, and a drain pipe is arranged inside the water outlet.
As a further description of the invention: one side of the treatment box is fixedly provided with a receiving hopper at the bottom of the mounting hole provided with the baffle.
As a further description of the invention: the surface fixed mounting who handles the case has control panel, driving motor, agitator motor and solenoid valve all with control panel electric connection, control panel and external power supply electric connection.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) The cleaning mechanism is arranged to control the driving motor to rotate, the driving motor rotates to drive the turbine fixedly connected with the output end to rotate, the turbine rotates to be meshed with the worm which is fixedly connected with the inner parts of the guide sleeves fixedly arranged on the two sides of the fixing base in an inserting mode, so that the worm is driven to move to one side, the worm is fixedly connected with the cleaning plate and the baffle through the connecting frame connected with the bearing sleeve, and the worm moves to drive the cleaning plate and the baffle to move in the mounting holes formed in the two sides of the water inlet pool, so that the cleaning plate can clean the filter plate arranged in the water inlet pool, and filtered impurities in sewage can be automatically cleaned;
(2) Through the rabbling mechanism that is equipped with, inside the drainage entered into the aqua storage tank, control agitator motor rotated, agitator motor rotated and drives the action wheel and follow the rotation, and the action wheel passes through the belt and drives from the driving wheel and follow the rotation, rotates from the driving wheel and drives the puddler of installing at the aqua storage tank inside, thereby follows the rotation and make puddler surface mounting's stirring leaf stir sewage, be convenient for add the medicine back in the medical kit to the aqua storage tank for sewage and medicament intensive mixing.
Drawings

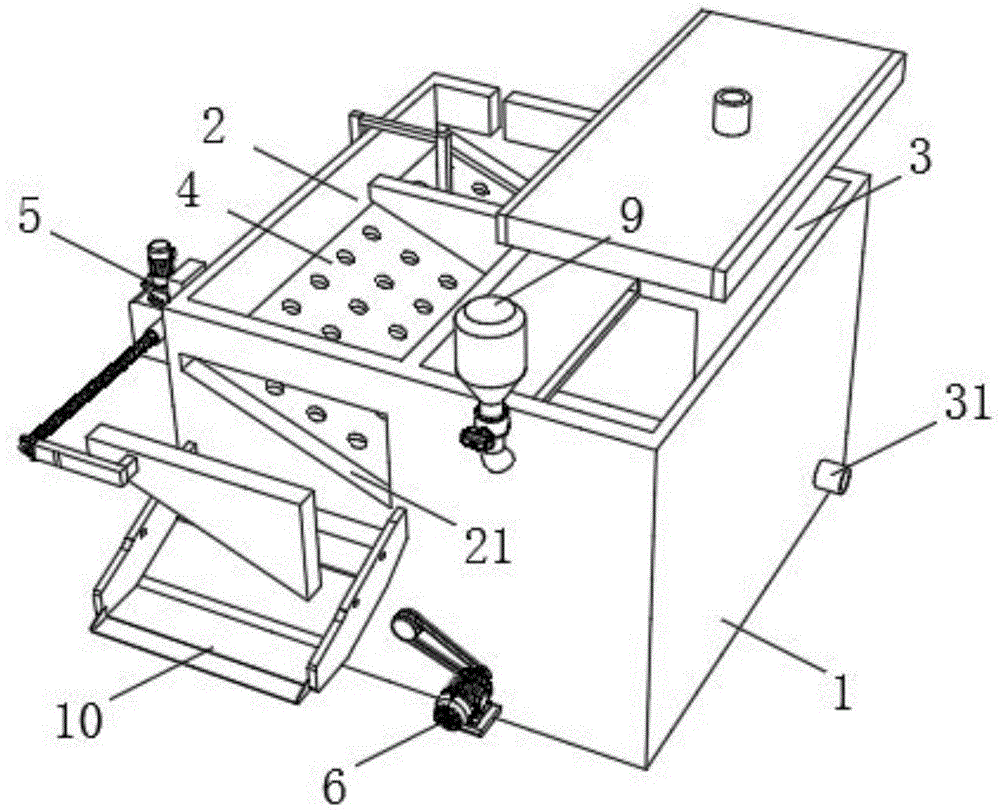

Fig. 1 is a schematic view of the structure of the present invention;
FIG. 2 is a schematic view of the internal structure of the treatment tank of the present invention;
FIG. 3 is a schematic view of the cleaning mechanism of the present invention;
FIG. 4 is a schematic structural view of the stirring mechanism of the present invention;
fig. 5 is a schematic view of the structure of the medicine box of the present invention.
In the figure: 1. a treatment tank; 2. a water inlet pool; 21. mounting holes; 3. a water storage tank; 31. a drain pipe; 4. a filter plate; 5. a cleaning mechanism; 51. a worm; 52. a drive motor; 53. a turbine; 54. a fixed seat; 55. a guide sleeve; 56. a connecting frame; 57. cleaning the plate; 58. a baffle plate; 6. a stirring mechanism; 61. a stirring motor; 62. a driving wheel; 63. a stirring rod; 64. a driven wheel; 65. stirring blades; 7. a feeding pipe; 8. an electromagnetic valve; 9. a medicine chest; 10. a receiving hopper.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-5, the present invention provides a technical solution: a rural domestic sewage treatment device comprises a treatment box 1, wherein one side of the top of the treatment box 1 is provided with a water inlet tank 2, the inside of the treatment box 1 is provided with a water storage tank 3, the water inlet tank 2 is communicated with the water storage tank 3, a filter plate 4 is obliquely arranged inside the water inlet tank 2, the outer wall of the top of the treatment box 1 is fixedly provided with a cleaning mechanism 5, and the inside of the water storage tank 3 is fixedly provided with a stirring mechanism 6;
In this embodiment: driving motor 52 fixed mounting is in one side of fixing base 54, driving motor 52's output passes fixing base 54 and fixed mounting has turbine 53, turbine 53 is connected with worm 51 meshing, fixing base 54's both sides fixed mounting has guide sleeve 55, worm 51 alternates to be connected inside guide sleeve 55, worm 51's both ends all are connected with link 56 through the bearing housing, one side fixed mounting of one of them link 56 has clearance board 57, one side fixed mounting of another link 56 has baffle 58, mounting hole 21 has all been seted up to the both sides of intake pond 2, clearance board 57 and baffle 58 set up respectively inside both sides mounting hole 21.
When in specific use: control driving motor 52 rotates, driving motor 52 rotates the turbine 53 that drives output end fixed connection and rotates, turbine 53 rotates and alternates the worm 51 of connecting at fixing base 54 both sides fixed mounting's guide sleeve 55 inside and meshes, thereby drive worm 51 to one side removal, link 56 and clearance board 57 and baffle 58 fixed connection that worm 51 passes through the bearing housing and connects, worm 51 removes and drives clearance board 57 and baffle 58 and remove in the mounting hole 21 that intake chamber 2 both sides were seted up, thereby make clearance board 57 realize the clearance to installing the filter 4 inside intake chamber 2, make the debris of filtering out in the sewage carry out automatic clearance, make another mounting hole 21 open after baffle 58 follows worm 51 and remove, the debris of being convenient for to clear up drop from mounting hole 21.
In this embodiment: rabbling mechanism 6 includes fixed mounting at the agitator motor 61 of handling case 1 one side, and agitator motor 61's output fixed mounting has action wheel 62, and the puddler 63 is installed in the inside rotation of aqua storage tank 3, and the one end of puddler 63 alternates aqua storage tank 3 and fixed mounting has from the driving wheel 64, and action wheel 62 and from connecting through belt transmission between the driving wheel 64, and the fixed surface of puddler 63 installs a plurality of stirring leaves 65.
When in specific use: inside the drainage enters into aqua storage tank 3, control agitator motor 61 rotates, agitator motor 61 rotates and drives action wheel 62 and follow the rotation, action wheel 62 drives through the belt and follows the rotation from driving wheel 64, rotate from driving wheel 64 and drive the rotation and install in the inside puddler 63 of aqua storage tank 3 and follow the rotation and make puddler 63 surface mounting's stirring leaf 65 stir sewage, be convenient for add the medicine back in the medical kit 9 is to aqua storage tank 3 for sewage and medicament intensive mixing.
In this embodiment: a discharging pipe 7 is fixedly installed on one side of the top of the water storage tank 3, an electromagnetic valve 8 is fixedly installed in the middle of the discharging pipe 7, and a medicine box 9 is fixedly installed at the top end of the discharging pipe 7.
When in specific use: the medicine chest 9 that is installed on the top of unloading pipe 7 is used for placing water treatment medicaments such as disinfectant or flocculating agent, is convenient for further carry out water treatment, adds the inside medicament of medicine chest 9 in aqua storage tank 3 through the 8 switches of solenoid valve, and cooperation rabbling mechanism 6 makes medicament and sewage mix.
In this embodiment: a water outlet is arranged on one side of the water storage tank 3, and a drain pipe 31 is arranged in the water outlet.
When in specific use: the water storage tank 3 is provided with a drain port at one side thereof for further discharging the treated water through a drain pipe 31.
In this embodiment: the material receiving hopper 10 is fixedly arranged at the bottom of the mounting hole 21 provided with the baffle plate 58 at one side of the treatment box 1.
When in specific use: the receiving hopper 10 installed at one side of the treatment tank 1 is convenient for receiving the impurities cleaned by the cleaning plate 57.
In this embodiment: the fixed surface of the treatment box 1 is provided with a control panel, and the driving motor 52, the stirring motor 61 and the electromagnetic valve 8 are electrically connected with the control panel which is electrically connected with an external power supply.
When in specific use: when the control panel is connected with the external power supply, the equipment is controlled by the control panel to operate so as to treat sewage, and when the control panel is disconnected with the external power supply, the equipment stops operating.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and equivalents may be made without departing from the spirit and scope of the invention.
Claims (8)
1. The utility model provides a rural domestic sewage treatment device, is including handling case (1), its characterized in that: a water inlet tank (2) is arranged on one side of the top of the treatment tank (1), a water storage tank (3) is arranged inside the treatment tank (1), the water inlet tank (2) is communicated with the water storage tank (3), a filter plate (4) is obliquely arranged inside the water inlet tank (2), a cleaning mechanism (5) is fixedly arranged on the outer wall of the top of the treatment tank (1), and a stirring mechanism (6) is fixedly arranged inside the water storage tank (3);
clearance mechanism (5) are including worm (51), driving motor (52) and fixing base (54), fixing base (54) fixed mounting is in handling case (1) outer wall, worm (51) set up inside fixing base (54).
2. The rural domestic sewage treatment device according to claim 1, wherein: driving motor (52) fixed mounting is in one side of fixing base (54), the output of driving motor (52) passes fixing base (54) and fixed mounting has turbine (53), turbine (53) are connected with worm (51) meshing, the both sides fixed mounting of fixing base (54) has guide sleeve (55), worm (51) alternate and connect inside guide sleeve (55).
3. The rural domestic sewage treatment device according to claim 2, characterized in that: both ends of worm (51) all are connected with link (56) through the bearing housing, one of them one side fixed mounting of link (56) has cleaning plate (57), another one side fixed mounting of link (56) has baffle (58), mounting hole (21) have all been seted up to the both sides of intake pond (2), cleaning plate (57) and baffle (58) set up respectively inside both sides mounting hole (21).
4. The rural domestic sewage treatment device according to claim 2, characterized in that: rabbling mechanism (6) include fixed mounting agitator motor (61) of handling case (1) one side, the output fixed mounting of agitator motor (61) has action wheel (62), puddler (63) are installed in the inside rotation of aqua storage tank (3), the one end of puddler (63) alternates aqua storage tank (3) and fixed mounting has from driving wheel (64), action wheel (62) and connect through belt transmission between driving wheel (64), the fixed surface of puddler (63) installs a plurality of stirring leaves (65).
5. The rural domestic sewage treatment device of claim 4, wherein: one side of the top of the water storage tank (3) is fixedly provided with a discharging pipe (7), the middle of the discharging pipe (7) is fixedly provided with an electromagnetic valve (8), and the top end of the discharging pipe (7) is fixedly provided with a medicine box (9).
6. The rural domestic sewage treatment device according to claim 1, wherein: a water outlet is formed in one side of the water storage tank (3), and a water drainage pipe (31) is installed inside the water outlet.
7. The rural domestic sewage treatment device according to claim 1, wherein: one side of the treatment box (1) is fixedly provided with a receiving hopper (10) at the bottom of the mounting hole (21) provided with the baffle (58).
8. The rural domestic sewage treatment device according to claim 5, wherein: the surface fixing who handles case (1) installs control panel, driving motor (52), agitator motor (61) and solenoid valve (8) all with control panel electric connection, control panel and external power supply electric connection.
