CN218248008U - Infusion support convenient to store for nursing - Google Patents
Infusion support convenient to store for nursing Download PDFInfo
- Publication number
- CN218248008U CN218248008U CN202220229416.0U CN202220229416U CN218248008U CN 218248008 U CN218248008 U CN 218248008U CN 202220229416 U CN202220229416 U CN 202220229416U CN 218248008 U CN218248008 U CN 218248008U
- Authority
- CN
- China
- Prior art keywords
- infusion support
- mobile jib
- groove
- connecting rod
- seted
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Infusion, Injection, And Reservoir Apparatuses (AREA)
- Medical Preparation Storing Or Oral Administration Devices (AREA)
Abstract
The utility model discloses a nursing is with infusion support of conveniently depositing, including the mobile jib, the cavity has been seted up to the inside of mobile jib, the spout has been seted up to the bottom position by of mobile jib front surface, the spacing groove has all been seted up to the top and bottom position by of both sides in the spout, the top of mobile jib is provided with the connecting rod, the bottom of connecting rod runs through the mobile jib and extends to inside. This infusion support that nursing was deposited with convenience through the design of movable groove, movable rod, elasticity diagonal brace, stopper and spacing groove for this device has convenient storage's function, can fold the stores pylon and accomodate to the mobile jib in, can save the epitaxial space that occupies of stores pylon like this, makes whole infusion support look neat more simultaneously, offers convenience for the user, has improved the practicality of this device, has satisfied user's user demand.
Description
Technical Field
The utility model relates to a nursing technical field specifically is a nursing is with infusion support of conveniently depositing.
Background
Nursing is a science of application, and is divided into family nursing and paid nursing. The paid nursing must be carried out according to relevant provisions of laws and regulations specified by ministry of health, national health and welfare committee and medical administration to develop corresponding nursing items, complete basic or routine nursing in a regulated, purposeful and planned way, observe and know the basic condition of the body weight of the patient, monitor or acquire disease condition data according to the change of the disease condition so as to cooperate with doctors to complete the treatment of the patient, strengthen infusion patrol and education, deal with medical disputes in time and prevent medical accidents.
The infusion support can be used during nursing. However, most of the existing infusion supports can only be adjusted by stretching up and down, and the hangers on the existing infusion supports cannot be folded and stored, so that the existing infusion supports are inconvenient for users to store and cannot meet the use requirements of the users. Therefore, the infusion support convenient to store for nursing is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a nursing is with infusion support of conveniently depositing to propose the current infusion support and can only carry out about the regulation of stretching out and drawing back mostly among the solution above-mentioned background art, the stores pylon on it can't be folded and accomodate, lead to the user comparatively inconvenient when depositing, can't satisfy user demand's problem.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a nursing is with infusion support of conveniently depositing, includes the mobile jib, the cavity has been seted up to the inside of mobile jib, the spout has been seted up to the bottom position by of mobile jib front surface, the spacing groove has all been seted up to top and bottom position by both sides in the spout, the top of mobile jib is provided with the connecting rod, the bottom of connecting rod is run through the mobile jib and extends to inside it, the bottom fixedly connected with elasticity diagonal brace of connecting rod, the activity groove has all been seted up to the both sides of connecting rod, there is the movable rod by pivot swing joint in the activity inslot by bottom position, the bottom fixedly connected with lug leans on of elasticity diagonal brace front surface, the equal fixedly connected with stopper in both sides of lug.
Preferably, the sliding groove and the main rod are integrally designed, and the limiting groove and the sliding groove are integrally designed; through the setting of spout for the lug can slide.
Preferably, the connecting rod is movably connected with the main rod, and the connecting rod is in a cylindrical design; through the setting of connecting rod, play the effect of joint support.
Preferably, one side of each of the two movable rods opposite to each other penetrates through the two movable grooves and extends to the outside of the connecting rod, and the two movable rods are arranged at equal distance from each other; through the setting of movable rod, play the effect of hanging the thing.
Preferably, the opposite sides of the two movable rods are provided with hanging grooves, and the hanging grooves and the movable rods are integrally designed; the hanging groove is used for hanging the infusion bottle to limit the infusion bottle.
Preferably, the front end of the bump extends into the sliding groove and contacts with the inner wall of the sliding groove, and the bump is connected with the sliding groove in a sliding manner; through the setting of lug, play the effect of connecting the stopper.
Preferably, the front end of the limiting block extends into the limiting groove, and the limiting block is clamped with the limiting groove; the limiting block and the limiting groove are arranged to play a limiting role.
Preferably, the bottom of the main rod is fixedly connected with a base, and four corners of the bottom of the base are fixedly connected with rollers; through the setting of gyro wheel for this device can slide subaerially.
Compared with the prior art, the beneficial effects of the utility model are that: this infusion support that nursing was deposited with convenience through the design of movable groove, movable rod, elasticity diagonal brace, stopper and spacing groove for this device has convenient storage's function, can fold the stores pylon and accomodate to the mobile jib in, can save the epitaxial space that occupies of stores pylon like this, makes whole infusion support look neat more simultaneously, offers convenience for the user, has improved the practicality of this device, has satisfied user's user demand.
Drawings

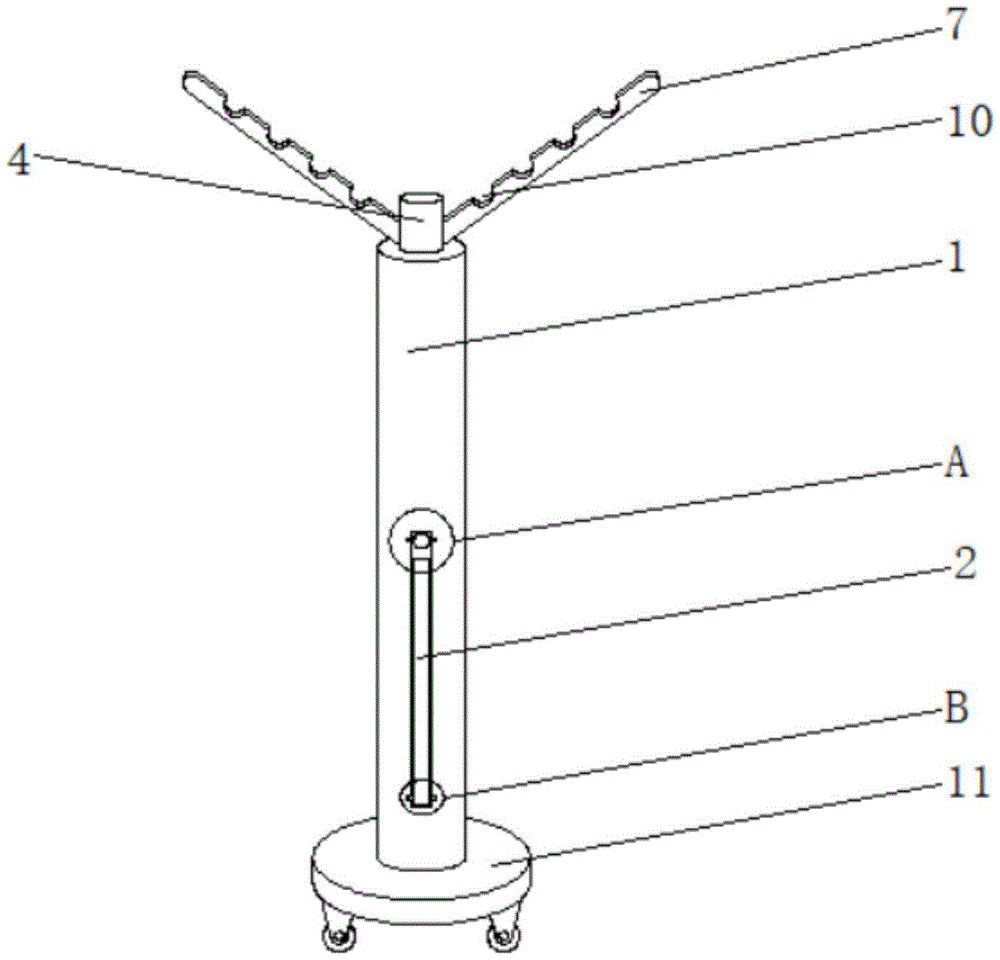

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a sectional view of the structure of the present invention;
FIG. 3 is an enlarged view of a portion of A in FIG. 1;
FIG. 4 is an enlarged view of a portion B of FIG. 1;
fig. 5 is a side view of the elastic diagonal brace and the connecting rod of the present invention;
fig. 6 is a schematic view of the movable trough of the present invention.
In the figure: 1. a main rod; 2. a chute; 3. a limiting groove; 4. a connecting rod; 5. an elastic diagonal brace; 6. a movable groove; 7. a movable rod; 8. a bump; 9. a limiting block; 10. hanging a groove; 11. a base.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a nursing is with infusion support of conveniently depositing, including mobile jib 1, the cavity has been seted up to the inside of mobile jib 1, spout 2 has been seted up to leaning on the bottom position of 1 front surface of mobile jib, setting through spout 2, make lug 8 can slide, spacing groove 3 has all been seted up to top and bottom position by both sides in the spout 2, the top of mobile jib 1 is provided with connecting rod 4, setting through connecting rod 4, play joint support's effect, the bottom of connecting rod 4 runs through mobile jib 1 and extends to it inside, the bottom of connecting rod 4 runs through mobile jib 1 and extends to inside, the bottom fixed connection of connecting rod 4 has elasticity diagonal brace 5, activity groove 6 has all been seted up to the both sides of connecting rod 4, the bottom position that leans on in the activity groove 6 has movable rod 7 through pivot swing joint, setting through movable rod 7, play the effect of hanging thing, the bottom position fixedly connected with lug 8 of leaning on of 5 front surfaces of elasticity diagonal brace, setting through lug 8, play the effect of connecting stopper 9, the equal fixedly connected with stopper 9 in both sides of lug 8, setting through stopper 9 and spacing groove 3, play spacing effect.
The utility model discloses possess following working process:
when needs are accomodate this device, the user rotates two movable rods 7 to a direction earlier to activity inslot 6, activity 7 will and link 4 between present vertical state like this, later the user presses down lug 8 and removes to the inboard of mobile jib 1, lug 8 will drive stopper 9 when removing like this and remove from spacing inslot 3 and remove the spacing relation between and the mobile jib 1, later the user stimulates lug 8 to remove to drive link 4 and removes downwards, it accomodates to remove in driving movable rod 7 to remove to the mobile jib 1 through link 4.
According to the working process, the following steps can be obtained:
this infusion support of convenient depositing is used in nursing, through activity groove 6, movable rod 7, elasticity diagonal brace 5, stopper 9 and spacing groove 3's design, make this device have the function of convenient storage, can fold the stores pylon and accomodate to mobile jib 1 in, can save the epitaxial space that occupies of stores pylon like this, make whole infusion support look neat more neat simultaneously, bring convenience for the user, the practicality of this device has been improved, user's user demand has been satisfied, thereby it can only carry out the regulation of stretching out and drawing back from top to bottom to have solved current infusion support mostly, the stores pylon on it can't be folded and accomodate, it is comparatively inconvenient when depositing to lead to the user, can't satisfy user demand's problem.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a nursing is with infusion support of conveniently depositing, includes mobile jib (1), its characterized in that: the cavity has been seted up to the inside of mobile jib (1), spout (2) have been seted up to the bottom position by leaning on of mobile jib (1) front surface, spacing groove (3) have all been seted up to top and bottom position by both sides in spout (2), the top of mobile jib (1) is provided with connecting rod (4), the bottom of connecting rod (4) runs through mobile jib (1) and extends to its inside, the bottom fixed connection of connecting rod (4) has elasticity diagonal brace (5), activity groove (6) have all been seted up to the both sides of connecting rod (4), there is movable rod (7) through pivot swing joint by the bottom position in activity groove (6), the bottom position fixedly connected with lug (8) by bottom position of elasticity diagonal brace (5) front surface, the equal fixedly connected with stopper (9) in both sides of lug (8), the front end of stopper (9) extends to the inside of spacing groove (3), stopper (9) and spacing groove (3) joint, the bottom fixedly connected with base (11) four corners of mobile jib (11).
2. The infusion support of claim 1, wherein the infusion support comprises: the integrated design is adopted between the sliding groove (2) and the main rod (1), and the integrated design is adopted between the limiting groove (3) and the sliding groove (2).
3. The infusion support according to claim 1, wherein the infusion support is characterized in that: the connecting rod (4) is movably connected with the main rod (1), and the connecting rod (4) is in a cylindrical design.
4. The infusion support according to claim 1, wherein the infusion support is characterized in that: one side of each of the two movable rods (7) back to the back respectively penetrates through the two movable grooves (6) and extends to the outside of the connecting rod (4), and the two movable rods (7) are designed to be equidistant to each other.
5. The infusion support of claim 1, wherein the infusion support comprises: one side that two movable rods (7) are relative has all seted up and has hung groove (10), it designs for the integration between groove (10) and movable rod (7) to hang.
6. The infusion support of claim 1, wherein the infusion support comprises: the front end of the convex block (8) extends to the inside of the sliding groove (2) and is in contact with the inner wall of the sliding groove (2), and the convex block (8) is in sliding connection with the sliding groove (2).
