Abstract
The utility model discloses a town sewage treatment plant, including the pipeline, the inside wall fixed surface of pipeline installs the filter screen, the spout has been seted up to one side of pipeline, the inside slidable mounting of spout has the slide bar, the both ends fixed mounting of slide bar has the sliding plate, a side fixed surface of sliding plate installs the nut, the inboard surface threaded connection of nut has the threaded rod, a side fixed surface of pipeline installs first motor, the output fixed mounting of first motor has first carousel, a side fixed surface of sliding plate installs the second motor, the output fixed mounting of second motor has clean roller. Through the second motor that sets up, the second motor drives a cleaning roller and rotates, under the effect of first gear and second gear for the second motor drives two cleaning rollers and rotates, and the surface of cleaning roller and filter screen is laminated each other, makes the rotation of cleaning roller adjust and can clear away the impurity on filter screen surface.
Description
Technical Field
The utility model belongs to the technical field of the hydrologic cycle, concretely relates to town sewage treatment plant.
Background
The town sewage refers to domestic sewage of towns and residents, drainage of institutions, schools, hospitals, commercial service institutions and various public facilities, industrial wastewater allowed to be discharged into a town sewage collection system, initial rainwater and the like. The sewage is purified to reach the water quality requirement of being discharged into a certain water body or being reused. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
Although the filtering structure in the common town sewage treatment device can play a role in filtering, when some large impurities are blocked or a large amount of impurities are accumulated at the filtering net structure, people often cannot clean the filtering net structure conveniently, so that the filtering net structure is blocked, and great work difficulty is increased for people.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a town sewage treatment plant, the filtration that has solved among the usual town sewage treatment plant though can play the filtering action, but when partly great impurity blocks or a large amount of impurity piles up in filter screen structure department, people often can't be very convenient clear up it to cause filter screen structure to block up, give people the problem that has increased the very big work degree of difficulty.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a town sewage treatment plant, includes the pipeline, the inside wall fixed surface of pipeline installs the filter screen, the spout has been seted up to one side of pipeline, the inside slidable mounting of spout has the slide bar, the both ends fixed mounting of slide bar has the sliding plate, one side fixed surface of sliding plate installs the nut, the inboard surface threaded connection of nut has the threaded rod, one side fixed surface of pipeline installs first motor, the output fixed mounting of first motor has first carousel, one side fixed surface of sliding plate installs the second motor, the output fixed mounting of second motor has clean roller.
Preferably, the number of the sliding grooves is four, the four sliding grooves are distributed on the surfaces of two sides of the pipeline in a symmetrical parallel structure, the sliding rods are slidably mounted in the two sliding grooves, and the sliding plates form a sliding structure through the sliding rods.
Through adopting above-mentioned technical scheme, the advantage lies in through the spout that sets up for the slide bar can be in the inside slide adjusting of spout, thereby realizes the slide bar and drives the upper and lower slide adjusting of sliding plate.
Preferably, first carousel passes through first motor and constitutes revolution mechanic, the one end fixed mounting of threaded rod has the second carousel, be connected with the belt between first carousel and the second carousel.
Through adopting above-mentioned technical scheme, the advantage lies in through the first motor that sets up, and when using, the first motor of drive, and the rotation that first motor drove first carousel is adjusted, through fixed mounting in the second carousel of threaded rod one end for the rotation of second carousel is adjusted and can be driven the rotation of threaded rod and is adjusted.
Preferably, constitute synchronous revolution mechanic through the belt between first carousel and the second carousel, the threaded rod passes through first motor and constitutes revolution mechanic, the nut passes through first motor and constitutes altitude mixture control structure from top to bottom.
Through adopting above-mentioned technical scheme, the advantage lies in through the belt that sets up for when using, make to constitute synchronous rotating-structure between first carousel and the second carousel, thereby make first motor can be used to control the rotation regulation of second carousel, thereby realize that first motor can drive the rotation of threaded rod, make the upper and lower slip regulation of threaded rod control nut, thereby make first motor be used for controlling the upper and lower slip regulation of sliding plate.
Preferably, the surfaces of the cleaning rollers and the filter screen are mutually attached, two cleaning rollers are symmetrically arranged, and the two cleaning rollers form a rotating structure through a second motor.
Through adopting above-mentioned technical scheme, the advantage lies in through the second motor that sets up, and when using, drive second motor, and the second motor drives the cleaning roller and rotates, and the surface of cleaning roller and filter screen laminates each other for the rotation of cleaning roller is adjusted and can is clear away the impurity on filter screen surface.
Preferably, one end of the cleaning roller, which is far away from the second motor, is fixedly provided with a first gear, the first gear and the second gear are meshed with each other, and the first gear and the second gear form a synchronous opposite rotation adjusting structure.
Through adopting above-mentioned technical scheme, the advantage lies in through the first gear that sets up, and when using, first gear revolve drives the second gear rotation of intermeshing between, under the effect of first gear and second gear for the second motor drives two cleaning rollers and rotates.
Preferably, a sewage draining exit is formed in the surface of one side of the pipeline and is located on two sides of the lower end of the filter screen.
Through adopting above-mentioned technical scheme, the advantage lies in through the drain that sets up for the cleaning roller clears up the impurity on filter screen surface, can be discharged by the drain, makes the clearance to filter screen surface impurity become simple and convenient.
Compared with the prior art, the beneficial effects of the utility model are that:
1. through the second motor that sets up, drive second motor, second motor drives a cleaning roller and rotates, under the effect of first gear and second gear for the second motor drives two cleaning rollers and rotates, and the surface of cleaning roller and filter screen is laminated each other, makes the rotation of cleaning roller adjust and can clear away the impurity on filter screen surface.
2. Through the first motor that sets up, drive first motor, first motor drives the rotation regulation of first carousel, under the effect of belt for first carousel drives the second carousel and rotates, makes the rotation regulation that first motor can be used to control the second carousel, thereby realizes that first motor can drive the rotation of threaded rod, makes the upper and lower slip regulation of threaded rod control nut, thereby makes the upper and lower slip regulation that first motor is used for controlling the sliding plate.
3. Through the drain that sets up for the cleaning roller clears up the impurity on filter screen surface, can be discharged by the drain, makes the clearance to filter screen surface impurity become simple and convenient.
Drawings

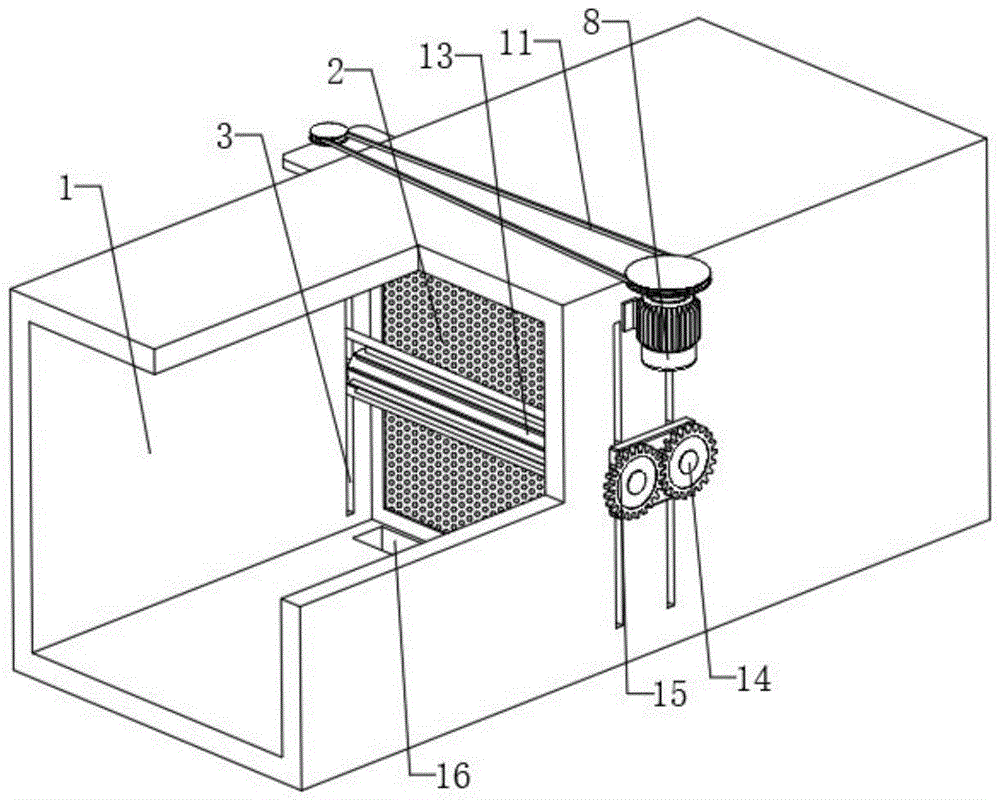

Fig. 1 is a schematic view of the three-dimensional appearance structure of the present invention;
fig. 2 is a schematic front view of the structure of the present invention;
FIG. 3 is a schematic side view of the present invention;
fig. 4 is a schematic view of the top view structure of the present invention.
In the figure: 1. a pipeline; 2. a filter screen; 3. a chute; 4. a slide bar; 5. a sliding plate; 6. a nut; 7. a threaded rod; 8. a first motor; 9. a first turntable; 10. a second turntable; 11. a belt; 12. a second motor; 13. a cleaning roller; 14. a first gear; 15. a second gear; 16. a sewage draining outlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work all belong to the protection scope of the present invention.
As shown in fig. 1-4, a town sewage treatment device comprises a pipeline 1, a filter screen 2 is fixedly mounted on the surface of the inner side wall of the pipeline 1, a chute 3 is formed in one side of the pipeline 1, a sliding rod 4 is slidably mounted inside the chute 3, sliding plates 5 are fixedly mounted at two ends of the sliding rod 4, a nut 6 is fixedly mounted on the surface of one side of each sliding plate 5, a threaded rod 7 is connected to the inner side surface of each nut 6 in a threaded manner, a first motor 8 is fixedly mounted on the surface of one side of the pipeline 1, a first rotating disc 9 is fixedly mounted at the output end of the first motor 8, a second motor 12 is fixedly mounted on the surface of one side of each sliding plate 5, and a cleaning roller 13 is fixedly mounted at the output end of the second motor 12.
The working principle of the technical scheme is as follows:
firstly, sewage to be treated is conveyed from one side of a pipeline 1 to the other side of the pipeline 1 and is filtered by a filter screen 2, then a first motor 8 is driven, the first motor 8 drives a first rotary disc 9 to rotate, under the action of a belt 11, the first rotary disc 9 drives a second rotary disc 10 to rotate, so that the first motor 8 can be used for controlling the rotation adjustment of the second rotary disc 10, the rotation of a threaded rod 7 can be driven by the first motor 8, the vertical sliding adjustment of the threaded rod 7 control nut 6 is realized, the vertical sliding adjustment of a sliding plate 5 is controlled by the first motor 8, then a second motor 12 is driven by the second motor 12, a cleaning roller 13 is driven to rotate by the second motor 12, under the action of a first gear 14 and a second gear 15, the two cleaning rollers 13 are driven by the second motor 12, the surfaces of the cleaning roller 13 and the filter screen 2 are mutually attached, so that the rotation adjustment of the cleaning roller 13 can clean impurities on the surface of the filter screen 2, finally, the cleaned impurities can be discharged from a sewage discharge outlet 16, and the cleaning of the impurities on the surface of the filter screen 2 is simple and convenient.
In another embodiment, as shown in fig. 1-4, four sliding chutes 3 are provided, four sliding chutes 3 are distributed on two side surfaces of the pipeline 1 in a symmetrical parallel structure, sliding rods 4 are slidably mounted inside the two sliding chutes 3, and the sliding plate 5 forms a sliding structure through the sliding rods 4.
Through the spout 3 that sets up, when using for slide bar 4 can be at the inside slide adjusting of spout 3, thereby realizes slide bar 4 and drives the upper and lower slide adjusting of sliding plate 5.
In another embodiment, as shown in fig. 1-4, the first rotating disc 9 is a rotating structure formed by a first motor 8, a second rotating disc 10 is fixedly installed at one end of the threaded rod 7, and a belt 11 is connected between the first rotating disc 9 and the second rotating disc 10.
Through the first motor 8 that sets up, when using, drive first motor 8, first motor 8 drives the rotation regulation of first carousel 9, through fixed mounting in the second carousel 10 of threaded rod 7 one end for the rotation regulation of second carousel 10 can drive the rotation regulation of threaded rod 7.
In another embodiment, as shown in fig. 1-4, a synchronous rotating structure is formed between the first rotating disk 9 and the second rotating disk 10 through a belt 11, a rotating structure is formed by the threaded rod 7 through the first motor 8, and an up-and-down height adjusting structure is formed by the nut 6 through the first motor 8.
Through the belt 11 that sets up, when using for constitute synchronous revolution mechanic between first carousel 9 and the second carousel 10, thereby make first motor 8 can be used to control the rotation regulation of second carousel 10, thereby realize that first motor 8 can drive the rotation of threaded rod 7, make threaded rod 7 control nut 6's upper and lower slip regulation, thereby make first motor 8 be used for controlling the upper and lower slip regulation of sliding plate 5.
In another embodiment, as shown in fig. 1-4, the cleaning roller 13 and the surface of the filter screen 2 are attached to each other, two cleaning rollers 13 are symmetrically arranged, and the two cleaning rollers 13 form a rotating structure through the second motor 12.
Through the second motor 12 who sets up, when using, drive second motor 12, second motor 12 drives cleaning roller 13 and rotates, and cleaning roller 13 laminates with the surface of filter screen 2 each other for the rotation regulation of cleaning roller 13 can clear away the impurity on filter screen 2 surface.
In another embodiment, as shown in fig. 1-4, a first gear 14 is fixedly mounted on the end of the cleaning roller 13 away from the second motor 12, the first gear 14 and the second gear 15 are engaged with each other, and the first gear 14 and the second gear 15 form a synchronous opposite rotation adjusting structure.
Through the arranged first gear 14, when the cleaning device is used, the first gear 14 rotates to drive the second gear 15 which is meshed with each other to rotate, and under the action of the first gear 14 and the second gear 15, the second motor 12 drives the two cleaning rollers 13 to rotate.
In another embodiment, as shown in fig. 1 to 4, a drain outlet 16 is formed on one side surface of the pipe 1, and the drain outlet 16 is located at both sides of the lower end of the filter screen 2.
Through the drain 16 that sets up for the cleaning roller 13 clears up the impurity on filter screen 2 surface, can be discharged by drain 16, makes the clearance to filter screen 2 surface impurity become simple and convenient.
The utility model discloses a theory of operation and use flow: firstly, sewage to be treated is conveyed from one side of a pipeline 1 to the other side of the pipeline 1 and is filtered by a filter screen 2, then a first motor 8 is driven, the first motor 8 drives a first rotary disc 9 to rotate, under the action of a belt 11, the first rotary disc 9 drives a second rotary disc 10 to rotate, so that the first motor 8 can be used for controlling the rotation adjustment of the second rotary disc 10, the rotation of a threaded rod 7 can be driven by the first motor 8, the threaded rod 7 controls the up-and-down sliding adjustment of a nut 6, the first motor 8 is used for controlling the up-and-down sliding adjustment of a sliding plate 5, then a second motor 12 is driven, the second motor 12 drives a cleaning roller 13 to rotate, under the action of a first gear 14 and a second gear 15, the second motor 12 drives two cleaning rollers 13 to rotate, the surfaces of the cleaning rollers 13 and the filter screen 2 are mutually attached, so that the rotation adjustment of the cleaning rollers 13 can clean impurities on the surface of the filter screen 2, and finally, the cleaned impurities can be discharged from a sewage discharge outlet 16, and the surface of the filter screen 2 can be cleaned easily and conveniently.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a town sewage treatment plant, includes pipeline (1), its characterized in that: the utility model discloses a pipeline cleaning machine, including pipeline (1), inside wall fixed surface of pipeline (1) installs filter screen (2), spout (3) have been seted up to one side of pipeline (1), spout (3) inside slidable mounting has slide bar (4), the both ends fixed mounting of slide bar (4) has sliding plate (5), one side fixed surface of sliding plate (5) installs nut (6), the inboard surface threaded connection of nut (6) has threaded rod (7), one side fixed surface of pipeline (1) installs first motor (8), the output fixed mounting of first motor (8) has first carousel (9), one side fixed surface of sliding plate (5) installs second motor (12), the output fixed mounting of second motor (12) has cleaning roller (13).
2. The town sewage treatment device according to claim 1, wherein: the four sliding grooves (3) are symmetrically distributed on the surfaces of two sides of the pipeline (1) in a parallel structure, the sliding rods (4) are slidably mounted in the two sliding grooves (3), and the sliding plates (5) form a sliding structure through the sliding rods (4).
3. The town sewage treatment plant according to claim 1, wherein: first carousel (9) constitute revolution mechanic through first motor (8), the one end fixed mounting of threaded rod (7) has second carousel (10), be connected with belt (11) between first carousel (9) and second carousel (10).
4. The town sewage treatment device according to claim 1, wherein: constitute synchronous revolution mechanic through belt (11) between first carousel (9) and second carousel (10), threaded rod (7) constitute revolution mechanic through first motor (8), altitude mixture control structure about nut (6) constitute through first motor (8).
5. The town sewage treatment plant according to claim 1, wherein: the surface of cleaning roller (13) and filter screen (2) is laminated each other, cleaning roller (13) symmetry is provided with two, two cleaning roller (13) constitute revolution mechanic through second motor (12).
6. The town sewage treatment device according to claim 1, wherein: one end, far away from second motor (12), of cleaning roller (13) is fixedly provided with first gear (14), first gear (14) and second gear (15) are meshed with each other, and first gear (14) and second gear (15) form a synchronous opposite rotation adjusting structure.
7. The town sewage treatment plant according to claim 1, wherein: a sewage draining outlet (16) is formed in the surface of one side of the pipeline (1), and the sewage draining outlet (16) is located on the two sides of the lower end of the filter screen (2).
