The utility model discloses a paediatrics children use infusion set relates to children's infusion technical field. This infusion set for paediatrics children, the on-line screen storage device comprises a base, the top outer wall fixedly connected with infusion support of base, the one end fixedly connected with fixed block of base is kept away from to the infusion support, the outer wall fixedly connected with couple of fixed block, the outer wall fixedly connected with link of base, the outer wall fixedly connected with of link removes the universal wheel, the top outer wall fixedly connected with brace table of base, brace table's top outer wall fixedly connected with arc, sliding connection has the rocking chair on the arc, spout one has been seted up to the top outer wall of arc, spout two has been seted up to the inner wall of spout one. The device such as arc, movable pulley, rocking chair through the cooperation setting of using of devices such as arc, makes things convenient for children to have a rest when the infusion, and controls the rocking chair that rocks and can increase the enjoyment when infusing, pacifies children, has the practicality.
Description
Technical Field
The utility model relates to a children transfusion technical field especially relates to a paediatrics children use infusion set.
Background
Infusion is also called as infusion or hanging water. Is a large dose (more than 100ml per administration) of injection which is infused into the body by intravenous drip. Are usually packaged in glass or plastic infusion bottles or bags and contain no preservatives or bacteriostatic agents. When in use, the dropping speed is adjusted through the infusion apparatus, and the infusion apparatus continuously and stably enters the vein to supplement body fluid, electrolyte or provide nutrient substances. After a child is sick, the child can be treated by infusion.
After a child suffers from a disease, the child is uncomfortable, and the child is naturally active, so that the child cannot stand quietly in the same place in the infusion process.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a paediatrics is infusion set for children has solved technical problem.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a paediatrics infusion set for children, the on-line screen storage device comprises a base, the top outer wall fixedly connected with infusion support of base, the one end fixedly connected with fixed block of base is kept away from to the infusion support, the outer wall fixedly connected with couple of fixed block, the outer wall fixedly connected with link of base, the outer wall fixedly connected with of link removes the universal wheel, the top outer wall fixedly connected with brace table of base, brace table's top outer wall fixedly connected with arc, sliding connection has the rocking chair on the arc, spout one has been seted up to the top outer wall of arc, spout two has been seted up to the inner wall of spout one, the inner wall sliding connection of spout one has the sliding block, one side outer wall that spout one was kept away from to the sliding block and the bottom outer wall fixed connection of rocking chair, the bottom outer wall of sliding block is provided with the movable pulley.
Preferably, the infusion support comprises a fixed rod, the inner wall of the fixed rod is movably connected with a movable rod, and the inner wall of the fixed rod is in threaded connection with an adjusting bolt.
Preferably, the outer wall of the fixed rod is fixedly connected with the outer wall of the top of the base, and one end, far away from the fixed rod, of the movable rod is fixedly connected with the outer wall of the bottom of the fixed block.
Preferably, the hooks are uniformly distributed on the outer wall of the fixed block in an array mode by taking the circle center of the fixed block as the center.
Preferably, the support table is arranged on one side of the infusion support, the rocking chair is arranged above the support table, and a sponge cushion is arranged on the inner wall of the rocking chair.
Preferably, the size of the first sliding groove is matched with that of the sliding wheel, and the outer wall of the sliding wheel is in sliding connection with the inner wall of the second sliding groove.
Compared with the prior art, the utility model provides a pair of infusion set for paediatrics children has following beneficial effect:
1. the utility model provides a paediatrics is infusion set for children places children on the rocking chair, hangs the infusion bottle on the couple, infuses children, and conveniently drives this device through the setting that removes the wheel and remove, and the height of infusion support is adjusted to cooperation convenient to use through unscrewing adjusting bolt, dead lever, movable rod, in the infusion, possesses multiple functions.
2. The utility model provides a paediatrics infusion set for children uses through the setting that the cooperation of devices such as arc, movable pulley, rocking chair was used, makes things convenient for children to have a rest in the infusion, and controls the rocking chair that rocks and can increase the enjoyment when infusing, shifts children's attention, pacifies children, makes the infusion effect better, has the practicality.
Drawings

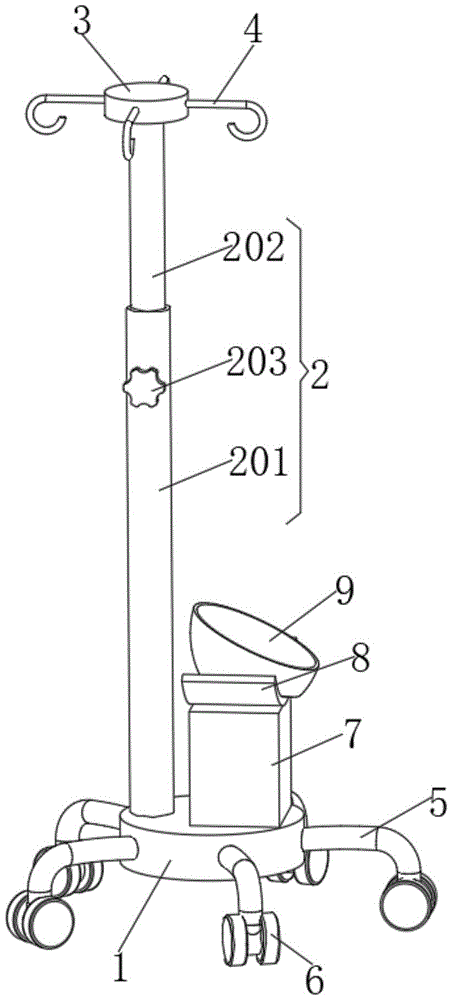

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic side view of the present invention;
fig. 3 is a schematic view of the structure of the support platform of the present invention;
fig. 4 is the schematic view of the sliding block structure of the present invention.
In the figure: 1. a base; 2. a transfusion bracket; 201. fixing the rod; 202. a movable rod; 203. adjusting the bolt; 3. a fixed block; 4. hooking; 5. a connecting frame; 6. moving the universal wheel; 7. a support table; 8. an arc-shaped plate; 9. a rocking chair; 10. A first sliding chute; 11. a second chute; 12. a slider; 13. a sliding wheel.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The first embodiment is as follows:
referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a paediatrics infusion set for children, includes base 1, base 1's top outer wall fixedly connected with infusion support 2, and infusion support 2 includes dead lever 201, and the inner wall swing joint of dead lever 201 has movable rod 202, and the inner wall threaded connection of dead lever 201 has adjusting bolt 203, the outer wall of dead lever 201 and base 1's top outer wall fixed connection, and the movable rod 202 is kept away from the one end of dead lever 201 and the bottom outer wall fixed connection of fixed block 3.
In this embodiment, the height of the infusion support 2 can be adjusted by loosening the adjusting bolt 203 to move the movable rod 202 within the fixed rod 201. After the adjustment is completed, the adjusting bolt 203 is tightened to fix the movable rod 202.
In this embodiment, hang the infusion bottle on couple 4, couple 4 sets up the convenience and places the infusion bottle, is connected the transfer line with children, infuses children, drives this device through removing universal wheel 6 and removes.
Example two:
referring to fig. 1-4, based on the first embodiment, the present invention provides a technical solution: the top outer wall fixedly connected with brace table 7 of base 1, brace table 7 sets up in one side of infusion support 2, the top outer wall fixedly connected with arc 8 of brace table 7, sliding connection has rocking chair 9 on arc 8, rocking chair 9 sets up in the top of brace table 7, the inner wall of rocking chair 9 is provided with the foam-rubber cushion, the foam-rubber cushion makes and uses more comfortablely, spout one 10 has been seted up to the top outer wall of arc 8, spout two 11 have been seted up to the inner wall of spout one 10, the inner wall sliding connection of spout one 10 has sliding block 12, one side outer wall that spout one 10 was kept away from to sliding block 12 and the bottom outer wall fixed connection of rocking chair 9, the bottom outer wall of sliding block 12 is provided with movable pulley 13, the size of spout one 10 and the size looks adaptation of movable pulley 13, the outer wall of movable pulley 13 and the inner wall sliding connection of spout two 11.
In this embodiment, place children on rocking chair 9, through horizontal slip rocking chair 9, make it pass through sliding block 12 and move in spout 10, the setting of movable pulley 13 makes rocking chair 9's slip more laborsaving, and setting up of arc 8 makes rocking chair 9's motion have the height change, increases interestingly, and through rocking chair 9's setting, makes things convenient for children to have a rest, and enjoyment when can increasing the infusion, pacifies children.
The working principle is as follows: when the infusion support is used, a child is placed on the rocking chair 9, and an infusion bottle is hung on the hook 4 to carry out infusion on the child. Through horizontal slip rocking chair 9, make it through sliding block 12 at spout 10 internal motion, the setting of movable pulley 13 makes rocking chair 9's slip laborsaving more, through rocking chair 9's setting, makes things convenient for children to have a rest, and the enjoyment when can increasing the infusion, pacifies children, drives this device through removing universal wheel 6 and removes, makes movable rod 202 can be at dead lever 201 internal motion through unscrewing adjusting bolt 203 to can adjust infusion support 2's height. After the adjustment is completed, the adjusting bolt 203 is tightened to fix the movable rod 202.
Claims (6)
1. The utility model provides a paediatrics children use infusion set, includes base (1), its characterized in that: the utility model discloses a rocking chair, including base (1), infusion support (2) keep away from the one end fixedly connected with fixed block (3) of base (1), the outer wall fixedly connected with couple (4) of fixed block (3), the outer wall fixedly connected with link (5) of base (1), the outer wall fixedly connected with of link (5) removes universal wheel (6), the top outer wall fixedly connected with brace table (7) of base (1), the top outer wall fixedly connected with arc (8) of brace table (7), sliding connection has rocking chair (9) on arc (8), spout one (10) have been seted up to the top outer wall of arc (8), spout two (11) have been seted up to the inner wall of spout one (10), the inner wall sliding connection of spout one (10) has sliding block (12), sliding block (12) keep away from one side outer wall of spout one (10) and the bottom outer wall fixed connection of rocking chair (9), the bottom outer wall of sliding block (12) is provided with pulley (13).
2. The infusion device for pediatric children as defined in claim 1, wherein: the infusion support (2) comprises a fixing rod (201), a movable rod (202) is movably connected to the inner wall of the fixing rod (201), and an adjusting bolt (203) is in threaded connection with the inner wall of the fixing rod (201).
3. The infusion device for pediatric children as defined in claim 2, wherein: the outer wall of dead lever (201) and the top outer wall fixed connection of base (1), the one end that dead lever (201) was kept away from in movable rod (202) and the bottom outer wall fixed connection of fixed block (3).
4. The infusion set for pediatric children as defined in claim 1, wherein: the hooks (4) are uniformly distributed on the outer wall of the fixed block (3) in an array mode by taking the circle center of the fixed block (3) as the center.
5. The infusion device for pediatric children as defined in claim 1, wherein: the supporting table (7) is arranged on one side of the infusion support (2), the rocking chair (9) is arranged above the supporting table (7), and the inner wall of the rocking chair (9) is provided with a spongy cushion.
6. The infusion set for pediatric children as defined in claim 1, wherein: the size of the first sliding groove (10) is matched with that of the sliding wheel (13), and the outer wall of the sliding wheel (13) is in sliding connection with the inner wall of the second sliding groove (11).
