The application relates to the technical field of washing machines and discloses a washing machine which comprises a machine body, wherein a taking and placing opening is formed in one side wall of the machine body; the cover body is arranged on the machine body in an openable and closable manner so as to open or close the taking and placing opening; the auxiliary door opening device is arranged between the machine body and the cover body and is used for assisting the opening and closing of the cover body; wherein, supplementary door opener includes: the arc-shaped track is arranged on one side surface of the machine body facing the cover body; the arc slide bar corresponds the arc track and sets up in a side of lid orientation organism to sliding connection is in the arc track, and when being used for when the lid was closed, the air in the arc track was compressed to the arc slide bar, and then provides the resistance for closing of lid, and when the lid was opened, the air of compressed promoted the slip of arc slide bar, and then provides the helping hand for opening of lid. By adopting the washing machine disclosed by the application, the reliability of the auxiliary door opening device can be effectively improved.

Description

Washing machine

Technical Field

The present application relates to the field of washing machine technology, for example to a washing machine.

Background

With the improvement of the living standard, the washing machine is gradually becoming one of the indispensable household appliances in life due to the pursuit of people for the quality of life. Generally, a washing machine mainly includes a machine body, a cover body covering the machine body, and a washing system disposed in the machine body. When a user puts in clothes, the cover body needs to be opened first, and then the clothes are put in. In order to facilitate a user to observe clothes in the washing machine body, the cover body of most washing machines adopts a glass cover body, so that the cover body is visible, the cover body is heavy, and the user is laboursome when opening and closing the cover body.

The related art discloses a clothes processing device, which comprises a machine body, a door cover assembly, a damper assembly and an auxiliary door opening device, wherein a first support and a second support are arranged on the machine body, and the door cover assembly can be opened and closed relative to the machine body; one end of the damper assembly is mounted on the door cover assembly, the other end of the damper assembly is mounted on the first support, so that the door cover assembly can be opened and closed relative to the machine body, and the damper assembly can provide resistance for blocking the door cover assembly from being closed when the door cover assembly is closed; a torsion spring is arranged in the auxiliary door opener, torsion spring arms at two ends of the torsion spring are respectively fixed on the machine body and the door cover component, and assistance is provided for opening the door cover component through the torsion spring. When specifically the user closes the door closure subassembly, the door closure subassembly can be with fixing the torsional spring arm on the door closure subassembly and pushing down, and then make the torsional spring take place torsional deformation, and then the torsional spring will form a power opposite with door closure subassembly whereabouts direction, in order to slow down the speed of door closure subassembly whereabouts, make the door closure subassembly slowly fall, prevent that the user from smashing the hand at the in-process of closing the door closure subassembly, at the in-process that the user will open the door closure subassembly, the torsional spring is in torsional deformation's state, there is a restoring force, this restoring force can provide the helping hand that opens the door for opening of door closure subassembly, therefore the user only needs to use very little power just can open the door closure subassembly.

In the process of implementing the embodiments of the present disclosure, it is found that at least the following problems exist in the related art:

the torsional deformation of the torsion spring is utilized to provide door opening assistance for opening the door cover assembly, and the torsion spring can deform irreversibly after being used for a long time, so that the reliability of the auxiliary door opening device is poor.

SUMMERY OF THE UTILITY MODEL

The following presents a simplified summary in order to provide a basic understanding of some aspects of the disclosed embodiments. This summary is not an extensive overview nor is intended to identify key/critical elements or to delineate the scope of such embodiments but rather as a prelude to the more detailed description that is presented later.

The embodiment of the disclosure provides a washing machine to improve the reliability of an auxiliary door opening device.

In some embodiments, the washing machine includes: the device comprises a machine body, a handle and a handle, wherein a taking and placing opening is formed in one side wall of the machine body; the cover body is arranged on the machine body in an openable and closable manner so as to open or close the taking and placing opening; the auxiliary door opening device is arranged between the machine body and the cover body and is used for assisting the opening and closing of the cover body; wherein, supplementary door opener includes: the arc-shaped track is arranged on one side surface of the machine body facing the cover body; the arc-shaped sliding rod corresponds to the arc-shaped rail, is arranged on one side face, facing the machine body, of the cover body, is connected to the arc-shaped rail in a sliding mode, and is used for compressing air in the arc-shaped rail when the cover body is closed, so that resistance is provided for closing of the cover body, and when the cover body is opened, the compressed air pushes the arc-shaped sliding rod to slide, so that assistance is provided for opening of the cover body.

In some embodiments, the body is configured with a sliding groove which is bent inwards from the outer side wall of the body, and a first end of the sliding groove is blocked and a second end is open to form the arc-shaped track; the arc-shaped sliding rod extends into the second end of the sliding groove and slides along the sliding groove.

In some embodiments, the arcuate slide bar comprises: the fixed end is fixed on one side surface of the cover body facing the machine body corresponding to the arc-shaped rail; the first end of the arc-shaped rod is fixed at the fixed end; the sliding end is arranged at the second end of the arc-shaped rod and is matched with the sliding groove; when the cover body is closed, the sliding end is pushed to slide from the second end to the first end of the sliding groove through the arc-shaped rod, so that air in the sliding groove is compressed, and resistance is provided for closing the cover body; when the cover body is opened, the arc-shaped rod drives the sliding end to slide along the sliding groove towards the second end of the sliding groove, and compressed air pushes the sliding end to slide towards the second end of the sliding groove, so that assistance is provided for opening the cover body.

In some embodiments, the arc-shaped rod has a diameter smaller than that of the sliding end, and the auxiliary door opening device further includes: the track cover is covered at the second end of the sliding groove, and a through hole is formed in the track cover corresponding to the arc-shaped rod; when the sliding end slides to the second end of the sliding groove, the sliding end abuts against one side face, facing the inside of the sliding groove, of the track cover.

In some embodiments, the auxiliary door opening device further comprises: and the sealing element is arranged on the outer side wall of the sliding end.

In some embodiments, the cover is configured with a slot corresponding to the fixing end, and the fixing end is embedded in the slot.

In some embodiments, the fixed end, the arcuate bar, and the sliding end are integrally formed.

In some embodiments, the number of the auxiliary door opening devices is multiple, and the auxiliary door opening devices are uniformly distributed between the cover body and the machine body along the same end of the cover body.

In some embodiments, the auxiliary door opening devices are symmetrically distributed on two sides of the access opening along the same end of the cover body.

In some embodiments, an accommodating groove is formed at an end of the body, corresponding to the cover, where the auxiliary door opening device is disposed, and a width of the accommodating groove is adapted to a thickness of the cover.

The washing machine provided by the embodiment of the disclosure can realize the following technical effects:

the washing machine provided by the embodiment of the disclosure is characterized in that an auxiliary door opening device is arranged between the cover body and the machine body, the auxiliary door opening device comprises an arc-shaped track and an arc-shaped slide rod, the arc-shaped track is arranged on one side face, facing the cover body, of the machine body, and the arc-shaped slide rod corresponds to the arc-shaped track and is arranged on one side face, facing the machine body, of the cover body and is connected to the arc-shaped track in a sliding mode. When the lid was closed, the air in the arc slide bar compression arc track, the air of compressed produced reaction force to the arc slide bar, and then for the closing of lid provide the resistance to make the lid slowly close, thereby avoid the lid falling speed too fast to lead to pressing from both sides and hinder the user. When the lid was opened, the lid drove the arc slide bar and slides and release the air of the interior compressed of arc track, promoted the motion of arc slide bar to reduce the dynamics when the user opened the lid.

According to the washing machine provided by the embodiment of the disclosure, the auxiliary door opening device assists opening and closing of the door body by utilizing acting force and reacting force of compressed air, and compared with a traditional auxiliary door opening device, a certain fatigue limit can exist when the traditional auxiliary door opening device is used, and the fatigue limit cannot exist by utilizing compressibility of air, so that the failure rate of the auxiliary door opening device in the embodiment of the disclosure can be effectively reduced, and the reliability of the auxiliary door opening device is improved.

The foregoing general description and the following description are exemplary and explanatory only and are not restrictive of the application.

Drawings

One or more embodiments are illustrated in the accompanying drawings, which correspond to the accompanying drawings and not in a limiting sense, in which elements having the same reference numeral designations represent like elements, and in which:

fig. 1 is a schematic structural diagram of a washing machine according to an embodiment of the present disclosure;

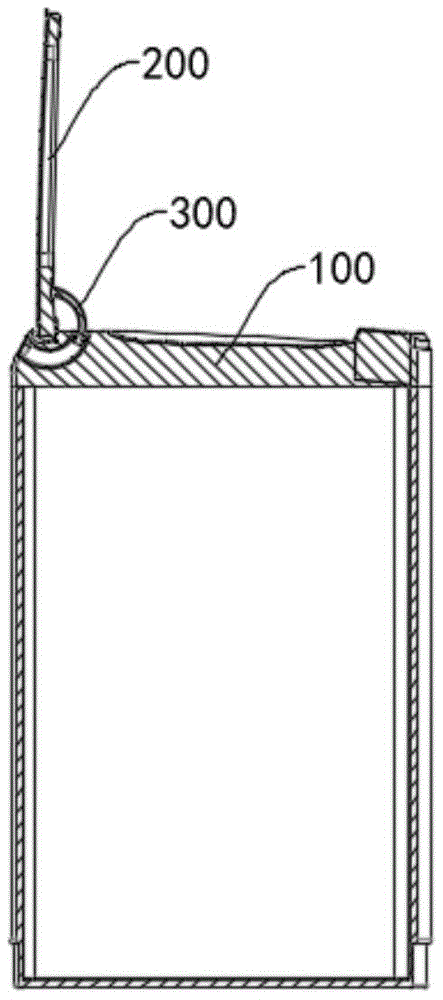

FIG. 2 is a schematic cross-sectional view of a washing machine according to an embodiment of the present disclosure;

FIG. 3 is an enlarged view of a portion of a washing machine according to an embodiment of the present disclosure;

FIG. 4 is a schematic structural diagram of an arc-shaped sliding rod according to an embodiment of the present disclosure;

fig. 5 is a schematic cross-sectional view of a washing machine body according to an embodiment of the present disclosure.

Reference numerals:

100: a body; 110: a containing groove; 120: taking and placing the opening; 200: a cover body; 300: an auxiliary door opening device; 310: an arc-shaped track; 311: a seal member; 312: a track cover; 320: an arc-shaped sliding rod; 321: a fixed end; 322: an arcuate bar; 323: a sliding end.

Detailed Description

So that the manner in which the features and elements of the disclosed embodiments can be understood in detail, a more particular description of the disclosed embodiments, briefly summarized above, may be had by reference to the embodiments, some of which are illustrated in the appended drawings. In the following description of the technology, for purposes of explanation, numerous details are set forth in order to provide a thorough understanding of the disclosed embodiments. However, one or more embodiments may be practiced without these details. In other instances, well-known structures and devices may be shown in simplified form in order to simplify the drawing.

The terms "first," "second," and the like in the description and claims of the embodiments of the disclosure and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances such that embodiments of the present disclosure described herein may be made. Furthermore, the terms "include" and "have," as well as any variations thereof, are intended to cover a non-exclusive inclusion.

In the embodiments of the present disclosure, the terms "upper", "lower", "inner", "middle", "outer", "front", "rear", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the disclosed embodiments and their examples and are not intended to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation. Moreover, some of the above terms may be used in other meanings besides orientation or positional relationship, for example, the term "upper" may also be used in some cases to indicate a certain attaching or connecting relationship. The specific meanings of these terms in the embodiments of the present disclosure may be understood as specific cases by those of ordinary skill in the art.

In addition, the terms "disposed," "connected," and "secured" are to be construed broadly. For example, "connected" may be a fixed connection, a detachable connection, or a unitary construction; can be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements or components. Specific meanings of the above terms in the embodiments of the present disclosure can be understood by those of ordinary skill in the art according to specific situations.

The term "plurality" means two or more, unless otherwise specified.

In the embodiment of the present disclosure, the character "/" indicates that the preceding and following objects are in an or relationship. For example, A/B represents: a or B.

The term "and/or" is an associative relationship that describes objects, meaning that three relationships may exist. For example, a and/or B, represents: a or B, or A and B.

It should be noted that, in the case of no conflict, the embodiments and features in the embodiments of the present disclosure may be combined with each other.

Referring to fig. 1 to 5, the embodiment of the present disclosure provides a washing machine, which includes a machine body 100, a cover 200, and an auxiliary door opening device 300, wherein a fetching/placing opening 120 is formed in a side wall of the machine body 100; the cover 200 is disposed on the body 100 and can be opened or closed to open or close the access opening 120; the auxiliary door opening device 300 is disposed between the body 100 and the cover 200, and is used for assisting the opening and closing of the cover 200; the auxiliary door opening device 300 includes an arc-shaped rail 310 and an arc-shaped sliding rod 320, wherein the arc-shaped rail 310 is disposed on a side surface of the body 100 facing the cover 200; the arc-shaped sliding rod 320 is disposed on a side surface of the cover 200 facing the machine body 100 corresponding to the arc-shaped rail 310, and is slidably connected to the arc-shaped rail 310, so that when the cover 200 is closed, the arc-shaped sliding rod 320 compresses air in the arc-shaped rail 310, and provides resistance for closing the cover 200, and when the cover 200 is opened, the compressed air pushes the arc-shaped sliding rod 320 to slide, and further provides assistance for opening the cover 200.

The washing machine according to the embodiment of the present disclosure is configured with the auxiliary door opening device 300 between the cover 200 and the machine body 100, the auxiliary door opening device 300 includes an arc-shaped rail 310 and an arc-shaped sliding rod 320, the arc-shaped rail 310 is disposed on a side of the machine body 100 facing the cover 200, and the arc-shaped sliding rod 320 is disposed on a side of the cover 200 facing the machine body 100 corresponding to the arc-shaped rail 310 and slidably connected to the arc-shaped rail 310. When the cover 200 is closed, the arc-shaped sliding rod 320 compresses the air in the arc-shaped track 310, and the compressed air generates a reaction force on the arc-shaped sliding rod 320, so as to provide resistance for closing the cover 200, so that the cover 200 can be slowly closed, and thus the cover 200 is prevented from falling too fast to hurt a user. When the cover 200 is opened, the cover 200 drives the arc-shaped sliding rod 320 to slide to release the compressed air in the arc-shaped track 310, and the arc-shaped sliding rod 320 is pushed to move, thereby reducing the force of the user opening the cover 200.

In the washing machine provided by the embodiment of the disclosure, the auxiliary door opening device 300 assists opening and closing of the door body by using the acting force and the reacting force of the compressed air, and compared with the conventional auxiliary door opening device 300, a certain fatigue limit exists when the washing machine is used, and the fatigue limit does not exist by using compressibility of air, so that the auxiliary door opening device 300 in the embodiment of the disclosure can effectively reduce failure rate when the washing machine is used, and reliability of the auxiliary door opening device 300 is improved.

In the embodiment of the present disclosure, the cover 200 is provided on the machine body 100 in an openable manner, that is, the cover 200 can be opened or closed with respect to the machine body 100, and the manner of opening or closing the cover 200 may be a rotating shaft, a hinge, or the like, as long as the cover 200 can be opened or closed with respect to the machine body 100, which is not particularly limited.

Optionally, the washing machine further includes a rotating assembly disposed between the machine body 100 and the cover 200 to enable the cover 200 to be opened or closed with respect to the machine body 100; the rotating assembly comprises a fixing member and a rotating shaft, and the fixing member is arranged at the edge part of the machine body 100, which is provided with the taking and placing opening 120; the fixing piece comprises a first fixing piece and a second fixing piece, the first fixing piece and the second fixing piece jointly form a clamping space, a first through hole is formed in the side face, facing the second fixing piece, of the first fixing piece, and a second through hole is formed in the position, corresponding to the first through hole, of the second fixing piece; the rotating shaft is fixed to the cover 200 corresponding to the clamping space and embedded in the clamping space, and the shaft necks at the two ends of the rotating shaft respectively penetrate through the first through hole and the second through hole.

When the user opens or closes the cover 200, the shaft journals at the two ends of the rotating shaft rotate in the first through hole and the second through hole respectively, thereby realizing the rotation of the cover 200 relative to the machine body 100. By adopting the arrangement mode, the structure is simple, and the processing is convenient.

Optionally, a groove is formed at a position of the cover 200 corresponding to the fixing member, and the rotating shaft is fixed to a bottom end surface of the groove corresponding to the clamping space.

By adopting the arrangement mode, the sealing performance when the cover body 200 is covered on the machine body 100 can be ensured, and the connection tightness between the cover body 200 and the machine body 100 can be ensured. Meanwhile, the integral aesthetic property of the washing machine can be effectively improved.

Alternatively, the number of the rotating assemblies is multiple, and the multiple rotating assemblies are uniformly distributed along the same edge portion of the top side wall of the machine body 100.

Thus, the stability of the cover 200 when opened and closed can be improved, and the life span of the washing machine can be improved.

Optionally, the machine body 100 is configured with a sliding groove, the sliding groove is bent inwards from the outer side wall of the machine body 100, and a first end of the sliding groove is blocked and a second end is open to form the arc-shaped track 310; wherein the arc-shaped sliding rod 320 extends from the second end of the sliding slot and slides along the sliding slot.

The slide groove is formed on the body 100 such that the slide groove is curved inward from an outer sidewall of the body 100 to form an arc-shaped rail 310. Specifically, the arc center of the arc track 310 is concentric with the rotation axis. Thus, the opening and closing of the lid body 200 can be ensured.

The first end of the sliding groove is blocked, the second end of the sliding groove is open, and after the arc-shaped sliding rod 320 extends into the sliding groove from the second end of the sliding groove, a closed cavity is formed from the arc-shaped sliding rod 320 to the first end of the sliding groove, so that the opening and closing of the auxiliary cover body 200 can be realized by utilizing the compressibility of air.

Optionally, the arc sliding bar 320 includes a fixed end 321, an arc bar 322 and a sliding end 323, the fixed end 321 is fixed on a side of the cover 200 facing the machine body 100 corresponding to the arc rail 310; the first end of the arc rod 322 is fixed at the fixed end 321; the sliding end 323 is arranged at the second end of the arc-shaped rod 322, and the sliding end 323 is matched with the sliding chute; when the cover 200 is closed, the sliding end 323 is pushed by the arc rod 322 to slide from the second end to the first end of the sliding slot, so as to compress the air in the sliding slot, and further provide resistance for closing the cover 200; when the cover 200 is opened, the arc rod 322 drives the sliding end 323 to slide along the sliding slot toward the second end of the sliding slot, and the compressed air pushes the sliding end 323 to slide toward the second end of the sliding slot, so as to provide assistance for opening the cover 200.

Since the arc-shaped sliding rod 320 needs to have an arc shape corresponding to the arc-shaped rail 310, it is inconvenient to fix the arc-shaped rod 322 to the cover body 200. Therefore, the arc sliding bar 320 is provided to include a fixed end 321, an arc rod 322 and a sliding end 323, the fixed end 321 is fixed to a side surface of the cover 200 facing the machine body 100 corresponding to the arc rail 310, the arc of the arc rod 322 is matched with the arc rail 310, the first end of the arc rod 322 is fixed to the fixed end 321, and the sliding end 323 is arranged at the second end of the arc rod 322. By adopting the arrangement form, the installation and the fixation of the arc-shaped sliding rod 320 are facilitated.

The sliding end 323 is configured to fit the sliding groove, i.e., the sliding end 323 is sized and shaped. In this way, during the process of closing the cover 200 to compress air, air can be effectively prevented from flowing out from the gap formed between the sliding end 323 and the sliding groove, and thus resistance can not be provided for closing the cover 200.

Specifically, when the cover 200 is closed, the sliding end 323 is pushed by the arc rod 322 to slide from the second end to the first end of the sliding slot, so as to compress the air in the sliding slot, thereby providing resistance for closing the cover 200; when the cover 200 is opened, the sliding end 323 is driven by the arc rod 322 to slide along the sliding groove toward the second end of the sliding groove, so as to release the compressed air in the sliding groove, and further provide assistance for opening the cover 200.

Like this, utilize the opening and shutting of compressed air's effort and reaction force auxiliary door body, compare and can have certain fatigue limit in traditional auxiliary door opener 300 when using, utilize the compressibility of air can not have fatigue limit to auxiliary door opener 300 in the embodiment of this disclosure can reduce the fault rate when using effectively, thereby has improved auxiliary door opener 300's reliability.

Optionally, the washing machine further includes a locking member, one end of the locking member is connected to the machine body 100, and the other end of the locking member is connected to the cover body 200, so that when the cover body 200 covers the machine body 100, the cover body 200 is locked to the machine body 100 by the locking member.

Because the air in the compression chute has certain elasticity, therefore, through setting up the retaining member, after the lid 200 lid fits the organism 100, lock the lid 200 in the organism 100 through the retaining member, like this, can prevent effectively that the air after the lid 200 lid closes by the compression from bouncing off to can guarantee user's normal use.

Optionally, the diameter of the arc-shaped rod 322 is smaller than that of the sliding end 323, the auxiliary door opening device 300 further includes a rail cover 312, the rail cover 312 is covered on the second end of the sliding slot, and the rail cover 312 is provided with a through hole corresponding to the arc-shaped rod 322; when the sliding end 323 slides to the second end of the sliding slot, the sliding end 323 abuts against a side surface of the track cover 312 facing the inside of the sliding slot.

A track cover 312 is provided at the second end of the chute and covers the opening at the second end of the chute. The track cover 312 has a through hole corresponding to the arc rod 322, specifically, the size of the through hole is matched with the arc rod 322, and the opening direction of the through hole is matched with the sliding direction of the arc rod 322. By adopting the arrangement form, the fluency of the arc-shaped rod 322 in the sliding process can be effectively ensured.

The diameter of the arc rod 322 is smaller than the diameter of the sliding end 323, so that when the sliding end 323 slides to the second end of the sliding chute, the sliding end 323 abuts against a side surface of the track cover 312 facing the inside of the sliding chute. Therefore, the cover body 200 can play a limiting role, and effectively prevent the cover body 200 from being damaged to the rotating shaft in different degrees due to the overlarge rotating angle, so that the service life of the washing machine is influenced.

Optionally, the track cover 312 is an elastic material.

When the cover body 200 is opened, the fixed end 321 disposed on the cover body 200 drives the arc rod 322 to further drive the sliding end 323 to slide along the sliding slot toward the second end of the sliding slot, the compressed air in the sliding slot is released to generate a pushing force, so as to push the sliding end 323 to slide until the sliding end 323 abuts against the track cover 312. Impact may be generated to the rail cover 312 when the sliding end 323 slides to the rail cover 312, resulting in a reduction in the lifespan of the rail cover 312 and the sliding end 323. Therefore, the track cover 312 made of elastic material can play a role of buffering, and the service life of the sliding end 323 can be effectively prolonged while the damage to the track cover 312 is reduced. In addition, the track cover 312 is made of elastic materials, so that noise generated when the sliding end 323 impacts the track cover 312 can be effectively reduced, and the use experience of a user can be effectively improved.

When the cover body 200 is closed, the sliding end 323 is pushed by the arc rod 322 to slide from the second end to the first end of the sliding chute, so as to compress the air in the sliding chute, and further provide resistance for closing the cover body 200, thereby slowing down the closing speed of the cover body 200. Meanwhile, the rail cover 312 made of an elastic material plays a role in buffering when the cover body 200 covers the machine body 100, so that noise generated when the cover body 200 covers the machine body can be reduced, and the service lives of the cover body 200 and the machine body 100 can be effectively prolonged.

Optionally, the auxiliary door opener 300 further includes a sealing member 311 disposed at an outer sidewall of the sliding end 323.

The sealing member 311 is disposed on the outer side wall of the sliding end 323, so that it is further prevented that air flows out from the gap formed by the sliding end 323 and the sliding groove during the process of compressing air to close the lid body 200, and thus resistance cannot be provided for closing the lid body 200.

Optionally, the cover 200 is configured with a slot corresponding to the fixing end 321, and the fixing end 321 is embedded in the slot.

A slot is formed at a position of the cover 200 corresponding to the fixing end 321, and the fixing end 321 is inserted into the slot. With such an arrangement, on the one hand, the sealing performance when the cover 200 is in the closed state can be effectively improved, and on the other hand, the aesthetic property of the washing machine can be effectively improved.

Optionally, the fixed end 321, the arc rod 322 and the sliding end 323 are integrally formed.

The fixed end 321, the arc rod 322 and the sliding end 323 are integrally formed, so that the strength of the arc sliding rod 320 can be effectively improved, and the service life of the arc sliding rod 320 can be prolonged. Meanwhile, the integrated forming mode is adopted, the processing is simple, and the production cost can be reduced.

Optionally, the number of the auxiliary door opening devices 300 is multiple and is uniformly distributed between the cover 200 and the machine body 100 along the same end of the cover 200.

By providing a plurality of auxiliary door openers 300 and uniformly distributing the plurality of auxiliary door openers 300 between the cover 200 and the body 100 along the same end of the cover 200, specifically, the arc centers of the arc-shaped rails 310 in the plurality of auxiliary door openers 300 are all concentric with the rotation axis. In this way, convenience when the user opens and closes the cover 200 can be further improved.

Optionally, a plurality of auxiliary door openers 300 are symmetrically distributed on both sides of the access opening 120 along the same end of the cover 200.

The auxiliary door opening devices 300 are symmetrically distributed on both sides of the access opening 120 along the same end of the cover body 200, and the arrangement mode can effectively avoid obstruction when a user accesses clothes, and can improve the overall aesthetic property of the washing machine.

Optionally, an accommodating groove 110 is formed at an end of the body 100 corresponding to the cover 200 where the auxiliary door opening device 300 is disposed, and a width of the accommodating groove 110 is adapted to a thickness of the cover 200.

The cover 200 includes a rotation end, which refers to an end for disposing the auxiliary door opening device 300, that is, the cover 200 may rotate relative to the body 100 along the rotation end. In the process of opening the cover 200, the rotating end of the cover 200 abuts against the body 100, thereby generating resistance to the opening of the cover 200. Therefore, an accommodating groove 110 is formed at an end of the body 100 where the auxiliary door opening device 300 is disposed corresponding to the cover 200, and the width of the accommodating groove 110 is adapted to the thickness of the cover 200. Thus, in the process of opening the cover body 200, the accommodating groove 110 provides a rotation space for the rotation end of the cover body 200, so that the cover body 200 can be ensured to be normally opened, and the use experience of a user can be effectively improved.

The above description and the drawings sufficiently illustrate embodiments of the disclosure to enable those skilled in the art to practice them. Other embodiments may include structural and other changes. The examples merely typify possible variations. Individual components and functions are optional unless explicitly required, and the sequence of operations may vary. Portions and features of some embodiments may be included in or substituted for those of others. The embodiments of the present disclosure are not limited to the structures that have been described above and illustrated in the drawings, and various modifications and changes can be made without departing from the scope thereof. The scope of the present disclosure is limited only by the appended claims.

Claims (10)

1. A washing machine, characterized by comprising:

the device comprises a machine body, wherein a taking and placing opening is formed in one side wall of the machine body;

the cover body is arranged on the machine body in an openable and closable manner so as to open or close the taking and placing opening;

the auxiliary door opening device is arranged between the machine body and the cover body and is used for assisting the opening and closing of the cover body;

wherein, supplementary door opener includes:

the arc-shaped track is arranged on one side surface of the machine body facing the cover body;

the arc-shaped sliding rod corresponds to the arc-shaped rail, is arranged on one side face, facing the machine body, of the cover body, is connected to the arc-shaped rail in a sliding mode, and is used for compressing air in the arc-shaped rail when the cover body is closed, so that resistance is provided for closing of the cover body, and when the cover body is opened, the compressed air pushes the arc-shaped sliding rod to slide, so that assistance is provided for opening of the cover body.

2. The washing machine as claimed in claim 1,

the machine body is provided with a sliding chute, the sliding chute is bent inwards from the outer side wall of the machine body, a first end of the sliding chute is blocked, and a second end of the sliding chute is open so as to form the arc-shaped track;

the arc-shaped sliding rod extends into the second end of the sliding groove and slides along the sliding groove.

3. The washing machine as claimed in claim 2, wherein the arc-shaped sliding bar comprises:

the fixed end is fixed on one side surface of the cover body facing the machine body corresponding to the arc-shaped track;

the first end of the arc rod is fixed at the fixed end;

the sliding end is arranged at the second end of the arc-shaped rod and is matched with the sliding groove;

when the cover body is closed, the sliding end is pushed to slide from the second end to the first end of the sliding groove through the arc-shaped rod, so that air in the sliding groove is compressed, and resistance is provided for closing the cover body; when the cover body is opened, the arc-shaped rod drives the sliding end to slide towards the second end of the sliding groove along the sliding groove, and compressed air pushes the sliding end to slide towards the second end of the sliding groove, so that assistance is provided for opening the cover body.

4. A washing machine according to claim 3,

the diameter of arc pole is less than the diameter of slip end, supplementary door opener still includes:

the track cover is covered at the second end of the sliding groove, and a through hole is formed in the track cover corresponding to the arc-shaped rod;

when the sliding end slides to the second end of the sliding groove, the sliding end abuts against one side face, facing the inside of the sliding groove, of the rail cover.

5. The washing machine as claimed in claim 3, wherein the auxiliary door opening device further comprises:

and the sealing element is arranged on the outer side wall of the sliding end.

6. A washing machine according to claim 3,

the cover body corresponds the stiff end structure has the draw-in groove, the stiff end is embedded in the draw-in groove.

7. A washing machine according to claim 3,

the fixed end, the arc-shaped rod and the sliding end are integrally formed.

8. A washing machine according to any one of claims 1 to 7,

the auxiliary door opening devices are multiple in number and are uniformly distributed between the cover body and the machine body along the same end of the cover body.

9. A washing machine according to claim 8,

and the auxiliary door opening devices are symmetrically distributed on two sides of the taking and placing opening along the same end of the cover body.

10. A washing machine according to any one of claims 1 to 7,

the machine body is provided with a containing groove corresponding to one end of the cover body, which is provided with the auxiliary door opening device, and the width of the containing groove is matched with the thickness of the cover body.
