CN218136300U - Movable man-machine display equipment

Info

Publication number: CN218136300U
Application number: CN202221152747.5U
Authority: CN
Inventors: 段海波; 曾伟忠
Original assignee: Suzhou Nodka Automation Technology Co ltd
Current assignee: Suzhou Nodka Automation Technology Co ltd
Priority date: 2022-05-13
Filing date: 2022-05-13
Publication date: 2022-12-27
Anticipated expiration: 2032-05-13

Abstract

The utility model discloses a movable man-machine display equipment relates to lathe assembly line and shows technical field, is a display of station for solving current lathe assembly line to need be equipped with and operate alone, lead to the high problem of manpower and materials consumption. A first supporting transverse frame is arranged at one end of the supporting vertical frame, a second supporting transverse frame is arranged at the other end of the supporting vertical frame, a station separation plate is arranged between the two first supporting transverse frames, a station is arranged on one side of the station separation plate, and a human-computer display is arranged in front of the first supporting transverse frame; further comprising: the ball screw is arranged inside the first support cross frame, one end of the ball screw is provided with a servo motor, and a screw moving seat is arranged outside the ball screw; and the connecting seat is arranged behind the man-machine display.

Description

Movable man-machine display equipment

Technical Field

The utility model relates to a lathe assembly line shows technical field, specifically is a movable man-machine display equipment.

Background

The machine tool assembly line is formed by a plurality of devices, a station number of each device is specified by the device and the device cooperates with software through an additional movable sliding rail operation platform, and the machine tool assembly line mainly comprises station devices, a human-computer interaction display, an up-and-down sliding rail, a sliding rail motor, a sensor and a proximity switch which are arranged on the device stations, and the like, wherein the human-computer interaction display is fixed on one station;

for example, a chinese granted patent (train man-machine interaction display device support) with a publication number of CN 205424300U: including base, support column and the installation frame that is used for installing train human-computer interaction display device, the support column sets up on the base, the installation frame is installed on the support column. The utility model provides an among the above-mentioned support, adopt installation frame installation train human-computer interaction display device, adopt support column and base to provide the support. Therefore adopt the utility model discloses can realize the fixed to train human-computer interaction display device, avoid the risk that train human-computer interaction display device dropped on the desktop. And simultaneously, owing to adopt the utility model discloses can realize the support to train human-computer interaction display device, consequently avoid leading to its cable of being qualified for the next round of competitions to be crushed because of train human-computer interaction display device's pressure, improve the security and the reliability that use train human-computer interaction display device.

However, the existing machine tool assembly line is provided with one station and one display, and a person is required to operate the machine tool assembly line, so that the manpower and material resource consumption is high; therefore, the existing requirements are not met, and a movable man-machine display device is provided for the requirements.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a movable man-machine display equipment to the current lathe assembly line that proposes in solving above-mentioned background is a station display, and need be equipped with and operate alone, leads to the high problem of manpower and materials consumption.

In order to achieve the above object, the utility model provides a following technical scheme: a transportable human-machine display device, comprising: the device comprises a vertical supporting frame, a first transverse supporting frame is arranged at one end of the vertical supporting frame, a second transverse supporting frame is arranged at the other end of the vertical supporting frame, a station separating plate is arranged between the two first transverse supporting frames, a station is arranged on one side of the station separating plate, and a human-computer display is arranged in front of the first transverse supporting frame;

further comprising:

the ball screw is arranged inside the first support cross frame, one end of the ball screw is provided with a servo motor, and a screw moving seat is arranged outside the ball screw;

and the connecting seat is arranged behind the man-machine display.

Preferably, the upper end of the connecting seat is provided with a single-head fastener, and the connecting seat is in threaded connection with the screw rod moving seat through the single-head fastener.

Preferably, one end of the connecting seat is provided with a fixing plate, the fixing plate and the connecting seat are of an integral structure, one end of the fixing plate is provided with a threaded fastener, and the fixing plate is in threaded connection with the human-computer display through the threaded fastener.

Preferably, the upper surface of the first support cross frame is provided with a moving groove, and the moving groove and the first support cross frame are of an integrated structure.

Preferably, one end of the first support cross frame is provided with a maintenance port, and the maintenance port and the first support cross frame are of an integrated structure.

Preferably, the one end of maintenance mouth is provided with the closing plate, the corner of closing plate all is provided with hexagon bolt, and the closing plate passes through hexagon bolt and first support crossbearer threaded connection, the preceding terminal surface of second support crossbearer is provided with the removal bottom plate, and the removal bottom plate can external personnel remove the frame.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses an inside setting of first support crossbearer is by ball, the lead screw removes the lead screw removal slide rail that seat and servo motor constitute, it is fixed with man-machine display to utilize the connecting seat, when equipment station operation finishes or need debug, equipment can be through the sensor of equipment from the area with signalling to operating system, then man-machine display can slide on the equipment station that needs the debugging through lead screw removal slide rail is automatic, if be greater than a hectometer to the assembly line, remove external personnel of bottom plate and remove the frame, personnel remove the frame fixed with the connecting seat, then the people can be along with man-machine display and together slide the equipment position that needs the debugging, do not need the people to walk about, can operate all equipment on-the-spot, like this alright realize the effect of operating a plurality of equipment of man-machine display control alone, the convenience is improved, reduce the loss of manpower and material resources.

2. Through the preceding terminal surface at the second support crossbearer setting removal bottom plate, remove the bottom plate upper surface and have personnel to remove a spout, if be greater than one hundred meters to the assembly line, remove the external personnel of bottom plate and remove the frame, personnel remove the frame fixed with the connecting seat, then the people can slide to the equipment position that needs the debugging along with man-machine display together, need not the people to walk about, can operate all on-the-spot equipment.

Drawings

FIG. 1 is a schematic view of the overall structure of the present invention;

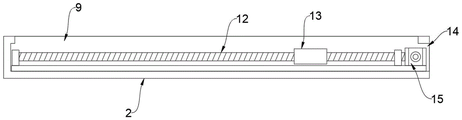

fig. 2 is a schematic view of the internal structure of the first support cross frame of the present invention;

FIG. 3 is a schematic diagram of a right side view of the connecting seat of the present invention;

in the figure: 1. a vertical support; 2. a first support cross frame; 3. a second support cross frame; 4. a station; 5. a station partition plate; 6. a human-machine display; 7. a sealing plate; 8. a hexagon bolt; 9. a moving groove; 10. a connecting seat; 11. a single-headed fastener; 12. a ball screw; 13. a lead screw moving seat; 14. a maintenance port; 15. a servo motor; 16. a fixing plate; 17. a threaded fastener; 18. the base plate is moved.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the present invention provides an embodiment: a transportable human-machine display device comprising: the device comprises a vertical support frame 1, wherein one end of the vertical support frame 1 is provided with a first transverse support frame 2, the other end of the vertical support frame 1 is provided with a second transverse support frame 3, a station separation plate 5 is arranged between the two first transverse support frames 2, one side of the station separation plate 5 is provided with a station 4, and a human-computer display 6 is arranged in front of the first transverse support frames 2;

further comprising:

a ball screw 12 provided inside the first support cross frame 2, a servo motor 15 being provided at one end of the ball screw 12, and a screw moving base 13 being provided outside the ball screw 12;

and the connecting seat 10 is arranged at the rear of the man-machine display 6.

Referring to fig. 1 and 2, a single-headed fastener 11 is disposed at an upper end of the connecting base 10, and the connecting base 10 is in threaded connection with the lead screw moving base 13 through the single-headed fastener 11, so that the connecting base 10 and the lead screw moving base 13 are conveniently fixed.

Referring to fig. 1 and 3, a fixing plate 16 is disposed at one end of the connecting base 10, the fixing plate 16 and the connecting base 10 are integrated, a threaded fastener 17 is disposed at one end of the fixing plate 16, and the fixing plate 16 is in threaded connection with the human-machine display 6 through the threaded fastener 17, so that the connecting base 10 and the human-machine display 6 can be conveniently fixed.

Referring to fig. 1, the upper surface of the first cross brace 2 is provided with a moving groove 9, and the moving groove 9 and the first cross brace 2 are integrated, so that the connecting seat 10 can move along the moving groove 9 to reach different stations 4.

Referring to fig. 2, a maintenance opening 14 is formed at one end of the first support cross frame 2, and the maintenance opening 14 and the first support cross frame 2 are integrated, so as to facilitate the detection and maintenance of the ball screw 12 inside the first support cross frame 2.

Referring to fig. 1, a sealing plate 7 is arranged at one end of a maintenance opening 14, hexagon bolts 8 are arranged at corners of the sealing plate 7, the sealing plate 7 is in threaded connection with the first support cross frame 2 through the hexagon bolts 8, a movable bottom plate 18 is arranged on the front end face of the second support cross frame 3, the movable bottom plate 18 can be connected with a personnel moving frame externally, if the assembly line is larger than one hundred meters, the movable bottom plate 18 is connected with the personnel moving frame externally, and the personnel moving frame is fixed with the connecting base 10, a person can slide to an equipment position needing debugging along with the man-machine display 6, and all equipment on site can be operated without walking.

The working principle is as follows: during the use, all install a different operating equipment in every station 4 inside, utilize station division board 5 to separate, connecting seat 10 relies on single-end fastener 11 to remove the seat 13 with the lead screw fixed, and connecting seat 10 relies on fixed plate 16 and threaded fastener 17 to be fixed with man-machine display 6, ball 12 of first support crossbearer 2 internally mounted, lead screw removes seat 13 and servo motor 15 constitution lead screw and removes the slide rail, the operation of equipment is that corresponding equipment parameter sets up in advance through the display control system and begins work in advance, when equipment station 4 operation finishes or when needing the debugging, equipment can be through sensor with signal transmission to operating system, then man-machine display 6 can remove the slide rail through the lead screw and remove to the equipment station 4 that needs the debugging automatically, if to the assembly line be greater than one hundred meters, remove the external personnel removal frame of bottom plate 18, personnel remove the frame and fix with connecting seat 10, then the people can slide to the equipment position that needs the debugging along with man-machine display 6 together, do not need the people to walk about, can operate all on-the scene equipment alone, just so alright realize the effect of operating machine display 6 control a plurality of equipment loss, the convenience reduces.

It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A movable man-machine display device comprises a supporting vertical frame (1), wherein one end of the supporting vertical frame (1) is provided with a first supporting transverse frame (2), the other end of the supporting vertical frame (1) is provided with a second supporting transverse frame (3), a station separation plate (5) is arranged between the two first supporting transverse frames (2), one side of the station separation plate (5) is provided with a station (4), and a man-machine display (6) is arranged in front of the first supporting transverse frame (2);

the method is characterized in that: further comprising:

the ball screw (12) is arranged inside the first support cross frame (2), one end of the ball screw (12) is provided with a servo motor (15), and a screw moving seat (13) is arranged outside the ball screw (12);

a connecting seat (10) arranged at the rear of the man-machine display (6).

2. A transportable man-machine display device as recited in claim 1, wherein: the upper end of the connecting seat (10) is provided with a single-head fastener (11), and the connecting seat (10) is in threaded connection with the screw rod moving seat (13) through the single-head fastener (11).

3. A transportable man-machine display device as recited in claim 1, wherein: one end of the connecting seat (10) is provided with a fixing plate (16), the fixing plate (16) and the connecting seat (10) are of an integral structure, one end of the fixing plate (16) is provided with a threaded fastener (17), and the fixing plate (16) is in threaded connection with the man-machine display (6) through the threaded fastener (17).

4. A transportable man-machine display device as recited in claim 1, wherein: the upper surface of the first support cross frame (2) is provided with a movable groove (9), and the movable groove (9) and the first support cross frame (2) are of an integrated structure.

5. A transportable man-machine display device as recited in claim 1, further comprising: one end of the first support cross frame (2) is provided with a maintenance opening (14), and the maintenance opening (14) and the first support cross frame (2) are of an integrated structure.

6. A transportable man-machine display device according to claim 5, characterised in that: one end of the maintenance opening (14) is provided with a sealing plate (7), the corners of the sealing plate (7) are provided with hexagonal bolts (8), the sealing plate (7) is in threaded connection with the first supporting transverse frame (2) through the hexagonal bolts (8), the front end face of the second supporting transverse frame (3) is provided with a movable bottom plate (18), and the movable bottom plate (18) can be connected with an external personnel moving frame.
