Abstract
The utility model discloses a strutting arrangement for civil engineering relates to the civil engineering field. This strutting arrangement for civil engineering is including installation PMKD, installation PMKD's top fixedly connected with cover barrel holder, the inside sliding connection of cover barrel holder has the lift post, the top of lift post is equipped with the pipeline supporting seat. This strutting arrangement for civil engineering is when using, conveniently prop up pipeline supporting seat, realize supporting the pipeline temporarily when carrying out civil engineering piping erection, when propping up pipeline supporting seat, utilize lift post and cover barrel holder to form vertical spacing, and rack and gear engagement, two sets of gears all receive the chucking location of chucking piece, thereby the realization is stable to the support of pipeline supporting seat, the setting up of two sets of gears makes the transmission department atress stable, consequently, guarantee that the pipeline supporting seat is stable to the support of pipeline, difficult pine takes off, satisfy the user demand.
Description
Technical Field
The utility model relates to a civil engineering technical field specifically is a strutting arrangement for civil engineering.
Background
In the civil engineering construction process, when a plurality of pipe fittings or columns are installed, temporary support is needed, and therefore a support device is needed for support.
Current civil engineering pipe fitting when installation, strutting arrangement is comparatively simple usually, its supported mode is, a flexible telescopic link, the base adds the pipeline supporting seat, utilize telescopic link adjustment holding height, telescopic link holding height is fixed through the bolt tightening mostly, because such supported mode is in the in-service use in-process, the chucking and the frictional force that lean on the bolt completely, it is not firm in many times, the pipeline supporting in-process, the easy pine takes off, and the operation is inconvenient, the bolt tightening back, still can make the slide bar atress on the telescopic link inhomogeneous, it is inconvenient to use, to prior art's not enough, the utility model discloses a strutting arrangement for civil engineering, in order to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model discloses a not enough to prior art, the utility model discloses a strutting arrangement for civil engineering, the device is when using, conveniently prop up the pipeline supporting seat, realize supporting the pipeline temporarily when carrying out civil engineering piping erection, when propping up the pipeline supporting seat, it is vertical spacing to utilize lift post and cover barrel seat to form, and rack and gear engagement, two sets of gears all receive the chucking location of chucking piece, thereby realize stable to the support of pipeline supporting seat, the setting up of two sets of gears makes transmission department atress stable, consequently, guarantee that the support of pipeline supporting seat to the pipeline is stable, difficult pine takes off, satisfy the user demand.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a supporting device for civil engineering comprises a mounting and fixing bottom plate, wherein the top of the mounting and fixing bottom plate is fixedly connected with a sleeve seat, a lifting column is slidably connected inside the sleeve seat, and a pipeline supporting seat is arranged at the top of the lifting column;
racks are arranged on two sides of the lifting column, gears are rotatably connected to two sides of the sleeve seat, and the gears are meshed with the racks;
the two sides of the sleeve seat are connected with sliding blocks in a sliding mode, the top of each sliding block is provided with a clamping block, and the clamping blocks are clamped with the gears;
the sleeve seat is provided with a control mechanism corresponding to the sliding block, and the control mechanism comprises a vertical plate, a screw rod, a nut seat and a connecting plate.
Preferably, the vertical plates are fixedly connected to the sleeve seat, the screw rod is rotatably connected between the two groups of vertical plates, and the nut seat is slidably connected between the two groups of vertical plates;
the nut seat is in threaded connection with the lead screw, the connecting plate is fixedly connected to the nut seat, and the connecting plate is fixedly connected with the sliding block.
Preferably, a limiting rod is fixedly connected between the two groups of vertical plates, and the nut seat is connected to the limiting rod in a sliding manner.
Preferably, shaft seats corresponding to the gears are fixedly connected to two sides of the sleeve seat, and notches corresponding to the gears are formed in two sides of the sleeve seat.
Preferably, a supporting plate is fixedly connected between the lifting column and the pipeline supporting seat.
Preferably, the both sides fixedly connected with arc spacing of cover cylinder seat, the arc wall has been seted up on the lateral wall of slider, arc wall and the spacing joint of arc.
Preferably, a connecting column is fixedly connected between the sliding block and the clamping block.
Preferably, the clamping block is provided with clamping teeth.
The utility model discloses a strutting arrangement for civil engineering, its beneficial effect who possesses as follows:
1. this strutting arrangement for civil engineering, when using, the pipeline supporting seat is conveniently propped up, realize supporting the pipeline temporarily when carrying out civil engineering piping erection, when propping up the pipeline supporting seat, utilize lift post and cover barrel holder to form vertical spacing, and rack and gear engagement, two sets of gears all receive the chucking location of chucking piece, thereby the realization is stable to the support of pipeline supporting seat, the setting of two sets of gears makes transmission department atress stable, consequently, guarantee that the pipeline supporting seat is stable to the support of pipeline, difficult pine takes off, satisfy the user demand.
2. This strutting arrangement for civil engineering, the spacing strip of arc that sets up can realize providing spacingly to the slider, guarantees that the atress of slider is stable, non-deformable to guarantee that the support effect to the chucking piece is good, when making the chucking piece gear screens, the screens is stable, and the screens tooth of setting realizes that the chucking piece is difficult for the pine to take off when the counter gear chucking.
Drawings

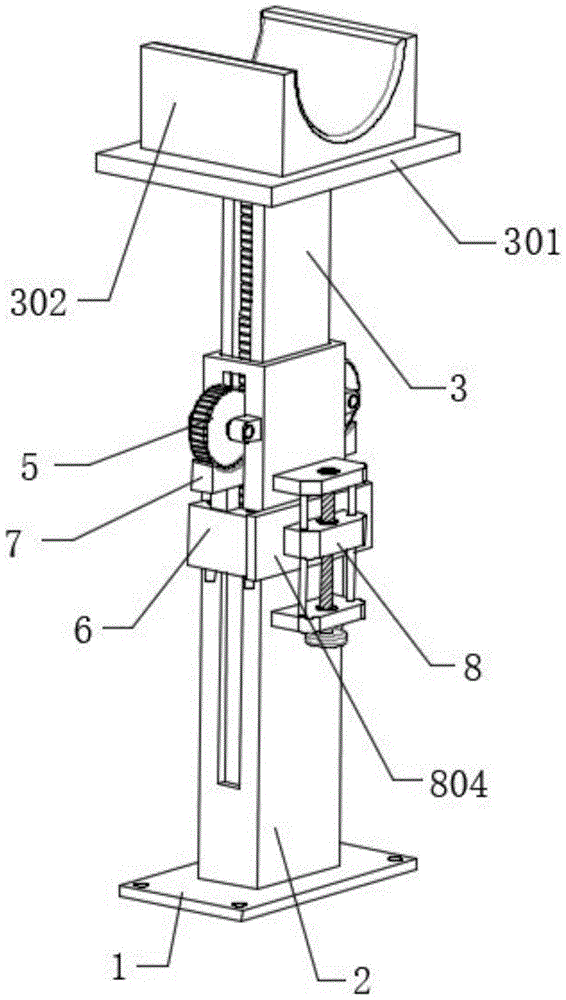

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a structural diagram of the lifting column of the present invention;
FIG. 3 is a structural diagram of the gear of the present invention;
fig. 4 is a schematic structural diagram of the clamping block of the present invention.
In the figure: 1. installing a fixed bottom plate; 2. a sleeve seat; 201. a notch; 3. a lifting column; 301. a support plate; 302. a pipeline supporting seat; 4. a rack; 5. a gear; 501. a shaft seat; 6. a slider; 601. an arc-shaped limiting strip; 602. an arc-shaped slot; 603. connecting columns; 7. a clamping block; 701. a clamping tooth; 8. a control mechanism; 801. a vertical plate; 802. a screw rod; 803. a nut seat; 804. a connecting plate; 805. a limiting rod.
Detailed Description
The embodiment of the utility model discloses a supporting device for civil engineering, as shown in figures 1-4, comprising an installation fixing bottom plate 1, a sleeve seat 2 fixedly connected with the top of the installation fixing bottom plate 1, a lifting column 3 slidably connected with the inside of the sleeve seat 2, a pipeline supporting seat 302 arranged on the top of the lifting column 3;
two sides of the sleeve seat 2 are connected with sliding blocks 6 in a sliding mode, the top of each sliding block 6 is provided with a clamping block 7, and each clamping block 7 is clamped with the gear 5;
the sleeve seat 2 is provided with a control mechanism 8 corresponding to the slide block 6, and the control mechanism 8 comprises a vertical plate 801, a screw rod 802, a nut seat 803 and a connecting plate 804.
The vertical plate 801 is fixedly connected to the sleeve seat 2, the screw rod 802 is rotatably connected between the two groups of vertical plates 801, and the nut seat 803 is slidably connected between the two groups of vertical plates 801;
the nut seat 803 is in threaded connection with the lead screw 802, the connecting plate 804 is fixedly connected to the nut seat 803, the connecting plate 804 is fixedly connected to the slider 6, the arranged lead screw 802 can conveniently move the nut seat 803, the nut seat 803 can further drive the connecting plate 804, the slider 6, the connecting column 603 and the clamping block 7 to move when moving, a rotating handle is arranged on the lead screw 802 to conveniently rotate the lead screw 802,
a limiting rod 805 is fixedly connected between the two groups of vertical plates 801, the nut seat 803 is connected to the limiting rod 805 in a sliding manner, and the limiting rod 805 can support the nut seat 803, so that the nut seat 803 is stably stressed.
Both sides fixedly connected with of sleeve seat 2 and the corresponding axle bed 501 of gear 5, the notch 201 corresponding with gear 5 has been seted up to the both sides of sleeve seat 2, and the support of gear 5 is realized spacingly to the axle bed 501 that sets up, and the notch 201 that sets up provides the connection space of gear 5 and rack 4.
Fixedly connected with backup pad 301 between lifting column 3 and the pipeline supporting seat 302, the backup pad 301 that sets up makes fixed connection effectual between lifting column 3 and the pipeline supporting seat 302.
The spacing 601 of both sides fixedly connected with arc of cover barrel holder 2 has seted up arc wall 602 on the lateral wall of slider 6, and arc wall 602 and the spacing 601 joint of arc, the spacing 601 of arc of setting can realize providing spacingly to slider 6, guarantees that the atress of slider 6 is stable, non-deformable to guarantee that the support effect to chucking piece 7 is good, when making chucking piece 7 gear 5 screens, the screens is stable.
Fixedly connected with spliced pole 603 between slider 6 and the chucking piece 7, the spliced pole 603 of setting realizes the rigidity between slider 6 and the chucking piece 7.
The clamping block 7 is provided with clamping teeth 701, and the clamping teeth 701 are arranged to prevent the clamping block 7 from loosening when the gear 5 is clamped.
This strutting arrangement for civil engineering is when using, conveniently prop up pipeline supporting seat 302, realize supporting the pipeline temporarily when carrying out civil engineering piping erection, when propping up pipeline supporting seat 302, utilize lift post 3 and cover cylinder 2 to form vertical spacing, and rack 4 and gear 5 meshing, two sets of gears 5 all receive the chucking location of chucking piece 7, thereby the realization is stable to the support of pipeline supporting seat 302, two sets of gears 5's setting makes the transmission department atress stable, consequently, guarantee that pipeline supporting seat 302 is stable to the support of pipeline, difficult pine takes off, satisfy the user demand.
The working principle is as follows: when supporting a pipeline, the pipeline supporting seat 302 is supported, and when supporting, the screw rod 802 is firstly rotated, so that the screw rod 802 drives the nut seat 803 to move along the limiting rod 805, the nut seat 803 drives the connecting plate 804 to move, the connecting plate 804 drives the sliding block 6 to move, the sliding block 6 drives the connecting column 603 to move, and the connecting column 603 drives the clamping block 7 to move and enables the clamping block 7 to be disengaged from the gear 5;
at the moment, the pipeline supporting seat 302 is pulled and supported with the pipeline, when the pipeline supporting seat 302 moves, the supporting plate 301 and the lifting column 3 are driven to integrally move, the lifting column 3 moves along the inner part of the sleeve seat 2 and drives the rack 4 to move, and the rack 4 drives the two groups of gears 5 to rotate;
after the pipeline supporting seat 302 is adjusted to a proper supporting position, the screw rod 802 is rotated reversely, the screw rod 802 drives the nut seat 803 to move along the limiting rod 805, the nut seat 803 drives the connecting plate 804 to move, the connecting plate 804 drives the sliding block 6 to move, the sliding block 6 drives the connecting column 603 to move, the connecting column 603 drives the clamping block 7 to move and enables the clamping block 7 to be clamped with the gear 5, and therefore supporting and fixing of the pipeline supporting seat 302 are achieved, and temporary supporting and fixing of a pipeline are achieved.
When the whole device needs to be dismounted and recycled in the follow-up process, the dismounting process is convenient, the pipeline supporting seat 302 is folded, and the folding process and the unfolding process are opposite.
The foregoing shows and describes the basic principles and principal features of the invention, together with the advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides a strutting arrangement for civil engineering, is including installation PMKD (1), its characterized in that:
the top of the mounting and fixing bottom plate (1) is fixedly connected with a sleeve seat (2), the interior of the sleeve seat (2) is connected with a lifting column (3) in a sliding manner, and the top of the lifting column (3) is provided with a pipeline supporting seat (302);
racks (4) are arranged on two sides of the lifting column (3), gears (5) are rotatably connected to two sides of the sleeve seat (2), and the gears (5) are meshed with the racks (4);
the two sides of the sleeve seat (2) are connected with sliding blocks (6) in a sliding mode, the top of each sliding block (6) is provided with a clamping block (7), and each clamping block (7) is clamped with the gear (5);
the sleeve seat (2) is provided with a control mechanism (8) corresponding to the sliding block (6), and the control mechanism (8) comprises a vertical plate (801), a screw rod (802), a nut seat (803) and a connecting plate (804).
2. The supporting device for civil engineering as claimed in claim 1, wherein: the vertical plates (801) are fixedly connected to the sleeve seat (2), the screw rod (802) is rotatably connected between the two groups of vertical plates (801), and the nut seat (803) is slidably connected between the two groups of vertical plates (801);
the nut seat (803) is in threaded connection with the lead screw (802), the connecting plate (804) is fixedly connected to the nut seat (803), and the connecting plate (804) is fixedly connected with the sliding block (6).
3. A supporting device for civil engineering works as claimed in claim 2, characterized in that: and a limiting rod (805) is fixedly connected between the two groups of vertical plates (801), and the nut seat (803) is connected to the limiting rod (805) in a sliding manner.
4. A supporting device for civil engineering works as claimed in claim 1, characterized in that: two sides of the sleeve seat (2) are fixedly connected with shaft seats (501) corresponding to the gears (5), and two sides of the sleeve seat (2) are provided with notches (201) corresponding to the gears (5).
5. A supporting device for civil engineering works as claimed in claim 1, characterized in that: a supporting plate (301) is fixedly connected between the lifting column (3) and the pipeline supporting seat (302).
6. The supporting device for civil engineering as claimed in claim 1, wherein: the two sides of the sleeve seat (2) are fixedly connected with arc-shaped limiting strips (601), arc-shaped grooves (602) are formed in the side walls of the sliding blocks (6), and the arc-shaped grooves (602) are connected with the arc-shaped limiting strips (601) in a clamped mode.
7. A supporting device for civil engineering works as claimed in claim 1, characterized in that: a connecting column (603) is fixedly connected between the sliding block (6) and the clamping block (7).
8. A supporting device for civil engineering works as claimed in claim 1, characterized in that: clamping teeth (701) are arranged on the clamping block (7).
