CN218076837U - Anti-blocking type sewage treatment tank - Google Patents
Anti-blocking type sewage treatment tank Download PDFInfo
- Publication number
- CN218076837U CN218076837U CN202222058971.4U CN202222058971U CN218076837U CN 218076837 U CN218076837 U CN 218076837U CN 202222058971 U CN202222058971 U CN 202222058971U CN 218076837 U CN218076837 U CN 218076837U
- Authority
- CN
- China
- Prior art keywords
- treatment tank
- ring
- sewage treatment
- spherical filter
- sewage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Filtration Of Liquid (AREA)
Abstract
The utility model relates to a water resource technical field especially relates to a prevent stifled type sewage treatment jar, has solved current sewage treatment jar among the prior art, and the filter screen uses the phenomenon that can cause the hole on the filter screen to block up after being of a specified duration, and is difficult for the clearance, leads to work efficiency to reduce, forms dirty thing on the filter simultaneously, forms the corrosion effect, reduces the life's of filter problem easily. The utility model provides a prevent stifled type sewage treatment jar, includes the treatment tank, and the top of treatment tank can be dismantled and is connected with the top cap, and the bottom of treatment tank and the circumferencial direction along the treatment tank are provided with a plurality of supporting leg, and the inner chamber of treatment tank is provided with the ring. The utility model discloses rational in infrastructure, thereby avoided impurity to stop at the filter screen and avoided blockking up, impurity erodees simultaneously and collects in unison from spherical filter mantle top to ring sewage, has improved the convenience of later stage clearance, and the filter screen of alleviating is by the time of corruption, increase of service life.
Description
Technical Field
The utility model relates to a water resource technical field especially relates to an anti-blocking type sewage treatment tank.
Background
At present, water consumption of domestic provinces and cities is increasingly tense, water resources are very limited, and recycling of the water resources becomes one of main means for saving water, wherein domestic water accounts for a large part of total water consumption, so that various domestic sewage treatment systems are produced by many manufacturers, recycling of domestic sewage is expected, a sewage treatment tank is an important device in a water treatment system, and the sewage treatment tank is small in size, complete in function and widely favored by various enterprises.
However, in the existing sewage treatment tank, the filter screen is not easy to clean due to the phenomenon of hole blockage on the filter screen after being used for a long time, so that the work efficiency is reduced, meanwhile, the filter screen is provided with a pollutant, a corrosion effect is formed, and the service life of the filter screen is easily shortened.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a prevent stifled type sewage treatment jar has solved current sewage treatment jar among the prior art, and the filter screen uses the phenomenon that can cause the hole on the filter screen to block up after being of a specified duration, and is difficult for the clearance, leads to work efficiency to reduce, forms dirty thing on the filter simultaneously, forms corrosion effects, reduces the life's of filter problem easily.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a prevent stifled type sewage treatment jar, includes the processing jar, the top of processing jar can be dismantled and be connected with the top cap, the bottom of processing jar and the circumferencial direction along the processing jar are provided with a plurality of supporting leg, the inner chamber of processing jar is provided with the ring, the top of ring is provided with spherical filter mantle, the bottom edge of spherical filter mantle just is close to inner circle edge with the top of ring and is connected, the bottom of ring is provided with the toper discharging pipe, the inside of toper discharging pipe can be dismantled and is connected with filtration.
Preferably, the top of the circular ring is provided with a slag storage groove, and an inner ring of the slag storage groove extends to a position close to the spherical filter housing.
Preferably, the bottom edge of the spherical filter cover is fixedly connected with the top of the circular ring through a bolt.
Preferably, the top center of the top cover is communicated with a butt joint pipe, and the outer ring of the top end part of the butt joint pipe is provided with a plurality of butt joint grooves.
Preferably, the filtering structure comprises a filtering ring, the bottom of the filtering ring is matched with the inner ring of the conical discharging pipe and fixedly connected with the inner ring of the conical discharging pipe through a bolt, the outer ring of the conical discharging pipe is fixedly connected with the inner ring of the treatment tank through a bolt, and the outer ring of the circular ring is fixedly connected with the inner ring of the treatment tank through a bolt.
Preferably, a filling cylinder is arranged at the bottom of the conical discharge pipe, a plurality of liquid discharge holes are formed in the bottom end of the filling cylinder, a liquid discharge port matched with the filling cylinder is formed in the bottom of an inner cavity of the treatment tank, a transfer cylinder fixedly connected with the bottom of the treatment tank through a bolt is arranged in the center of the bottom of the treatment tank, and a liquid discharge pipe is communicated with the bottom of the transfer cylinder.
The utility model discloses possess following beneficial effect at least:
through the setting of spherical filter mantle sewage from spherical filter mantle, sewage passes through from spherical filter mantle sewage from spherical filter mantle, liquid passes through, impurity is kept apart, simultaneously along with continuous sewage gets into, impurity is washed away from spherical filter mantle sewage from spherical filter mantle to the top of ring sewage from spherical filter mantle, can not stop the jam from the surperficial stop of spherical filter mantle at spherical filter mantle sewage, sewage gets into to toper discharging pipe sewage filters once more from spherical filter mantle through filtration from spherical filter mantle, discharge at last, rational in infrastructure, thereby impurity has avoided stopping at the filter screen and has avoided blockking up, impurity washes away to ring sewage simultaneously and collects from spherical filter mantle top in unison, the convenience of later stage clearance has been improved, the filter screen of alleviating is corroded the time, the life of increase of use.
The utility model discloses still possess following beneficial effect:
sewage passes through from spherical filter mantle sewage from spherical filter mantle, liquid passes through, impurity is kept apart, simultaneously along with the sewage entering of incessant, impurity is washed away from spherical filter mantle sewage to the top of ring sewage from spherical filter mantle at spherical filter mantle from spherical filter mantle, can not stop the jam at spherical filter mantle sewage from the surface of spherical filter mantle, sewage gets into filters once more through filtration from spherical filter mantle to toper discharging pipe sewage, discharge at last, rational in infrastructure, thereby impurity stops at the filter screen and has avoided blockking up, impurity is washed away and is unified the collection from spherical filter mantle top to ring sewage simultaneously, the convenience of later stage clearance has been improved, the filter screen of alleviating is corroded the time, the life-span of increase of use, through the setting of packing section of thick bamboo sewage from spherical filter mantle, to packing material improvement filtration quality is filled from the inside of spherical filter mantle to packing material from spherical filter mantle sewage from spherical filter mantle to packing section of thick bamboo sewage.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without any creative effort.

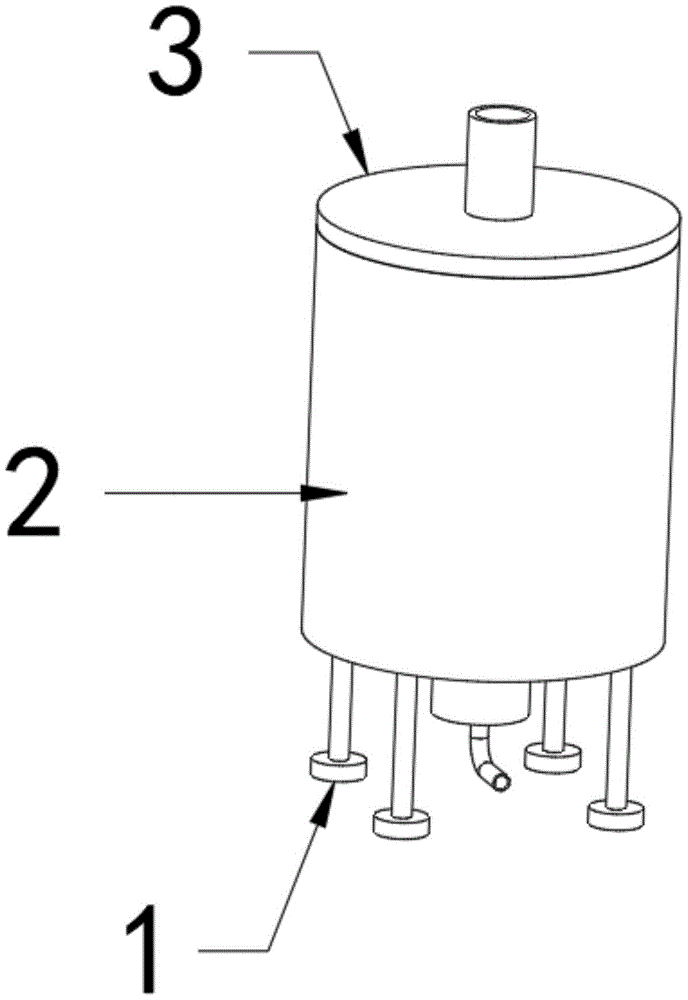

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a schematic view of the structure of the treatment tank of the present invention;
FIG. 3 is a schematic view of the filter ring structure of the present invention;
FIG. 4 is a schematic view of the ring structure of the present invention;
FIG. 5 is a schematic view of the tapered discharge pipe of the present invention.
In the figure: 1. supporting legs; 2. a treatment tank; 3. a top cover; 4. a liquid discharge port; 5. a liquid discharge pipe; 6. a middle rotating cylinder; 7. a conical discharge pipe; 8. a circular ring; 9. a spherical filter mantle; 10. a filter ring; 11. a slag storage tank; 12. a liquid discharge hole; 13. and (6) filling the cylinder.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention will be further described in detail with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Referring to fig. 1-5, an anti-blocking type sewage treatment tank, including treatment tank 2, treatment tank 2's top can be dismantled and be connected with top cap 3, treatment tank 2's bottom and be provided with a plurality of supporting leg 1 along treatment tank 2's circumferencial direction, treatment tank 2's inner chamber is provided with ring 8, ring 8's top is provided with spherical filter mantle 9, spherical filter mantle 9's bottom edge just is close to inner circle edge with ring 8's top and is connected, ring 8's bottom is provided with toper discharging pipe 7, the inside of toper discharging pipe 7 can be dismantled and be connected with filtration, it is concrete, through spherical filter mantle 9's setting, sewage passes through from spherical filter mantle 9, liquid passes through, impurity is kept apart, simultaneously along with the continuous sewage entering of source, impurity is washed away to ring 8's top from spherical filter mantle 9, can not stop up in spherical filter mantle 9's surface, sewage enters into to toper discharging pipe 7 and filters once more through filtration, discharge at last, rational in infrastructure, thereby avoided impurity to stop at the filter screen and avoided blockking, the unified collection of impurity to wash away to ring 8 top simultaneously, the clear corrosion in later stage is improved, the convenience of later stage, the extension of using, the life-time of filter screen is prolonged.
The scheme has the following working processes:
through spherical filter mantle 9's setting, sewage is followed spherical filter mantle 9 process, liquid passes through, impurity is kept apart, simultaneously along with the sewage entering of incessant, impurity is scoured away to ring 8's top from spherical filter mantle 9, can not stop the jam at spherical filter mantle 9's surperficial stop, sewage gets into and filters once more to toper discharging pipe 7 through filtration, discharge at last, and is rational in infrastructure, thereby impurity has been avoided stopping at the filter screen and has been avoided blockking up, impurity erodees to ring 8 tops and unifies the collection simultaneously, the convenience of later stage clearance has been improved, the filter screen that alleviates is corroded the time, the life-span of increase of service.
According to the working process, the following steps are known:
it is rational in infrastructure, thereby avoided impurity to stop at the filter screen and avoided blockking up, impurity erodees simultaneously and collects to the 8 tops of ring in unison, has improved the convenience of later stage clearance, and the filter screen of alleviating is corroded the time, increase of service life.
Further, deposit sediment groove 11 has been seted up at the top of ring 8, and the inner circle of depositing sediment groove 11 extends to the position that is close to spherical filter mantle 9, and is concrete, through depositing the setting of sediment groove 11, is convenient for store impurity, has improved abluent convenience.
Furthermore, the bottom edge of the spherical filter cover 9 is fixedly connected with the top bolt of the circular ring 8, and the spherical filter cover 9 is convenient to mount due to the fact that the circular ring 8 is not specifically arranged.
Further, the top center department intercommunication of top cap 3 has the butt joint pipe, and a plurality of butt joint groove has been seted up to the outer lane in butt joint pipe top portion, and is specific, through the setting of butt joint pipe, the butt joint of the body of being convenient for.
Further, filtration includes filter ring 10, and filter ring 10's bottom and the inner circle looks adaptation and the bolt fixed connection of toper discharging pipe 7, the outer lane of toper discharging pipe 7 and the inner circle bolt fixed connection of handling jar 2, the outer lane of ring 8 and the inner circle bolt fixed connection of handling jar 2, and is concrete, through filter ring 10's setting, sewage gets into toper discharging pipe 7 and flows and carries out the secondary filtration through filter ring 10.
Further, the bottom of toper discharging pipe 7 is provided with a packing section of thick bamboo 13, a plurality of outage 12 has been seted up to the bottom portion of packing section of thick bamboo 13, the leakage fluid dram 4 with packing section of thick bamboo 13 looks adaptation is seted up to the inner chamber bottom of handling jar 2, the bottom center department of handling jar 2 is provided with the transfer section of thick bamboo 6 with 2 bottom bolt fixed connection of handling jar, the bottom intercommunication of transfer section of thick bamboo 6 has fluid-discharge tube 5, and is concrete, through the setting of packing section of thick bamboo 13, packs filtering material to the inside of packing section of thick bamboo 13 and improves filtering quality.
In summary, the following steps: sewage passes through from spherical filter mantle 9, liquid passes through, impurity is kept apart, simultaneously along with the sewage entering of continuing, impurity is washed away to ring 8's top from spherical filter mantle 9, can not stop at spherical filter mantle 9's surperficial stop and block up, sewage gets into and filters once more through filtration to toper discharging pipe 7, discharge at last, and is rational in infrastructure, thereby it stops to have avoided impurity to stop at the filter screen and has avoided blockking up, impurity washes away and unifies the collection to ring 8 top simultaneously, the convenience of later stage clearance has been improved, the filter screen of alleviating is corroded the time, the life-span of increase of service, setting through packing section of thick bamboo 13, the inside packing material to packing section of thick bamboo 13 improves filtration quality.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that all the embodiments and descriptions are provided in the present invention, and that various changes and modifications can be made without departing from the spirit and scope of the present invention, and all such changes and modifications fall within the scope of the present invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a prevent stifled type sewage treatment jar, includes treatment tank (2), its characterized in that, the top of treatment tank (2) can be dismantled and be connected with top cap (3), the bottom of treatment tank (2) and the circumferencial direction along treatment tank (2) are provided with a plurality of supporting leg (1), the inner chamber of treatment tank (2) is provided with ring (8), the top of ring (8) is provided with spherical filter mantle (9), the bottom edge of spherical filter mantle (9) just is close to inner circle edge with the top of ring (8) and is connected, the bottom of ring (8) is provided with toper discharging pipe (7), the inside of toper discharging pipe (7) can be dismantled and be connected with filtration.
2. The anti-blocking sewage treatment tank according to claim 1, wherein a slag storage tank (11) is formed at the top of the circular ring (8), and an inner ring of the slag storage tank (11) extends to a position close to the spherical filter housing (9).
3. The anti-blocking sewage treatment tank according to claim 2, wherein the bottom edge of the spherical filter cover (9) is fixedly connected with the top of the circular ring (8) through a bolt.
4. The anti-blocking sewage treatment tank according to claim 1, wherein the top center of the top cover (3) is communicated with a butt joint pipe, and the outer ring of the top end of the butt joint pipe is provided with a plurality of butt joint grooves.
5. The anti-blocking sewage treatment tank according to claim 1, wherein the filtering structure comprises a filtering ring (10), the bottom of the filtering ring (10) is matched and fixedly connected with an inner ring of the tapered discharging pipe (7) through a bolt, an outer ring of the tapered discharging pipe (7) is fixedly connected with an inner ring of the treatment tank (2) through a bolt, and an outer ring of the circular ring (8) is fixedly connected with an inner ring of the treatment tank (2) through a bolt.
6. The anti-blocking sewage treatment tank according to claim 5, wherein a filling cylinder (13) is arranged at the bottom of the tapered discharge pipe (7), a plurality of liquid discharge holes (12) are formed in the bottom end of the filling cylinder (13), a liquid discharge port (4) matched with the filling cylinder (13) is formed in the bottom of the inner cavity of the treatment tank (2), a transfer cylinder (6) fixedly connected with the bottom of the treatment tank (2) through a bolt is arranged in the center of the bottom of the treatment tank (2), and a liquid discharge pipe (5) is communicated with the bottom of the transfer cylinder (6).
