CN218060932U

CN218060932U - Energy-conserving curtain for building convenient to installation

Info

Publication number: CN218060932U
Application number: CN202221085502.5U
Authority: CN
Inventors: 余春旺; 陶小勇
Original assignee: Yuanlian Construction Engineering Co ltd
Current assignee: Yuanlian Construction Engineering Co ltd
Priority date: 2022-05-07
Filing date: 2022-05-07
Publication date: 2022-12-16
Anticipated expiration: 2032-05-07

Abstract

The utility model relates to the field of building curtain walls, in particular to a building energy-saving curtain wall convenient to install, which comprises angle steel, a cross keel, a vertical keel, a first inserting plate, a second inserting plate, a first U-shaped part, a second U-shaped part and a curtain wall; the angle steel is arranged on the building outer wall; the two groups of transverse keels are horizontally arranged on one end of the angle steel, which is far away from the building outer wall; the vertical keels are vertically arranged between the two groups of transverse keels; the curtain wall is arranged on one side of the angle steel, which is far away from the building outer wall, and is arranged in parallel with the building outer wall; the U-shaped piece I is arranged at the upper end of the curtain wall, and the U-shaped piece II is arranged at the lower end of the curtain wall; the lower end of the first inserting plate is arranged inside the first groove; the lower end of the second inserting plate is arranged inside the second groove. The utility model has the advantages that the installation of the fixing structure is convenient and the fixing structure is more reliable by arranging the angle steel, the cross keel and the vertical keel; the first groove and the second groove are arranged to correspond to the first inserting plate and the second inserting plate, and when the curtain wall is installed, the curtain wall only needs to be hung, so that the installation is convenient, and meanwhile, the disassembly is convenient.

Description

Energy-conserving curtain for building convenient to installation

Technical Field

The utility model relates to a building curtain field especially relates to an energy-conserving curtain for building convenient to installation.

Background

The building curtain wall is composed of a supporting structure system and a panel, can have certain displacement capacity relative to a main body structure, does not bear the external protective structure or decorative structure of the building acted on the main body structure, is the external wall protection of the building, does not bear the weight, and is a light wall body with decorative effect commonly used by modern large-scale and high-rise buildings.

However, the existing building curtain wall is difficult to install and consumes a great deal of manpower.

SUMMERY OF THE UTILITY MODEL

The utility model discloses the purpose is to the problem that exists among the background art, provides an energy-conserving curtain for building convenient to installation.

The technical scheme of the utility model: an energy-saving curtain wall convenient to install for a building comprises angle steel, a transverse keel, a vertical keel, a first inserting plate, a second inserting plate, a first U-shaped part, a second U-shaped part and a curtain wall; the angle steel is arranged on the building outer wall; the two groups of transverse keels are horizontally arranged at one end of the angle steel, which is far away from the building outer wall; the vertical keel is vertically arranged between the two groups of transverse keels; the curtain wall is arranged on one side of the angle steel, which is far away from the building outer wall, and is arranged in parallel with the building outer wall; the first U-shaped part is arranged at the upper end of the curtain wall, and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall; the U-shaped part II is arranged at the lower end of the curtain wall, and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall; the first inserting plate and the second inserting plate are arranged on one side, close to the building outer wall, of the curtain wall and are parallel to the curtain wall; the upper end of the first inserting plate is connected with the first U-shaped part, and the upper end of the second inserting plate is connected with the second U-shaped part; a vertical groove I is formed in the transverse keel positioned above the transverse keel, and a vertical groove II is formed in the transverse keel positioned below the transverse keel; the lower end of the first inserting plate is arranged inside the first groove; the lower end of the second inserting plate is arranged in the second groove.

Preferably, a fixing component is arranged on the first inserting plate; the fixing component comprises a mounting block and a stud; two groups of mounting blocks are arranged and are respectively positioned on two sides of the first plug board; the studs are correspondingly arranged in two groups, vertically penetrate through the mounting blocks respectively, and are in threaded connection with the mounting blocks.

Preferably, the lower end of the stud is rotatably provided with a rubber antiskid block; the rotation axis of the rubber anti-skid block is vertical.

Preferably, a waist-shaped hole is formed in the vertical side wall of the angle steel; the long diameter of the waist-shaped hole is vertically arranged; the building outer wall is provided with embedded bolts; the embedded bolt penetrates through the waist-shaped hole; a nut is arranged on one side, away from the building outer wall, of the vertical side wall of the angle steel; the nut is connected with the embedded bolt through threads.

Preferably, a gasket is arranged between the nut and the vertical side wall of the angle steel.

Preferably, a vertical hole is formed in the horizontal side wall of the angle steel; self-tapping screws are arranged in the holes; the cross keel is connected with the angle steel through self-tapping screws.

Preferably, grooves are arranged at the corresponding positions of the two groups of transverse keels; the two ends of the vertical keel are respectively arranged in the groove and are welded with the horizontal keel.

Preferably, a rubber pad is arranged between the vertical side wall of the angle steel and the outer wall of the building.

Compared with the prior art, the utility model discloses following profitable technological effect has:

the angle steel, the cross keel and the vertical keel are arranged, so that the fixing structure is convenient to install and more reliable; the first groove and the second groove are arranged to correspond to the first inserting plate and the second inserting plate, and when the curtain wall is installed, the curtain wall only needs to be hung, so that the installation is convenient, and meanwhile, the disassembly is convenient. Simultaneously the utility model is simple in operation convenient, the processing cost is lower, and is very practical, is fit for using widely.

Drawings

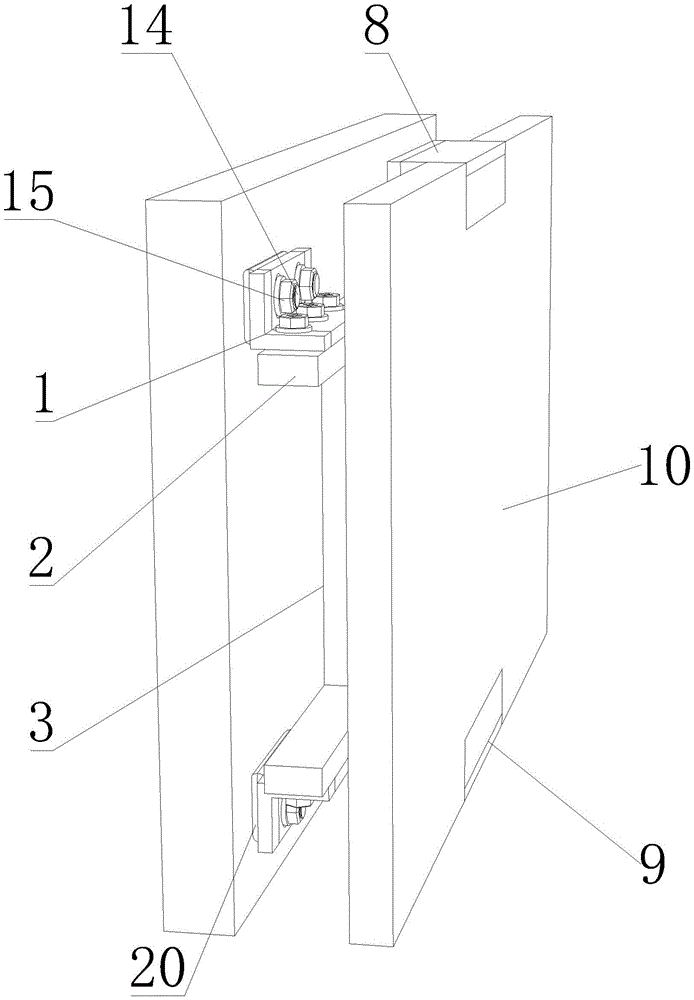

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;

FIG. 2 is a schematic view of a portion of the structure of FIG. 1;

fig. 3 is a partially enlarged view of a portion a in fig. 2.

Fig. 4 is a partially enlarged view of fig. 2 at B.

Fig. 5 is a partially enlarged view of C in fig. 2.

Reference numerals: 1. angle steel; 2. a transverse keel; 3. a vertical keel; 4. a first groove; 5. a second groove; 6. a first plug board; 7. a second plug board; 8. a first U-shaped piece; 9. a U-shaped piece II; 10. curtain walls; 11. mounting blocks; 12. a stud; 13. a rubber anti-skid block; 14. embedding bolts in advance; 15. a nut; 16. a waist-shaped hole; 17. a gasket; 18. self-tapping screws; 19. a groove; 20. a rubber cushion.

Detailed Description

Example one

As shown in fig. 1-5, the energy-saving curtain wall for building provided by the utility model comprises angle steel 1, cross keel 2, vertical keel 3, first plug board 6, second plug board 7, first U-shaped piece 8, second U-shaped piece 9 and curtain wall 10; the angle steel 1 is arranged on an outer wall of a building; the two groups of transverse keels 2 are horizontally arranged on one end of the angle steel 1 far away from the building outer wall; the vertical keels 3 are vertically arranged between the two groups of transverse keels 2; the curtain wall 10 is arranged on one side of the angle steel 1 far away from the building outer wall and is parallel to the building outer wall; the first U-shaped part 8 is arranged at the upper end of the curtain wall 10, and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall 10; the U-shaped part II 9 is arranged at the lower end of the curtain wall 10, and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall 10; the first inserting plate 6 and the second inserting plate 7 are arranged on one side, close to the building outer wall, of the curtain wall 10 and are parallel to the curtain wall 10; the upper end of the first inserting plate 6 is connected with the first U-shaped part 8, and the upper end of the second inserting plate 7 is connected with the second U-shaped part 9; a first vertical groove 4 is formed in the transverse keel 2 positioned above the transverse keel, and a second vertical groove 5 is formed in the transverse keel 2 positioned below the transverse keel; the lower end of the first inserting plate 6 is arranged inside the first groove 4; the lower end of the second inserting plate 7 is arranged inside the second groove 5.

The specific operation steps of this embodiment are as follows:

step one, when the novel installation book is used, angle steel 1 is installed on an outer wall of a building;

secondly, installing a cross keel 2 on the angle steel 1, and then installing a vertical keel 3 on the cross keel 2;

thirdly, inserting the first plug board 6 into the first slot 4, and inserting the second plug board 7 into the second slot 5;

and fourthly, adjusting the curtain wall 10 to a proper position.

Example two

As shown in fig. 1-5, compared with the first embodiment, the energy-saving curtain wall for buildings provided by the present invention comprises a fixing component, including a mounting block 11, a stud 12 and a rubber anti-slip block 13; the embedded bolt 14, the nut 15 and the kidney-shaped hole 16 are arranged.

In the embodiment, the stud 12 is rotated, and the rubber anti-skid block 13 can be used for fixing the first plug-in board 6 and fixing the curtain wall 10; the angle steel 1 can be fixed by the embedded bolt 14, the nut 15 and the waist-shaped hole 16.

EXAMPLE III

As shown in fig. 1-5, compared with the first embodiment, the energy-saving curtain wall for building provided by the present invention comprises a gasket 17, a self-tapping screw 18 and a rubber pad 20.

In this embodiment, the washer 17 can protect the nut 15 and the angle steel 1 from being damaged or loosened easily; the self-tapping screw 18 can conveniently fix the cross keel 2; the rubber pad 20 can protect the angle steel 1 and the building outer wall from mutual abrasion.

The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited thereto, and various changes can be made without departing from the gist of the present invention within the scope of knowledge possessed by those skilled in the art.

Claims

1. An energy-saving curtain wall convenient to install for a building is characterized by comprising angle steel (1), a transverse keel (2), a vertical keel (3), a first inserting plate (6), a second inserting plate (7), a first U-shaped part (8), a second U-shaped part (9) and a curtain wall (10);

the angle steel (1) is arranged on the building outer wall; the two groups of transverse keels (2) are horizontally arranged on one end of the angle steel (1) far away from the building outer wall; the vertical keels (3) are vertically arranged between the two groups of transverse keels (2); the curtain wall (10) is arranged on one side of the angle steel (1) far away from the building outer wall and is parallel to the building outer wall; the U-shaped piece I (8) is arranged at the upper end of the curtain wall (10), and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall (10); the U-shaped piece II (9) is arranged at the lower end of the curtain wall (10), and the two groups of U-shaped side walls are respectively positioned at two sides of the curtain wall (10); the first inserting plate (6) and the second inserting plate (7) are arranged on one side, close to the building outer wall, of the curtain wall (10) and are parallel to the curtain wall (10); the upper end of the first plug board (6) is connected with the first U-shaped part (8), and the upper end of the second plug board (7) is connected with the second U-shaped part (9); a vertical groove I (4) is formed in the transverse keel (2) positioned above the groove I, and a vertical groove II (5) is formed in the transverse keel (2) positioned below the groove I; the lower end of the first inserting plate (6) is arranged inside the first groove (4); the lower end of the second inserting plate (7) is arranged inside the second groove (5).

2. The energy-saving curtain wall for the building, convenient to install, as claimed in claim 1, wherein the first inserting plate (6) is provided with a fixing component; the fixing component comprises a mounting block (11) and a stud (12); two groups of mounting blocks (11) are arranged and are respectively positioned on two sides of the first plug board (6); the studs (12) are correspondingly arranged in two groups, vertically penetrate through the mounting block (11) respectively, and are in threaded connection with the mounting block (11).

3. The energy-saving curtain wall for the building convenient to install as claimed in claim 2, wherein the lower end of the stud (12) is rotatably provided with a rubber anti-skid block (13); the rotating shaft of the rubber antiskid block (13) is vertical.

4. The energy-saving curtain wall for the building, which is convenient to install, as claimed in claim 1, is characterized in that a waist-shaped hole (16) is formed on the vertical side wall of the angle steel (1); the long diameter of the waist-shaped hole (16) is vertically arranged; the building outer wall is provided with embedded bolts (14); the embedded bolt (14) penetrates through the waist-shaped hole (16); a nut (15) is arranged on one side, away from the building outer wall, of the vertical side wall of the angle steel (1); the nut (15) is in threaded connection with the embedded bolt (14).

5. The energy-saving curtain wall for the building convenient to install as claimed in claim 4, wherein a gasket (17) is arranged between the nut (15) and the vertical side wall of the angle steel (1).

6. The energy-saving curtain wall for the building, which is convenient to install, as claimed in claim 1, is characterized in that the horizontal side wall of the angle steel (1) is provided with a vertical hole; self-tapping screws (18) are arranged in the holes; the cross keel (2) is connected with the angle steel (1) through self-tapping screws (18).

7. The energy-saving curtain wall for the building convenient to install as claimed in claim 1, wherein the corresponding positions of the two groups of cross keels (2) are provided with grooves (19); the two ends of the vertical keel (3) are respectively arranged in the groove (19) and are connected with the transverse keel (2) in a welding way.

8. The energy-saving curtain wall for the building convenient to install as claimed in claim 1, wherein a rubber pad (20) is arranged between the vertical side wall of the angle steel (1) and the outer wall of the building.
