CN218008228U

CN218008228U - Warm underwear with good windproof performance

Info

Publication number: CN218008228U
Application number: CN202221170147.1U
Authority: CN
Inventors: 黄玉禹
Original assignee: Wenzhou Fumanmen Garment Co ltd
Current assignee: Wenzhou Fumanmen Garment Co ltd
Priority date: 2022-05-16
Filing date: 2022-05-16
Publication date: 2022-12-13
Anticipated expiration: 2032-05-16

Abstract

The utility model discloses a thermal underwear with good wind-proof performance, belonging to the clothing field, comprising a clothing body, wherein the clothing body is formed by compounding an inner layer and an outer layer which are used for heat preservation and wind prevention in sequence; an elastic closing part A and an elastic closing part B are sequentially arranged at the waist line part and the two sleeve openings of the clothes body. The utility model discloses a prevent cold-proof underwear that wind performance is good, the advantage that has excellent in use effect, the cold-proof underwear of making through the surface fabric that adopts massive surface fabric or thickened fine hair is mainly in order to reach cold-proof effect to solved cold-proof underwear on the present market, and the surface fabric of massive surface fabric or thickened fine hair can not resist winter chilly wind completely, cold wind can follow equally in the cuff department and the neck department of clothes infuse the clothes, thereby influence cold-proof effect, the cold-proof underwear of part stand-up collar formula can lead to user neck department to produce certain foreign matter sense when indoor use simultaneously, the problem of greatly reduced user's use impression.

Description

Warm underwear with good windproof performance

Technical Field

The utility model belongs to the clothing field, concretely relates to prevent wind warm underwear that performance is good.

Background

In winter, the existence of thermal underwear is indispensable, and along with the improvement of people's quality of life, people also become stricter and stricter in the selection of thermal underwear, pay more attention to its travelling comfort, health care nature and hommization, according to people's different needs, thermal underwear's kind and function also have the difference, and because the restriction of current material and technique, it has been difficult to improve on the underwear surface fabric again, but still have other many aspects and can improve.

The thermal underwear in the market at present mainly makes thermal underwear through the surface fabric that adopts heavy surface fabric or adds the surface fabric of thick fine hair in order to reach cold-proof effect, and the surface fabric of heavy surface fabric or adding the fine hair can not resist winter chilly wind completely, cold wind can be irritated into the clothes in the cuff department and the neck department of clothes equally to influence cold-proof effect, the thermal underwear of partial stand-up collar formula can lead to user neck department to produce certain foreign matter sense when indoor the use simultaneously, greatly reduced user's use impression, so propose a thermal underwear that windproof performance is good and solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

Aiming at one or more of the defects or the improvement requirements in the prior art, the utility model provides a thermal underwear with good windproof performance, which has the advantage of good use effect.

In order to realize the purpose, the utility model provides a thermal underwear with good windproof performance, which comprises a coat body, wherein the coat body is formed by compounding an inner layer and an outer layer which are sequentially used for heat preservation and windproof;

an elastic closing-in part A and an elastic closing-in part B are sequentially arranged at the waist line part and the two sleeve openings of the clothes body, the elastic closing-in part A and the elastic closing-in part B are respectively used for enabling the waist line part and the sleeve openings of the clothes body to be attached to the skin of a user, cold air can be prevented from being filled into the clothes body to a certain degree, and an inner concave part is arranged at the chest opening of the clothes body;

the two tightening assemblies are respectively arranged at the outer sides of the two elastic closing-up parts B and are used for driving the elastic closing-up parts B to tighten up, so that cold air is prevented from being filled into the clothes body from cuffs of the clothes body;

the neckline assembly is arranged at the neckline of the clothes body and used for wrapping the neck of a user so as to prevent cold air from being filled into the clothes body from the neck of the user;

and the tightening assembly is arranged at the inner concave part and the chest of the clothes body and is used for tightening the clothes body to enable the clothes body to be attached to the skin of a user, so that the heat preservation performance is improved.

As a further improvement, the tight mouth component comprises a buckle sewed on the outside of the elastic closing-in part b, the tight mouth component further comprises an elastic band sewed on the outside of the elastic closing-in part b and set up relatively with the buckle, and a hook surface and a hair surface are sewed on the outside of the elastic band in sequence.

As a further improvement of the utility model, the collarband subassembly including sew up in the standing collar portion of clothing body collarband department, standing collar portion has a breach, a zip fastener has been sewed up in the breach, two buttons have been sewed up in the neck of standing collar portion department, two box buttons have been sewed up in the chest department of the clothing body.

As a further improvement, the tightening component comprises a plurality of and symmetrical elastic rubber bands sewn inside the inner concave part and arranged on the left side and the right side, one side of the elastic rubber bands is opposite to the other side and is provided with a hook ring and a plurality of the hook ring is internally wound with a connecting band, the tightening component further comprises a second magic tape hair surface sewn on the chest of the clothes body and positioned above the inner concave part, the outer side of the elastic rubber bands is sleeved with a drawstring, one end of the drawstring extends to the drawstring attached with the second magic tape hair surface, and the one end of the drawstring, which is close to the second magic tape hair surface, is sewn with the second magic tape hair surface adhered with the second magic tape hair surface.

As a further improvement of the utility model, the inner layer is formed by weaving the non-inverted velvet knitted fabric, and the outer layer is formed by processing the nylon woven fabric.

As a further improvement of the utility model, the material of the collar part adopts elastic knitted fabric.

Generally, through the utility model above technical scheme who conceives compares with prior art, the beneficial effect who has includes:

the utility model discloses a cold-proof underwear that prevent wind performance is good, through the tight mouthful subassembly that sets up, the collarband subassembly with tighten up the subassembly, can be used for tightening up the cuff department of this cold-proof underwear respectively, waist body portion wraps up with the neck to the user, can avoid cold wind to irritate the clothing from cuff department and neck department internal, increase the laminating degree of the clothing body and user skin simultaneously, and then increase this cold-proof underwear's warmth retention, the collarband subassembly can stabilize when indoor use and fold simultaneously, and then neck department produces the foreign matter and feels when avoiding the user to use indoor, promote user's wearing impression, thereby realize the advantage that excellent in use effect.

Drawings

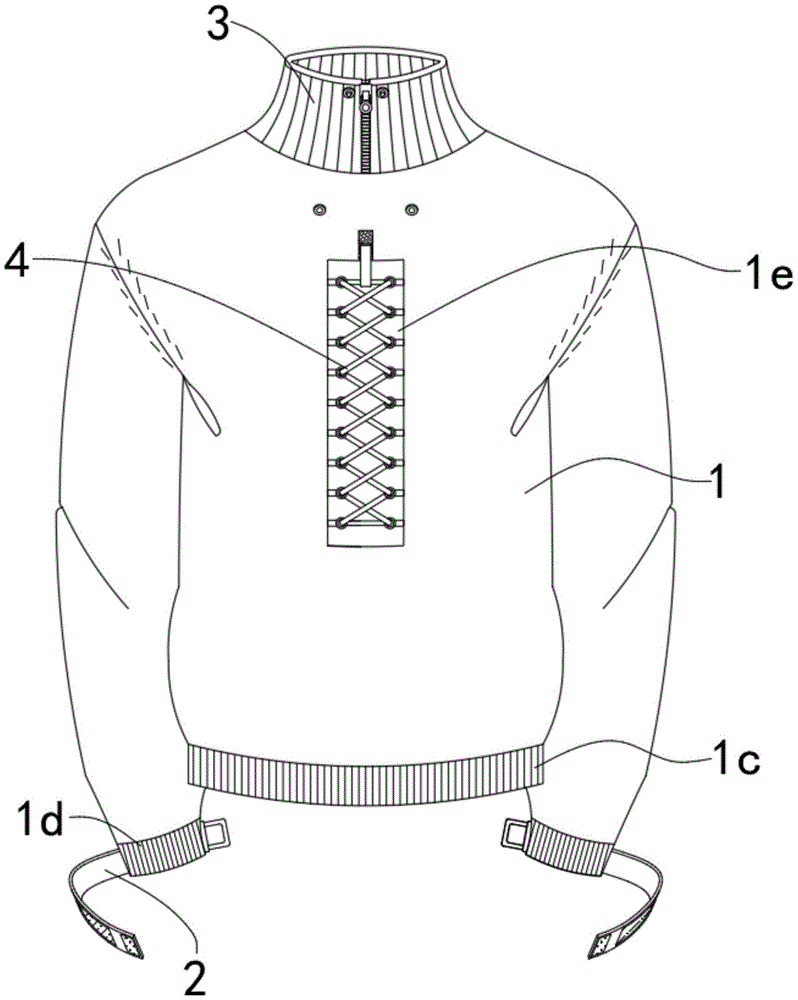

FIG. 1 is a schematic view of the present invention;

FIG. 2 is a schematic view of the layered structure of the inner layer and the outer layer of the present invention;

FIG. 3 is a schematic structural view of the left side tightening assembly of the present invention;

FIG. 4 is a schematic structural view of the neckline assembly of the present invention;

fig. 5 is a schematic view of the tightening assembly of the present invention.

In all the figures, the same reference numerals denote the same features, in particular: 1. a garment body; 1a, an inner layer; 1b, an outer layer; 1c, an elastic pinch-off portion A; 1d, an elastic closing part B; 1e, an inner concave part; 2. a pinch component; 21. buckling; 22. elastic bands; 23. a first hook-and-loop fastener surface; 24. a first magic tape matt surface; 3. a collar assembly; 31. a collar standing part; 32. a zipper; 33. a sub-buckle; 34. a female buckle; 4. a tightening assembly; 41. elastic rubber band; 42. a shackle; 43. a connecting belt; 44. a second magic tape matt surface; 45. pulling the belt; 46. the second magic tape hook surface.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the embodiment, as shown in figures 1-5, the thermal underwear with good windproof performance comprises a clothing body 1, wherein the clothing body 1 is formed by compounding an inner layer 1a and an outer layer 1b which are sequentially used for heat preservation and windproof; an elastic closing-in part A1 c and an elastic closing-in part B1 d are sequentially arranged at the waist line part and the two sleeve openings of the clothes body 1, the elastic closing-in part A1 c and the elastic closing-in part B1 d are respectively used for enabling the waist line part and the sleeve openings of the clothes body 1 to be attached to the skin of a user, cold air can be prevented from being filled into the clothes body 1 to a certain degree, and an inner concave part 1e is arranged at the chest opening of the clothes body 1; the two tightening assemblies 2 are respectively arranged at the outer sides of the two elastic closing-up parts B1 d, and the tightening assemblies 2 are used for driving the elastic closing-up parts B1 d to tighten up, so that cold air is prevented from being filled into the clothes body 1 from cuffs of the clothes body 1; the neckline component 3 is arranged at the neckline of the clothes body 1, and the neckline component 3 is used for wrapping the neck of a user so as to prevent cold air from entering the clothes body 1 from the neck of the user; the tightening component 4 is arranged at the inner concave part 1e and the chest of the clothes body 1, and the tightening component 4 is used for tightening the clothes body 1 to enable the clothes body 1 to be attached to the skin of a user, so that the heat preservation performance is improved;

the mouth tightening component 2 comprises a buckle 21 sewed on the outer side of the elastic closing part B1 d, the mouth tightening component 2 further comprises an elastic band 22 sewed on the outer side of the elastic closing part B1 d and arranged opposite to the buckle 21, and a first magic tape hook surface 23 and a first magic tape hair surface 24 are sequentially sewed on the outer side of the elastic band 22;

the neckline component 3 comprises a standing-collar part 31 sewed at the neckline of the clothes body 1, the standing-collar part 31 is provided with a gap, a zipper 32 is sewed in the gap, two buttons 33 are sewed at the neck of the standing-collar part 31, and two female buttons 34 are sewed at the chest of the clothes body 1;

the tightening component 4 comprises a plurality of elastic rubber bands 41 which are symmetrically sewn in the inner concave part 1e, a hook ring 42 is arranged on one side of each of the elastic rubber bands 41 on the left side and the right side, the interiors of the hook rings 42 are wound with a connecting band 43, the tightening component 4 further comprises a second magic tape hair surface 44 which is sewn at the chest part of the clothes body 1 and is positioned above the inner concave part 1e, a pull belt 45 with one end extending to be attached to the second magic tape hair surface 44 is sleeved on the outer side of each elastic rubber band 41, and a second magic tape hook surface 46 which is attached to the second magic tape hair surface 44 is sewn at one end, close to the second magic tape hair surface 44, of each pull belt 45;

the inner layer 1a is formed by weaving non-inverted velvet knitted fabric, and the outer layer 1b is formed by processing nylon woven fabric;

the material of the collar part 31 is elastic knitted fabric.

The working principle is as follows:

the first step is as follows: after a user wears the clothes body 1, the elastic band 22 can be pulled to penetrate through the ring buckle 21 and to bypass the ring buckle 21 to be folded, meanwhile, the first hook-and-loop surface 23 is adhered to the first hook-and-loop surface 24 to be used for tightening the elastic closing-in part B1 d, and the elastic closing-in part B1 d is always attached to the wrist of the user, so that cold air can be prevented from entering the clothes body 1 from the cuff of the clothes body 1, the heat retention of the thermal underwear is further improved, meanwhile, the design of the first hook-and-loop surface 23 and the first hook-and-loop surface 24 can be adjusted according to the thicknesses of the wrists of different users, and the applicability of the thermal underwear can be improved;

the second step is that: when going out, the user can pull the zipper 32 upwards to enable the standing collar part 31 to stand and wrap the neck of the user, so that cold air can be prevented from entering the clothes body 1 from the neck of the user, the heat retention of the thermal underwear can be increased, when the user is located indoors, the zipper 32 can be pulled downwards and the standing collar part 31 can be folded, meanwhile, the secondary buckle 33 is buckled into the primary buckle 34, the standing collar can be prevented from being turned up when the user is used indoors, the foreign body sensation generated on the neck of the user when the user is used indoors can be avoided, and the wearing feeling of the user is increased;

the third step: after the user wears the clothes body 1, the pulling belt 45 can be pulled upwards and the second hook and loop sticking surface 46 is stuck on the second hook and loop sticking hair surface 44, namely, the distance between the hook ring 42 and the elastic rubber band 41 on the left side and the right side can be pulled in by pulling the connecting belt 43 and the clothes body 1 can be shrunk and stuck with the skin of the user, and the thermal insulation performance can be further improved.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The thermal underwear with good windproof performance is characterized by comprising a clothing body (1), wherein the clothing body (1) is formed by compounding an inner layer (1 a) and an outer layer (1 b) which are sequentially used for heat preservation and windproof;

an elastic closing-in part A (1 c) and an elastic closing-in part B (1 d) are sequentially arranged at the waist line part and the two sleeve openings of the clothes body (1), the elastic closing-in part A (1 c) and the elastic closing-in part B (1 d) are respectively used for enabling the waist line part and the sleeve openings of the clothes body (1) to be attached to the skin of a user, cold air can be prevented from entering the clothes body (1) to a certain degree, and an inner concave part (1 e) is arranged at the chest opening of the clothes body (1);

the two tightening components (2) are respectively arranged at the outer sides of the two elastic closing-in parts B (1 d), and the tightening components (2) are used for driving the elastic closing-in parts B (1 d) to tighten so as to prevent cold air from being filled into the clothes body (1) from the sleeve opening of the clothes body (1);

the neckline component (3) is arranged at the neckline of the clothes body (1), and the neckline component (3) is used for wrapping the neck of a user so as to prevent cold air from entering the clothes body (1) from the neck of the user;

the tightening component (4) is arranged at the inner concave part (1 e) and the chest of the clothes body (1), and the tightening component (4) is used for tightening the clothes body (1) to enable the clothes body (1) to be attached to the skin of a user, so that the heat preservation performance is improved.

2. The thermal underwear having good windproof performance according to claim 1, wherein the tightening component (2) comprises a buckle (21) sewn on the outer side of the elastic closing part B (1 d), the tightening component (2) further comprises an elastic band (22) sewn on the outer side of the elastic closing part B (1 d) and arranged opposite to the buckle (21), and a first hook-and-loop surface (23) and a first hook-and-loop surface (24) are sequentially sewn on the outer side of the elastic band (22).

3. The thermal underwear according to claim 1, wherein the neckline assembly (3) comprises a standing neckline portion (31) sewn to the neckline of the underwear body (1), the standing neckline portion (31) has a notch, a zipper (32) is sewn to the notch, two male fasteners (33) are sewn to the neck of the standing neckline portion (31), and two female fasteners (34) are sewn to the chest of the underwear body (1).

4. The thermal underwear with good windproof performance according to claim 1, wherein the tightening component (4) comprises a plurality of elastic rubber bands (41) which are symmetrically sewn inside the concave portion (1 e), the opposite sides of the elastic rubber bands (41) on the left side and the right side are provided with a hook ring (42), the insides of the hook rings (42) are wound with a connecting band (43), the tightening component (4) further comprises a second magic tape matt surface (44) which is sewn at the chest of the clothing body (1) and is positioned above the concave portion (1 e), the outer side of the elastic rubber band (41) is sleeved with a pull belt (45) one end of which extends to the second magic tape matt surface (44) to be attached, and a second magic tape hook surface (46) which is adhered to the second magic tape matt surface (44) is sewn at one end of the pull belt (45) close to the second magic tape matt surface (44).

5. The thermal underwear having good windproof performance as claimed in claim 1, characterized in that the inner layer (1 a) is woven from a non-inverted pile knitted fabric, and the outer layer (1 b) is processed from a nylon woven fabric.

6. The thermal underwear of claim 3, wherein the collar portion (31) is made of an elastic knitted fabric.
