CN218001009U

CN218001009U - Touch machine with adjustable

Info

Publication number: CN218001009U
Application number: CN202222168950.8U
Authority: CN
Inventors: 于冉冉
Original assignee: Shandong Xiehe University
Current assignee: Shandong Xiehe University
Priority date: 2022-08-17
Filing date: 2022-08-17
Publication date: 2022-12-09
Anticipated expiration: 2032-08-17

Abstract

The utility model discloses a touch-sensitive machine with adjustable relates to touch-sensitive machine technical field, organism including the touch-sensitive machine, be equipped with the connecting block under the organism on the terminal surface, connecting block lower extreme adjusting device, adjusting device is used for adjusting the angle of organism, adjusting device is including establishing the rotation seat at the connecting block lower extreme, it establishes on the supporting shoe to rotate the seat, it is equipped with the gear to rotate on the supporting shoe, be equipped with the teeth of a cogwheel under the rotation seat on the terminal surface, the gear of locating is used for promoting with the meshing of the teeth of a cogwheel and rotates the seat on the supporting shoe and rotate, be equipped with the blend stop that is used for restricting the teeth of a cogwheel and rotate the separation with the gear on the rotation seat outside for can multidirectional angle of adjusting the touch-sensitive machine, avoid single angle regulation to influence product use and experience, improve the product rate of utilization, make can be applicable to multiple condition, make can stably adjust the height of touch-sensitive machine, improve regulation efficiency, the utility model discloses easy operation, the practicality is strong, convenient to popularize and use.

Description

Touch machine with adjustable

Technical Field

The utility model relates to a touch machine technical field specifically is a touch machine with adjustable.

Background

The touch all-in-one machine is composed of advanced touch screens, a mainboard, a memory, a hard disk, a display card and other electronic components, and has no difference with the working principle of the traditional PC. According to the size of the touch screen body and the cooperation of software, the device can realize public information inquiry, advertisement display, media interaction, conference content display, off-line experience store commodity display and the like, and can realize specific requirements such as fingerprint attendance, card swiping, printing and the like by cooperating with peripherals such as a fingerprint instrument, a scanner, a card reader, a micro printer and the like. Generally, different from an electronic whiteboard, more functions can be realized. The majority can not adjust touch machine angle, and a small number only can one-way angle regulation, leads to not being convenient for use under the multiple demand condition, and touch machine altitude mixture control is manual height-adjusting, influences the efficiency of adjusting, and the while is poor in stability during mobile device.

In the prior art, the angle of the touch machine cannot be adjusted in multiple directions, the angle of the touch machine can be adjusted singly to easily influence the product use experience, the product utilization rate is influenced, the touch machine cannot be suitable for multiple conditions, the height of the touch machine can be adjusted manually, the height of the touch machine cannot be adjusted stably, the adjustment efficiency is influenced, in the prior art, the operation is complex, the practicability is weak, the touch machine is not convenient to popularize and use, and therefore an adjustable touch machine is provided for solving the problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a touch machine with adjustable to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a touch-sensitive machine with adjustable, includes the organism of touch-sensitive machine, be equipped with the connecting block on the terminal surface under the organism, connecting block lower extreme adjusting device, adjusting device is used for adjusting the angle of organism, adjusting device is including establishing the rotation seat at the connecting block lower extreme, it establishes on the supporting shoe to rotate the seat, it is equipped with the gear to rotate on the supporting shoe, it is equipped with the teeth of a cogwheel to rotate under the seat terminal surface, and the gear of locating is used for promoting with the meshing of the teeth of a cogwheel and rotates the seat and rotate on the supporting shoe, it is equipped with the blend stop that is used for restricting the teeth of a cogwheel and gear rotation separation to rotate the seat outside.

Preferably, the lower end of the supporting block is rotatably arranged on a moving device, and the moving device is used for pushing the supporting block to vertically move.

Preferably, the moving device comprises a loop bar rotatably connected with the supporting block, a screw rod is sleeved in the loop bar in a rotating mode, the screw rod penetrates through the sliding rod in a threaded mode and is used for pushing the loop bar to move, and the bottom end of the sliding rod is connected with the base.

Preferably, the rotating seat is of a semi-cylindrical structure, a supporting block is connected to the circular part of the side wall of the rotating seat, and gear teeth are arranged on the house-shaped outer wall of the rotating seat.

Preferably, the supporting block is of a concave structure, a damping layer is arranged at the position where the supporting block is rotatably connected with the loop bar, and driving equipment for driving the gear is arranged on the supporting block.

Preferably, two groups of barrier strips are arranged, and the minimum distance between the barrier strips and the joint supporting block of the rotating seat is smaller than the radius of the rotating seat.

Preferably, loop bar and slide bar are indent rectangle structure, screw rod drive equipment establishes on the loop bar, loop bar length is greater than the length of slide bar, the base is the counter weight seat.

Compared with the prior art, the beneficial effects of the utility model are that:

1. at first drive gear rotates, gear and teeth of a cogwheel meshing, promote to rotate the seat and rotate on the supporting shoe, it makes the connecting block follow the swing to rotate the seat, and then organism swing angle of adjustment, when adjusting to suitable angle, stop drive gear and rotate, then the horizontal plane direction promotes the organism and rotates, through the connecting block, rotate the seat, make the supporting shoe rotate on the loop bar top, damping layer restriction supporting shoe independently rotates, when the organism rotates to suitable angle, stop promoting the organism, touch machine angle modulation work has been accomplished this moment, make the angle that can multidirectional regulation touch machine, avoid single angle of modulation to influence product use and experience, the product rate of utilization is improved, make and be applicable to multiple condition.

2. The driving screw rotates, and the screw rod rotates on the loop bar, and threaded connection slide bar is placed subaerial by the base, and screw rod threaded connection slide bar then reverse promotion loop bar moves on the slide bar, can know according to above-mentioned relation of connection, and the organism is followed and is removed, when the organism reaches suitable height, stops the driving screw and rotates, has accomplished touch machine altitude mixture control work this moment for can stably adjust the height of touch machine, improve regulation efficiency, the utility model is simple in operation, the practicality is strong, convenient to popularize and use.

Drawings

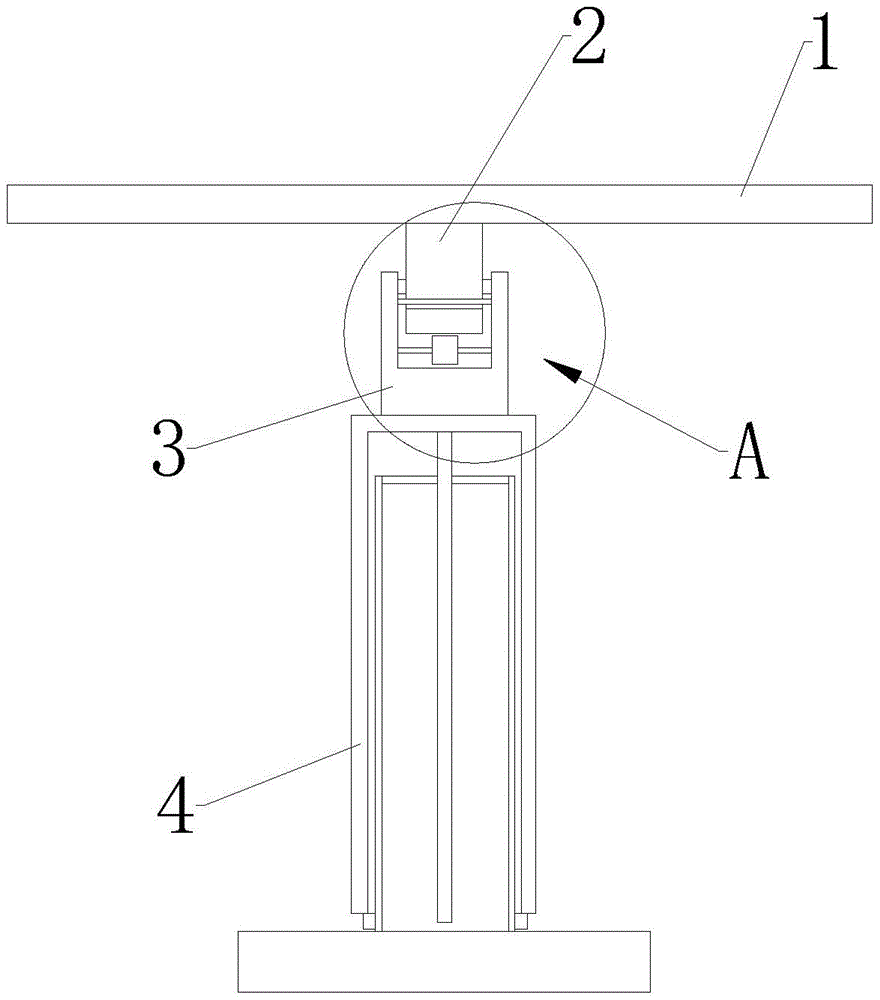

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of a mobile device according to the present invention;

fig. 3 is an enlarged view of a portion a in fig. 1 according to the present invention.

In the figure: 1. a body; 2. connecting blocks; 3. an adjustment device; 31. rotating the base; 32. a support block; 33. a gear; 34. gear teeth; 35. blocking strips; 4. a mobile device; 41. a loop bar; 42. a screw; 43. a slide bar; 44. a base.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: an adjustable touch machine comprises a machine body 1 of the touch machine, a connecting block 22 is arranged on the lower end face of the machine body 1, an adjusting device 3 is arranged on the lower end of the connecting block 2, the adjusting device 3 is used for adjusting the angle of the machine body 1, the adjusting device 3 comprises a rotating seat 31 arranged on the lower end of the connecting block 22, the rotating seat 31 is rotatably arranged on a supporting block 32, a gear 34 is rotatably arranged on the supporting block 32, a gear 34 is arranged on the lower end face of the rotating seat 31, the gear 34 is meshed with the gear 34 and used for pushing the rotating seat 31 to rotate on the supporting block 32, a blocking strip 35 used for limiting the gear 34 to be rotatably separated from the gear 34 is arranged on the outer side of the rotating seat 31, the rotating seat 31 is of a semi-cylindrical structure, a supporting block 32 is connected to the circular position of the side wall of the rotating seat 31, gear teeth 34 are arranged on the house-shaped outer wall of the rotating seat 31, the supporting block 32 is of a concave structure, a damping layer is arranged at the position where the supporting block 32 is rotatably connected with the loop bar 41, driving equipment for driving the gear 33 is arranged on the supporting block 32, two groups of barrier strips 35 are arranged, the minimum distance between the barrier strips 35 and the position where the supporting block 32 is connected with the rotating seat 31 is smaller than the radius of the rotating seat 31, the loop bar 41 and the sliding bar 43 are both of concave rectangular structures, driving equipment for the screw rod 42 is arranged on the loop bar 41, the length of the loop bar 41 is larger than that of the sliding bar 43, and the base 44 is a counterweight seat.

At first drive gear 33 rotates, gear 34 and the meshing of teeth of a cogwheel 34, promote to rotate seat 31 and rotate on supporting shoe 32, it makes connecting block 2 follow the swing to rotate seat 31, and then organism 1 swing adjustment angle, when adjusting to suitable angle, stop drive gear 33 and rotate, then horizontal plane direction promotes organism 1 and rotates, through connecting block 2, rotate seat 31, make supporting shoe 32 rotate on loop bar 41 top, damping layer restriction supporting shoe 32 is from the main rotation, when organism 1 rotates to suitable angle, stop promoting organism 1, touch machine angle modulation work has been accomplished this moment, make the angle that can multidirectional regulation touch machine, avoid single angle modulation to influence product use and experience, improve the product rate of utilization, make and be applicable to multiple condition.

The lower end of the supporting block 32 is rotatably arranged on the mobile device 4, the mobile device 4 is used for pushing the supporting block 32 to vertically move, the mobile device 4 comprises a loop bar 41 rotatably connected with the supporting block 32, a screw rod 42 is rotatably sleeved in the loop bar 41, the screw rod 42 penetrates through a sliding rod 43 in a threaded manner and is used for pushing the loop bar 41 to move, and the bottom end of the sliding rod 43 is connected with a base 44.

Drive screw 42 rotates, and screw rod 42 rotates on loop bar 41, and threaded connection slide bar 43 is placed subaerial by base 44, screw rod 42 threaded connection slide bar 43, then reverse promotion loop bar 41 moves on slide bar 43, can know according to the above-mentioned relation of connection, and organism 1 follows the removal, and when organism 1 reached suitable height, stop drive screw 42 and rotate, has accomplished touch machine altitude mixture control work this moment for can stably adjust the height of touch machine, improved regulation efficiency, the utility model discloses easy operation, the practicality is strong, convenient to popularize and use.

The working principle is as follows: the utility model discloses at first drive gear 33 rotates, gear 34 and the meshing of the teeth of a cogwheel 34, promote to rotate seat 31 and rotate on supporting shoe 32, it makes connecting block 2 follow the swing to rotate seat 31, and then organism 1 swing angle of adjustment, when adjusting to suitable angle, stop drive gear 33 and rotate, then horizontal plane direction promotes organism 1 and rotates, through connecting block 2, rotate seat 31, make supporting shoe 32 rotate on loop bar 41 top, damping layer restriction supporting shoe 32 independently rotates, when organism 1 rotates to suitable angle, stop promoting organism 1, touch machine angle regulation work has been accomplished this moment, make can multidirectional regulation touch machine's angle, avoid single angle of adjustment to influence product use and experience, improve the product usage rate, make and be applicable to multiple condition, drive screw 42 rotates, screw rod 42 rotates on loop bar 41, threaded connection slide bar 43, place subaerial by base 44, screw rod 42 threaded connection slide bar 43, then reverse promotion loop bar 41 moves on slide bar 43, can know according to the above-mentioned relation, organism 1 follows the removal, when organism 1 reaches suitable height, stop drive screw rod 42, touch machine height regulation work has been accomplished this moment, make the utility model have improved the practicality is strong, the utility model is simple to use of touch machine.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An adjustable touch machine comprises a machine body (1) of the touch machine, and is characterized in that: be equipped with connecting block (2) on organism (1) lower terminal surface, connecting block (2) lower extreme adjusting device (3), adjusting device (3) are used for adjusting the angle of organism (1), adjusting device (3) are including establishing rotation seat (31) at connecting block (2) lower extreme, it establishes on supporting shoe (32) to rotate seat (31), it is equipped with gear (33) to rotate on supporting shoe (32), it is equipped with teeth of a cogwheel (34) on the terminal surface to rotate seat (31), and gear (33) and the meshing of teeth of a cogwheel (34) of locating are used for promoting to rotate seat (31) and rotate on supporting shoe (32), it is equipped with on rotation seat (31) the outside and is used for restricting teeth of a cogwheel (34) and gear (33) rotation separation blend stop (35).

2. An adjustable touch machine according to claim 1, wherein: the lower end of the supporting block (32) is rotatably arranged on the moving device (4), and the moving device (4) is used for pushing the supporting block (32) to vertically move.

3. An adjustable touch machine according to claim 2, wherein: the moving device (4) comprises a loop bar (41) rotatably connected with the supporting block (32), a screw rod (42) is rotatably sleeved in the loop bar (41), the screw rod (42) penetrates through a sliding rod (43) in a threaded mode and is used for pushing the loop bar (41) to move, and the bottom end of the sliding rod (43) is connected with a base (44).

4. An adjustable touch machine according to claim 1, wherein: the rotating seat (31) is of a semi-cylindrical structure, a supporting block (32) is connected to the circular position of the side wall of the rotating seat (31), and gear teeth (34) are arranged on the house-shaped outer wall of the rotating seat (31).

5. An adjustable touch machine according to claim 1, wherein: the supporting block (32) is of a concave structure, a damping layer is arranged at the position where the supporting block (32) is rotatably connected with the sleeve rod (41), and driving equipment for driving the gear (33) is arranged on the supporting block (32).

6. An adjustable touch machine according to claim 1, wherein: two groups of barrier strips (35) are arranged, and the minimum distance between the barrier strips (35) and the positions, where the supporting blocks (32) are connected with the rotating seat (31), is smaller than the radius of the rotating seat (31).

7. An adjustable touch machine according to claim 3, wherein: loop bar (41) are indent rectangle structure with slide bar (43), screw rod (42) drive device establishes on loop bar (41), loop bar (41) length is greater than the length of slide bar (43), base (44) are the counter weight seat.
