Abstract

The utility model discloses textile printing equipment, which relates to the technical field of printing equipment. The textile printing equipment includes a machine body, a printing device for printing cloth is arranged in the middle of the top surface of the machine body, and two sides of the machine body are respectively arranged There are feeding rollers and receiving rollers, a gantry frame is arranged on the top surface of the machine body and between the printing device and the feeding roller, and the inner cavity of the gantry frame is provided with a cleaning assembly, and the middle position of the top surface of the gantry frame is provided with a Adsorption component, and the adsorption component is connected to the cleaning component in conduction, and the cleaning component is used to cooperate with the adsorption component to realize the cleaning of the fabric that needs to be printed. The cleaning component includes a dust cover, and the top surface of the dust cover is Electric push rods are provided on both sides. The utility model can clean the surface of the textile fabric, thereby improving the cleaning effect of the printing surface of the textile fabric and ensuring the printing quality of the textile fabric.

Description

A kind of textile printing equipment

technical field

The utility model relates to the technical field of printing equipment, in particular to a textile printing equipment.

Background technique

With the continuous improvement of fabric production equipment and the perfection of functions, various equipment and technologies that meet the needs of fabric production are changing with each passing day. Among them, the invention and improvement of textile printing equipment and technology have greatly changed the texture of textile fabrics, both at home and abroad. In other words, printing machines are mainly divided into: thermal transfer printing machines, digital printing machines (universal printers), flat screen printing machines, rotary screen printing machines, and table printing machines.

However, the existing printing equipment for textiles often does not pretreat the textile fabrics during use, thus easily causing debris, textile threads and other dirt on the textile fabrics to affect the printing of the textile fabrics, thereby reducing the impact of the printing equipment on the fabrics. printing quality, so we propose a textile printing equipment to solve the above problems.

Utility model content

The utility model provides a printing equipment for textiles, which can clean the surface of textile fabrics, thereby improving the cleaning effect of the printing surface of textile fabrics, ensuring the printing quality of textile fabrics, and solving the problem that the equipment often does not clean the textile fabrics. Pretreatment can easily make the debris, textile threads and other dirt on the textile fabric affect the printing of the textile fabric, thereby reducing the problem of the printing quality of the fabric by the printing equipment.

In order to realize the pretreatment of the textile fabrics to be printed and improve the printing quality of the textile fabrics, the utility model provides the following technical solutions: a textile printing equipment, including a machine body, and the middle part of the top surface of the machine body is provided with a device for printing fabrics. The printing device, the two sides of the body are respectively provided with feeding rollers and receiving rollers, the top surface of the body is provided with a gantry between the printing device and the feeding roller, and the inner cavity of the gantry is provided with a cleaning assembly , the middle position of the top surface of the gantry is provided with an adsorption component, and the adsorption component is connected to the cleaning component in conduction, and the cleaning component is used to cooperate with the adsorption component to realize the cleaning of dandruff on the fabric that needs to be printed.

As a preferred technical solution of the present utility model, the cleaning assembly includes a dust collection hood, electric push rods are provided on both sides of the top surface of the dust collection hood, and the electric push rods are plugged and connected with the gantry frame, so that The two side walls of the dust collection hood are provided with limiting grooves, and the inner cavities of the two sets of limiting grooves are provided with pressing rollers, and two or more than two sets of dust discharge pipes are inlaid on one side of the top surface of the dust collection hood. , and the dust exhaust pipe is conductively connected with the adsorption component.

As a preferred technical solution of the present utility model, the cleaning assembly further includes cleaning parts.

As a preferred technical solution of the present utility model, the cleaning part includes a flexible brush roller and a motor for driving the flexible brush roller, and the rotating shaft on the flexible brush roller is connected to both sides of the inner cavity of the dust collection hood. The wall is rotatably connected, and the motor is connected with the outer wall of the dust collection hood through a bracket.

As a preferred technical solution of the present invention, the other two sides of the bottom surface of the dust collection hood are respectively provided with rubber strips.

As a preferred technical solution of the present invention, the adsorption assembly includes a vacuum cleaner, the output end of the vacuum cleaner is equipped with a sewage pipe, and the bottom end of the sewage pipe is connected to the dust discharge pipe on the cleaning assembly through a collecting pipe. connected.

As a preferred technical solution of the utility model, a positioning plate is provided on the bottom surface of the vacuum cleaner, and the bottom surface of the positioning plate is connected to the top surface of the gantry frame.

Compared with the prior art, the utility model provides a textile printing equipment, which has the following beneficial effects:

1. The textile printing equipment can install feeding rollers, receiving rollers and other equipment through the machine body, and then through the feeding rollers, it can flexibly install rolls of textile fabric rollers, so as to provide printing for the printing device. For the required textile fabric, the printed fabric can be rolled up through the take-up roller, the cleaning component and the adsorption component can be installed through the gantry frame, and the position of the cleaning component can be adjusted to make the bottom of the cleaning component Attached to the top surface of the textile fabric, and then the cleaning component can cooperate with the adsorption component to clean the printing surface of the textile fabric, and then can clean up the dirt on the printing surface of the textile fabric, ensuring the printing quality of the textile fabric.

2. The textile printing equipment can be flexibly fixed on the gantry frame and flexibly adjust the position of the dust collection hood by cleaning the electric push rod in the component, so that the two groups at the two limit slots can The bottom ends of the pinch rollers are respectively pressed against the passing textile fabrics, and the rotating pinch rollers can transport the textile fabrics.

3. The textile printing equipment can be connected to the collection pipe in the adsorption component through the dust discharge pipe, and then through the vacuum cleaner, the suction power can be provided to the collection pipe through the sewage pipe, and then the dust collection hood on the dust discharge pipe can be achieved. It provides adsorption force, which is convenient for the vacuum hood to absorb dirt on the surface of the textile fabric held by two groups of pressing rollers, so as to ensure that the printed surface of the textile fabric is clean. The motor in the cleaning part can drive the flexible brush roller to rotate at high speed, thereby The flexible brush roller can clean the surface of the textile fabric held by two groups of pressing rollers, further improving the cleaning effect of the printing surface of the textile fabric, and ensuring the printing quality of the textile fabric.

Description of drawings

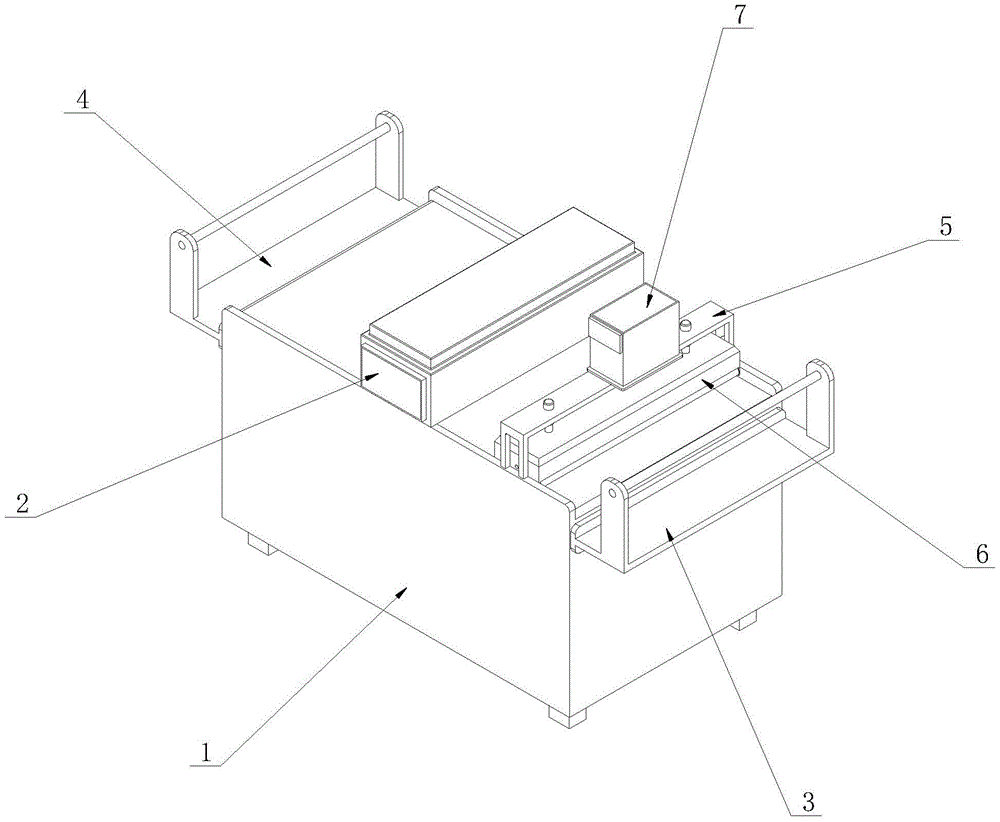

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is a schematic view of the side structure of the utility model;

Fig. 3 is a structural schematic diagram of the cleaning assembly of the utility model;

Fig. 4 is a schematic diagram of the structure of the bottom of the cleaning assembly of the utility model;

Fig. 5 is a structural schematic diagram of the cleaning part of the utility model;

Fig. 6 is a schematic structural diagram of the adsorption assembly of the present invention.

In the figure: 1. Machine body; 2. Printing device; 3. Feeding roller; 4. Receiving roller; 5. Gantry frame; 6. Cleaning component; 601. Vacuum cover; Groove; 604, holding roller; 605, dust discharge pipe; 606, cleaning part; 6061, flexible brush roller; 6062, motor; 6063, bracket; 607, rubber strip; 7, adsorption component; 701, vacuum cleaner; 702 , sewage pipe; 703, collecting pipe; 704, positioning plate.

detailed description

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-Fig. 6, the utility model discloses a kind of textile printing equipment, comprising a machine body 1, the middle part of the top surface of the machine body 1 is provided with a printing device 2 for printing on cloth, and the two sides of the machine body 1 are respectively arranged There are feeding rollers 3 and receiving rollers 4, a gantry 5 is arranged on the top surface of the machine body 1 and between the printing device 2 and the feeding roller 3, and the inner cavity of the gantry 5 is provided with a cleaning assembly 6, the The middle position of the top surface of the gantry frame 5 is provided with an adsorption assembly 7, and the adsorption assembly 7 is connected to the cleaning assembly 6. The cleaning assembly 6 is used to cooperate with the adsorption assembly 7 to realize the cleaning of dandruff on the fabric that needs to be printed;

Through the machine body 1, equipment such as the feeding roller 3 and the receiving roller 4 can be installed, and then through the feeding roller 3, the rolled textile fabric roller can be flexibly installed, so that the printing device 2 can be provided with printing required For textile fabrics, the printed fabric can be rolled up through the receiving roller 4, and the cleaning component 6 and the adsorption component 7 can be installed through the gantry 5, and the cleaning component 6 can be adjusted by adjusting the position of the cleaning component 6. 6. The bottom end is attached to the top surface of the textile fabric, and then the cleaning component 6 can cooperate with the adsorption component 7 to clean the printing surface of the textile fabric, and then can clean up the dirt on the printing surface of the textile fabric, ensuring that the printing surface of the textile fabric quality.

Specifically, the cleaning assembly 6 includes a dust collection hood 601, and electric push rods 602 are provided on both sides of the top surface of the dust collection hood 601, and the electric push rods 602 are plugged and connected with the gantry 5. Both sides of the dust cover 601 are provided with limiting grooves 603, and the two sets of limiting grooves 603 are provided with pressing rollers 604. The top surface of the dust cover 601 is inlaid with two or more than two sets of rollers. A dust discharge pipe 605, and the dust discharge pipe 605 is connected to the adsorption assembly 7 in a conductive manner.

In this embodiment, by cleaning the electric push rod 602 in the assembly 6, it can not only be flexibly fixed on the gantry 5, but also flexibly adjust the position of the dust collection cover 601, so that the positions of the two sets of limit grooves 603 can be flexibly adjusted. The bottom ends of the two groups of holding rollers 604 are held respectively on the passing textile fabrics, and the holding rollers 604 that rotate at the same time can transport the textile fabrics, and the suction assembly 7 can be connected externally through the dust discharge pipe 605, so as to be able to absorb dust. The cover 601 provides adsorption power, and then enables the vacuum cover 601 to perform dirt-absorbing treatment on the surface of the textile fabric pressed by the two sets of pressing rollers 604, so as to ensure that the printed surface of the textile fabric is clean.

Specifically, the cleaning assembly 6 further includes a cleaning member 606 .

In this embodiment, the surface of the textile fabric pressed by the two sets of pressing rollers 604 can be cleaned through the cleaning member 606, so as to further improve the cleaning effect of the printed surface of the textile fabric.

Specifically, the cleaning member 606 includes a flexible brush roller 6061 and a motor 6062 for driving the flexible brush roller 6061. The motor 6062 is connected to the outer wall of the dust collection hood 601 through a bracket 6063 .

In this embodiment, the motor 6062 in the cleaning part 606 can drive the flexible brush roller 6061 to rotate at a high speed, so that the flexible brush roller 6061 can clean the surface of the textile fabric pressed by the two sets of pressing rollers 604, and further Improve the cleaning effect of the printed surface of the textile fabric, and at the same time provide a stable installation base for the motor 6062 through the bracket 6063.

Specifically, the other two sides of the bottom surface of the dust collection cover 601 are respectively provided with rubber strips 607 .

In this embodiment, the other two ends of the bottom of the dust collection cover 601 can be sealed to facilitate the adsorption of dirt on the surface of the textile fabric by the dust collection cover 601 .

Specifically, the adsorption assembly 7 includes a vacuum cleaner 701, the output end of the vacuum cleaner 701 is equipped with a sewage pipe 702, and the bottom end of the sewage pipe 702 communicates with the dust discharge pipe 605 on the cleaning assembly 6 through a collection pipe 703 connected.

In this embodiment, through the collection pipe 703 in the adsorption assembly 7, it can be connected with the dust discharge pipe 605 on the cleaning assembly 6, and then through the vacuum cleaner 701, the suction power can be provided to the collection pipe 703 through the sewage pipe 702, and then it can This achieves the purpose of providing adsorption force to the dust collection cover 601 on the dust discharge pipe 605, and facilitates the suction treatment of the dirt by the dust collection cover 601.

Specifically, a positioning plate 704 is provided on the bottom surface of the vacuum cleaner 701 , and the bottom surface of the positioning plate 704 is connected to the top surface of the gantry frame 5 .

In this embodiment, the use stability of the vacuum cleaner 701 installed on the gantry 5 can be improved.

The working principle and use process of the utility model: when in use, the feeding roller 3, the receiving roller 4 and other equipment can be installed through the machine body 1, and then through the feeding roller 3, the rolled textile can be flexibly installed. The fabric roller can provide the textile fabric required for printing to the printing device 2, and the printed fabric can be rolled up through the receiving roller 4, and the cleaning component 6 and the adsorption component 7 can be installed through the gantry 5, By cleaning the electric push rod 602 in the assembly 6, it can be flexibly fixed on the gantry 5, and the position of the dust collection cover 601 can be flexibly adjusted, so that the two sets of holding rollers at the two sets of limit grooves 603 can The bottom ends of 604 are respectively pressed on the passing textile fabrics, and the rotating pressing roller 604 can transport the textile fabrics. Through the dust discharge pipe 605, the collecting pipe 703 in the adsorption assembly 7 can be connected externally, and then through the vacuum cleaner 701, The suction power can be provided to the collection pipe 703 through the sewage pipe 702, and then the suction force can be provided to the dust collection cover 601 on the dust discharge pipe 605, which is convenient for the suction cover 601 to press the surface of the textile fabric pressed by the two sets of pressing rollers 604 Carry out dirt suction treatment to ensure that the printed surface of the textile fabric is clean, and the motor 6062 in the cleaning part 606 can drive the flexible brush roller 6061 to rotate at a high speed, thereby enabling the flexible brush roller 6061 to hold the two sets of pressing rollers 604 The surface of the textile fabric is cleaned to further improve the cleaning effect of the printing surface of the textile fabric and ensure the printing quality of the textile fabric. At the same time, the bracket 6063 can provide a stable installation foundation for the motor 6062. The positioning plate 704 can improve the vacuum cleaner 701. The use stability that is installed on the gantry 5.

To sum up, the device can clean the surface of the textile fabric, thereby improving the cleaning effect of the printing surface of the textile fabric and ensuring the printing quality of the textile fabric.

It should be noted that, in this document, terms such as "comprising", "comprising" or any other variation thereof are intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements , but also includes other elements not expressly listed, or also includes elements inherent in such process, method, article or equipment. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a weaving is with printing equipment, includes organism (1), organism (1) top surface middle part is provided with printing device (2) that are used for the cloth stamp, organism (1) both sides are provided with feed roll (3) and receipts material roller (4) respectively, its characterized in that: organism (1) top surface just is located and is provided with portal frame (5) between stamp device (2) and feed roller (3) to portal frame (5) inner chamber is provided with clearance subassembly (6), portal frame (5) top surface intermediate position is provided with adsorption component (7), and adsorption component (7) and clearance subassembly (6) switch on and link to each other, clearance subassembly (6) are used for cooperating adsorption component (7) to realize carrying out the flock clearance to the surface fabric that needs the stamp.

2. A textile printing apparatus as claimed in claim 1, wherein: clearance subassembly (6) are including dust hood (601), dust hood (601) top surface both sides all are provided with electric putter (602), and electric putter (602) with portal frame (5) are pegged graft and are linked to each other, spacing groove (603) have all been seted up to dust hood (601) both sides wall to two sets of spacing groove (603) inner chamber is provided with to press holds roller (604), dust hood (601) top surface one side is inlayed and is connected with two sets of or is more than two sets of dust exhaust pipe (605) to dust exhaust pipe (605) switch on with adsorption component (7) and link to each other.

3. A textile printing apparatus as claimed in claim 2, wherein: the cleaning assembly (6) further comprises a sweeping member (606).

4. A textile printing apparatus as claimed in claim 3, wherein: cleaning member (606) include flexible brush roller (6061) and motor (6062) that are used for driving flexible brush roller (6061), pivot on flexible brush roller (6061) with suction hood (601) inner chamber both sides wall rotates and links to each other, motor (6062) through bracket (6063) with suction hood (601) lateral wall links to each other.

5. A textile printing apparatus as claimed in claim 2, wherein: rubber strips (607) are respectively arranged on the other two sides of the bottom surface of the dust collection cover (601).

6. A textile printing apparatus as claimed in claim 1, wherein: the adsorption component (7) comprises a dust collector (701), a dirt guide pipe (702) is installed at the output end of the dust collector (701), and the bottom end of the dirt guide pipe (702) is communicated and connected with a dust exhaust pipe (605) on the cleaning component (6) through a collecting pipe (703).

7. An embossing apparatus for textile according to claim 6, wherein: the bottom surface of the dust collector (701) is provided with a positioning plate (704), and the bottom surface of the positioning plate (704) is connected with the top surface of the portal frame (5).
