CN217947703U

CN217947703U - A charge device for sewage treatment device

Info

Publication number: CN217947703U
Application number: CN202222242581.2U
Authority: CN
Inventors: 秦心竹
Original assignee: Guizhou Jinniu Environmental Protection Technology Co ltd
Current assignee: Guizhou Jinniu Environmental Protection Technology Co ltd
Priority date: 2022-08-24
Filing date: 2022-08-24
Publication date: 2022-12-02
Anticipated expiration: 2032-08-24

Abstract

The utility model discloses a charge device for sewage treatment device, including mounting bracket, sewage case, spray tank, the top fixed mounting of sewage case has first inlet tube, and the bottom fixed mounting of sewage case has the drain pipe, and the top fixed mounting of spray tank has the second inlet tube, and the bottom fixed mounting of spray tank has the connecting pipe, and the externally mounted of spray tank has the water pump that is used for the inside input chemical liquid medicine to the sewage case, and the inside of sewage case is provided with adds medicine mechanism, adds medicine mechanism and includes two liquid reserve tanks, the utility model discloses, can realize adding into the sewage case with chemical agent equal and with adding of chemical agent through the medicine mechanism that sets up, when carrying out the processing of sewage, pour into chemical agent into the liquid reserve tank, drip into the chemical liquid medicine through the hole on the liquid reserve tank in sewage, simultaneously through the first driving motor who sets up, pivot, rotor plate, connecting rod mutually support, can drive the liquid reserve tank and rotate to make the chemical liquid medicine fill and mix with sewage.

Description

A charge device for sewage treatment device

Technical Field

The utility model relates to a sewage treatment device technical field especially relates to a charge device for sewage treatment device.

Background

Sewage treatment is a process of purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. The existing sewage treatment technology is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and increasingly enters the daily life of common people, and various medicaments are generally required to be added into sewage in the sewage treatment process to achieve the purpose of treating the sewage.

When adding chemical to sewage treatment device, because generally directly let in sewage treatment device with the medicament through connecting the water pipe in, chemical is difficult to abundant mixing to sewage treatment device, lead to chemical's utilization efficiency relatively poor, and because chemical in the charge device is at the long-time in-process that stores, lead to the active ingredient in the chemical to deposit easily in the bottom of box, traditional charge device is difficult to the quick active ingredient that will deposit and the even mixture of chemical liquid generally, influence sewage treatment's effect.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the chemical agent utilization efficiency is poor and the dosing device is difficult to the quick even mixing of the effective components of sediment because the chemical agent is directly introduced into the sewage treatment equipment through the connecting water pipe in general among the prior art, and providing a dosing device for the sewage treatment equipment.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a dosing device for sewage treatment equipment, which comprises a mounting rack, a sewage tank and a liquid medicine tank,

the sewage tank and the liquid medicine tank are respectively fixedly arranged on the mounting frame, a first water inlet pipe is fixedly arranged at the top of the sewage tank, a drain pipe is fixedly arranged at the bottom of the sewage tank, a second water inlet pipe is fixedly arranged at the top of the liquid medicine tank, a connecting pipe is fixedly arranged at the bottom of the liquid medicine tank, and a water pump for inputting chemical liquid medicine into the sewage tank is arranged outside the liquid medicine tank;

a dosing mechanism is arranged inside the sewage tank and comprises two liquid storage boxes, the liquid storage boxes are movably arranged inside the sewage tank, the bottom walls of the liquid storage boxes are provided with water dripping holes, and a stirring assembly for stirring sewage is arranged inside the sewage tank;

the inside of spray box is provided with the mixing mechanism, the mixing mechanism includes the dust filter, the dust filter activity sets up the inside of spray box, the inside of spray box is provided with and is used for driving the drive assembly that the dust filter moved.

The above technical solution further comprises: one end of the connecting pipe, which is far away from the liquid medicine box, is fixedly installed at the water inlet end of the water pump, a bifurcated pipe is fixedly installed at the water outlet end of the water pump, and the end part, which is far away from the water pump, of the bifurcated pipe is fixedly installed inside the sewage box.

Further, the stirring subassembly including fixed mounting in first driving motor on the sewage case diapire, first driving motor's output shaft runs through the diapire of sewage case and install the pivot, the pivot is kept away from the rotor plate is installed to first driving motor's one end, the rotor plate is kept away from one side of pivot is rotated and is connected on the roof of sewage case, two connecting rods of fixedly connected with on the outer wall of rotor plate, connecting rod fixed connection be in on the liquid reserve box.

Furthermore, a plurality of first stirring blades are installed on the outer wall of the rotating shaft.

Furthermore, the driving assembly comprises a second driving motor fixedly mounted on the mounting frame, an output shaft of the second driving motor penetrates through the bottom wall of the liquid medicine box and is provided with a half screw rod, one end of the half screw rod, which is far away from the second driving motor, is rotatably connected to the top wall of the liquid medicine box, a threaded slide block is in threaded connection with the outer wall of the threaded end of the half screw rod, and a dust filter plate is fixedly mounted on the outer wall of the threaded slide block.

Furthermore, a plurality of second stirring blades are fixedly mounted on the outer wall of the threaded sliding block.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, can realize adding into the sewage tank with chemical agent equal and through the medicine mechanism that sets up, when carrying out the processing of sewage, pour into chemical agent into the liquid reserve box, drip into the sewage through the hole of dripping on the liquid reserve box with chemical agent, simultaneously through mutually supporting of the first driving motor who sets up, pivot, rotor plate, connecting rod, can drive the liquid reserve box and rotate when stirring sewage to make liquid medicine fully mix with sewage, improve the purifying effect to sewage.

2. The utility model discloses in, second driving motor through among the mixing mechanism that sets up, half screw rod, the screw thread slider, the dust filter can realize the even mixture of active ingredient and the chemical liquid medicine that will deposit fast, when using, drive screw thread slider rebound through half screw rod, thereby drive the active ingredient rebound that deposits on the dust filter, when the liquid level department that removes the chemical liquid medicine, it drives the dust filter rebound to start second driving motor, the active ingredient falls downwards from the liquid level department this moment, and stir the chemical liquid medicine through the second puddler, thereby quick even mix the active ingredient in the chemical liquid medicine, the availability factor of chemical liquid medicine is improved.

Drawings

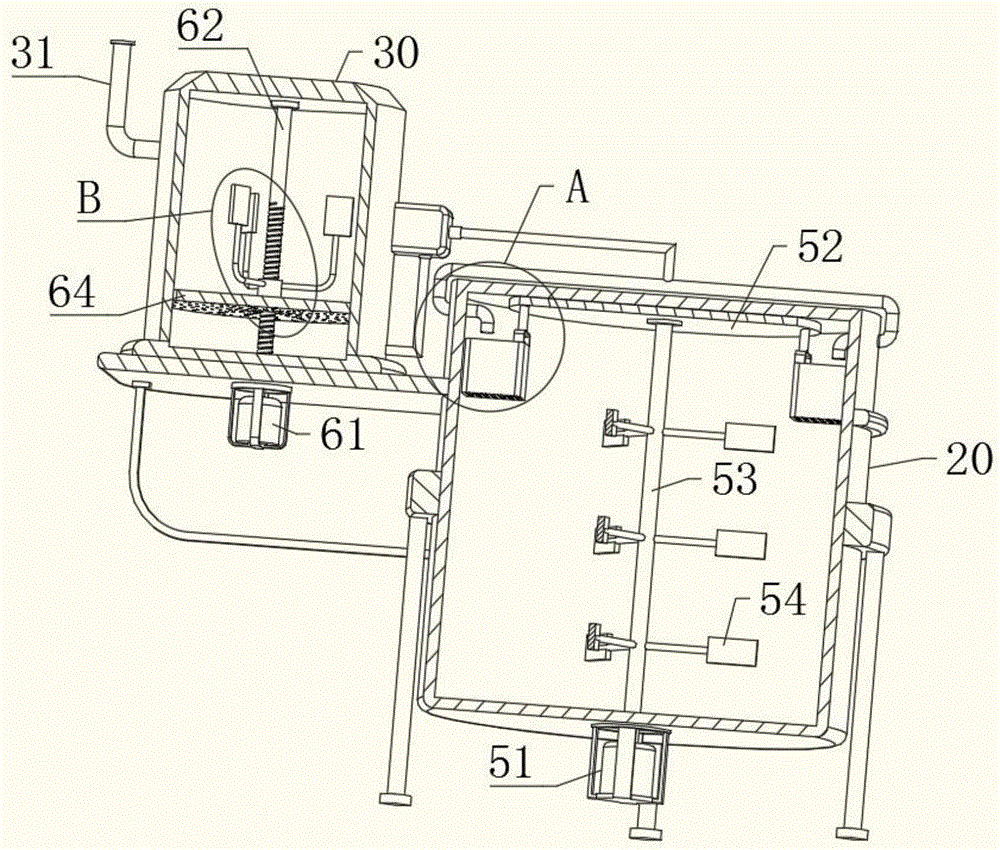

FIG. 1 is a schematic view of the internal structure of a chemical adding device for sewage treatment equipment according to the present invention;

FIG. 2 is a schematic view of the overall structure of a chemical adding device for sewage treatment equipment;

FIG. 3 is an enlarged schematic view of the structure at A in FIG. 1;

fig. 4 is an enlarged schematic view of a portion B in fig. 1.

In the figure:

10. a mounting frame; 20. a sewage tank; 21. a first water inlet pipe; 22. a drain pipe; 30. a liquid medicine box; 31. a second water inlet pipe; 32. a connecting pipe; 41. a water pump; 42. a bifurcated tube; 51. a first drive motor; 52. a rotating plate; 53. a rotating shaft; 54. a first stirring blade; 55. a water dripping hole; 56. a liquid storage box; 57. a connecting rod; 61. a second drive motor; 62. a half screw; 63. A second stirring blade; 64. a dust filter plate; 65. and a threaded slider.

Detailed Description

The technical solution of the present invention will be further explained with reference to the accompanying drawings and specific embodiments.

Example one

Referring to the attached drawings 1-4, the utility model provides a chemical adding device for sewage treatment equipment, which comprises a mounting rack 10, a sewage tank 20 and a liquid chemical tank 30,

the sewage tank 20 and the chemical liquid tank 30 are respectively and fixedly installed on the installation frame 10, a first water inlet pipe 21 is fixedly installed at the top of the sewage tank 20, a drain pipe 22 is fixedly installed at the bottom of the sewage tank 20, wherein the first water inlet pipe 21 is used for introducing sewage, the drain pipe 22 is used for discharging purified sewage, a second water inlet pipe 31 is fixedly installed at the top of the chemical liquid tank 30, the second water inlet pipe 31 is used for injecting chemical liquid medicine into the chemical liquid tank 30, a connecting pipe 32 is fixedly installed at the bottom of the chemical liquid tank 30, and a water pump 41 for inputting the chemical liquid medicine into the sewage tank 20 is installed outside the chemical liquid tank 30;

a dosing mechanism is arranged inside the sewage tank 20 and comprises two liquid storage boxes 56, the liquid storage boxes 56 are movably arranged inside the sewage tank 20, the bottom walls of the liquid storage boxes 56 are provided with water dripping holes 55, and a stirring assembly for stirring sewage is arranged inside the sewage tank 20;

one end of the connecting pipe 32 far away from the liquid medicine tank 30 is fixedly arranged at the water inlet end of the water pump 41, the water outlet end of the water pump 41 is fixedly provided with a bifurcated pipe 42, and the end part of the bifurcated pipe 42 far away from the water pump 41 is fixedly arranged inside the sewage tank 20;

the stirring subassembly includes fixed mounting in the first driving motor 51 on the sewage case 20 diapire, the output shaft of first driving motor 51 runs through the diapire of sewage case 20 and installs pivot 53, pivot 53 is kept away from the one end of first driving motor 51 and is installed rotor plate 52, one side that pivot 53 was kept away from to rotor plate 52 is rotated and is connected on the roof of sewage case 20, two connecting rods 57 of fixedly connected with on the outer wall of rotor plate 52, connecting rod 57 fixed connection is on stock solution box 56

A plurality of first agitating blades 54 are mounted on the outer wall of the rotating shaft 53.

In this embodiment, when the device is used to purify sewage, firstly, sewage is injected into the interior of the sewage tank 20 through the first water inlet pipe 21, then the water pump 41 is started, the water pump 41 conveys chemical liquid medicine in the liquid medicine tank 30 to the interior of the sewage tank 20 through the connecting pipe 32 and the bifurcated pipe 42, the liquid medicine enters the interiors of the two liquid storage boxes 56 through the bifurcated pipe 42, when the liquid medicine amount in the liquid storage boxes 56 reaches a sufficient amount for purifying sewage, the conveying of the liquid medicine by the water pump 41 is stopped, at this time, the first driving motor 51 is started, the first driving motor 51 drives the rotating shaft 53 to rotate, the rotating shaft 53 drives the rotating plate 52 to rotate, the rotating plate 52 drives the connecting rod 57 to rotate, the connecting rod 57 drives the liquid storage boxes 56 to rotate, and at this time, the liquid medicine in the liquid storage boxes 56 drops downwards into the sewage through the water dropping holes 55;

when the rotating shaft 53 rotates, the rotating shaft 53 drives the first stirring blade 54 to rotate, the first stirring blade 54 stirs the sewage and is matched with the chemical liquid medicine which is dropped in a rotating mode, so that the liquid medicine and the sewage are fully mixed, and the purification effect of the liquid medicine is improved;

it should be noted that: the first driving motor 51 stops after rotating, and is located below the two ends of the branch pipe 42, so as to facilitate the cleaning of the next batch of sewage.

Example two

As shown in fig. 1-4, based on the first embodiment, a mixing mechanism is disposed inside the drug solution tank 30, the mixing mechanism includes a dust filter 64, the dust filter 64 is movably disposed inside the drug solution tank 30, and a driving assembly for driving the dust filter 64 to move is disposed inside the drug solution tank 30;

drive assembly includes second driving motor 61 of fixed mounting on mounting bracket 10, the output shaft of second driving motor 61 runs through the diapire of liquid medicine case 30 and installs half screw rod 62, half screw rod 62 is kept away from the one end of second driving motor 61 and is rotated and connect on the roof of liquid medicine case 30, threaded connection has threaded slide 65 on half screw rod 62's the thread end outer wall, fixed mounting has dust filter 64 on threaded slide 65's the outer wall, it has a plurality of second stirring vane 63 still to fixed mounting on threaded slide 65's the outer wall.

In this embodiment, when the chemical liquid medicine in the liquid medicine tank 30 is precipitated, the effective components are precipitated on the dust filter plate 64, and when the chemical liquid medicine needs to be used, the second driving motor 61 is started, the second driving motor 61 drives the half screw 62 to rotate, the thread outside the half screw 62 is engaged with the thread inside the thread slider 65, so as to drive the thread slider 65 to move upwards, so that the precipitated chemical liquid medicine is brought to the liquid level of the liquid medicine, but does not need to exceed the liquid level, at this time, the second driving motor 61 can be started to rotate reversely, the second driving motor 61 drives the thread slider 65 to rotate reversely, so as to drive the dust filter plate 64 to move downwards;

when dust filter 64 moves down, the liquid medicine that will deposit on dust filter 64 through the hole on the dust filter 64 separates with dust filter 64, the liquid medicine that deposits this moment falls downwards from the liquid level, screw thread slider 65 is in the removal simultaneously, screw thread slider 65 self takes place to rotate, screw thread slider 65 drives second stirring vane 63 and rotates, thereby stir the liquid medicine, and then the realization is with the quick even mixture of the active ingredient of sediment to the liquid medicine, the availability factor of liquid medicine is improved.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A dosing device for sewage treatment equipment is characterized by comprising a mounting rack (10), a sewage tank (20) and a liquid medicine tank (30),

the sewage tank (20) and the liquid medicine tank (30) are respectively and fixedly installed on the installation frame (10), a first water inlet pipe (21) is fixedly installed at the top of the sewage tank (20), a drain pipe (22) is fixedly installed at the bottom of the sewage tank (20), a second water inlet pipe (31) is fixedly installed at the top of the liquid medicine tank (30), a connecting pipe (32) is fixedly installed at the bottom of the liquid medicine tank (30), and a water pump (41) for inputting chemical liquid medicine into the sewage tank (20) is installed outside the liquid medicine tank (30);

a dosing mechanism is arranged in the sewage tank (20), the dosing mechanism comprises two liquid storage boxes (56), the liquid storage boxes (56) are movably arranged in the sewage tank (20), the bottom walls of the liquid storage boxes (56) are provided with water dripping holes (55), and a stirring assembly for stirring sewage is arranged in the sewage tank (20);

the inside of spray tank (30) is provided with the mixing mechanism, the mixing mechanism includes dust filter (64), dust filter (64) activity sets up the inside of spray tank (30), the inside of spray tank (30) is provided with and is used for driving the drive assembly that dust filter (64) removed.

2. The dosing device for a sewage treatment apparatus according to claim 1, wherein one end of the connection pipe (32) far away from the chemical liquid tank (30) is fixedly installed at a water inlet end of the water pump (41), a water outlet end of the water pump (41) is fixedly installed with a branch pipe (42), and an end of the branch pipe (42) far away from the water pump (41) is fixedly installed inside the sewage tank (20).

3. The dosing device for the sewage treatment equipment according to claim 2, wherein the stirring assembly comprises a first driving motor (51) fixedly mounted on the bottom wall of the sewage tank (20), an output shaft of the first driving motor (51) penetrates through the bottom wall of the sewage tank (20) and is provided with a rotating shaft (53), one end of the rotating shaft (53) far away from the first driving motor (51) is provided with a rotating plate (52), one side of the rotating plate (52) far away from the rotating shaft (53) is rotatably connected to the top wall of the sewage tank (20), the outer wall of the rotating plate (52) is fixedly connected with two connecting rods (57), and the connecting rods (57) are fixedly connected to the liquid storage box (56).

4. The dosing device for sewage treatment equipment according to claim 3, wherein a plurality of first stirring blades (54) are mounted on the outer wall of the rotating shaft (53).

5. The dosing device for the sewage treatment equipment according to claim 1, wherein the driving assembly comprises a second driving motor (61) fixedly mounted on the mounting frame (10), an output shaft of the second driving motor (61) penetrates through a bottom wall of the liquid medicine tank (30) and is provided with a half screw (62), one end of the half screw (62) far away from the second driving motor (61) is rotatably connected to a top wall of the liquid medicine tank (30), a threaded sliding block (65) is in threaded connection with an outer wall of a threaded end of the half screw (62), and a dust filtering plate (64) is fixedly mounted on an outer wall of the threaded sliding block (65).

6. The dosing device for the sewage treatment equipment according to claim 5, wherein a plurality of second stirring blades (63) are fixedly mounted on the outer wall of the threaded sliding block (65).
