Abstract
The utility model discloses a photoelectron spectrometer with novel sampling structure, including photoelectron spectrometer analysis room, the top of photoelectron spectrometer analysis room is connected with analysis room connecting tube, the one end that analysis room connecting tube kept away from photoelectron spectrometer analysis room is provided with photoelectron spectrometer analyzer, one side outer wall department of photoelectron spectrometer analysis room is connected with photoelectron spectrometer sampling pipeline, sampling pipeline connecting hole has been seted up to photoelectron spectrometer sampling pipeline's one end, the internal connection of sampling pipeline connecting hole has sampling pipeline connecting axle, the one end that sampling pipeline connecting axle kept away from sampling pipeline connecting hole is provided with electric push rod backup pad; this photoelectron spectrometer with novel advance a kind structure through setting up advance kind pipeline connecting axle, electric putter backup pad, advance kind electric putter, slide fixed suction cup, advance kind slide, sample and place the box, advance kind spout, has realized the function that this photoelectron spectrometer was convenient for advance kind.
Description
Technical Field
The utility model relates to a photoelectron spectrometer technical field specifically is a photoelectron spectrometer with novel advance kind structure.
Background
The photoelectron spectrometer measures the relation between the kinetic energy and the quantity of photoelectrons by utilizing the photoelectric effect to judge the content of various elements on the surface of a sample. All elements except hydrogen in solid, liquid and gas samples can be analyzed.
When a photoelectron spectrometer is used for detection, a sample can be detected through an analyzer after being sent into an analysis chamber, so that the sample is required to be stably transmitted in the sample introduction process. Therefore, a sample introduction structure of the photoelectron spectrometer capable of automatically conveying is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a photoelectron spectrometer with novel advance kind structure to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above purpose, the utility model provides a following technical scheme:
the utility model provides a photoelectron spectrometer with novel sampling structure, includes photoelectron spectrometer analysis room, photoelectron spectrometer analysis room's top is connected with analysis room connecting tube, the one end that photoelectron spectrometer analysis room was kept away from to analysis room connecting tube is provided with photoelectron spectrometer analyzer, one side outer wall department of photoelectron spectrometer analysis room is connected with photoelectron spectrometer sampling pipe, the sampling pipe connecting hole has been seted up to photoelectron spectrometer sampling pipe's one end, the internal connection of sampling pipe connecting hole has the sampling pipe connecting axle, the one end that sampling pipe connecting hole was kept away from to the sampling pipe connecting axle is provided with the electric putter backup pad, the top of electric putter backup pad is provided with advances a kind electric putter, the one end of advancing kind electric putter is connected with the slide fixing chuck, one side of slide fixing chuck is provided with advances a kind spectrometer, advance the slide spread groove at the top of appearance slide, the inside of slide connecting groove is provided with the sample and places the box, the sample standing groove has been seted up to the inboard that the sample placing box was placed to the sample, photoelectron spectrometer's inboard has seted up the sample introduction chute, photoelectron spectrometer is close to the one end that the sample placing box and is provided with sample sealing thread, the outside that sample introduction pipe sealing thread was provided with the sample sealing plate.
As the utility model discloses an optimized technical scheme, the external diameter size of introduction pipeline connecting axle is the same with the internal diameter size of introduction pipeline connecting hole, the introduction pipeline connecting axle is pegged graft with the introduction pipeline connecting hole, the appearance of introduction pipeline connecting hole is circular.
As the utility model discloses an optimized technical scheme, the appearance of introduction pipeline connecting axle is the C type, the one end that introduction pipeline connecting hole was kept away from to the introduction pipeline connecting axle is fixed in the bottom of electric putter backup pad, the appearance of electric putter backup pad is the rectangular bodily form.
As the utility model discloses an optimized technical scheme, advance kind electric putter and can drive slide fixed suction cup and fix on advancing the outer wall of kind slide, the appearance of advancing the kind slide is semi-circular.
As the utility model discloses an optimal technical scheme, the radian size that the box was placed to the sample is the same with the radian size of slide spread groove, the sample is placed the box and is pegged graft with the slide spread groove, the appearance that the box was placed to the sample is semi-circular.
As the utility model discloses an optimized technical scheme, the radian size of advancing the kind spout is the same with the radian size of advancing the kind slide, advance the kind spout and advance kind slide sliding connection, the appearance of advancing the kind spout is circular.
Compared with the prior art, the beneficial effects of the utility model are that:
this photoelectron spectrometer with novel advance a kind structure, through setting up the pipeline connecting axle, the electric putter backup pad, advance a kind electric putter, slide fixed suction cup, advance a kind slide, the box is placed to the sample, advance a kind spout, back with the pipeline closing plate is twisted out, place the sample in the sample is placed the box, open advance a kind electric putter again, make slide fixed suction cup attached at the outer wall of advancing a kind slide and with advance a kind slide fixed connection, advance a kind electric putter can continue to drive advance a kind slide and place the box cunning with the sample and to photoelectron spectrometer analysis indoor, make the sample can automize and send into the indoor detection that detects of analysis, realized this photoelectron spectrometer function of being convenient for advance a kind.
Drawings

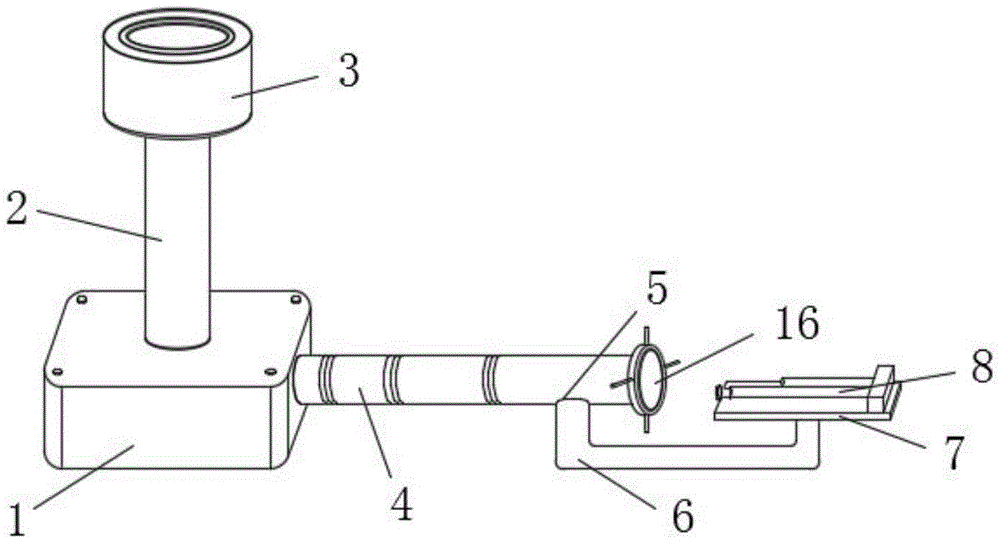

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a connection diagram of the electric push rod support plate and the sample injection electric push rod of the present invention;
FIG. 3 is a schematic structural view of the sample injection chute of the present invention;
fig. 4 is a connection diagram of the sample introduction slide plate and the sample placing box of the utility model.
In the figure: 1. an optoelectronic spectrometer analysis chamber; 2. the analysis chamber is connected with a pipeline; 3. a photoelectron spectrometer analyzer; 4. a sample introduction pipeline of the photoelectron spectrometer; 5. a sample introduction pipeline is connected with the hole; 6. a sample introduction pipeline connecting shaft; 7. an electric push rod supporting plate; 8. a sample injection electric push rod; 9. the slide plate fixes the sucker; 10. a sample introduction sliding plate; 11. a sliding plate connecting groove; 12. a sample placement box; 13. a sample placement groove; 14. a sample introduction chute; 15. sealing threads of the sample injection pipeline; 16. and a sealing plate of the sample injection pipeline.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-4, in the present embodiment: the utility model provides a photoelectron spectrometer with novel sampling structure, including photoelectron spectrometer analysis room 1, photoelectron spectrometer analysis room 1's top is connected with analysis room connecting tube 2, analysis room connecting tube 2 keeps away from photoelectron spectrometer analysis room 1's one end is provided with photoelectron spectrometer analyzer 3, one side outer wall department of photoelectron spectrometer analysis room 1 is connected with photoelectron spectrometer introduction pipeline 4, introduction pipeline connecting hole 5 has been seted up to photoelectron spectrometer introduction pipeline 4's one end, the internal connection of introduction pipeline connecting hole 5 has introduction pipeline connecting axle 6, the one end that introduction pipeline connecting axle 6 kept away from introduction pipeline connecting hole 5 is provided with electric putter backup pad 7, the top of electric putter backup pad 7 is provided with advance kind electric putter 8, the one end of advance kind electric putter 8 is connected with slide fixed suction cup 9, one side of slide fixed suction cup 9 is provided with advance kind spectrometer slide 10, slide spread groove 11 has been seted up at the top of advance kind slide 10, the inside of slide spread groove 11 is provided with sample and places box 12, the inboard that box 12 was placed to the sample has seted up sample standing groove 13, slide inside of photoelectron spectrometer introduction pipeline 4 has been seted up, slide fixed chute 14 has been seted up to the inboard of photoelectron spectrometer introduction pipeline 4, the one end that sample introduction pipeline 4 is close to the sealed screw thread 15, the sealed outside of sealed sealing plate 15 is provided with sample sealing plate.
In the embodiment, the external diameter of the sample introduction pipeline connecting shaft 6 is the same as the internal diameter of the sample introduction pipeline connecting hole 5, and the sample introduction pipeline connecting shaft 6 is inserted into the sample introduction pipeline connecting hole 5, so that the sample introduction pipeline connecting shaft 6 is fixedly connected with the sample introduction pipeline connecting hole 5; the appearance of the sample introduction pipeline connecting shaft 6 is C-shaped, one end of the sample introduction pipeline connecting shaft 6, which is far away from the sample introduction pipeline connecting hole 5, is fixed at the bottom of the electric push rod supporting plate 7, wherein the sample introduction pipeline connecting shaft 6 plays a role in connecting the sample introduction pipeline 4 of the photoelectron spectrometer with the electric push rod supporting plate 7; the sample injection electric push rod 8 can drive the sliding plate fixing sucker 9 to be fixed on the outer wall of the sample injection sliding plate 10, so that the sliding plate fixing sucker 9 is fixedly connected with the sample injection sliding plate 10; the radian size of the sample placing box 12 is the same as that of the sliding plate connecting groove 11, and the sample placing box 12 is inserted into the sliding plate connecting groove 11, so that the sample placing box 12 is fixedly connected with the sliding plate connecting groove 11; the radian size of the sample introduction chute 14 is the same as the radian size of the sample introduction slide plate 10, and the sample introduction chute 14 is slidably connected with the sample introduction slide plate 10, so that the sample introduction slide plate 10 can slide on the sample introduction chute 14.
The utility model discloses a theory of operation and use flow: this photoelectron spectrometer with novel advance kind structure, back is twisted out the inlet channel closing plate 16, place the sample in the box 12 is placed to the sample, open advance kind electric putter 8 again, make slide fixing suction disc 9 attached at the outer wall of advancing kind slide 10 and with advance kind slide 10 fixed connection, advance kind electric putter 8 can continue to drive advance kind slide 10 and sample place box 12 slide to photoelectron spectrometer analysis room 1 in, make the sample can automize send into the analysis room and detect, realized this photoelectron spectrometer function of being convenient for advance kind.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described above, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. A photoelectron spectrometer with a novel sample introduction structure comprises a photoelectron spectrometer analysis chamber (1), and is characterized in that: the top of photoelectron spectrometer analysis room (1) is connected with analysis room connecting tube (2), the one end that photoelectron spectrometer analysis room (1) was kept away from in analysis room connecting tube (2) is provided with photoelectron spectrometer analyzer (3), one side outer wall department of photoelectron spectrometer analysis room (1) is connected with photoelectron spectrometer inlet pipe (4), inlet pipe connecting hole (5) have been seted up to the one end of photoelectron spectrometer inlet pipe (4), the internal connection of inlet pipe connecting hole (5) has inlet pipe connecting axle (6), the one end that inlet pipe connecting hole (5) were kept away from in inlet pipe connecting axle (6) is provided with electric putter backup pad (7), the top of electric putter backup pad (7) is provided with into kind electric putter (8), the one end that advances kind electric putter (8) is connected with slide plate fixing suction disc (9), one side of slide plate fixing suction disc (9) is provided with slide plate (10), slide plate connecting groove (11) has been seted up at the top of inlet pipe (10), the inside of slide plate (11) is provided with the sample and places box (12), the sample placing box (12) has been placed to the inboard that sample placing box (12) has been seted up to the sample placing box (12), sample introduction pipe chute (14) has been close to sample introduction pipe (4), sample introduction pipe (4) inboard sample placing box (12), sample introduction pipe (4) sample placing chute (12) is placed to sample The end is provided with a sample injection pipeline sealing thread (15), and a sample injection pipeline sealing plate (16) is arranged on the outer side of the sample injection pipeline sealing thread (15).
2. The photoelectron spectrometer with the novel sample introduction structure according to claim 1, characterized in that: the external diameter of introduction pipeline connecting shaft (6) is the same as the internal diameter of introduction pipeline connecting hole (5), introduction pipeline connecting shaft (6) is inserted into introduction pipeline connecting hole (5).
3. The photoelectron spectrometer with the novel sample introduction structure according to claim 1, characterized in that: the appearance of introduction pipeline connecting axle (6) is the C type, the one end that introduction pipeline connecting axle (6) kept away from introduction pipeline connecting hole (5) is fixed in the bottom of electric putter backup pad (7).
4. The photoelectron spectrometer with the novel sampling structure as claimed in claim 1, wherein: the sample injection electric push rod (8) can drive the slide plate fixing sucker (9) to be fixed on the outer wall of the sample injection slide plate (10).
5. The photoelectron spectrometer with the novel sampling structure as claimed in claim 1, wherein: the radian size of the sample placing box (12) is the same as that of the sliding plate connecting groove (11), and the sample placing box (12) is connected with the sliding plate connecting groove (11) in an inserting mode.
6. The photoelectron spectrometer with the novel sampling structure as claimed in claim 1, wherein: the radian size of the sample injection chute (14) is the same as that of the sample injection sliding plate (10), and the sample injection chute (14) is connected with the sample injection sliding plate (10) in a sliding manner.
