CN217903905U - Cable support frame for electric power engineering construction - Google Patents

Abstract

The utility model discloses a cable support frame for electric power engineering construction relates to cable technical field, comprising a base plate, bottom plate top sliding connection has height-adjustable's carriage release lever, the carriage release lever top is rotated and is connected with horizontal angle adjustable's roof, through the height of adjusting the carriage release lever, and then can carry out the regulation of height to the device, through adjusting arc splint one, and then can press from both sides the cable between arc splint one and arc splint two, through the roller bearing, and then can make the cable slide between arc splint one and arc splint two, and then make things convenient for the cable to remove when pressing from both sides tightly, thereby the cable support structure who has solved among the prior art is comparatively single, nevertheless can reach the effect of carrying out the erection bracing to the cable in the use, but when supporting the cable, generally press from both sides the cable clamp on the support, the cable presss from both sides tightly the back, just be difficult to remove on the support, and then just increased the problem of the degree of difficulty of installing the cable.

Description

Cable support frame for electric power engineering construction

Technical Field

The utility model relates to the technical field of cables, concretely relates to cable support frame for electric power engineering construction.

Background

The cable is an electric energy or signal transmission device, comprises several or several groups of wires usually, and the cable lays in cable pit and tunnel, generally uses the support to fix more, and the support of commonly using has angle iron bracket and assembled support, and the angle iron bracket who uses in the cable pit has multiple different model specifications.

Cable support structure among the prior art is comparatively single, nevertheless can reach the effect of carrying out the erection bracing to the cable in the use, nevertheless when supporting the cable, generally presss from both sides the cable clamp on the support, and the cable presss from both sides tight back, has just been difficult to remove on the support, and then has just increased the degree of difficulty of carrying out the installation to the cable, and for this reason, we provide a cable support frame for the electric power engineering construction.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: for solving the problem that above-mentioned background art provided, the utility model provides a cable support frame is used in electric power engineering construction.

The utility model discloses a realize above-mentioned purpose and specifically adopt following technical scheme:

the utility model provides a cable support frame for electric power engineering construction, includes the bottom plate, bottom plate top sliding connection has height-adjustable's carriage release lever, the carriage release lever top is rotated and is connected with horizontal angularly adjustable roof, two arc splint two that are the symmetric distribution of roof top fixedly connected with, the roof is located two arc splint two tops and respectively sliding connection has a height-adjustable's arc splint one, two arc splint two and two arc splint one inboard all rotate and are connected with the roller bearing.

Furthermore, two universal wheels which are symmetrically distributed are fixedly installed at the bottom of the bottom plate.

Further, two the equal fixedly connected with spliced pole in bottom plate top, two the same horizontal pole of spliced pole top fixedly connected with, carriage release lever sliding connection is in horizontal pole central authorities.

Furthermore, two equal fixedly connected with buffer spring in connecting the capital portion, buffer spring bottom and bottom plate top fixed connection.

Further, the through-hole has been seted up to horizontal pole central authorities, carriage release lever and the inboard sliding connection of through-hole, horizontal pole one side threaded connection has jackscrew two, two one end of jackscrew extend to the through-hole inboard and contradict with the carriage release lever lateral wall, carriage release lever bottom fixedly connected with gag lever post.

Further, the carriage release lever top fixedly connected with bearing frame, bearing frame inner circle fixedly connected with pivot, pivot top and roof bottom fixed connection, bearing frame one side threaded connection has jackscrew one, the jackscrew one end extends to the bearing frame inside and contradicts with the inner circle lateral wall.

Further, the equal fixedly connected with L template in roof both sides, L template top threaded connection has the threaded rod, threaded rod top fixedly connected with runner, the threaded rod bottom extends to L template inboard and rotates with an arc splint top and be connected.

The utility model has the advantages as follows:

the utility model discloses an adjust the height of carriage release lever, and then can drive the roof and reciprocate, and then can carry out the regulation of height to the device, through rotating the roof, and then can drive arc splint one and arc splint two rotate, and then can carry out the regulation of horizontal angle to the device, through adjusting arc splint one, and then can adjust the distance between arc splint one and the arc splint two, and then can be with the cable clamp between arc splint one and arc splint two, through the roller bearing, and then can make the cable slide between arc splint one and arc splint two, and then make things convenient for the cable to remove when pressing from both sides tightly, and then make things convenient for the installation of cable more, thereby it is comparatively single to have solved the cable support structure among the prior art, but can reach the effect of carrying out erection bracing to the cable in the use, but when supporting the cable, generally press from both sides the cable clamp on the support, the cable presss from both sides tightly the back, just be difficult to remove on the support, and then just increased the problem of the degree of difficulty of installing the cable.

Drawings

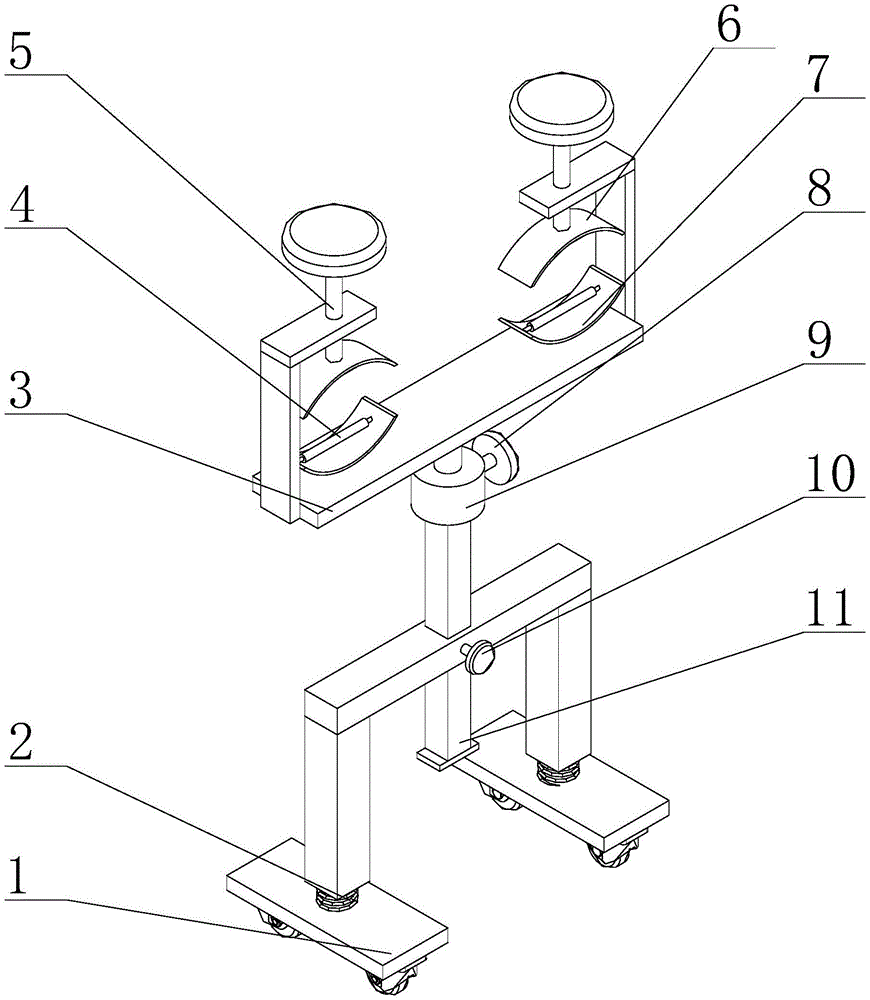

FIG. 1 is a perspective view of the present invention;

fig. 2 is a front view of the present invention;

fig. 3 is a top view of the present invention;

fig. 4 isbase:Sub>A cross-sectional view taken along linebase:Sub>A-base:Sub>A of fig. 3 according to the present invention;

reference numerals: 1. a base plate; 2. a buffer spring; 3. a top plate; 4. a roller; 5. a threaded rod; 6. an arc-shaped splint I; 7. a second arc-shaped clamping plate; 8. a first top thread; 9. a bearing seat; 10. a second top thread; 11. the rod is moved.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention.

As shown in fig. 1-4, a cable support for electric power engineering construction, including a bottom plate 1, a moving rod 11 with adjustable height is slidably connected to the top of the bottom plate 1, a top plate 3 with adjustable horizontal angle is rotatably connected to the top of the moving rod 11, two arc-shaped clamp plates 7 symmetrically distributed are fixedly connected to the top of the top plate 3, a first arc-shaped clamp plate 6 with adjustable height is slidably connected to the top of each of the two arc-shaped clamp plates 7, two arc-shaped clamp plates 7 and a roller 4 are rotatably connected to the inner sides of the two arc-shaped clamp plates 6, in some embodiments, the height of the moving rod 11 is adjusted, so that the top plate 3 can be driven to move up and down, and the height of the cable can be adjusted, by rotating the top plate 3, and then the first arc-shaped clamp plate 6 and the second arc-shaped clamp plate 7 can be driven to rotate, and then the horizontal angle of the cable can be adjusted, and by adjusting the first arc-shaped clamp plate 6 and the second arc-shaped clamp plate 7, so that the distance between the first arc-shaped clamp plate 6 and the second arc-shaped clamp plate 7 can be adjusted, and then the cable can be conveniently moved when the cable support is mounted on the cable, and the cable support can be conveniently, and the cable support can be mounted on the cable support, and the cable support can be used in the cable support.

As shown in fig. 1, fig. 2 and fig. 4, in some embodiments, two symmetrically distributed universal wheels are fixedly mounted at the bottom of the bottom plate 1, and the bottom plate 1 can be moved on the ground by the universal wheels, so as to facilitate the movement of the device.

As shown in fig. 1, 2 and 4, in some embodiments, two bottom plates 1 are fixedly connected with connecting columns at the top, two connecting columns are fixedly connected with the same cross rod at the top, and the moving rod 11 is slidably connected at the center of the cross rod, and through the connecting columns, so that the device can be supported, and through the cross rod, the moving rod 11 is slidably connected at the top of the bottom plate 1.

As shown in fig. 1, 2 and 4, in some embodiments, the bottom of each of the two connecting columns is fixedly connected with a buffer spring 2, the bottom of each buffer spring 2 is fixedly connected with the top of a bottom plate 1, and when the device moves, the bottom plate 1 is easy to bump up and down, so that the buffer springs 2 are extruded, and under the action of the buffer springs 2, the bottom plate 1 is buffered, and the device is buffered.

As shown in fig. 1 and 2, in some embodiments, a through hole is formed in the center of the cross rod, the moving rod 11 is slidably connected to the inner side of the through hole, one side of the cross rod is threadedly connected with the second jackscrew 10, one end of the second jackscrew 10 extends to the inner side of the through hole and abuts against the side wall of the moving rod 11, a limiting rod is fixedly connected to the bottom of the moving rod 11, the second jackscrew 10 is unscrewed, the moving rod 11 can slide up and down on the inner side of the through hole, the second jackscrew 10 is screwed, the moving rod 11 can be limited, and the height of the device can be adjusted.

As shown in fig. 1, 2 and 4, in some embodiments, a bearing seat 9 is fixedly connected to the top of a moving rod 11, a rotating shaft is fixedly connected to the inner ring of the bearing seat 9, the top of the rotating shaft is fixedly connected to the bottom of a top plate 3, a first jackscrew 8 is in threaded connection with one side of the bearing seat 9, one end of the first jackscrew 8 extends into the bearing seat 9 and is abutted against the side wall of the inner ring, the first jackscrew 8 is unscrewed, the rotating shaft can be rotated at the top of the bearing seat 9, the top plate 3 is driven to rotate, the first jackscrew 8 is screwed, the inner ring of the bearing seat 9 is limited, the rotating shaft is limited, and the horizontal angle of the device can be adjusted.

As shown in fig. 1-4, in some embodiments, the equal fixedly connected with L template in roof 3 both sides, L template top threaded connection has threaded rod 5, threaded rod 5 top fixedly connected with runner, threaded rod 5 bottom extends to L template inboard and rotates with arc splint one 6 tops to be connected, rotate the runner, and then drive threaded rod 5 and rotate, and then can make threaded rod 5 reciprocate on the L template, and then drive arc splint one 6 and reciprocate, and then can adjust the distance between arc splint one 6 and arc splint two 7, and then can press from both sides tightly by the cable.

The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims (7)

1. The utility model provides a cable support frame for electric power engineering construction, includes bottom plate (1), its characterized in that: bottom plate (1) top sliding connection has height-adjustable's carriage release lever (11), carriage release lever (11) top is rotated and is connected with horizontal angle adjustable roof (3), two arc splint two (7) that are the symmetric distribution of roof (3) top fixedly connected with, roof (3) are located two arc splint two (7) tops and respectively sliding connection has one height-adjustable's arc splint (6), two arc splint two (7) and two arc splint (6) inboard all rotate and are connected with roller bearing (4).

2. The cable support frame for electric power engineering construction according to claim 1, characterized in that: two universal wheels which are symmetrically distributed are fixedly arranged at the bottom of the bottom plate (1).

3. The cable support frame for electric power engineering construction according to claim 1, characterized in that: two equal fixedly connected with spliced pole in bottom plate (1) top, two the same horizontal pole of spliced pole top fixedly connected with, carriage release lever (11) sliding connection is at horizontal pole central authorities.

4. The cable support frame for electric power engineering construction according to claim 3, characterized in that: two equal fixedly connected with buffer spring (2) of connecting the post bottom, buffer spring (2) bottom and bottom plate (1) top fixed connection.

5. The cable support frame for electric power engineering construction according to claim 3, characterized in that: the through-hole has been seted up to horizontal pole central authorities, carriage release lever (11) and the inboard sliding connection of through-hole, horizontal pole one side threaded connection has jackscrew two (10), jackscrew two (10) one end extends to the through-hole inboard and contradicts with carriage release lever (11) lateral wall, carriage release lever (11) bottom fixedly connected with gag lever post.

6. The cable support frame for electric power engineering construction as claimed in claim 1, wherein: the top of the moving rod (11) is fixedly connected with a bearing seat (9), an inner ring of the bearing seat (9) is fixedly connected with a rotating shaft, the top of the rotating shaft is fixedly connected with the bottom of the top plate (3), one side of the bearing seat (9) is in threaded connection with a jackscrew (8), and one end of the jackscrew (8) extends into the bearing seat (9) and is abutted against the side wall of the inner ring.

7. The cable support frame for electric power engineering construction according to claim 1, characterized in that: roof (3) both sides equal fixedly connected with L template, L template top threaded connection has threaded rod (5), threaded rod (5) top fixedly connected with runner, threaded rod (5) bottom extend to the L template inboard and rotate with arc splint (6) top and be connected.
