Abstract
The utility model provides a solitary old man safety monitoring device belongs to the technical field of safety monitoring equipment, including over-and-under type multi-angle safety monitoring mechanism, over-and-under type multi-angle safety monitoring mechanism includes the shell body, and the fixed electromagnet of shell body outer wall downside, shell body inner chamber rotates and is connected with the back shaft, the back shaft has the rope through the winding cover winding, and the rope lower extreme is connected with connecting block and electrokinetic electromagnet, it has first motor to imbed in the recess of electrokinetic electromagnet downside, the output of first motor is provided with the U-shaped connecting piece, the U-shaped connecting piece rotates through the pivot and is connected with the camera, through the utility model discloses, diversified guardianship is shot has been realized, reduces the area that the dead angle exists, thereby better reaches the guardianship to solitary old man, reduces potential danger, and can regularly put down the camera on arranging indoor roof, clear up, the old man need not to ascend a height, convenience very.
Description
Technical Field
The utility model relates to a safety monitoring equipment's technical field specifically is a solitary old man safety monitoring device.
Background
The safety monitoring equipment is composed of 5 parts of camera shooting, transmission, control, display and record registration, the camera transmits video images to the control host machine through a coaxial video cable, a network cable and optical fibers, the control host machine distributes the video signals to each monitor and the video recording equipment, and simultaneously, voice signals needing to be transmitted can be synchronously recorded into the video recording machine.
In current old man safety monitoring device of solitary residence today, for example, in the technical structure of application for CN202122717503.9 application document, including the safety monitoring camera body, one side fixedly connected with L type pole of the lower surface of safety monitoring camera body, and the one end sliding connection of L type pole has lifting unit, the last fixed surface of safety monitoring camera body connects organic electronic box, and installs the motor in the electronic box, and the lower extreme fixed connection of the output of motor and bull stick, and the bull stick runs through the upper wall of electronic box, and the bull stick rotates with the electronic box to be connected, and the three evenly distributed's of the upper end fixedly connected with horizontal pole of bull stick outer peripheral face, the device has realized the control to solitary old man, but the camera itself can only height-adjusting, can not multi-angle modulation, the scope of shooing is limited, the dead angle that can's unable shooting can appear, thereby the old man is when the dead angle region goes wrong, can not effectual control, in time take measures, and if in the dim room relatively, reduce the definition of control.
SUMMERY OF THE UTILITY MODEL
The utility model mainly provides a solitary old man safety monitoring device for solve the technical problem who proposes in the above-mentioned background art.
The utility model provides a technical scheme that above-mentioned technical problem adopted does:
the utility model provides a solitary old man safety monitoring device, includes over-and-under type multi-angle safety monitoring mechanism, over-and-under type multi-angle safety monitoring mechanism includes the shell body to and the ring groove of shell body outer wall downside open position, be provided with the fixed electromagnet in the ring groove, and the centre of a circle position of fixed electromagnet is provided with the connecting hole, shell body inner chamber rotates and is connected with the back shaft, the cover of rolling has been cup jointed on the back shaft, the winding is sheathe in and is had the rope, and the rope lower extreme passes the connecting hole and be connected with the connecting block, the connecting block downside is provided with the electrokinetic electromagnet, and the electrokinetic electromagnet radius is less than the fixed electromagnet radius, the embedding has first motor in the recess of electrokinetic electromagnet downside, the output of first motor is provided with the U-shaped connecting piece, the U-shaped connecting piece rotates through the pivot and is connected with the camera, and U-shaped connecting piece outer wall one side is provided with the second motor, and the pivot one end interconnect on the output of second motor and the camera.
Furthermore, an arc-shaped dust guard plate is arranged at the position of the lens of the camera, and the side edge of the arc-shaped dust guard plate is connected with the outer wall of the shell of the camera.
Furthermore, a light supplement lamp is arranged on the lower edge of the outer wall of the shell of the camera.
Furthermore, the connecting block at the circle center position on the upper side of the moving electromagnet is matched with the connecting hole of the fixed electromagnet.
Furthermore, a third motor is arranged on one side of the upper surface of the inner cavity of the outer shell, a driving gear is arranged at the output end of the third motor, the driving gear is meshed with a driven gear, and the driven gear is arranged on the supporting shaft.
Furthermore, an alarm buzzer is arranged on one side of the outer wall of the outer shell, and the shell of the alarm buzzer is connected with the outer shell through bolts.
Furthermore, two right-angle positioning plates are respectively arranged at the upper edges of the two sides of the outer wall of the outer shell.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses an over-and-under type multi-angle safety monitoring mechanism has realized diversified guardianship and has shot, reduce the area that the dead angle exists, thereby better reach the guardianship to the solitary old man, reduce potential danger, and can regularly put down the camera of arranging on the indoor roof in, clear up, the old man need not to ascend a height, convenience very has certain practical value and market prospect, through the mutual actuation between fixed electromagnet and the moving electromagnet, realized firmly installing the camera on the indoor roof, avoid unexpected the dropping.
The present invention will be explained in detail with reference to the drawings and specific embodiments.
Drawings

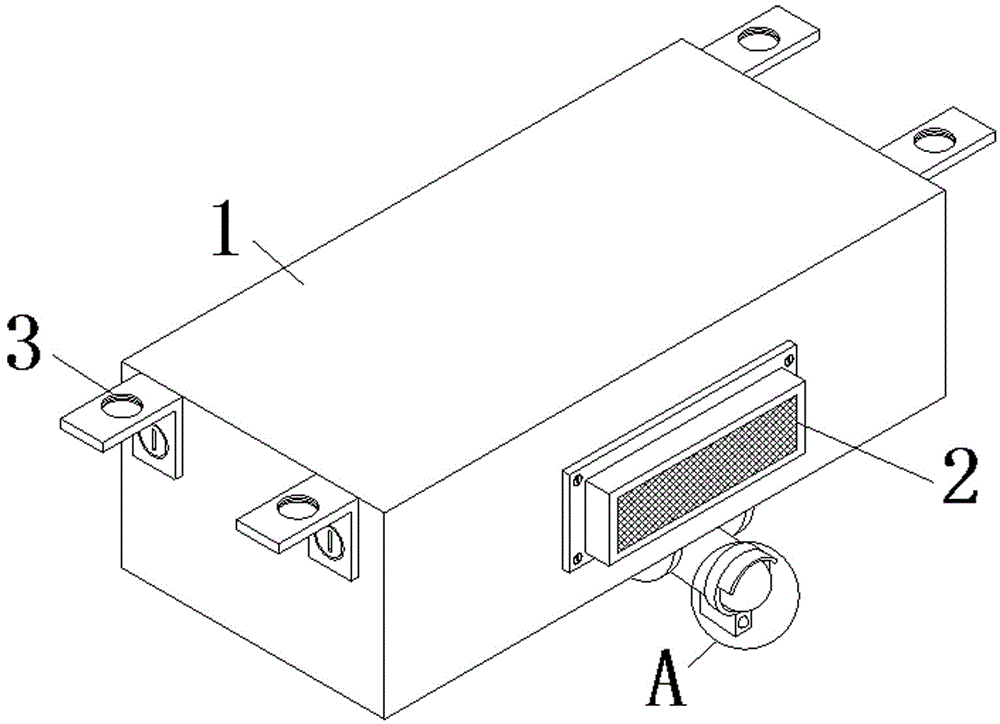

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the inner structure of the outer casing of the present invention;
fig. 3 is a schematic view of a rope connection structure of the present invention;
fig. 4 is an enlarged structural diagram of the area a in fig. 1.
In the figure: 1. a lifting multi-angle safety monitoring mechanism; 11. an outer housing; 111. an annular neck; 12. a support shaft; 121. rolling up the sleeve; 122. a rope; 13. a fixed electromagnet; 131. connecting holes; 14. an electromagnet; 141. connecting blocks; 15. a first motor; 16. a U-shaped connector; 161. a second motor; 17. a camera; 171. an arc-shaped dust guard; 172. a light supplement lamp; 18. a third motor; 19. a drive gear; 191. a driven gear; 2. an alarm buzzer; 3. and (6) a right-angle positioning plate.
Detailed Description
In order to facilitate understanding of the present invention, the present invention will be described more fully hereinafter with reference to the accompanying drawings, in which several embodiments of the present invention are shown, but the present invention can be implemented in different forms, and is not limited to the embodiments described in the text, and on the contrary, these embodiments are provided so as to make the disclosure more thorough and complete.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may be present, and when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, as the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the use of the term knowledge in the specification of the present invention is for the purpose of describing particular embodiments and is not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.
Please refer to fig. 1-4 heavily, a solitary old person safety monitoring device, includes a lifting multi-angle safety monitoring mechanism 1, the lifting multi-angle safety monitoring mechanism 1 includes an outer shell 11, and an annular slot 111 at an opening position of a lower side of an outer wall of the outer shell 11, a fixed electromagnet 13 is arranged in the annular slot 111, a connection hole 131 is arranged at a circle center position of the fixed electromagnet 13, an inner cavity of the outer shell 11 is rotatably connected with a support shaft 12, a winding sleeve 121 is sleeved on the support shaft 12, a rope 122 is wound on the winding sleeve 121, a connection block 141 is connected to a lower end of the rope 122 through the connection hole 131, an electromotive electromagnet 14 is arranged at a lower side of the connection block 141, a radius of the electromotive electromagnet 14 is smaller than a radius of the fixed electromagnet 13, a first motor 15 is embedded in a groove at a lower side of the electromotive electromagnet 14, an output end of the first motor 15 is provided with a U-shaped connection member 16, the U-shaped connection member 16 is rotatably connected with a camera 17 through a rotation shaft, a second motor 161 is arranged at one side of an outer wall of the U-shaped connection member 16, and an output end of the second motor 161 is connected with a rotation shaft on the camera 17.
The structure realizes multidirectional monitoring and shooting through the lifting type multi-angle safety monitoring mechanism 1, reduces the area of a dead angle, better monitors the solitary old people, reduces potential danger, can regularly put down the camera 17 on the indoor roof for cleaning, and has no need of ascending the height of the old people, great convenience and certain practical value and market prospect;
the operation is as follows, firstly, whether each device in the whole device is damaged or not is checked, after the damage is ensured, the power supply is switched on, a bolt penetrates through a threaded hole on the right-angle positioning plate 3, the outer shell 11 is installed at the middle position of an indoor roof, then, the first motor 15 and the second motor 161 are switched on, the first motor 15 changes the angle of the lens in the horizontal direction of the camera 17 by driving the U-shaped connecting piece 16, the second motor 161 changes the angle of the lens in the vertical direction of the camera 17 by a rotating shaft, when the device is in a dim environment, the light supplement lamp 172 can be switched on, the definition of a monitoring picture is improved, when dust on the lens of the camera 17 needs to be cleaned regularly, the third motor 18 is switched on, the third motor 18 drives the driven gear 191 to rotate by the driving gear 19, then, the supporting shaft 12 on the driven gear 191 starts to release the rope 122 by the rolling sleeve 121, the fixed electromagnet 13 and the moving electromagnet 14 are powered off, the traction force between the moving electromagnet 14 disappears, the moving electromagnet 14 and the camera 17 are influenced by the gravity of the parts such as the camera 17, so that the camera 17 moves downwards gradually, the cleaning of the camera is facilitated, the old people is prevented from climbing cleaning up and the connecting block from climbing up and climbing up the indoor roof is cleaned gradually, and the connecting block 13 is closed again, and the connecting block 17 is closed.
Please refer to fig. 1 and fig. 2 heavily, a third motor 18 is arranged on one side of the upper surface of the inner cavity of the outer shell 11, a driving gear 19 is arranged at the output end of the third motor 18, the driving gear 19 is connected with a driven gear 191 in a meshing manner, the driven gear 191 is arranged on the supporting shaft 12, the forward rotation and the reverse rotation of the supporting shaft 12 are realized through the arranged third motor 18, the driving gear 19 and the driven gear 191, so as to achieve the purpose of releasing and winding the rope 122, an alarm buzzer 2 is arranged on one side of the outer wall of the outer shell 11, the shell of the alarm buzzer 2 is connected with the outer shell 11 through a bolt, the alarm buzzer 2 sounds timely when an accident occurs to the old, so as to remind a nearby person to rescue or make a urgent call, two right-angle positioning plates 3 are respectively arranged on the upper edges of two sides of the outer wall of the outer shell 11, and the bolt is arranged through the right-angle positioning plates 3 to pass through the mounting holes on the right-angle positioning plates 3, so as to mount the outer shell 11 at the middle position of an indoor roof, thereby facilitating multi-angle monitoring.
Please refer to fig. 3 and fig. 4, an arc-shaped dust guard plate 171 is disposed at a lens position of the camera 17, a side edge of the arc-shaped dust guard plate 171 is connected with an outer wall of a housing of the camera 17, the dust above the lens of the camera 17 is blocked by the arc-shaped dust guard plate 171, the dust is reduced to cover the lens, a light supplement lamp 172 is disposed at a lower edge of the outer wall of the housing of the camera 17, the light supplement is realized by the light supplement lamp 172 under dim conditions, the shooting definition is improved, the connecting block 141 at a circle center position on an upper side of the electromagnet 14 is engaged with the connecting hole 131 of the electromagnet 13, and the connecting block 141 and the connecting hole 131 are engaged with each other, so that the electromagnet 14 and the electromagnet 13 are better attracted, and the stability of the camera 17 is improved.
The above description is taken as an example to describe the present invention with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above-mentioned manner, as long as the present invention is adopted, the method concept and the technical solution of the present invention are performed to perform this kind of insubstantial improvement, or the concept and the technical solution of the present invention are directly applied to other occasions without improvement, all within the protection scope of the present invention.
Claims (7)
1. A safety monitoring device for solitary old people, which comprises a lifting multi-angle safety monitoring mechanism (1), it is characterized in that the lifting type multi-angle safety monitoring mechanism (1) comprises an outer shell (11), and an annular clamping groove (111) at the lower side opening position of the outer wall of the outer shell (11), wherein a fixed electromagnet (13) is arranged in the annular clamping groove (111), and the circle center position of the fixed electromagnet (13) is provided with a connecting hole (131), the inner cavity of the outer shell (11) is rotationally connected with a supporting shaft (12), a winding sleeve (121) is sleeved on the supporting shaft (12), a rope (122) is wound on the winding sleeve (121), the lower end of the rope (122) passes through the connecting hole (131) and is connected with a connecting block (141), the lower side of the connecting block (141) is provided with a moving electromagnet (14), the radius of the moving electromagnet (14) is smaller than that of the fixed electromagnet (13), a first motor (15) is embedded in the groove at the lower side of the moving electromagnet (14), the output end of the first motor (15) is provided with a U-shaped connecting piece (16), the U-shaped connecting piece (16) is rotationally connected with a camera (17) through a rotating shaft, one side of the outer wall of the U-shaped connecting piece (16) is provided with a second motor (161), and the output end of the second motor (161) is connected with one end of a rotating shaft on the camera (17).
2. The elderly solitary monitoring device of claim 1, wherein the lens of the camera (17) is provided with an arc-shaped dust guard (171), and the side edge of the arc-shaped dust guard (171) is connected with the outer wall of the housing of the camera (17).
3. The elderly solitary monitoring device of claim 2, wherein a light supplement lamp (172) is disposed at a lower edge of the outer wall of the housing of the camera (17).
4. The elderly solitary monitoring device of claim 1, wherein the connecting block (141) at the center of the upper side of the moving electromagnet (14) is engaged with the connecting hole (131) of the fixed electromagnet (13).
5. The elderly solitary monitoring device of claim 1, wherein a third motor (18) is arranged on one side of the upper surface of the inner cavity of the outer shell (11), a driving gear (19) is arranged at the output end of the third motor (18), the driving gear (19) is engaged with a driven gear (191), and the driven gear (191) is arranged on the supporting shaft (12).
6. The elderly solitary monitoring device of claim 5, wherein the alarm buzzer (2) is disposed on one side of the outer wall of the outer housing (11), and the housing of the alarm buzzer (2) is connected to the outer housing (11) through bolts.
7. The elderly solitary safety monitoring device according to claim 6, wherein two right-angle positioning plates (3) are respectively arranged at the upper edge positions of the two sides of the outer wall of the outer shell (11).
