The utility model discloses a modular aluminum-wood composite door and window structure relates to aluminum-wood composite door and window technical field, draw together the frame, the inside of frame is provided with front window frame and back window frame respectively, install between front window frame and the back window frame and consolidate the subassembly and be convenient for the installation component, use through the cooperation of stuff, fixture block and draw-in groove, the convenience is fixed the stuff block between front window frame and back window frame, increase the intensity of aluminium window frame, and the cooperation of first aluminium strip, second aluminium strip and first bolt is used, the convenience is consolidated the stuff, avoid the stuff to receive expend with heat and contract with cold's influence and lead to droing, and then reduce the effect to the add intensity of aluminium window frame, use through the cooperation of front window frame, back window frame and second bolt, the convenience is placed toughened glass and is fixed between front window frame and back window frame, replaced the mode that formerly used with gluing firmly, need not wait to gelatinize the time of solid firm adhesion, this design mounting means is simple, it is quick, the efficiency of installation is improved.

Description

Combined aluminum-wood composite door and window structure
Technical Field
The utility model relates to an aluminum-wood composite door and window technical field specifically is a modular aluminum-wood composite door and window structure.
Background
The aluminum alloy window is a window with a frame and a sash structure made of aluminum alloy building profiles, the aluminum-wood composite door window is characterized in that the wood strips are clamped in the aluminum alloy window to increase the strength of the aluminum alloy window, the wood strips are not reinforced perfectly enough, the wood strips are easily affected by expansion with heat and contraction with cold, the clamping is loosened, the window is opened or closed, noise occurs, the strength of the aluminum alloy window is greatly reduced, and therefore the aluminum-wood composite door window structure is provided.
SUMMERY OF THE UTILITY MODEL
The utility model provides a to prior art not enough, the utility model provides a modular aluminum-wood composite door and window structure has solved the problem that above background art provided.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a combined aluminum-wood composite door and window structure comprises a frame, wherein a front window frame and a rear window frame are respectively arranged inside the frame, and a reinforcing assembly and an assembly convenient to install are arranged between the front window frame and the rear window frame;
the reinforcing component comprises four battens and a first aluminum strip, the four battens and the first aluminum strip are arranged between the front window frame and the rear window frame, the upper portion of the first aluminum strip is provided with a second aluminum strip, and the inner walls of the front window frame and the rear window frame are connected with a plurality of clamping blocks.
As the utility model discloses further technical scheme, the inside of front window frame and back window frame is provided with toughened glass, the lock is installed to one side of front window frame, the frame is connected with two hinges with the front window frame jointly.
As a further technical scheme of the utility model, four the surface of stuff corresponds fixture block department and has seted up a plurality of draw-in groove, the both ends of second aluminium strip are provided with two first bolts.
As a further technical scheme of the utility model, every the stuff, a first aluminium strip and second aluminium strip and preceding window frame and back window frame between interval looks adaptation, every the size of a dimension phase-match of fixture block and every draw-in groove.
As a further technical scheme of the utility model, the post is inserted to a plurality of that the installation component of being convenient for includes that the back window frame medial surface is connected, the four corners department of front window frame all is provided with the second bolt, the medial surface correspondence of front window frame is inserted post department and has all been seted up the slot.
As a further technical scheme of the utility model, the front window frame is fixed mutually to toughened glass through a plurality of second bolt with the back window frame.
Advantageous effects
The utility model provides a modular aluminum-wood composite door and window structure. Compared with the prior art, the method has the following beneficial effects:
1. the utility model provides a modular compound door and window structure of aluminum-wood, uses through the cooperation of stuff, fixture block and draw-in groove, conveniently fixes the stuff block between front window frame and back window frame, increases the intensity of aluminium window frame, and the cooperation of first aluminium strip, second aluminium strip and first bolt is used, conveniently consolidates the stuff, avoids the stuff to receive expend with heat and contract with cold's influence to lead to droing, and then reduces the effect to the increase intensity of aluminium window frame.
2. The utility model provides a modular compound door and window structure of aluminum-wood, uses through the cooperation of front window frame, back window frame and second bolt, and it is convenient to place toughened glass and fix between front window frame and back window frame, has replaced and has glued glutinous mode before with gluing, does not need wait to gel the firm time of gluing, and this design mounting means is simple, quick, improves the efficiency of installation.
Drawings

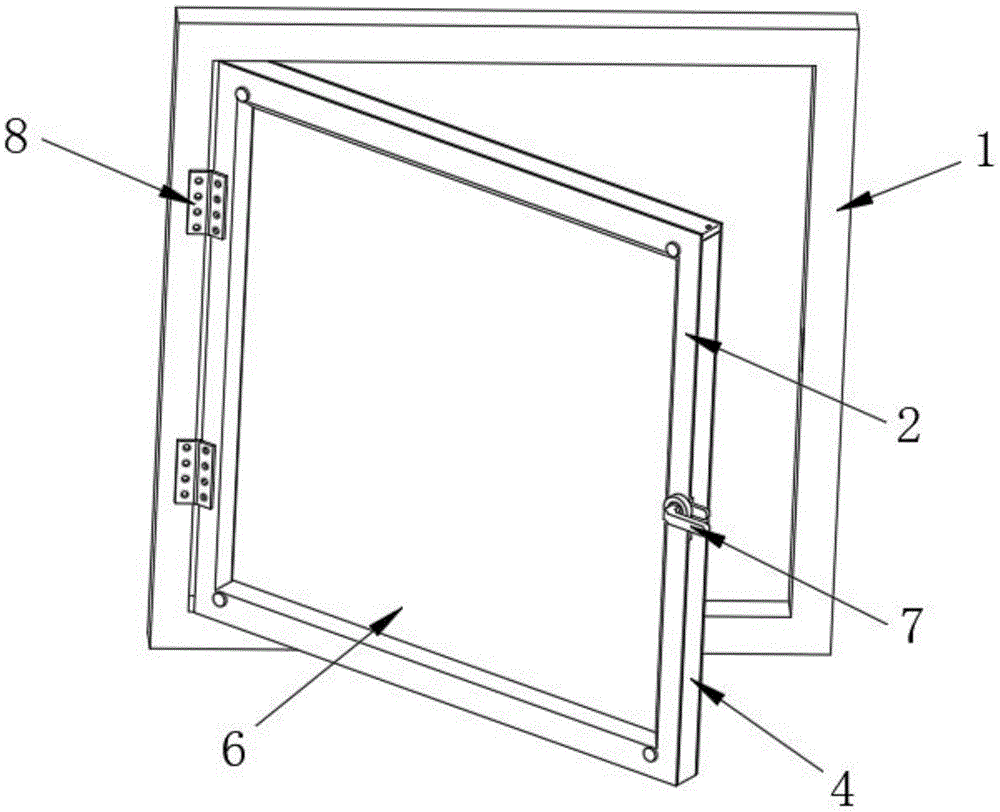

FIG. 1 is a schematic structural view of a combined aluminum-wood composite door and window structure;
FIG. 2 is a schematic view of an exploded assembly of a combined aluminum-wood composite door and window structure;
FIG. 3 is a schematic view of the structure of the reinforced assembly in the combined aluminum-wood composite door and window structure;
FIG. 4 is a schematic view of a reinforcement assembly in a composite aluminum-wood composite door and window structure;
FIG. 5 is a schematic view of a structure of a combined aluminum-wood composite door and window structure for facilitating explosion of installation components;
fig. 6 is a schematic structural view of a sectional view of an assembly convenient to mount in a combined aluminum-wood composite door and window structure.
In the figure: 1. a frame; 2. a front window frame; 3. a rear window frame; 4. a reinforcement assembly; 41. wood strips; 42. a first aluminum strip; 43. a second aluminum strip; 44. a clamping block; 45. a card slot; 46. a first bolt; 5. the assembly is convenient to install; 51. inserting a column; 52. a second bolt; 6. tempering the glass; 7. a door lock; 8. and (7) a hinge.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution of a combined aluminum-wood composite door/window structure: the utility model provides a modular compound door and window structure of aluminum-wood, includes frame 1, and frame 1's inside is provided with preceding window frame 2 and back window frame 3 respectively, installs between preceding window frame 2 and the back window frame 3 and consolidates subassembly 4 and be convenient for installation component 5, and the inside of preceding window frame 2 and back window frame 3 is provided with toughened glass 6, and lock 7 is installed to one side of preceding window frame 2, and frame 1 is connected with two hinges 8 with preceding window frame 2 jointly.
Referring to fig. 3-4, the reinforcing assembly 4 includes four battens 41 and a first aluminum batten 42 disposed between the front window frame 2 and the rear window frame 3, a second aluminum batten 43 is disposed on the upper portion of the first aluminum batten 42, a plurality of fastening blocks 44 are connected to the inner walls of the front window frame 2 and the rear window frame 3, a plurality of fastening grooves 45 are disposed on the surfaces of the four battens 41 corresponding to the fastening blocks 44, two first bolts 46 are disposed at two ends of the second aluminum batten 43, each batten 41, one first aluminum batten 42, and the second aluminum batten 43 are adapted to the space between the front window frame 2 and the rear window frame 3, and each fastening block 44 is matched to the size of each fastening groove 45.
When reinforcing component 4's in-service use, through aligning the draw-in groove 45 of seting up on stuff 41 with fixture block 44 and carry out the block, and then fix stuff 41, it is fixed to carry out the block with remaining stuff 41 according to the same mode again, 90 degrees rotatory door lock 7 again, make the lock core in the door lock 7 rotate to in the recess of one of them stuff 41, insert first aluminium strip 42 between front window frame 2 and back window frame 3, make first aluminium strip 42 and stuff 41 laminate mutually, place second aluminium strip 43 at the top of first aluminium strip 42 again, twist first bolt 46, make the one end of first bolt 46 pass second aluminium strip 43 and enter into the inside of first aluminium strip 42, and then fixed first aluminium strip 42 and second aluminium strip 43, and then strengthened the fastness of stuff.
Referring to fig. 5-6, the mounting assembly 5 includes a plurality of posts 51 connected to the inner side of the rear window frame 3, the four corners of the front window frame 2 are respectively provided with a second bolt 52, the inner side of the front window frame 2 corresponding to the posts 51 is provided with slots, and the front window frame 2 and the rear window frame 3 are fixed to the tempered glass 6 by the plurality of second bolts 52.
When the installation component 5 is convenient to actually use, the toughened glass 6 is placed on the inner side surface of the rear window frame 3, the inserting groove formed in the inner side surface of the front window frame 2 is aligned with the inserting column 51 to be inserted, the second bolt 52 is screwed in sequence, one end of the bolt penetrates through the front window frame 2 to enter the rear window frame 3, the front window frame 2 and the rear window frame 3 are fixed, the toughened glass 6 is clamped and fixed by the front window frame 2 and the rear window frame 3, and the efficiency of installing the toughened glass 6 is improved.
The utility model discloses a theory of operation: when the window frame is installed, firstly, the toughened glass 6 is placed on the inner side surface of the rear window frame 3, then the slot formed in the inner side surface of the front window frame 2 is inserted in alignment with the inserting column 51, the second bolt 52 is sequentially screwed, one end of the second bolt penetrates through the front window frame 2 and enters the rear window frame 3, then the front window frame 2 and the rear window frame 3 are fixed, and the front window frame 2 and the rear window frame 3 clamp and fix the toughened glass 6 at the same time;
after the clamping is completed, the door lock 7 is rotated by 90 degrees, the lock cylinder in the door lock 7 is rotated into the groove of one of the wood bars 41, the first aluminum bar 42 is inserted between the front window frame 2 and the rear window frame 3, the first aluminum bar 42 is attached to the wood bar 41, the second aluminum bar 43 is placed on the top of the first aluminum bar 42, the first bolt 46 is screwed, one end of the first bolt 46 penetrates through the second aluminum bar 43 and enters the inside of the first aluminum bar 42, the first aluminum bar 42 and the second aluminum bar 43 are fixed, the front window frame 2 is connected with the frame 1 through the hinge 8, and the aluminum-wood composite door is mounted.

Claims (6)

1. A combined aluminum-wood composite door and window structure comprises a frame (1), and is characterized in that a front window frame (2) and a rear window frame (3) are respectively arranged in the frame (1), and a reinforcing component (4) and a component (5) convenient to mount are arranged between the front window frame (2) and the rear window frame (3);
consolidate subassembly (4) and include four battens (41) and a first aluminium strip (42) that set up between preceding window frame (2) and back window frame (3), the upper portion of first aluminium strip (42) is provided with second aluminium strip (43), the inner wall connection of preceding window frame (2) and back window frame (3) has a plurality of fixture block (44).
2. The combined aluminum-wood composite door and window structure as claimed in claim 1, wherein toughened glass (6) is arranged inside the front window frame (2) and the rear window frame (3), a door lock (7) is installed on one side of the front window frame (2), and the frame (1) and the front window frame (2) are jointly connected with two hinges (8).
3. The combined aluminum-wood composite door and window structure as claimed in claim 1, wherein a plurality of clamping grooves (45) are formed on the surfaces of the four battens (41) corresponding to the clamping blocks (44), and two first bolts (46) are arranged at two ends of the second aluminum batten (43).
4. A combined aluminum-wood composite door and window structure as claimed in claim 3, wherein each of the battens (41), one of the first aluminum battens (42) and the second aluminum batten (43) is adapted to the space between the front window frame (2) and the rear window frame (3), and each of the locking blocks (44) is matched with the size of each of the locking grooves (45).
5. The combined aluminum-wood composite door and window structure as claimed in claim 1, wherein the assembly (5) comprises a plurality of inserting columns (51) connected with the inner side of the rear window frame (3), the four corners of the front window frame (2) are provided with second bolts (52), and the inner side of the front window frame (2) is provided with slots corresponding to the inserting columns (51).
6. The combined aluminum-wood composite door and window structure as claimed in claim 5, wherein the front window frame (2) and the rear window frame (3) are fixed to the tempered glass (6) through a plurality of second bolts (52).
