Abstract
The utility model discloses a float glass production manufacturing is with cutting device relates to float glass production manufacturing technical field, including cutting the device main part, cut the device main part including cutting the platform, the upper surface of cutting the platform sets up the felt pad, the upper end of cutting the platform is provided with cuts equipment, the below of cutting equipment is provided with supplementary mobile device, supplementary mobile device's both sides are provided with cuts mouthful and press the mechanism, supplementary mobile device removes the frame including motor and installation. The utility model discloses a mobile device is assisted in the installation, and motor work drives the threaded rod and rotates, and under the limiting displacement who cuts a side sliding tray, the installation is removed the frame and is removed the position of cutting to cutting equipment along the threaded rod and adjust, avoids leading to glass broken through carrying glass adjustment position, and moving guide and removal gyro wheel are mutually supported, and the frictional force that makes the installation remove the frame reduces to be convenient for remove.
Description
Technical Field
The utility model relates to a float glass production preparation technical field, concretely relates to float glass production preparation is with cutting device.
Background
The forming process of float glass production is completed in a tin bath into which protective gas (N2 and H2) is introduced, molten glass continuously flows from a tank furnace and floats on the surface of molten tin with high relative density, and under the action of gravity and surface tension, the molten glass is spread and flattened on the molten tin surface to form a transition roller table with flat upper and lower surfaces, hardened and cooled. The rollers of the roller table rotate to pull the glass strip out of the tin bath and enter an annealing kiln, and the float glass product is obtained after annealing and cutting. Compared with other forming methods, the float method has the advantages that: it is suitable for high-efficiency manufacture of high-quality plate glass, and has good flatness and no water ripple, and can be used for making mirror and automobile glass. The utility model provides a do not send out the face, do not walk the shape, cut the processing in float glass's production manufacturing process and need use and cut the device, consequently, the utility model provides a float glass production manufacturing is with cutting the device.
The following problems exist in the prior art:
1. in the prior art, the cutting device needs to move glass when adjusting the cutting position, the weight of a larger piece of glass is heavier, the labor capacity of workers is increased, and the glass is easy to break due to misoperation;
2. in the prior art, the slitting device lacks to press and fix the slitting opening, so that the phenomenon of burrs caused by uneven stress easily occurs, and the production quality of float glass is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model provides a slitting device for float glass production, one of which aims to achieve the effect of moving slitting equipment to replace moving glass to achieve position adjustment simultaneously, and solves the problems that the slitting device needs to move glass when adjusting the slitting position, the weight of a larger piece of glass is heavier, the labor capacity of workers is increased, and the glass is easy to be broken due to misoperation; wherein another purpose is for solving the device of cutting and lack to press fixedly to the bisection incision, appears easily because the inhomogeneous phenomenon that appears deckle edge of atress influences the problem of float glass production quality to reach the effect that promotes float glass production quality.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:
the utility model provides a float glass production preparation is with cutting device, includes cuts the device main part, cut the device main part including cutting the platform, the upper surface of cutting the platform sets up the felt pad, the upper end of cutting the platform is provided with cuts equipment, the below of cutting equipment is provided with supplementary mobile device, supplementary mobile device's both sides are provided with cuts a mouthful press mechanism, supplementary mobile device removes the frame including motor and installation, the lower surface of motor and the side surface fixed connection who cuts the platform, cut a mouthful press mechanism including fixed plate, fixed diaphragm and movable plate, the side surface of fixed plate passes through bolt fixed connection with the side surface of installation removal frame.
The utility model discloses technical scheme's further improvement lies in: the output shaft fixed mounting of motor has the threaded rod, the one end of threaded rod and the internal surface swing joint of cutting the platform.
The utility model discloses technical scheme's further improvement lies in: the bottom inner wall of the installation moving frame is in threaded connection with the outer surface of the threaded rod, and sliding grooves matched with the installation moving frame are formed in the surfaces of the two sides of the cutting table.
The utility model discloses technical scheme's further improvement lies in: the movable mounting of both sides lower surface that the installation removed the frame has the removal gyro wheel, the outside that the installation removed the frame is provided with movable guide, movable guide's side surface and the side surface fixed connection who cuts the platform.
The utility model discloses technical scheme's further improvement lies in: the outer surface of the movable roller is in contact with the inner surface of the movable guide rail, and the movable end of the slitting equipment is movably connected with the top guide rail on which the movable frame is arranged.
The utility model discloses technical scheme's further improvement lies in: the lower surface of the fixed transverse plate is fixedly connected with the upper surface of the fixed plate through bolts, the movable plate is arranged below the fixed transverse plate, and the side surface of the movable plate is in sliding connection with the side surface of the fixed plate.
The utility model discloses technical scheme's further improvement lies in: the lower surface of the moving plate is distributed with rubber pads, elastic pieces are fixedly arranged between the upper surface of the rubber pads and the inner surface of the moving plate, a rotating threaded rod is movably arranged on the upper surface of the moving plate, and the outer surface of the rotating threaded rod is in threaded connection with the inner wall of the fixed transverse plate.
Owing to adopted above-mentioned technical scheme, the utility model discloses relative prior art, the technological progress who gains is:
1. the utility model provides a float glass production manufacturing is with cutting device, through installation auxiliary moving device, motor work drives the threaded rod and rotates, and under the limiting displacement who cuts a side sliding tray, the installation is removed the frame and is removed the position of cutting to cutting equipment along the threaded rod removal and adjust, avoids leading to glass broken through transport glass adjustment position, and the movable guide mutually supports with removing the gyro wheel, makes the installation remove the frictional force of frame and reduces and be convenient for remove.
2. The utility model provides a float glass production manufacturing is with cutting device, cut mouthful press the mechanism through the installation, the fixed plate mutually supports with fixed diaphragm and makes the movable plate be located the both sides of cutting equipment, the rotation threaded rod rotates downwards, the movable plate wholly moves down under the limiting displacement of fixed plate, the rubber pad contacts with the glass surface, the elastic sheet extrudees messenger's rubber pad and near glass incision surface in the inside of movable plate and presses down near fixing near the incision and make its even atress, be convenient for cut equipment and cut glass, avoid appearing unedged phenomenon because the atress is inhomogeneous.
Drawings

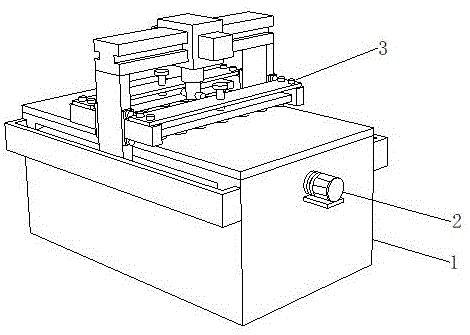

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural section of the present invention;
FIG. 3 is a schematic side view of the structure of the present invention;
fig. 4 is a schematic sectional view of the structure moving plate of the present invention.
In the figure: 1. a slitting device main body; 11. a slitting table; 12. slitting equipment; 2. an auxiliary moving device; 21. a motor; 211. a threaded rod; 22. mounting a movable frame; 221. moving the roller; 222. a moving guide rail; 3. a slit pressing mechanism; 31. a fixing plate; 32. fixing the transverse plate; 33. moving the plate; 331. a rubber pad; 332. an elastic sheet; 333. the threaded rod is rotated.
Detailed Description
The present invention will be described in further detail with reference to the following examples:
example 1
As shown in fig. 1-4, the utility model provides a float glass production manufacturing is with cutting device, including cutting device main part 1, cut device main part 1 including cutting platform 11, the upper surface of cutting platform 11 sets up the felt pad, the upper end of cutting platform 11 is provided with cutting equipment 12, the below of cutting equipment 12 is provided with supplementary mobile device 2, supplementary mobile device 2's both sides are provided with cuts a pressing mechanism 3, supplementary mobile device 2 is including motor 21 and installation removal frame 22, the lower surface of motor 21 and the side surface fixed connection of cutting platform 11, cut a pressing mechanism 3 including fixed plate 31, fixed diaphragm 32 and movable plate 33, the side surface of fixed plate 31 passes through bolt fixed connection with the side surface of installation removal frame 22, the output shaft fixed mounting of motor 21 has threaded rod 211, the one end of threaded rod 211 and the internal surface swing joint of cutting platform 11, the bottom inner wall of installation removal frame 22 and the surface threaded rod 211 threaded connection, the both sides surface of cutting platform 11 is provided with the sliding tray that removes frame 22 looks adaptation with the installation.
In this embodiment, motor 21 work drives threaded rod 211 and rotates, and under the limiting displacement of cutting platform 11 side sliding tray, installation removal frame 22 removes along threaded rod 211 and adjusts the position of cutting equipment 12, avoids leading to glass broken through transport glass adjustment position.
Example 2
As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: the lower surfaces of two sides of the mounting moving frame 22 are movably provided with moving rollers 221, the outer side of the mounting moving frame 22 is provided with a moving guide rail 222, the side surface of the moving guide rail 222 is fixedly connected with the side surface of the slitting table 11, the outer surface of the moving roller 221 is contacted with the inner surface of the moving guide rail 222, and the moving end of the slitting equipment 12 is movably connected with the top guide rail of the mounting moving frame 22.
In this embodiment, the moving rail 222 is engaged with the moving roller 221 to reduce the friction force for mounting the moving frame 22 for moving.
Example 3
As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: the lower surface of the fixed transverse plate 32 is fixedly connected with the upper surface of the fixed plate 31 through bolts, the moving plate 33 is arranged below the fixed transverse plate 32, the side surface of the moving plate 33 is in sliding connection with the side surface of the fixed plate 31, a rubber pad 331 is distributed on the lower surface of the moving plate 33, an elastic sheet 332 is fixedly arranged between the upper surface of the rubber pad 331 and the inner surface of the moving plate 33, a rotating threaded rod 333 is movably arranged on the upper surface of the moving plate 33, and the outer surface of the rotating threaded rod 333 is in threaded connection with the inner wall of the fixed transverse plate 32.
In this embodiment, the fixed plate 31 and the fixed transverse plate 32 are mutually matched to enable the moving plate 33 to be located on two sides of the cutting device 12, the threaded rod 333 is rotated downwards, the moving plate 33 moves downwards integrally under the limiting effect of the fixed plate 31, the rubber pad 331 is in contact with the surface of the glass, the elastic sheet 332 extrudes the rubber pad 331 in the moving plate 33 to enable the rubber pad 331 to be in close contact with and press the surface near the glass cut, so that the cut device 12 cuts the glass conveniently, and the phenomenon that burrs occur due to uneven stress is avoided.
The working principle of the slitting device for float glass production will be described in detail below.
As shown in fig. 1-4, firstly, the motor 21 operates to drive the threaded rod 211 to rotate, the mounting and moving frame 22 moves along the threaded rod 211 to adjust the cutting position of the cutting device 12 under the limiting action of the sliding groove on the side surface of the cutting table 11, then the fixed plate 31 and the fixed transverse plate 32 are matched with each other to enable the moving plate 33 to be located on two sides of the cutting device 12, finally, the threaded rod 333 is rotated downwards to rotate, the moving plate 33 moves downwards integrally under the limiting action of the fixed plate 31, the rubber pad 331 is in contact with the surface of the glass, the elastic sheet 332 extrudes the rubber pad 331 in the moving plate 33 to enable the rubber pad 331 to be in close contact with and press the surface near the glass cut to fix the surface near the cut so as to enable the cutting device 12 to cut the glass uniformly.
The present invention has been described in detail with reference to the above general description, but it will be apparent to one of ordinary skill in the art that modifications and improvements can be made to the invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.
Claims (7)
1. The utility model provides a float glass production manufacturing is with cutting device, includes cuts device main part (1), cut device main part (1) including cutting platform (11), the upper surface of cutting platform (11) sets up the felt pad, the upper end of cutting platform (11) is provided with cuts equipment (12), its characterized in that: the below of cutting equipment (12) is provided with supplementary mobile device (2), the both sides of supplementary mobile device (2) are provided with cuts a mouthful press mechanism (3), supplementary mobile device (2) remove frame (22) including motor (21) and installation, the lower surface of motor (21) and the side surface fixed connection who cuts platform (11), cut a mouthful press mechanism (3) including fixed plate (31), fixed diaphragm (32) and movable plate (33), the side surface of fixed plate (31) and the side surface of installation removal frame (22) pass through bolt fixed connection.
2. A slitting device for float glass production according to claim 1, wherein: an output shaft of the motor (21) is fixedly provided with a threaded rod (211), and one end of the threaded rod (211) is movably connected with the inner surface of the slitting table (11).
3. A slitting device for float glass production according to claim 1, wherein: the bottom inner wall of the installation moving frame (22) is in threaded connection with the outer surface of the threaded rod (211), and sliding grooves matched with the installation moving frame (22) are formed in the surfaces of the two sides of the cutting table (11).
4. A slitting device for float glass production according to claim 1, wherein: the lower surfaces of two sides of the mounting moving frame (22) are movably provided with moving rollers (221), the outer side of the mounting moving frame (22) is provided with a moving guide rail (222), and the side surface of the moving guide rail (222) is fixedly connected with the side surface of the slitting table (11).
5. A slitting device for float glass production according to claim 4, wherein: the outer surface of the moving roller (221) is in contact with the inner surface of the moving guide rail (222), and the moving end of the slitting equipment (12) is movably connected with the top guide rail of the mounting moving frame (22).
6. A slitting device for float glass production according to claim 1, wherein: the lower surface of the fixed transverse plate (32) is fixedly connected with the upper surface of the fixed plate (31) through bolts, the movable plate (33) is arranged below the fixed transverse plate (32), and the side surface of the movable plate (33) is in sliding connection with the side surface of the fixed plate (31).
7. A slitting device for float glass production according to claim 1, wherein: the improved horizontal moving plate is characterized in that a rubber pad (331) is distributed on the lower surface of the moving plate (33), an elastic sheet (332) is fixedly mounted between the upper surface of the rubber pad (331) and the inner surface of the moving plate (33), a rotating threaded rod (333) is movably mounted on the upper surface of the moving plate (33), and the outer surface of the rotating threaded rod (333) is in threaded connection with the inner wall of the fixed horizontal plate (32).
