Abstract

The utility model discloses a simple and convenient new-type negative pressure drainage bottle, which comprises a bottle body, a top cover and an external connecting pipe. One side of the top of the bottle body is fixedly connected with a negative pressure rubber plug, and the middle position of the top of the bottle body is fixedly connected with a The threaded interface, the internal fixed connection at the bottom of the top cover has a closed structure, and the outer wall of the external pipe runs through an anti-backflow structure. The utility model is equipped with an auxiliary structure, and under the cooperation of the threaded cap and the anti-backflow structure, the flow direction of the negative pressure drainage bottle on the bottle body can be adjusted inside the top cover. The fluid inside the body can be poured out and cleaned. When the threaded cap is tightened, the sealing plug blocks the inside of the valve interface to cause blockage, so that the negative pressure drainage bottle can attract the hemostatic cotton, subcutaneous tissue and blood clots in the upper drainage tube through the external tube, so that The negative pressure drainage bottle is relatively convenient to operate, and the convenience of the negative pressure drainage bottle is improved.

Description

A Simple and Convenient New Negative Pressure Drainage Bottle

technical field

The utility model relates to the technical field of negative pressure drainage bottles, in particular to various simple and convenient new negative pressure drainage bottles.

Background technique

In the clinical medical process, some patients need to manually suck negative pressure and dump drainage in their body during the medical treatment, and the negative pressure drainage bottle can stably extract and clean up the fluid in the patient's body, a good quality negative pressure drainage Bottles directly affect the medical effect of patients;

For this reason, a new type of negative pressure drainage bottle is disclosed in the patent specification whose publication number is CN206534914U, including a gastric tube, an air bag detachably connected with the gastric tube, and a liquid storage bottle connected with the air bag, and the air bag is provided with a one-way air valve , the one-way air valve includes a valve body, the upper surface of the valve body is provided with a cavity, the bottom of the cavity is provided with an air intake hole communicating with the inner cavity of the air bag, and a plate-shaped valve core is also provided in the cavity, and the plate-shaped valve The core is slidably set in the cavity, and the surface of the plate-shaped valve core is provided with a plurality of ventilation holes, and the ventilation holes are located above the bottom surface of the cavity, and the valve body is also equipped with a gland, which is set in the cavity through threads. The top of the gland, and the surface of the gland is provided with an air outlet connected to the cavity, and a spring is also arranged between the gland and the plate valve core; the new negative pressure drainage bottle of the utility model can measure gastric juice and is easy to dump.

When the above-mentioned negative pressure drainage bottle is used, its negative pressure airtight operation is inconvenient, and it is easy to cause an increase in infection during the working process.

Contents of the invention

In order to solve the above technical problems, the purpose of this utility model is to provide a simple and convenient new negative pressure drainage bottle to solve the above-mentioned defect of inconvenient operation of the negative pressure drainage bottle.

The purpose of this utility model is achieved through the following technical solutions:

A simple and convenient novel negative pressure drainage bottle, comprising a bottle body (1), a top cover (4) and an external connecting pipe (5), one side of the top of the bottle body (1) is fixedly connected with a negative pressure rubber plug (2 ), the middle position of the top of the bottle body (1) is fixedly connected with a threaded interface (3), and the outer wall of the threaded interface (3) is threadedly connected with a top cover (4);

An external pipe (5) is installed on the top of the outer wall of the top cover (4), and an auxiliary structure (7) is fixedly connected to one side of the top cover (4), and the auxiliary structure (7) includes a valve interface (701 ), a threaded cap (702) and a sealing plug (703), the valve interface (701) is arranged on one side of the top cover (4), and the inside of the bottom end of the top cover (4) is fixedly connected with a closed structure (8) ;

An anti-backflow structure (6) runs through the outer wall of the external connecting pipe (5).

Compared with the prior art, one or more embodiments of the present invention may have the following advantages:

By providing an auxiliary structure, under the cooperation of the threaded cap and the anti-backflow structure, the flow direction of the negative pressure drainage bottle in the bottle body can be adjusted inside the top cover. The liquid can be poured out and cleaned. When the threaded cap is tightened, the sealing plug blocks the inside of the valve interface to cause blockage, so that the negative pressure drainage bottle can attract the hemostatic cotton, subcutaneous tissue and blood clots in the upper drainage tube through the external connection tube, so that the negative pressure The drainage bottle is more convenient to operate, which improves the convenience of the negative pressure drainage bottle;

By setting the anti-backflow structure, when the outer connecting pipe is moved to the diversion groove, the outer connecting pipe will be opened so that the outer connecting pipe can guide the flow smoothly, and in order to prevent the outer connecting pipe from accidentally sliding and falling away when it is inside the extrusion groove, so the extrusion Anti-skid bumps are set on both ends of the pressure groove, so that the anti-slip bumps can limit the position of the external connection tube, so as to prevent the extrusion groove from slipping when the external connection tube is squeezed and blocked, and realize the anti-backflow of the negative pressure drainage bottle;

By providing an airtight structure, since a sealing ring is arranged inside the bottom of the top cover, the sealing ring and the top of the threaded connection are closely attached when the threaded interface and the top cover are installed, so that the gap between the threaded interface and the top cover is blocked, thereby improving the The airtightness of the negative pressure drainage bottle prevents the negative pressure drainage bottle from leaking, and improves the sealing performance of the negative pressure drainage bottle.

Description of drawings

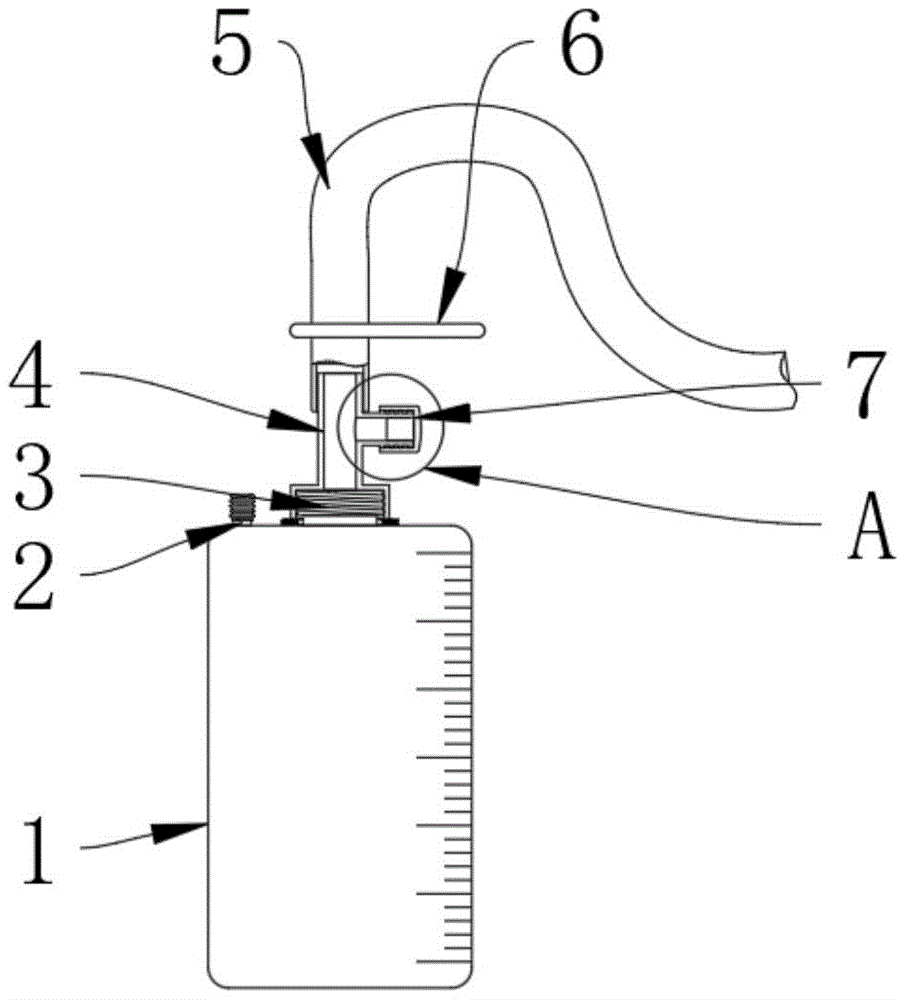

Fig. 1 is the front view partial sectional structure schematic diagram of the utility model;

Fig. 2 is a schematic diagram of a top view partial section structure of the utility model;

Fig. 3 is a three-dimensional structural schematic diagram of the anti-backflow structure of the present invention;

Fig. 4 is a schematic diagram of a partial section enlarged structure at A in Fig. 1 of the present utility model;

Fig. 5 is a schematic diagram of a three-dimensional partial structure of an auxiliary structure of the present invention;

Fig. 6 is a schematic diagram of the three-dimensional structure of the top cover of the present invention;

Fig. 7 is a schematic diagram of a three-dimensional partial structure of the airtight structure of the present invention.

Detailed ways

In order to make the purpose, technical solutions and advantages of the utility model clearer, the implementation of the utility model will be further described in detail below with reference to the examples and drawings.

As shown in Figure 1-7, the simple and convenient new negative pressure drainage bottle provided by the utility model includes a bottle body 1, a top cover 4 and an external connection tube 5, and a negative pressure rubber plug 2 is fixedly connected to one side of the top of the bottle body 1 , the middle position of the top of the bottle body 1 is fixedly connected with a threaded interface 3, the outer wall of the threaded interface 3 is threadedly connected with a top cover 4, the top of the outer wall of the top cover 4 is equipped with an external connecting pipe 5, and one side of the top cover 4 is fixedly connected There is an auxiliary structure 7, the auxiliary structure 7 includes a valve interface 701, a threaded cap 702 and a sealing plug 703, the valve interface 701 is arranged on one side of the top cover 4, and one side of the valve interface 701 outer wall is threadedly connected with a threaded cap 702, the threaded cap One side of the inside of 702 is fixedly connected with a sealing plug 703 , the valve interface 701 and the inside of the top cover 4 are perpendicular to each other, and the valve interface 701 and the inside of the sealing plug 703 are in a mosaic structure.

The working principle of the simple and convenient new negative pressure drainage bottle is that compared with the traditional negative pressure drainage bottle, the utility model has a top cover 4 threaded on the outer wall of the threaded interface 3, and is used under the cooperation of the threaded cap 702 and the anti-backflow structure 6. The flow direction of the negative pressure drainage bottle in the bottle body 1 can be adjusted inside the top cover 4. When the external connecting pipe 5 is blocked in the extrusion groove 602, the threaded cap 702 is unscrewed to make the valve interface 701 pass through, and then the internal volume of the bottle body 1 The liquid can be dumped and cleaned outwards. When the threaded cap 702 is tightened, the sealing plug 703 blocks the inside of the valve interface 701 to cause blockage, and the external connecting pipe 5 is moved to the inside of the diversion groove 603, so that the negative pressure drainage bottle can pass through the external The connecting tube 5 attracts hemostatic cotton, subcutaneous tissue and blood clots in the upper drainage tube, so that the negative pressure drainage bottle is more convenient during operation and minimizes contact with the outside world.

The outer wall of the outer connecting pipe 5 is penetrated with an anti-backflow structure 6. The anti-backflow structure 6 includes a clamping plate 601, an extrusion groove 602, a diversion groove 603 and an anti-skid bump 604. The clamping plate 601 runs through the outer wall of the outer connecting pipe 5. One side of the clamping plate 601 is provided with an extrusion groove 602, and the other side of the clamping plate 601 is provided with a diversion groove 603, and one side of the two ends of the extrusion groove 602 is fixedly connected with an anti-slip protrusion 604, and the anti-slip protrusion The blocks 604 are distributed symmetrically with respect to the horizontal centerline of the extrusion groove 602 , and there is a sliding structure between the diversion groove 603 and the inside of the external connecting pipe 5 .

When the negative pressure drainage bottle is in use, in order to prevent backflow of the fluid inside the bottle body 1, some anti-backflow parts will be installed in the traditional negative pressure drainage bottle. Squeeze to cause blockage, and then prevent the negative pressure drainage bottle from effusion backflow phenomenon. When the external connection tube 5 is moved to the diversion groove 603, the external connection tube 5 will be opened so that the external connection tube 5 can be smoothly diverted, and in order to prevent the external connection tube When the 5 is in the extrusion groove 602, there is an accidental sliding and detachment. Therefore, anti-skid bumps 604 are provided on both ends of the extrusion groove 602, so that the anti-skid bumps 604 can limit the position of the external tube 5, so as to prevent the extrusion groove 602 from Slippage occurs when the external connecting pipe 5 is squeezed and blocked.

The inside of the bottom of the top cover 4 is fixedly connected with an airtight structure 8. The airtight structure 8 includes a sealing ring 801, a support ring 802 and an alcohol cotton pad 803. The bottom of the sealing ring 801 is fixedly connected to the inner bottom of the top cover 4. The outer wall is provided with a support ring 802, the top of the support ring 802 is fixedly connected with an alcohol cotton pad 803, the sealing ring 801 is in the same vertical plane as the threaded interface 3, and the cross-sectional area of the inner diameter of the support ring 802 is greater than the cross-section of the outer diameter of the threaded interface 3 area.

When the negative pressure drainage bottle is installed, in order to prevent leakage between the threaded interface 3 and the top cover 4, a sealing ring 801 is arranged inside the bottom of the top cover 4, so that when the threaded interface 3 and the top cover 4 are installed The sealing ring 801 is in close contact with the top of the threaded interface 3, so that the gap between the threaded interface 3 and the top cover 4 is blocked, so as to improve the airtightness of the negative pressure drainage bottle. The end will squeeze the alcohol cotton pad 803, because the alcohol inside the alcohol cotton pad 803 has a certain bactericidal effect, so that the external bacteria will not be mixed into the negative pressure drainage bottle through the connection between the threaded interface 3 and the top cover 4 to cause infection. In this way, the use airtightness of the negative pressure drainage bottle is greatly improved.

Although the embodiments disclosed in the present utility model are as above, the content described is only an embodiment adopted for the convenience of understanding the present utility model, and is not intended to limit the present utility model. Anyone skilled in the technical field to which the utility model belongs can make any modifications and changes in the form and details of the implementation without departing from the spirit and scope disclosed in the utility model, but the patent of the utility model The scope of protection must still be based on the scope defined in the appended claims.

Claims (7)

1. A simple and convenient novel negative pressure drainage bottle, comprising a bottle body (1), a top cover (4) and an external connecting pipe (5), is characterized in that: one side of the top of the bottle body (1) is fixedly connected with Negative pressure rubber plug (2), the middle position of the top of the bottle body (1) is fixedly connected with a threaded interface (3), and the outer wall of the threaded interface (3) is threadedly connected with a top cover (4); An external pipe (5) is installed on the top of the outer wall of the top cover (4), and an auxiliary structure (7) is fixedly connected to one side of the top cover (4), and the auxiliary structure (7) includes a valve interface (701 ), a threaded cap (702) and a sealing plug (703), the valve interface (701) is arranged on one side of the top cover (4), and the inside of the bottom end of the top cover (4) is fixedly connected with a closed structure (8) ; An anti-backflow structure (6) runs through the outer wall of the external connecting pipe (5). 2. The simple and convenient new negative pressure drainage bottle according to claim 1, characterized in that, the anti-backflow structure (6) includes a clamping plate (601), an extrusion groove (602), a diversion groove (603 ) and anti-skid bumps (604), the clamping plate (601) runs through the outer side wall of the external pipe (5), and one side of the clamping plate (601) is provided with an extrusion groove (602), so The other side inside the clamping plate (601) is provided with a diversion groove (603), and one side of both ends of the extrusion groove (602) is fixedly connected with an anti-slip protrusion (604). 3. The simple and convenient novel negative pressure drainage bottle according to claim 2, characterized in that, the anti-skid bumps (604) are symmetrically distributed with respect to the horizontal centerline of the extrusion groove (602), and the drainage groove There is a sliding structure between (603) and the inside of the external pipe (5). 4. The simple and convenient novel negative pressure drainage bottle according to claim 1, characterized in that, one side of the outer wall of the valve interface (701) is threadedly connected with a threaded cap (702), and the threaded cap (702) One side of the inside is fixedly connected with a sealing plug (703). 5. The simple and convenient novel negative pressure drainage bottle according to claim 4, characterized in that, the valve interface (701) is perpendicular to the inside of the top cover (4), and the valve interface (701) and the sealing The inside of the plug (703) has a mosaic structure. 6. The simple and convenient novel negative pressure drainage bottle according to claim 1, characterized in that, the airtight structure (8) comprises a sealing ring (801), a support ring (802) and an alcohol cotton pad (803), the The bottom end of the sealing ring (801) is fixedly connected to the inner bottom end of the top cover (4), the outer wall of the threaded interface (3) is provided with a support ring (802), and the top end of the support ring (802) is fixedly connected There are alcohol cotton pads (803). 7. The simple and convenient novel negative pressure drainage bottle as claimed in claim 6, characterized in that, the sealing ring (801) and the threaded interface (3) are in the same vertical plane, and the inner diameter of the support ring (802) is The cross-sectional area is greater than the cross-sectional area of the outer diameter of the threaded interface (3).
