Abstract
The utility model relates to an elastic filament production technical field especially relates to an elastic filament drying device, including the uncovered board, the setting of the uncovered portion of closable stoving case is at stoving case upside, and the up end of uncovered board is connected with electric telescopic handle, and electric telescopic handle's top is fixed with the roof, and the both ends of roof are fixed respectively on the curb plate of both sides, the side activity of terminal surface is provided with the compression roller under the uncovered board, and when drying, sets up the elastic filament of treating the stoving on a transfer roller, and the elastic filament tail end is around rolling up on another transfer roller, and the elastic filament lateral part supports presses the lower lateral part at the compression roller, and electric telescopic handle extension drives the compression roller and pushes down for the lateral part of elastic filament is pressed to the stoving incasement, and the uncovered portion of uncovered board to the stoving case seals, starts the drying-machine and dries the stoving silk, realizes the continuous stoving of elastic filament, and the thermal saving in the stoving incasement is realized to the sealed realization of uncovered board, prevents that the heat from running off in a large number, has improved the efficiency of drying.
Description
Technical Field
The utility model relates to an elastic filament production technical field especially relates to an elastic filament drying device.
Background
The stretch yarn as an important material in the field of civil cloth has high toughness and wear resistance, and is usually dyed according to requirements when being produced according to different shapes and styles, and the coating pulp and the fuel are dried simultaneously.
Application number is CN202022801272.5 provides an elastic filament oven for weaving, including base and stoving case, stoving case fixed mounting is in the top of base, the discharge gate has been seted up to the intermediate position department of stoving case one side lateral wall, the intermediate position department of stoving case opposite side lateral wall is provided with the inlet pipe, the inside movable mounting of stoving case has three pivots, three equal activity cup joints in the pivot and installs the roller, the roof fixed mounting of stoving incasement portion has the cover of breathing in, the intermediate position department fixed mounting at stoving roof has the air exhauster, the bottom of air exhauster is provided with the breathing pipe, the bottom of breathing pipe with the cover of breathing in is connected, one side of air exhauster is provided with the outlet duct, the top fixed mounting of stoving case has the rose box, the outlet duct with the inside intercommunication of rose box realizes thermal utilization, but the inventor discovery, when drying in this application, the incasement communicates with each other with an external environment by a large scale, leads to the heat of stoving incasement to run off in a large amount easily, especially the setting of discharge gate, and the outside cold air very easily gets into the stoving incasement when drying, has reduced the efficiency of stoving.
SUMMERY OF THE UTILITY MODEL
In view of this, the utility model aims at providing an elastic filament drying device to improve the efficiency of drying.
Based on the above object, the utility model provides an elastic filament drying device, a serial communication port, include:
the two sides of the upper end surface of the workbench are respectively fixed with two parallel side plates, and the side plates are perpendicular to the workbench;
the drying box is arranged between the two side plates, the upper end of the drying box is open, and a plurality of dryers are fixed on the inner wall of the drying box;
the opening plate can be arranged on the upper side of the drying box in a closing manner, the upper end face of the opening plate is connected with an electric telescopic rod, a top plate is fixed at the top end of the electric telescopic rod, two ends of the top plate are respectively fixed on the side plates on two sides, and a pressing roller is movably arranged beside the lower end face of the opening plate;
the transfer roller is provided with two, two the transfer roller sets up respectively in the outside both sides of stoving case and all parallels with the pressure roller, and the tip of two transfer rollers all the transmission is connected with driving motor, driving motor fixes in the side curb plate outside.
As an alternative embodiment, two ends of the pressing roller are respectively rotatably sleeved with two pressing bearings, a first pressing plate is fixed to the upper end of the outer side portion of each pressing bearing, a first pressing pad is fixed to the lower end face of the opening plate along the length direction of the pressing roller, and the end of the first pressing plate is fixed to the first pressing pad.
Specifically, the lower end of the outer side portion of each pressing bearing is fixedly provided with a second pressing plate, the lower ends of the two second pressing plates are fixedly connected with a second pressing backing plate, the bottom wall of the drying box on the lower side of the second pressing backing plate is fixedly provided with a pressing barrel which is perpendicular to the second pressing backing plate, the pressing barrel is movably provided with a pressing rod, the top end of the pressing rod is fixed on the lower end face of the second pressing backing plate, two penetrating sliding strip holes are formed in the pressing barrels on the two sides of the bottom end of the pressing rod respectively, two pressing lugs are fixed on the two sides of the bottom end of the pressing rod respectively, the end portion of each pressing lug rotates to be provided with a connecting rod, the lateral portion of each connecting rod rotates to be connected with a supporting rod, the bottom end of each supporting rod is fixed on the bottom wall of the drying box, the other end of each supporting rod rotates to be connected with a push rod, the top end of each push rod rotates to be connected with a plate brush, and the two plate brushes are located on the two sides of each pressing roller respectively.
Furthermore, the lateral part of catch bar slides and is cup jointed vertical sliding sleeve, sliding sleeve's outside portion and the inner wall fixed connection of stoving case.
As an optional implementation manner, two first switching rollers are movably arranged at the top ends of two opposite side walls in the drying box respectively, the two first switching rollers are parallel to the pressing roller and are located on two sides of the pressing roller respectively, two second switching rollers are movably arranged at the edge portions of two ends of the open plate respectively, and the two second switching rollers are parallel to the first switching rollers.
Specifically, the end portion of the top end of the side wall of the drying box on the upper side of the first transfer roller is provided with a first transfer groove, and the lower end face of the opening plate beside the second transfer roller is provided with a second transfer groove adaptive to the position of the first transfer groove.
The utility model provides a pair of stretch yarn drying device, when drying, set up the stretch yarn of treating the stoving on the transfer roller, the stretch yarn tail end is around rolling up on another transfer roller, the stretch yarn lateral part supports and presses the lower side portion at the pressure roller, electric telescopic handle extension drives the pressure roller and pushes down, make the lateral part of stretch yarn press to the stoving incasement, the uncovered portion of uncovered board to the stoving case seals, it dries to the stoving silk to start the drying-machine, driving motor drive transfer roller rolls up the stretch yarn tail end simultaneously and winds, realize the continuous stoving to the stretch yarn, the thermal saving to the stoving incasement is realized to the sealing of uncovered board, prevent that the heat from running off in a large number, the efficiency of drying is improved.
Drawings
In order to more clearly illustrate the technical solutions of the present invention or the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only the present invention, and those skilled in the art can obtain other drawings without creative efforts.

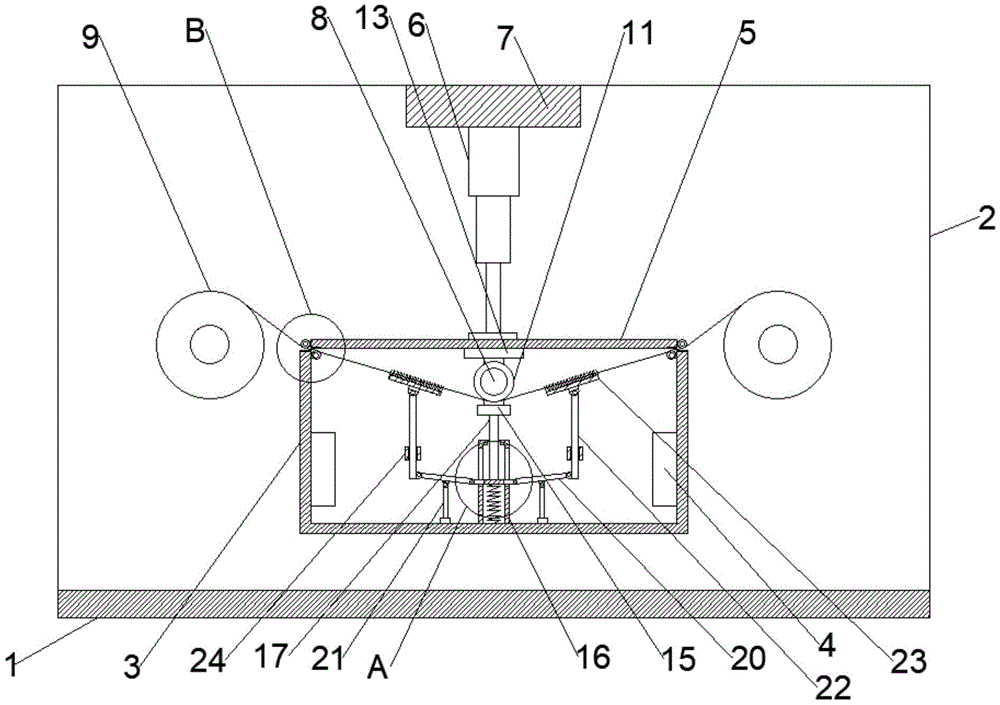

Fig. 1 is a schematic view of an elastic yarn drying device according to an embodiment of the present invention;
FIG. 2 is a schematic view of a portion A of FIG. 1 according to an embodiment of the present invention;
FIG. 3 is a schematic view of a portion B in FIG. 1 according to an embodiment of the present invention;
fig. 4 is a side view of the stretch yarn drying device in the embodiment of the present invention;
fig. 5 is a schematic structural view of the pressing roller according to the embodiment of the present invention.
Labeled in the figure as:
1. a work table; 2. a side plate; 3. drying box; 4. a dryer; 5. an open plate; 6. an electric telescopic rod; 7. a top plate; 8. pressing the roller; 9. a conveying roller; 10. a drive motor; 11. pressing the bearing; 12. a first pressure plate; 13. a first pressure pad; 14. a second pressure plate; 15. a second pressing backing plate; 16. pressing the cylinder; 17. pressing the rod; 18. a sliding bar hole; 19. pressing the lug; 20. a connecting rod; 21. a support bar; 22. a push rod; 23. scrubbing; 24. a sliding sleeve; 25. a first transfer roller; 26. a second transfer roller; 27. a first transfer groove; 28. a second switching groove.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the following embodiments.
It should be noted that unless otherwise defined, technical terms or scientific terms used herein should have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The use of "first," "second," and similar terms in the description herein do not denote any order, quantity, or importance, but rather the terms are used to distinguish one element from another. The word "comprising" or "comprises", and the like, means that the element or item preceding the word comprises the element or item listed after the word and its equivalent, but does not exclude other elements or items. The terms "connected" or "coupled" and the like are not restricted to physical or mechanical connections, but may include electrical connections, whether direct or indirect. "upper", "lower", "left", "right", and the like are used merely to indicate relative positional relationships, and when the absolute position of the object being described is changed, the relative positional relationships may also be changed accordingly.
Based on the above object, the utility model provides an elastic filament drying device, a serial communication port, include:
the device comprises a workbench 1, wherein two parallel side plates 2 are respectively fixed on two sides of the upper end surface of the workbench 1, and the side plates 2 are perpendicular to the workbench 1;
the drying box 3 is arranged between the two side plates 2, the upper end of the drying box 3 is open, and a plurality of dryers 4 are fixed on the inner wall of the drying box 3;
the drying box comprises an opening plate 5, a drying box 3 opening part capable of being closed is arranged on the upper side of the drying box 3, the upper end face of the opening plate 5 is connected with an electric telescopic rod 6, the top end of the electric telescopic rod 6 is fixed with a top plate 7, two ends of the top plate 7 are respectively fixed on side plates 2 on two sides, and a pressing roller 8 is movably arranged beside the lower end face of the opening plate 5;
conveying roller 9 is provided with two, two conveying roller 9 sets up both sides outside stoving case 3 respectively and all parallels with pressure roller 8, and the tip of two conveying rollers 9 all the transmission is connected with driving motor 10, driving motor 10 is fixed in the side curb plate 2 outside.
The utility model provides a pair of stretch yarn drying device, when drying, set up the stretch yarn of treating the stoving on transfer roller 9, the stretch yarn tail end is around rolling up on another transfer roller 9, the stretch yarn lateral part supports to press at the lower side portion of pressing roller 8, 6 extensions of electric telescopic handle drive the pressing roller 8 and push down, make the lateral part of stretch yarn press to stoving case 3 in, uncovered board 5 seals stoving case 3's uncovered portion, start-up drying-machine 4 dries the stoving silk, driving motor 10 drives 9 rolls up the stretch yarn tail ends of transfer roller and convolutes simultaneously, realize the continuous stoving of stretch yarn, the thermal saving in stoving case 3 is realized to the sealed realization of uncovered board 5, prevent that the heat from running off in a large number, the efficiency of drying is improved.
After the stoving finishes, electric telescopic handle 6 withdraws, drives 5 upward movements of uncovered board, opens the uncovered portion of stoving case 3 for steam scatters, and the operating personnel of being convenient for arranges stoving case 3.
As an alternative embodiment, two pressing bearings 11 are rotatably sleeved on both ends of the pressing roller 8, a first pressing plate 12 is fixed to an upper end of an outer side portion of each pressing bearing 11, a first pressing pad 13 is fixed to a lower end surface of the open plate 5 along a length direction of the pressing roller 8, and an end portion of the first pressing plate 12 is fixed to the first pressing pad 13.
Specifically, a second pressing plate 14 is fixed to the lower end of the outer side of each pressing bearing 11, a second pressing pad 15 is fixedly connected to the lower ends of the two second pressing plates 14, a pressing cylinder 16 which is perpendicular to the lower side of the second pressing pad 15 is fixed to the bottom wall of the drying oven 3 inside the drying oven, a pressing rod 17 is movably arranged inside the pressing cylinder 16, the top end of the pressing rod 17 is fixed to the lower end face of the second pressing pad 15, two penetrating sliding strip holes 18 are formed in the pressing cylinders 16 on the two sides of the bottom end of the pressing rod 17 respectively, two pressing lugs 19 are fixed to the two sides of the bottom end of the pressing rod 17 respectively, a connecting rod 20 is rotatably arranged at the end of each pressing lug 19, the side of each connecting rod 20 is rotatably connected with a supporting rod 21, the bottom end of each supporting rod 21 is fixed to the bottom wall of the drying oven 3, the other end of each supporting rod 21 is rotatably connected with a pushing rod 22, the top end of each pushing rod 22 is rotatably connected with a plate brush 23, and the two plate brushes 23 are located on the two sides of each pressing roller 8 respectively.
Further, a vertical sliding sleeve 24 is slidably sleeved on the side portion of the push rod 22, and the outer side portion of the sliding sleeve 24 is fixedly connected with the inner wall of the drying box 3.
When the electric telescopic rod 6 extends and dries, the second pressing backing plate 15 presses the pressing rod 17 to move downwards, the connecting rods 20 on two sides are driven to rotate, the connecting rods 20 rotate under the support of the supporting rod 21, the end parts of the connecting rods drive the scrubbing brushes 23 to move upwards, the elastic belt is pressed downwards in cooperation with the pressing rollers 8, the brushing parts of the scrubbing brushes 23 abut against the side parts of the elastic belt, in the process of rolling the elastic belt without stop, the scrubbing brushes 23 brush the surface of the elastic belt, the flowing slurry and dye are brushed, the flowing slurry and dye are removed, and the efficiency of surface drying of the elastic belt is further improved.
As an optional embodiment, two first switching rollers 25 are movably disposed at the top ends of two opposite side walls in the drying box 3, the two first switching rollers 25 are both parallel to the pressing roller 8 and are respectively located at two sides of the pressing roller 8, two second switching rollers 26 are movably disposed at the edge portions of two ends of the opening plate 5, and the two second switching rollers 26 are both parallel to the first switching rollers 25.
Specifically, a first switching groove 27 is formed in the end portion of the top end of the side wall of the drying box 3 on the upper side of the first switching roller 25, and a second switching groove 28 corresponding to the first switching groove 27 is formed in the lower end surface of the open plate 5 beside the second switching roller 26.
The first and second transfer rollers 25 and 26 transfer the elastic band to prevent friction from being generated on the drying box 3 and the open plate 5, and the first and second transfer grooves 27 and 28 pass the elastic band therethrough.
Those of ordinary skill in the art will understand that: the discussion of any embodiment above is meant to be exemplary only, and is not intended to suggest that the scope of the invention (including the claims) is limited to these examples; within the idea of the invention, also technical features in the above embodiments or in different embodiments can be combined, steps can be implemented in any order, and there are many other variations of the different aspects of the invention as described above, which are not provided in detail for the sake of brevity.
The present invention is intended to embrace all such alternatives, modifications and variances which fall within the broad scope of the appended claims. Therefore, any omission, modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (6)
1. The utility model provides an elastic yarn drying device which characterized in that includes:
the two sides of the upper end surface of the workbench are respectively fixed with two parallel side plates, and the side plates are perpendicular to the workbench;
the drying box is arranged between the two side plates, the upper end of the drying box is open, and a plurality of dryers are fixed on the inner wall of the drying box;
the opening plate can be arranged on the upper side of the drying box in a closing manner, the upper end face of the opening plate is connected with an electric telescopic rod, a top plate is fixed at the top end of the electric telescopic rod, two ends of the top plate are respectively fixed on the side plates on two sides, and a pressing roller is movably arranged beside the lower end face of the opening plate;
the transfer roller is provided with two, two the transfer roller sets up respectively in the outside both sides of stoving case and all parallels with the pressure roller, and the tip of two transfer rollers all the transmission is connected with driving motor, driving motor fixes in the side curb plate outside.
2. The stretch yarn drying device according to claim 1, wherein two ends of the pressing roller are rotatably sleeved with two pressing bearings respectively, a first pressing plate is fixed to an upper end of an outer side portion of each pressing bearing, a first pressing backing plate is fixed to a lower end surface of the opening plate along a length direction of the pressing roller, and an end portion of the first pressing plate is fixed to the first pressing backing plate.
3. The stretch yarn drying device according to claim 2, wherein a second pressing plate is fixed to the lower end of the outer side portion of each pressing bearing, a second pressing backing plate is fixedly connected to the lower ends of the two second pressing plates, a vertical pressing barrel is fixed to the bottom wall of the drying oven on the lower side of the second pressing backing plate, a pressing rod is movably arranged in the pressing barrel, the top end of the pressing rod is fixed to the lower end face of the second pressing backing plate, two sliding strip holes penetrating through the pressing barrel are formed in the pressing barrel on the two sides of the bottom end of the pressing rod respectively, two pressing lugs are fixed to the two sides of the bottom end of the pressing rod respectively, a connecting rod is rotatably arranged at the end portion of each pressing lug, a supporting rod is rotatably connected to the side portion of the connecting rod, the bottom end of the supporting rod is fixed to the bottom wall of the drying oven, a pushing rod is rotatably connected to the other end of the supporting rod, a plate brush is rotatably connected to the top end of the pushing rod, and the two plate brushes are located on the two sides of the pressing rollers respectively.
4. The stretch yarn drying device as claimed in claim 3, wherein a vertical sliding sleeve is slidably sleeved on a side of the pushing rod, and an outer side of the sliding sleeve is fixedly connected with an inner wall of the drying box.
5. The stretch yarn drying device according to claim 1, wherein two first switching rollers are movably arranged at the top ends of two opposite side walls in the drying box respectively, the two first switching rollers are parallel to the pressing roller and are respectively positioned at two sides of the pressing roller, two second switching rollers are movably arranged at the edge portions of two ends of the open plate respectively, and the two second switching rollers are parallel to the first switching rollers.
6. The stretch yarn drying device according to claim 5, wherein a first transfer groove is formed at the top end of the side wall of the drying box at the upper side of the first transfer roller, and a second transfer groove corresponding to the first transfer groove is formed on the lower end surface of the open plate at the side of the second transfer roller.
