CN217834095U - Pit is used in fused brick production with supplementary lifting mechanism - Google Patents
Pit is used in fused brick production with supplementary lifting mechanism Download PDFInfo
- Publication number
- CN217834095U CN217834095U CN202221296572.5U CN202221296572U CN217834095U CN 217834095 U CN217834095 U CN 217834095U CN 202221296572 U CN202221296572 U CN 202221296572U CN 217834095 U CN217834095 U CN 217834095U
- Authority
- CN
- China
- Prior art keywords
- pit
- guide rail
- pit body
- mould
- brick
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Vertical, Hearth, Or Arc Furnaces (AREA)
Abstract
The utility model discloses a pit is used in production of electric smelting brick with supplementary lifting mechanism, include: the pit comprises a pit body, wherein a guide rail mechanism is arranged at the bottom of the pit body along the length direction of the pit body, and a mould seat is arranged on the guide rail mechanism in a sliding manner; lifting mechanisms are symmetrically arranged on two sides of the die seat, and an electric melting brick die is arranged between the top ends of the lifting mechanisms on the two sides of the die seat; the mould seat is internally provided with an adjusting mechanism, and when the mould seat slides to one end of the pit body from the guide rail mechanism, the adjusting mechanism drives the lifting mechanism to drive the electric smelting brick mould to be internally arranged in the pit body in a passive mode. The utility model discloses in, when the mould seat slides to the pit body other end from guide rail mechanism, adjustment mechanism driven type drive elevating system drives the protruding pit body outside that extends of electric smelting brick mould, when avoiding hoist and mount to transport with the unexpected collision of electric smelting furnace, drives the protruding pit body outside that extends of electric smelting brick mould simultaneously for electric smelting brick mould goes up and down to transport convenient operation in to the pit body.
Description
Technical Field
The utility model relates to an electric smelting brick production technical field especially relates to pit is used in electric smelting brick production with supplementary lifting mechanism.
Background
As is known, an electric melting brick is a white solid formed by melting pure alumina powder and zircon sand containing zirconia and silica in an electric melting furnace, injecting the molten mixture into a mold, and cooling the mold. Wherein the pit is used in the electric smelting brick production for seting up the pit in electric smelting furnace liquid outlet one side, and it is used for embedded electric smelting brick placing mould to can make the electric smelting furnace can directly empty and pour into pouring liquid through the liquid outlet to electric smelting brick placing mould.
Present pit for the production of electric smelting brick is directly set up in the groove structure on ground, though make the electric melting furnace directly empty and pour into pouring liquid through the liquid outlet to electric smelting brick casting die, but get in the pit and put electric smelting brick casting die and need cooperate lifting device to carry out the lifting operation, the pit need be close so that directly empty the pouring liquid with the electric melting furnace simultaneously, easily during hoist and mount with the unexpected collision of electric melting furnace, it is inconvenient to lead to hoist and mount the operation of transporting, influence work efficiency.
SUMMERY OF THE UTILITY MODEL
The invention aims to provide a pit for producing an electric melting brick with an auxiliary lifting mechanism, so as to solve the defects in the prior art.
In order to achieve the above purpose, the utility model adopts the following technical scheme: pit is used in production of electric smelting brick with supplementary lifting mechanism includes: the pit comprises a pit body, wherein a guide rail mechanism is arranged at the bottom of the pit body along the length direction of the pit body, and a mould seat is arranged on the guide rail mechanism in a sliding manner; lifting mechanisms are symmetrically arranged on two sides of the die base, and an electric melting brick die is arranged between the top ends of the lifting mechanisms on the two sides of the die base; and when the die base slides to one end of the pit body from the guide rail mechanism, the adjusting mechanism drives the lifting mechanism to drive the electric melting brick die to be embedded in the pit body in a passive mode.
As a further description of the above technical solution:
the guide rail mechanism comprises a guide rail frame arranged at the bottom of the pit body, the die base is arranged on the surface of the guide rail frame in a sliding mode, an adjusting screw rod is arranged on the guide rail frame in a rotating mode, and the adjusting screw rod penetrates through the die base in a threaded mode.
As a further description of the above technical solution:
the lifting mechanism comprises side frames which are vertically fixed on two sides of the die seat, sleeve frames are arranged on the side frames in a sliding adjusting mode, and cross frames are fixed on the sleeve frames.
As a further description of the above technical solution:
the side of the electric melting brick mould is provided with a guide rail groove, and the cross frame is embedded in the guide rail groove in a sliding manner.
As a further description of the above technical solution:
the adjusting mechanism comprises a rotating shaft, the rotating shaft is rotatably connected to the side edge of the die base, and a first adjusting gear and a second adjusting gear are fixedly sleeved on the rotating shaft.
As a further description of the above technical solution:
the guide rail mechanism is provided with a first adjusting rack, the first adjusting rack is meshed with a first adjusting gear, the sleeve frame is provided with a second adjusting rack, and the second adjusting rack is meshed with a second adjusting gear.
As a further description of the above technical solution:
and adjusting grooves matched with the sleeve frame for lifting adjustment are formed in the bottom of the pit body along two sides of the length direction of the pit body.
The utility model provides a pit is used in production of electric smelting brick with supplementary lifting mechanism. The method has the following beneficial effects:
this pit is used in fused brick production with supplementary lifting mechanism carries out sliding adjustment through set up guide rail mechanism drive mould seat in the pit body, and install the fused brick mould through elevating system on the mould seat, be provided with adjustment mechanism on the mould seat simultaneously, realize that the mould seat slides to pit body one end from guide rail mechanism, adjustment mechanism passive form drive elevating system drives the fused brick mould and embeds in the pit body, the mould seat slides to the pit body other end from guide rail mechanism when, adjustment mechanism passive form drive elevating system drives the protruding to the pit body outside of fused brick mould, when avoiding hoist and mount to transport with the electric melting furnace accident collision, drive the protruding body outside of pit of fused brick mould simultaneously, make the fused brick mould go up and down to transport convenient operation in to the pit body, and the work efficiency is improved.
Drawings

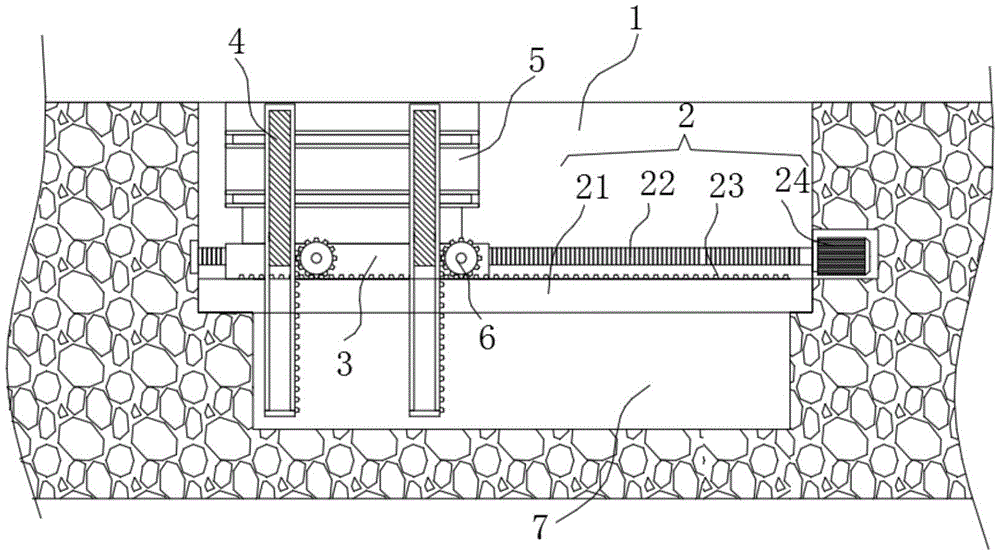

Fig. 1 is a schematic view of a state of the electric melting brick production pit with an auxiliary lifting mechanism during pouring;
fig. 2 is a schematic view of a state of the pit for producing the electric melting brick with the auxiliary lifting mechanism of the present invention during transportation;
fig. 3 is a schematic view of an assembly structure of the electric melting brick mold and the lifting mechanism of the present invention;
fig. 4 is a schematic structural diagram of the adjusting mechanism of the present invention.
Illustration of the drawings:
1. a pit body; 2. a guide rail mechanism; 21. a guide rail bracket; 22. adjusting the screw rod; 23. a first adjusting rack; 24. a rail motor; 3. a mold base; 4. a lifting mechanism; 41. a side frame; 42. sleeving a frame; 43. a second adjusting rack; 44. a transverse frame; 5. electric melting brick mould; 51. a guide rail groove; 6. an adjustment mechanism; 61. a rotating shaft; 62. a first adjusting gear; 63. a second adjusting gear; 7. and adjusting the groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 4, a pit for producing an electrofused brick with an auxiliary lifting mechanism includes: the pit comprises a pit body 1, wherein a guide rail mechanism 2 is arranged at the bottom of the pit body 1 along the length direction of the pit body, and a mould seat 3 is arranged on the guide rail mechanism 2 in a sliding manner; lifting mechanisms 4 are symmetrically arranged on two sides of the mold base 3, and an electric melting brick mold 5 is arranged between the tops of the lifting mechanisms 4 on the two sides of the mold base 3; be provided with adjustment mechanism 6 in the mould seat 3, when mould seat 3 slided to pit body 1 one end from guide rail mechanism 2, adjustment mechanism 6 driven type drive elevating system 4 drove the electric smelting brick mould 5 and is built-in pit body 1. The embodiment provides a pit is used in production of electric smelting brick with supplementary lifting mechanism, wherein, pit body 1 is for seting up at subaerial rectangle groove structure, pit body 1's one end ground is for pouring the operation station, it installs the electric smelting stove, pit body 1's the other end is for transporting the operation station to electric smelting brick mould 5, through set up guide rail mechanism 2 drive mould seat 3 in pit body 1 and carry out slide adjusting, and install electric smelting brick mould 5 through elevating system 4 on the mould seat 3, still be provided with adjustment mechanism 6 on the mould seat 3 simultaneously, realize that mould seat 3 slides to pit body 1 one end from guide rail mechanism 2 when (pour the operation station), adjustment mechanism 6 drives electric smelting brick mould 5 and embeds in pit body 1 by driven formula drive elevating system 4, thereby can make the electric smelting stove directly empty to pour to electric smelting brick mould 5 with the cooperation pouring mouth, mould seat 3 slides to pit body 1 other end from guide rail mechanism 2 when (transport the operation station), adjustment mechanism 6 drives electric smelting brick mould 5 to pour the protruding formula of pouring and pour the mould 5 outside, thereby realize protruding collision of electric smelting brick mould of pouring, pit body and the electric smelting brick outside of hanging, make things convenient for the electric smelting pit body to lift the electric smelting to lift the operation of lifting and lift the electric smelting, the operation of hoisting the pit structure, the electric smelting brick outside of keeping away from the electric smelting, the electric smelting brick mould structure, the electric smelting is improved the operation when the electric smelting brick mould 2 simultaneously.
The guide rail mechanism 2 comprises a guide rail frame 21 arranged at the bottom of the pit body 1, the die base 3 is arranged on the surface of the guide rail frame 21 in a sliding mode, an adjusting screw rod 22 is arranged on the guide rail frame 21 in a rotating mode, and the adjusting screw rod 22 penetrates through the die base 3 in a threaded mode. Still include guide rail motor 24, guide rail motor 24 sets up the one end at pit body 1, and guide rail motor 24 is connected with accommodate the lead screw 22 transmission through the reduction gear, and when guide rail mechanism 2 drove mould seat 3 and carries out slide adjusting, drives accommodate the lead screw 22 through guide rail motor 24 and rotates, and accommodate the lead screw 22 drive mould seat 3 and carry out linear slide adjusting at guide rail frame 21.
The lifting mechanism 4 comprises side frames 41 vertically fixed on two sides of the die base 3, a sleeve frame 42 is slidably adjusted on the side frames 41, and a cross frame 44 is fixed on the sleeve frame 42. The bottom of the pit body 1 is provided with adjusting grooves 7 along two sides of the length direction thereof, and the adjusting grooves are used for being matched with the sleeve frame 42 to be adjusted in a lifting way. The side edge of the electric melting brick mould 5 is provided with a guide rail groove 51, and the cross frame 44 is embedded in the guide rail groove 51 in a sliding way. Specifically, the sleeve frame 42 is slidably sleeved on the side frame 41, the cross frame 44 is horizontally fixed on the sleeve frame 42, the cross frame 44 is slidably embedded in a guide rail groove 51 on the side of the electric melting brick mold 5, wherein limiting nuts are spirally connected to two ends of the guide rail groove 51, so that the electric melting brick mold 5 is prevented from sliding and deviating on the cross frame 44 during sliding adjustment.
The adjusting mechanism 6 comprises a rotating shaft 61, the rotating shaft 61 is rotatably connected to the side edge of the die holder 3, and a first adjusting gear 62 and a second adjusting gear 63 are fixedly sleeved on the rotating shaft 61. The guide rail mechanism 2 is provided with a first adjusting rack 23, the first adjusting rack 23 is meshed with a first adjusting gear 62, the sleeve frame 42 is provided with a second adjusting rack 43, and the second adjusting rack 43 is meshed with a second adjusting gear 63.
The working principle is as follows: the adjusting screw rod 22 is driven to rotate by the guide rail motor 24, the adjusting screw rod 22 drives the die holder 3 to perform linear sliding adjustment on the guide rail frame 21, when the die holder 3 is adjusted in a linear sliding manner on the guide rail frame 21, the first adjusting gear 62 on the rotating shaft 61 rotatably connected with the die holder 3 is meshed with the first adjusting rack 23 on the guide rail mechanism 2 for transmission so as to drive the first adjusting gear 62 to rotate, the first adjusting gear 62 is matched with the rotating shaft 61 to drive the second adjusting gear 63 to rotate, the second adjusting gear 63 drives the sleeve frame 42 to perform lifting movement along the side frame 41 through the second adjusting rack 43, so that the die holder 3 slides from the guide rail mechanism 2 to one end of the ground body 1 (pouring operation station), adjustment mechanism 6 passive form drive elevating system 4 drives electric smelting brick mould 5 and embeds in pit body 1, thereby can make the electric smelting furnace directly empty and pour the mouth and pour to electric smelting brick mould 5 with the cooperation, mould seat 3 slides when 1 other end of pit body (transport the operation station) from guide rail mechanism 2, adjustment mechanism 6 passive form drive elevating system 4 drives the protruding outside of protruding to pit body 1 of electric smelting brick mould 5, thereby the realization is kept away from the pit and is pour one end and keep away from the electric smelting furnace promptly, with the unexpected collision of electric smelting furnace when avoiding hoist and mount to transport, drive the protruding outside of pit body 1 of protruding to of electric smelting brick mould 5 simultaneously, make and go up and down to transport convenient operation at the electric smelting brick mould in to the pit body, and the work efficiency is improved.
Claims (7)
1. Pit is used in production of electric smelting brick with supplementary lifting mechanism includes: pit body (1), its characterized in that:
a guide rail mechanism (2) is arranged at the bottom of the pit body (1) along the length direction of the pit body, and a mould seat (3) is arranged on the guide rail mechanism (2) in a sliding manner;
lifting mechanisms (4) are symmetrically arranged on two sides of the die base (3), and an electric melting brick die (5) is arranged between the top ends of the lifting mechanisms (4) on the two sides of the die base (3);
be provided with adjustment mechanism (6) in mould seat (3), when mould seat (3) slide to pit body (1) one end from guide rail mechanism (2), adjustment mechanism (6) passive form drive elevating system (4) drive fused brick mould (5) and embed in pit body (1).
2. A pit with auxiliary lifting mechanism for electric smelting brick production according to claim 1, wherein the guide rail mechanism (2) comprises a guide rail frame (21) arranged at the bottom of the pit body (1), the mold base (3) is slidably arranged on the surface of the guide rail frame (21), an adjusting screw rod (22) is rotatably arranged on the guide rail frame (21), and the adjusting screw rod (22) is threaded through the mold base (3).
3. A pit for fused brick production with an auxiliary lifting mechanism according to claim 1, wherein the lifting mechanism (4) comprises side frames (41) vertically fixed on both sides of the mould base (3), and a sleeve frame (42) is slidably adjusted on the side frames (41), and a cross frame (44) is fixed on the sleeve frame (42).
4. A pit for electric melting brick production with an auxiliary lifting mechanism according to claim 3, wherein a guide rail groove (51) is formed in the side edge of the electric melting brick mold (5), and the cross frame (44) is slidably embedded in the guide rail groove (51).
5. A pit for fused brick production with an auxiliary lifting mechanism according to claim 3, wherein the adjusting mechanism (6) comprises a rotating shaft (61), the rotating shaft (61) is rotatably connected to the side of the mold base (3), and a first adjusting gear (62) and a second adjusting gear (63) are fixedly sleeved on the rotating shaft (61).
6. A pit with an auxiliary lifting mechanism for production of electric melting bricks according to claim 5, wherein the guide rail mechanism (2) is provided with a first adjusting rack (23), the first adjusting rack (23) is engaged with a first adjusting gear (62), the jacket frame (42) is provided with a second adjusting rack (43), and the second adjusting rack (43) is engaged with a second adjusting gear (63).
7. A pit for electric smelting brick production with an auxiliary lifting mechanism according to claim 3, characterized in that bottom of pit body (1) is equipped with adjusting grooves (7) along both sides of its length direction for use in cooperation with lifting adjustment of jacket frame (42).
